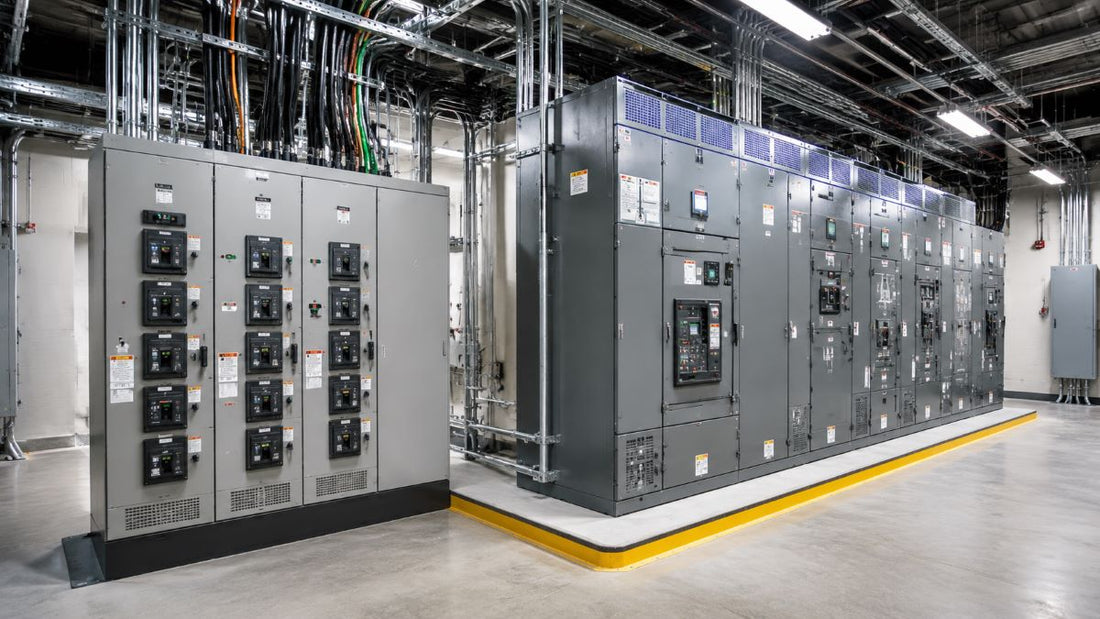

What Is Switchgear vs Switchboard?

Switchgear and switchboards are both electrical distribution assemblies, large enclosures that take incoming power and split it out to downstream circuits through protective breakers, and at a glance they can look like the same thing. They aren't. A switchboard is the compact, cost-effective workhorse of commercial power distribution, while switchgear is the heavier-duty, more serviceable, higher-fault-rated tier built for mission-critical and industrial systems. The differences in breaker type, construction, voltage, fault rating, and maintainability determine which one a project actually needs. This guide explains each and how to choose, along with the power distribution components that populate them.

Where They Sit in the System

Both assemblies occupy the same place in the electrical hierarchy: power comes from the utility or a transformer into the main distribution equipment (a switchboard or switchgear), which feeds panelboards, which feed branch circuits, which feed the loads. It helps to see the three main assembly tiers, each defined by its own UL standard and each a step up in capacity, fault withstand, and cost. Panelboards (UL 67) are the compact, wall-mounted units that protect branch circuits up to about 1,200 amps. Switchboards (UL 891) are freestanding distribution equipment handling up to about 6,000 amps for commercial and light-industrial buildings. Switchgear (UL 1558) is the top tier, up to about 10,000 amps, for mission-critical environments. Switchgear and switchboards do the same job at very different levels of robustness.

Switchgear vs Switchboard at a Glance

Switchboard (UL 891)

A switchboard is a dead-front distribution assembly built to UL 891, operating at up to 600 volts and up to roughly 6,000 amps. Its protective devices are fixed, group-mounted molded-case circuit breakers (tested to UL 489) or insulated-case breakers, arranged on an open, non-insulated busbar with relatively small clearances. It carries a minimum three-cycle short-circuit withstand rating, which suits the less extreme fault conditions of commercial and light-industrial buildings. Physically it's compact and shallow (often under 1.3 meters deep), accessed from the front, with cables entering through the bottom. Those qualities, cost-efficiency, feeder density, and a small footprint, make the switchboard the most common low-voltage distribution equipment in offices, schools, retail, and service-entrance applications.

Switchgear (UL 1558)

Switchgear is a metal-enclosed assembly built to UL 1558 (and the IEEE C37 family), and its whole design philosophy is reliability and maintainability. Its breakers are draw-out power circuit breakers (tested to UL 1066), each housed in its own individually isolated, metal-enclosed compartment, sitting on an insulated busbar with greater clearances. It carries a 30-cycle short-time withstand rating, far more robust fault tolerance that also enables selective coordination in demanding systems, and it comes in low-voltage versions up to 1,000 volts as well as medium-voltage versions reaching around 38 kV. Switchgear is larger and deeper (typically 1.8 meters or more), accessed from both front and rear, and available in arc-resistant designs. It costs more and takes more space, and it's specified for data centers, hospitals, industrial plants, utilities, and any system where reliability and fault performance are paramount.

The Key Differences That Decide It

Breaker type: fixed vs draw-out

This is the defining distinction. A switchboard uses fixed, bolted-in breakers, so servicing or replacing one generally means shutting down and partly dismantling that section. Switchgear uses draw-out breakers that rack out of their compartments, so a single breaker can be removed and serviced without disturbing the rest of the assembly.

Compartmentalization and busbar

A switchboard's breakers share an open, non-insulated bus, so a fault or an arc event has less to contain it. Switchgear isolates each breaker in its own compartment and uses an insulated bus with wider clearances, which contains faults, improves arc-flash safety, and keeps a problem in one compartment from cascading.

Voltage and fault rating

Switchboards stay at 600 volts and below with a three-cycle withstand. Switchgear reaches medium voltage and carries a 30-cycle short-time withstand with higher interrupting and short-circuit-current ratings, which is what makes it suitable for high-fault-current services and for achieving selective coordination between devices.

Maintainability

Because of the draw-out breakers and compartments, switchgear supports live maintenance, working on one breaker while the rest of the board stays energized. A switchboard's fixed construction typically requires de-energizing to service, meaning more downtime.

Why Maintainability Justifies the Cost

The maintainability difference is usually the deciding factor, and it's worth dwelling on. In a switchgear lineup, you can rack out and service or replace a single breaker while every other circuit keeps running, so maintenance never means a facility-wide shutdown. In a switchboard, servicing one fixed breaker generally requires de-energizing the section and disassembly, taking loads offline. For a 24/7 operation, an operating room, a data hall, a continuous manufacturing line, that difference is decisive: the ability to maintain the system without dropping power justifies switchgear's higher cost and larger footprint. For an office building or a school, where a planned after-hours shutdown is perfectly acceptable, a switchboard's economy wins. Match the equipment to how much downtime the facility can tolerate.

Which Should You Choose?

• Choose a switchboard if you're distributing power in a commercial or light-industrial building at 600V or below, cost and floor space matter, the available fault current is moderate, and planned shutdowns for maintenance are acceptable.
• Choose switchgear if the application is mission-critical or heavy-industrial, the fault current is high, you need medium voltage, you require selective coordination, or the facility can't tolerate the downtime that servicing fixed breakers would cause.
• Remember the panelboard tier below both: for branch-circuit distribution up to about 1,200 amps, a wall-mounted panelboard, not a switchboard or switchgear, is the right and economical choice.


The Bottom Line

Switchgear and switchboards both take incoming power and distribute it through protective breakers, but they sit at different levels of robustness. A switchboard (UL 891) uses fixed molded-case breakers on an open bus at up to 600 volts, is compact and cost-effective, and suits commercial and light-industrial distribution. Switchgear (UL 1558) uses draw-out power breakers in individually compartmentalized, insulated enclosures, reaches medium voltage with far higher fault withstand, and is built for mission-critical and industrial systems. The clinching difference is usually maintainability: switchgear lets you service one breaker without shutting down the rest, which is why hospitals, data centers, and continuous plants pay for it, while a switchboard's economy fits buildings that can schedule a shutdown. Choose based on voltage, fault current, criticality, and the downtime the facility can accept, and have the assembly engineered and installed by qualified professionals.
