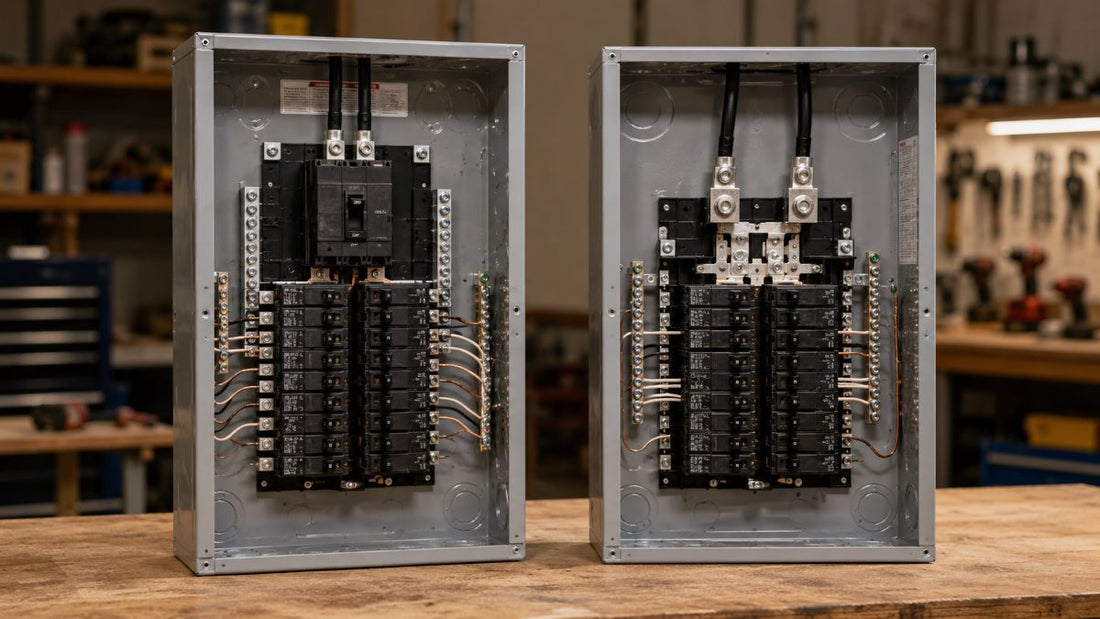

Main Breaker vs Main Lug Panels

A main breaker panel and a main lug panel look similar from the front, both distribute power to a row of branch circuit breakers, but they differ in one critical way: whether the panel itself includes a built-in disconnect and overcurrent protection device, or relies entirely on an upstream breaker somewhere else in the system. Getting that distinction wrong during a panel selection can leave a subpanel with no proper disconnect, or waste money on a redundant main breaker where one already exists upstream. This guide covers how each panel type works, where each one belongs in a system, and the code rules that govern using them correctly.

What a Main Breaker Panel Is

A main breaker panel includes a dedicated main breaker built into the panel itself, typically mounted at the top, center, or bottom and sized larger than the branch breakers around it, commonly rated 100 to 200 amps for residential service. That main breaker does two jobs at once: it provides overcurrent protection for the entire panel and every branch circuit within it, and it gives a single point to shut off all power to the panel in an emergency, during maintenance, or as required by code for a service disconnect. Main breaker panels are the standard choice as a service entrance panel, the point where utility power first enters a building's electrical system.

What a Main Lug Panel Is

A main lug panel has no built-in breaker at all. Incoming power connects directly to the panel's main lugs, large terminal points wired straight to the bus bars, and from there feeds the branch breakers with no overcurrent protection device inside the panel itself. Because it has no way to disconnect or protect itself, a main lug panel depends entirely on an upstream breaker, typically located in a main breaker panel or disconnect switch elsewhere in the system, to provide both functions. This dependency is exactly why main lug panels are almost always used as subpanels rather than as the primary service panel.

Main Breaker vs. Main Lug at a Glance

When to Use a Main Breaker Panel

A main breaker panel is the right choice any time the panel is functioning as a standalone electrical system with no other protective device upstream, most commonly the primary service panel where utility power enters the building. Most homes and commercial buildings require a main breaker by code at this point in the system, both for overcurrent protection of the service conductors and to provide the emergency shutoff capability code expects at the service entrance.

When to Use a Main Lug Panel

A main lug panel makes sense whenever a main breaker already exists upstream, which is the defining condition for a subpanel. A common example: a house has a 200-amp main breaker panel as its primary service panel, and a detached garage or an addition needs its own local panel fed from that main panel through a properly sized feeder breaker. The subpanel in the garage can be a main lug panel, since the feeder breaker back at the main panel already provides the overcurrent protection and disconnect capability the subpanel itself doesn't need to duplicate.

Code Requirements Worth Knowing

• Six-handle rule: if a service disconnect isn't a single main breaker but instead multiple breakers acting together as the service disconnecting means, code limits that arrangement to six operating handles or less; a main lug panel used incorrectly as a service entrance can run into this limit.
• A subpanel still needs a local disconnect: even though a main lug panel doesn't need its own overcurrent protection, code generally requires a way to disconnect the subpanel locally, which may be the feeder breaker at the main panel or, depending on the installation, an additional disconnect near the subpanel itself.
• Bonding differs between the two: a main breaker service panel bonds the neutral and ground together at that single point; a main lug subpanel must keep neutral and ground separate, since the bonding point already exists upstream at the service panel, and bonding them again downstream creates an unwanted parallel path for neutral current.
• Feeder sizing must match the subpanel's rating: the breaker feeding a main lug subpanel from the upstream panel has to be sized correctly for both the feeder conductors and the subpanel's own bus rating, not just the loads the subpanel is expected to carry today.

Converting Between the Two

A main lug panel can sometimes be converted to function as a main breaker panel by adding a main breaker kit rated for that specific panel model, though not every main lug panel is designed to accept one; the panel's bus bar and enclosure have to be compatible with the specific breaker kit. Going the other direction, using a main breaker panel as a subpanel, is possible but typically means either leaving the main breaker permanently on (redundant but harmless) or, in some jurisdictions, requires removing or disabling it, since having two main disconnects in series without a specific reason can complicate troubleshooting and isn't standard practice.

The Bottom Line

The difference comes down to one question: does this panel need to provide its own overcurrent protection and disconnect, or does it already have that protection from an upstream device? A main breaker panel answers yes and is the standard choice for a service entrance or any standalone installation. A main lug panel answers no and depends on an upstream breaker, which is why it's almost always used as a subpanel fed from a main breaker panel elsewhere in the system. Using the wrong one, a main lug panel with no protected upstream feed, or a redundant main breaker panel as a subpanel, either creates a safety gap or adds unnecessary complexity, so matching the panel type to its actual role in the system is worth getting right at the planning stage.
