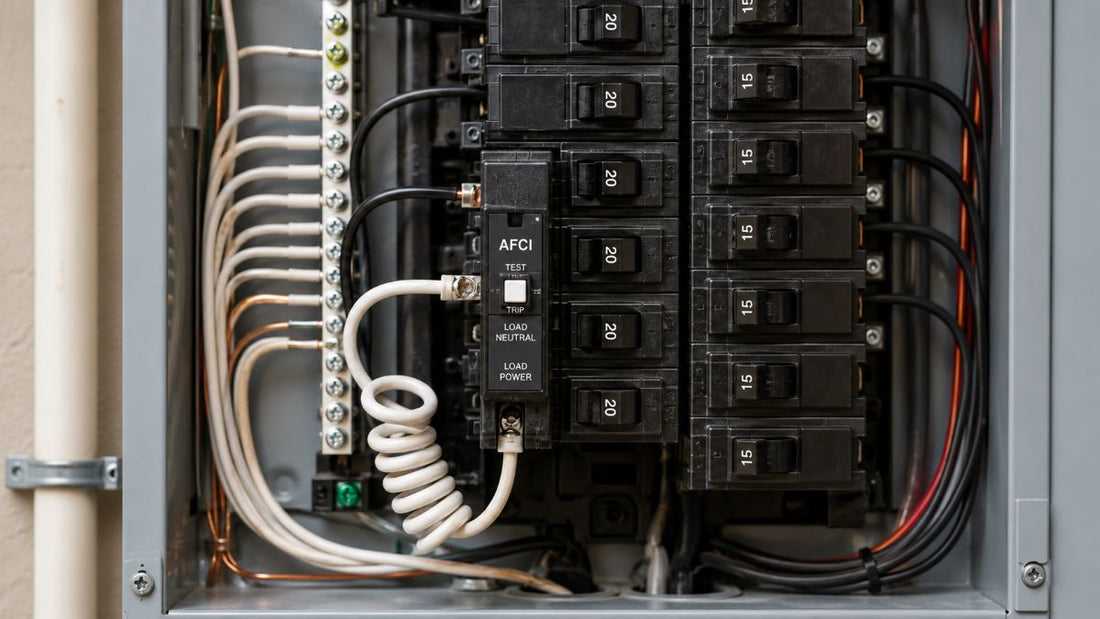

How to Install an AFCI Breaker

An arc-fault circuit interrupter (AFCI) breaker detects the electrical signature of a dangerous arc fault, a common cause of electrical fires, and shuts the circuit down before it ignites anything. Installing one is mechanically similar to any other breaker, with one detail that trips people up every time: the breaker's own neutral pigtail wire needs to land in the panel's neutral bus alongside the circuit's actual neutral, not instead of it. This guide covers where AFCI protection is required, the exact wiring steps, and why a newly installed AFCI breaker sometimes trips right away.

AFCI vs. GFCI: Different Hazards, Different Devices

These two device types are often confused because they look similar and are increasingly combined into a single dual-function breaker, but they protect against entirely different hazards. An AFCI detects the electrical signature of an arc fault, an unintended arc caused by damaged insulation, a nicked wire, or a loose connection, and is fundamentally a fire-prevention device. A GFCI detects current leaking to ground through an unintended path, such as through a person, and is fundamentally a shock-prevention device. A dual-function AFCI/GFCI breaker provides both types of protection from a single device in a single panel slot.

Where NEC 210.12 Requires AFCI Protection

NEC 210.12 requires AFCI protection on 120-volt, 15 and 20-amp branch circuits supplying outlets and devices in virtually all habitable rooms and areas of a dwelling unit, including bedrooms, living rooms, family rooms, dining rooms, kitchens, laundry areas, and similar spaces. The specific list has expanded with successive code cycles, so a circuit that didn't need AFCI protection under an older locally adopted edition may need it under a newer one; checking the specific edition enforced by the local jurisdiction, rather than assuming, is worth doing before starting a project.

Step-by-Step: Installing an AFCI Breaker

• Turn off the main breaker before doing anything inside the panel, and verify there's no voltage present with a meter.
• Remove the existing breaker for the circuit being upgraded, and disconnect the black (hot) wire from it.
• Trace the white (neutral) wire from the same cable back to the neutral bus bar, and disconnect it from the bus.
• Confirm the AFCI breaker is switched off, then loosen its terminal screws.
• Connect the circuit's white wire to the terminal on the breaker labeled "Panel Neutral" or similar (not the coiled pigtail wire that comes attached to the breaker itself).
• Connect the circuit's black wire to the terminal labeled "Load Power" or similar.
• Connect the breaker's own coiled neutral pigtail wire to the neutral bus bar, ideally in the same terminal position the circuit's white wire previously occupied.
• Snap the breaker into its panel slot and confirm every connection is tight before restoring power.
• Restore power and test. Press the breaker's built-in test button to confirm it trips correctly, then reset it to place the circuit back in service.

Why the Pigtail Confuses People

An AFCI breaker needs two separate neutral connections working together: the circuit's actual neutral wire, which lands on the breaker itself (not the bus), and the breaker's own factory-installed pigtail wire, which lands on the panel's neutral bus in place of where the circuit's neutral used to be. Skipping the pigtail connection, or connecting the circuit's neutral directly to the bus as if it were a standard breaker, defeats the AFCI's ability to monitor the circuit correctly and is one of the most common installation mistakes. Some newer panels use plug-on neutral technology, where a compatible breaker clips onto both the hot bus and a neutral rail simultaneously, eliminating the separate pigtail wire; whether a specific panel supports this depends on the panel's own design, not the breaker alone.

Checking Panel Space Before Buying

AFCI breakers are often physically wider than a standard single-pole breaker and require more room in the panel's wiring gutter to accommodate the extra pigtail wire alongside the circuit's own hot and neutral conductors. Before purchasing, confirm there's adequate physical space for the wider breaker and enough open, unused terminals on the neutral bus for the pigtail connection; a panel that's already tightly packed may need a tandem breaker configuration or, in some cases, a small subpanel addition to create the needed room.

Why a New AFCI Breaker Might Trip Immediately

A brand-new AFCI breaker that trips right after installation, or trips repeatedly afterward, is usually flagging a real issue on the circuit rather than a defective breaker:

• Shared neutral (multi-wire branch circuit): a single-pole AFCI breaker requires its own dedicated neutral; if the circuit's neutral is shared with another circuit, the breaker will trip or behave unpredictably. Multi-wire branch circuits need a 2-pole AFCI breaker instead, which monitors both hot conductors and the shared neutral correctly.
• Loose connections: a loose termination anywhere on the circuit, at an outlet, switch, or junction box, can generate the exact electrical signature an AFCI is designed to catch.
• Damaged wire insulation: nicked or aged insulation exposing bare conductor, even without visible sparking, can register as an arc fault.
• A faulty appliance: unplugging everything on the circuit and reconnecting devices one at a time isolates whether a specific appliance, rather than the wiring itself, is the source.

The Bottom Line

Installing an AFCI breaker is mechanically similar to any breaker swap, with one detail that has to be right: the circuit's actual neutral wire lands on the breaker itself, and the breaker's own pigtail wire lands on the panel's neutral bus, not the other way around. Checking panel space and available neutral bus terminals before buying avoids a mid-installation surprise, and a breaker that trips repeatedly after installation is almost always pointing to a real issue, a shared neutral, a loose connection, or a damaged wire, on the circuit itself rather than a defective device. Any splice made along the way should use wire connectors rated for the application, since a poor splice is exactly the kind of loose connection that triggers nuisance trips.
