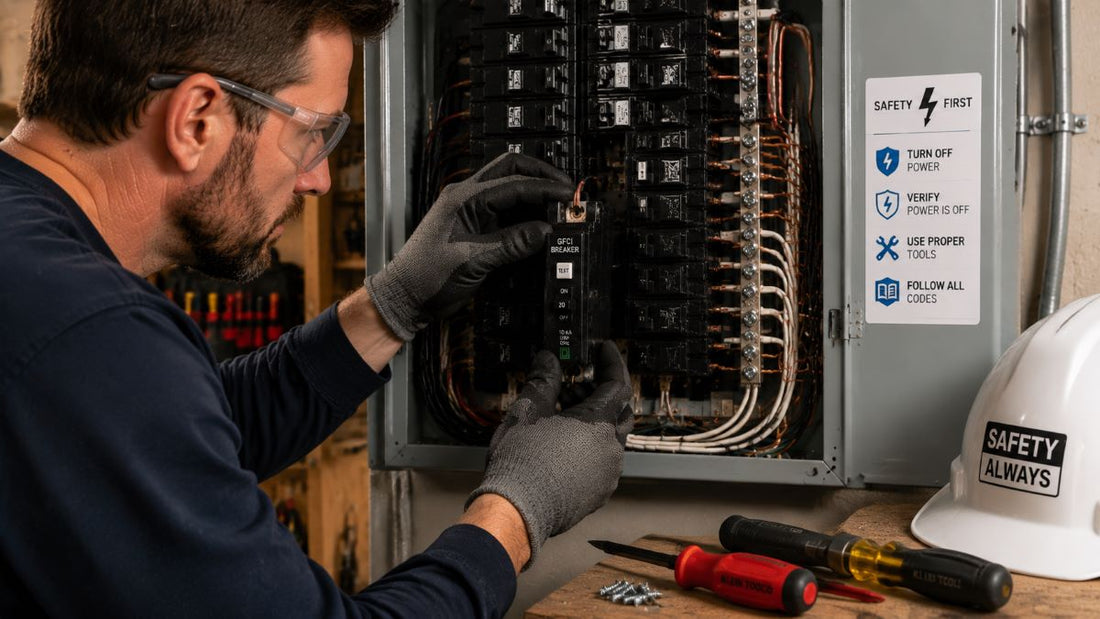

How to Install a GFCI Breaker: A Step-by-Step Guide

A GFCI breaker protects an entire circuit at its source. Instead of putting a ground-fault device at each outlet, one breaker in the panel watches every receptacle, light, and appliance downstream, and it cuts power in a fraction of a second if it senses current leaking to ground. It's the cleanest way to protect a circuit where the outlets would be hard to reach, and it's why GFCI circuit breakers are the go-to solution for bathrooms, garages, outdoor circuits, and pool equipment. Installing one is a straightforward swap on paper, but it happens inside a live electrical panel, and one wiring detail trips up more people than any other. Here's how the job is done properly.

Read This First: Panel Work Is Not a Casual DIY Job

Switching off the main breaker de-energizes the branch circuits, but it does not make the panel safe. The service conductors and the main lugs feeding the panel stay energized until the utility disconnects them, and touching them can be fatal. On top of that, most jurisdictions require a permit for panel work, and some require a licensed electrician outright.

The honest recommendation: if you are not trained and comfortable working inside an energized panel, hire a licensed electrician. This guide explains the process, the correct wiring, and the common failure points, so that whether you do the work or hire it out, you understand what a correct installation looks like.

GFCI Breaker or GFCI Receptacle?

Both provide the same life-safety protection, so the choice is practical. A breaker protects the whole circuit from the panel and sits somewhere you can always reach to reset it, which matters because code requires ground-fault devices to be readily accessible. A GFCI receptacle protects at the outlet and everything wired downstream of it, and it's cheaper. Reach for the breaker when the receptacle would end up behind an appliance, on a ceiling, or in an awkward outdoor box, or when you want every point on the circuit protected without hunting for the right first outlet.

Choosing the Right Breaker

Breakers are not universal, and getting this wrong is the most common purchasing error.

• Match the panel. The breaker must be listed for your specific panel brand and type. A breaker that physically fits is not necessarily approved for that panel, and using an unlisted one voids the listing and can fail inspection.
• Match the amperage and poles. Use the same rating as the breaker you're replacing (commonly 15A or 20A). A 240-volt circuit, or any circuit with a shared neutral, needs a two-pole GFCI.
• Pigtail or plug-on neutral. Most GFCI breakers have a white coiled pigtail. Newer plug-on neutral panels accept breakers that connect to the neutral bus automatically. Buy the type your panel is built for.
• Consider dual-function. Where a circuit needs both ground-fault and arc-fault protection, a single dual-function AFCI/GFCI breaker covers both.

Tools and Materials

You'll need the correct GFCI breaker, a non-contact voltage tester (and ideally a multimeter), insulated screwdrivers, wire strippers, needle-nose pliers, a flashlight or headlamp, and safety glasses. Work with a partner present, never alone. Related wiring devices and terminations should be on hand if you find damaged conductors while you're in there.

Step-by-Step Installation

1. Shut off power and verify

Switch off the branch circuit breaker you're replacing, then switch off the main breaker. Remove the panel's dead-front cover carefully, without touching anything inside. Now verify with your voltage tester that the branch breakers and the wires you'll handle are dead. Remember that the line side of the main and the incoming service conductors remain live, so keep well clear of them the entire time.

2. Remove the old breaker

Loosen the terminal screw and free the circuit's hot wire from the old breaker. Note where its white neutral wire currently lands, which on a standard breaker is directly on the panel's neutral bar. Then grip the old breaker and rock it out, pulling the outer edge toward you to release it from the bus bar. Photographing the wiring before you disconnect anything is a good habit.

3. Wire the new GFCI breaker (the part people get wrong)

This is the crux of the whole job. A GFCI breaker has three connections, and two of them involve white wires that are easy to confuse.

Put simply: the circuit's neutral moves off the neutral bar and onto the breaker, and the breaker's own pigtail takes its place on the neutral bar. The breaker has to see both the outgoing and returning current to compare them, which is the entire basis of ground-fault detection. Land the circuit neutral on the bar instead of the breaker and the device cannot function. Skip the pigtail and it has no reference at all. Give the pigtail its own open screw on the neutral bar, since no terminal should ever take two breaker wires.

Strip the conductors about half an inch, seat them fully, and tighten every terminal firmly with no bare copper showing outside the screw.

4. Seat the breaker and close up

With the breaker in the off position, hook it onto the retaining rail or neutral side of the panel first, then press it firmly onto the hot bus bar until it snaps home. Exact seating varies by manufacturer, so follow the instructions in the box. Confirm no wires are pinched, replace the dead-front cover, and update the circuit directory label.

5. Restore power and test

Turn the main breaker back on, then switch on the new GFCI breaker. It should hold. Now press its TEST button: the handle should snap to the middle, tripped position. Reset it, and the circuit should come back to life. If it holds and trips on demand, the installation is correct.

Troubleshooting: When It Won't Cooperate

A GFCI breaker that trips immediately is almost always telling you something true. Work through the likely causes in order.

Two situations deserve extra attention. A shared neutral (a multi-wire branch circuit, where two hot conductors share one neutral) will trip a single-pole GFCI every time; it needs a two-pole device. And a stubborn outdoor circuit is often not a wiring fault at all but moisture in a box or fixture, so check the weatherproof boxes and covers before blaming the breaker.

Nuisance tripping can also come from the load itself. Some appliances and electronics leak a small amount of current normally, and enough of them on one circuit can add up past the trip threshold. This is the same conflict that causes headaches on EV circuits, where the charger's own internal ground-fault protection can fight an external GFCI breaker, as our guide to hardwired versus plug-in EV chargers explains.

After the Install: Test It Monthly

A GFCI is a mechanical safety device, and it can fail silently. Press the TEST button once a month and confirm the breaker trips and resets. If it ever fails to trip, or won't reset, replace it. Many breakers include a label for logging test dates, which is worth using in a commercial setting.

The Bottom Line

Installing a GFCI breaker comes down to three things: buy a breaker listed for your panel, wire the neutrals correctly (circuit neutral to the breaker, pigtail to the neutral bar), and test it before you walk away. Get the neutral wiring wrong and the device either won't work or won't stay on. Because the job takes place inside a panel where some parts remain energized regardless of the main switch, treat it as skilled work: pull the permit, follow local code, and bring in a licensed electrician whenever there's doubt. The right panel and distribution equipment makes the rest straightforward.
