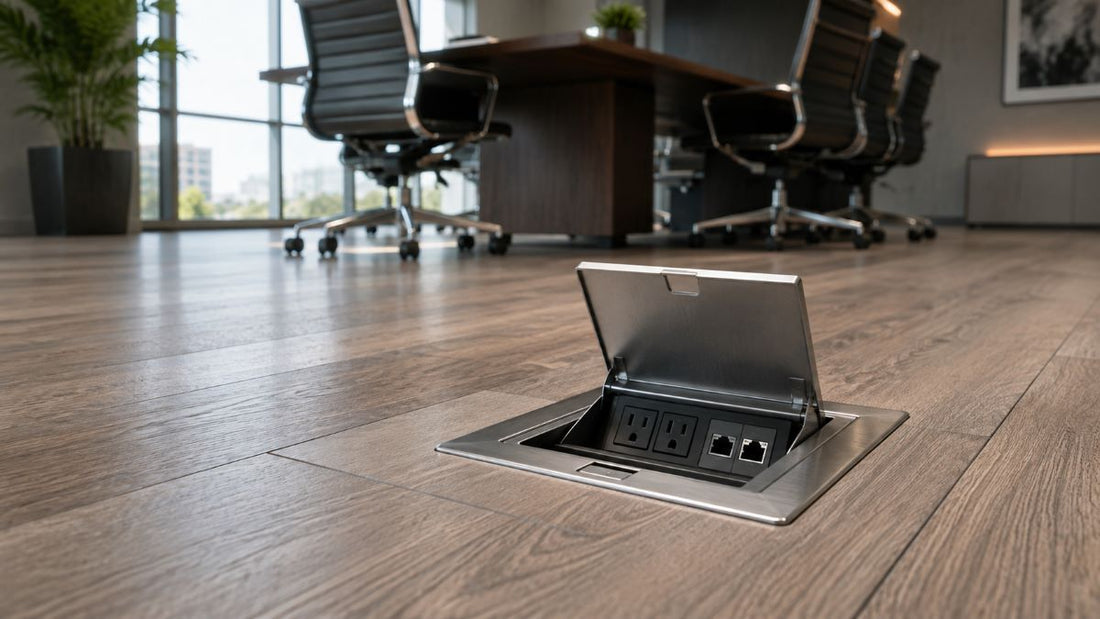

What Is a Floor Box and How to Install One

August 24, 2026

A floor box is a code-listed electrical enclosure set into a floor to bring power, data, or both to the middle of a room where a wall outlet is too far away to be practical, common in conference rooms, kitchen islands, and open-plan offices. Unlike a standard wall box, a floor box has to handle foot traffic, spills, and in many buildings a fire-rated floor-ceiling assembly, which is why the product category has its own listing standards and installation rules separate from ordinary wiring devices. This guide covers the types of floor boxes available, the code requirements that govern them, and how to install one correctly.

What a Floor Box Does

A floor box houses a receptacle, data jack, or combination power/data module below floor level, with a cover plate at floor height that protects the connection while allowing a cord to plug in when needed. It solves a problem wall outlets can't: getting power to a room's center, an island, or a conference table without running exposed cord across a walking path. Floor boxes are built to handle loads no wall box needs to withstand, foot traffic, rolling furniture, and in commercial buildings, sustained static loads from equipment set directly on top of the cover.

Types of Floor Boxes

Flush-mount floor boxes: sit level with the finished floor, using a flip lid or sliding cover that stays closed and flush when not in use; the standard choice for most commercial installations.
Pop-up floor boxes: stay completely hidden below floor level until lifted open, giving the cleanest possible look when the outlet isn't in use; common in conference rooms and high-end residential kitchens.
Fire-rated floor boxes: specifically listed for installation in fire-resistance-rated floor-ceiling assemblies, required whenever the box penetrates that kind of rated construction.
Countertop and furniture boxes: a related category mounted into countertops, islands, or furniture rather than the floor itself, often paired with the same power/data module system as floor boxes.

Cover and Flange Options

The cover and flange determine both the look and the load rating of the finished installation. Carpet flanges, typically 1/4 inch, are designed to sit flush when carpet tile or broadloom carpet is trimmed around them. Square or round flush flanges suit hard flooring like tile, wood, or polished concrete. Covers range from simple lift-off doors to hinged, spring-loaded lids, and static load ratings vary by model, commonly from around 1,300 to 2,500 pounds, which matters in areas where rolling carts or furniture will pass directly over the box.

Code Requirements to Know

Listing and construction: UL 514A covers metallic floor boxes, UL 514C covers non-metallic models, and UL 1363 applies where relocatable power taps or modular cabling systems are integrated into the box.
Box fill: NEC 314.16 requires the box to provide adequate free space for every enclosed conductor, using the same fill calculation method that applies to standard outlet boxes.
Fire-rated assemblies: a floor box penetrating a fire-resistance-rated floor-ceiling assembly must be specifically listed for that use, and the surrounding penetration must be firestopped per the assembly's listing, typically referencing UL 1479 or an equivalent local standard.
GFCI protection: floor box receptacles installed in damp or spill-prone locations increasingly require GFCI protection under current NEC editions, and enforcement continues to tighten with each code cycle; check the locally adopted NEC edition before finalizing a receptacle plan.
Ingress protection: boxes in wet mop areas, kitchens, or near building entrances should carry a NEMA 4 or IP66 rating when closed, and outdoor or in-grade installations need pressure-equalizing valves and gasketed lids to keep moisture out.

Planning the Installation

A clean floor box installation starts before any cutting begins: a space-planning pass that accounts for furniture layout, power density per workstation, and any audiovisual or data distribution needs. For commercial installations, floor box spacing is often planned around roughly one box for every 65 square feet, giving reasonably even coverage across an open floor plan. Matching the box's wiring devices and wall plate finish to the rest of the room's devices keeps the installation looking consistent rather than like an afterthought.

Installing a Flush-Mount Floor Box

De-energize and verify. Confirm the circuit is off before any cutting, drilling, or wiring begins.
Locate and cut the opening. For a wood subfloor, plan the cutout around the joist layout to avoid structural compromise; for concrete, coordinate the box placement before the pour whenever possible, since retrofitting concrete is far more disruptive.
Set the box to the correct height. The box and its adjusting ring need to land exactly at the finished floor height, accounting for the flooring material's thickness, so the cover sits flush once the floor covering is installed.
Run and terminate the conductors. Wire the box the same way as a standard outlet, respecting box fill limits, then terminate the receptacle or data module and confirm correct polarity with a circuit tester before restoring power.
Seal the flange. Apply a continuous bead of sealant, such as marine-grade silicone with high elongation, around the flange perimeter to keep moisture from tracking into the box, particularly important on wood floors that expand and contract seasonally.
Fit the cover. Install the matching cover and flange, confirm it sits flush with the finished floor, and verify the door or lid operates smoothly before considering the installation complete.

Common Mistakes

Setting the box at the wrong height before the finished floor material is accounted for, leaving the cover either proud of the floor (a trip hazard) or recessed below it.
Skipping firestopping on a box that penetrates a rated floor-ceiling assembly, which can fail inspection and compromises the assembly's fire rating.
Using a standard box in a fire-rated floor instead of one specifically listed for that application, which is one of the more common reasons floor box installations get red-tagged.
Skipping the sealant bead on wood floors, which allows moisture to reach the box over time as the floor naturally expands and contracts with humidity changes.

The Bottom Line

A floor box brings power and data to the middle of a room without running exposed cord across a walking path, but it has to survive foot traffic, spills, and in many buildings a fire-rated floor assembly that a standard wall box was never designed for. Choosing the right type, flush-mount, pop-up, or fire-rated, matching the cover and flange to the finished floor material, and following NEC box fill, GFCI, and firestopping requirements are what separate an installation that passes inspection and lasts for years from one that gets flagged or fails early.

Frequently Asked Questions

Can I install a floor box in an existing finished floor?

Yes, though it's more involved than a new-construction installation. Retrofitting a floor box into an existing wood floor requires careful cutout planning around the joist layout, and retrofitting into existing concrete typically requires core-drilling and running conduit to a nearby accessible point, which is more disruptive than planning the box location before a concrete pour.

Do all floor boxes need to be fire-rated?

No, only boxes that penetrate a fire-resistance-rated floor-ceiling assembly need a specifically listed fire-rated box. A floor box in a standard, non-rated floor assembly can use a standard listed floor box appropriate for the floor material and traffic level.

What's the difference between a pop-up and a flush-mount floor box?

A flush-mount box sits level with the floor behind a flip lid or sliding cover that stays visible when closed. A pop-up box hides completely below floor level until lifted open, giving a cleaner look when not in use, which is why they're popular in conference rooms and upscale residential kitchens.

Does a floor box receptacle need GFCI protection?

Increasingly, yes, particularly in damp or spill-prone locations, and enforcement is tightening with recent NEC cycles. The specific requirement depends on the locally adopted NEC edition and the location's use, so checking with the local building department before finalizing the receptacle plan is worthwhile.

How many floor boxes does a room typically need?

There's no universal number; it depends on furniture layout and expected power density. Commercial open-office planning often uses a rough benchmark of one floor box for roughly every 65 square feet, but conference rooms, kitchen islands, and single-workstation setups are typically planned individually around actual equipment needs rather than a blanket ratio.
