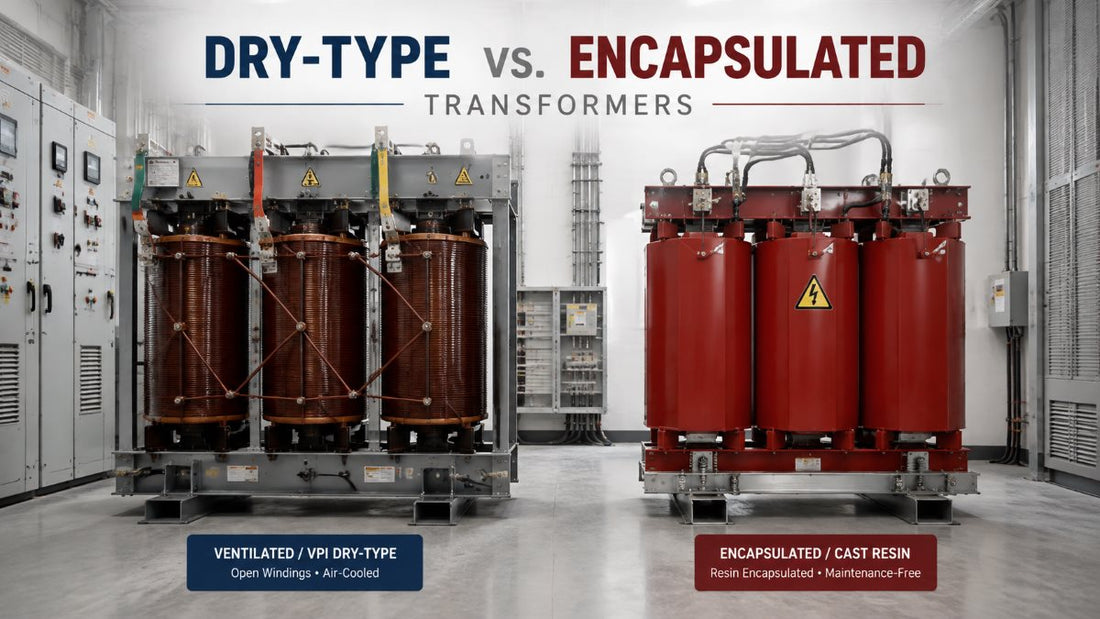

Dry-Type vs Encapsulated Transformers

Choosing between a dry-type and an encapsulated transformer is really a choice about environment: where the unit will live, how clean and dry that space is, and how big the load is. Both are oil-free, which already makes them far safer indoors than liquid-filled units, with no flammable oil to leak or contain. The difference is in how the windings are built and cooled, and that difference decides whether a transformer will run reliably for decades or fail early in the wrong conditions. This guide clears up the terminology first, then compares the two on the factors that actually drive the decision.

First, a Terminology Clarification

The naming causes real confusion, so it's worth settling up front. “Dry-type” is the umbrella term for any transformer cooled by air rather than oil, and it has three main sub-types: open ventilated (exposed windings, no resin), VPI (vacuum pressure impregnated, where windings are sealed with a varnish but keep an open cooling structure), and cast resin or epoxy encapsulated (windings fully potted in solid resin). So an encapsulated transformer is itself a type of dry-type. When people compare “dry-type versus encapsulated,” they generally mean the open, air-cooled designs (ventilated and VPI) on one side and the fully resin-encapsulated (cast resin) design on the other. That's how this guide uses the terms.

Dry-Type vs Encapsulated at a Glance

Ventilated and VPI Dry-Type

These are the open, air-cooled designs. An open ventilated transformer has exposed windings cooled by natural air convection, while a VPI unit adds a vacuum-pressure-impregnated varnish that coats and seals the winding surfaces yet keeps the open-coil structure intact for cooling. Their big advantage is exactly that open structure: air moves freely through the windings, so they run cooler, dissipate heat efficiently, and scale up well to large capacities. They're also less expensive up front and can be rewound and repaired in the field.

The trade-off is exposure. Because the windings aren't sealed in resin, these units are vulnerable to moisture, dust, salt, and corrosive atmospheres, so they belong in clean, dry, temperature-controlled indoor spaces. They also need more maintenance: periodic cleaning of the windings and cooling surfaces (dust buildup traps heat and shortens life), insulation-resistance testing, and occasional varnish repair. Put one in a humid, dusty, or coastal location and its insulation degrades quickly, which is one of the most common and costly transformer specification mistakes.

Encapsulated and Cast Resin

An encapsulated transformer has its windings fully cast into solid epoxy resin, forming an impermeable barrier. That single design choice delivers most of its advantages. The sealed windings shrug off moisture, condensation, salt spray, dust, and chemical contamination, making these the right choice for humid, coastal, marine, mining, washdown, and outdoor (enclosed) installations where an open design would fail. The epoxy is also self-extinguishing, giving encapsulated units superior fire behavior, which is why they're favored in hospitals, airports, data centers, underground vaults, and other public or critical buildings. As a bonus, the solid encapsulation damps vibration for quiet operation with low partial discharge, and it braces the windings against displacement during short-circuit faults, giving strong mechanical and overload endurance.

The limitations follow from that same solid casting. Encapsulation restricts heat dissipation, so at high loads or large capacities (roughly above 1600 kVA) the unit may run hotter or require forced-air cooling. Encapsulated transformers are heavier, cost more up front, and are difficult or impossible to repair, since the resin generally has to be destroyed to rewind them, so a failure often means replacement. They shine in small control-power and distribution sizes and in demanding environments, less so where you simply need a large, economical indoor unit.

Environment Decides

If you take one thing away, make it this: the installation environment is the primary selection factor. A clean, dry, temperature-controlled indoor electrical room favors a ventilated or VPI dry-type, which delivers better economics and easier cooling. A location with high humidity, condensation, salt air, dust, or chemical exposure, or any outdoor or marine setting, calls for an encapsulated cast-resin unit that seals the windings against the environment. The classic error is choosing an open ventilated transformer for a coastal or contaminated site to save money, then watching it fail years early.

Size and Cooling

Capacity interacts with cooling in a way worth understanding. Because open designs dissipate heat so well, ventilated and VPI transformers are often the better fit for very large loads, running cooler and more efficiently at high kVA. Encapsulated units are excellent in the smaller control-power and light-distribution sizes common for panels and machinery, where their sealed build is cheap and maintenance-free, but as they scale up, the resin's higher thermal resistance means large cast-resin units frequently need forced-air (fan) cooling to stay within temperature limits. Both technologies span from a few kVA up to several MVA, so size alone rarely rules one out, but it does shape the cooling strategy.

Fire Safety and Noise

Both types are a major safety improvement over oil-filled transformers indoors, since neither carries flammable liquid that can leak, burn, or require containment. Between the two, cast-resin encapsulated units have the edge on fire behavior thanks to their self-extinguishing epoxy, which is exactly why codes and designers favor them in occupied and critical facilities. Encapsulated units are also quieter, an advantage in noise-sensitive spaces like hospitals, schools, and offices, because the resin damps the core's vibration.

Maintenance and Repair

The two designs age differently. A ventilated or VPI transformer needs regular attention, cleaning dust from the windings and cooling surfaces, checking connections, and periodic insulation testing, but it can be rewound and repaired when something goes wrong. An encapsulated transformer is essentially maintenance-free because it's sealed, which is a genuine advantage in hard-to-reach or harsh locations, but that same sealing makes it impractical to repair, so its failure mode is replacement rather than rewinding. Weigh maintenance access against repairability for your specific site.

Installation and Code

However you specify it, a transformer is a serious piece of equipment governed by NEC Article 450, which sets requirements for ventilation, clearances, and guarding. Ventilated dry-types in particular need adequate airflow and clearance around them to cool properly, so they can't be boxed into a tight, unventilated space. Encapsulated units destined for outdoor or wet locations still typically sit inside a suitable NEMA enclosure, and every installation needs correct grounding and integration with the building's power distribution. Because sizing, clearances, and protection are involved, this is work for a qualified engineer and licensed electrician.

Which Should You Choose?

• Choose a ventilated or VPI dry-type if the transformer will live in a clean, dry, temperature-controlled indoor space, you want lower upfront cost and easier repair, or you need a large-capacity unit that benefits from open-air cooling.
• Choose an encapsulated cast-resin unit if the environment is humid, dusty, coastal, corrosive, outdoor, or marine, if you need the best fire behavior for an occupied or critical building, if quiet operation matters, or if you want a sealed, maintenance-free unit in a smaller size.

The Bottom Line

Both dry-type and encapsulated transformers are oil-free and safer indoors than liquid-filled units, so the choice between them comes down to environment, size, fire safety, and maintenance. Open ventilated and VPI dry-types cool better, cost less, scale to large loads, and can be repaired, but they need a clean, dry indoor home and regular cleaning. Encapsulated cast-resin units seal their windings against moisture, dust, and corrosion, resist fire, run quietly, and need no maintenance, at the cost of higher price, harder cooling at large sizes, and effectively no repairability. Let the environment lead the decision, size the cooling to the load, and have a qualified professional handle the specification and installation to code.
