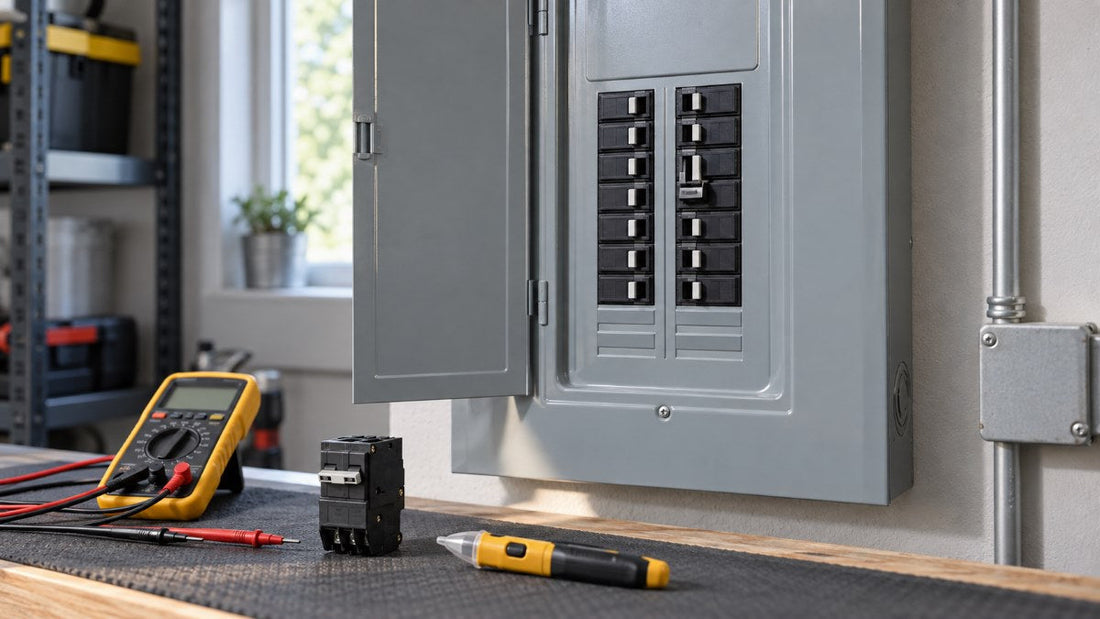

Circuit Breaker Troubleshooting & Replacement Guide

A circuit breaker that suddenly trips is not automatically a bad breaker. In many cases, the breaker is doing exactly what it was designed to do: disconnecting a circuit because of an overload or electrical fault.

That distinction matters. Replacing a functional breaker without diagnosing the circuit can leave the original problem untouched, while repeatedly resetting a breaker that is responding to a fault can create a serious electrical hazard.

The safest troubleshooting process therefore starts with the symptom and the circuit, not with the assumption that the breaker needs replacement.

This guide explains what common breaker symptoms mean, how to narrow down the source of a problem, when a breaker itself becomes suspect, and what should be confirmed before a replacement is selected.

What Does a Tripped Circuit Breaker Actually Mean?

A circuit breaker opens a circuit when operating conditions exceed what its protective mechanism is designed to tolerate. A standard breaker primarily provides overcurrent protection, while GFCI and AFCI breakers add protection for additional fault conditions.

A trip can therefore point to several very different problems: an overloaded circuit, a short circuit, a ground fault, an arc-fault condition on an AFCI-protected circuit, a defective connected appliance, a loose or damaged electrical connection, or less commonly a damaged or failing breaker.

The important point is that tripping is a symptom, not a diagnosis.

A breaker that trips repeatedly should not simply be reset over and over. OSHA electrical work rules state that after a protective device opens a circuit, the circuit should not be manually reenergized until it has been determined that it can be safely energized. OSHA specifically prohibits repetitive manual reclosing of circuit breakers.

Circuit Breaker Symptoms and What They May Indicate

Different trip patterns provide useful clues, but they do not prove the cause by themselves.

Start With the Load Before Blaming the Breaker

When a standard breaker trips after several appliances or pieces of equipment are running simultaneously, an overloaded branch circuit is one of the first possibilities to evaluate.

A useful first check is to identify what lost power when the breaker opened. That establishes the approximate load connected to the affected circuit.

For a non-qualified user, a limited troubleshooting sequence can be appropriate: turn off or unplug loads on the affected circuit; confirm there are no signs of heat damage, smoke, burning odor, or other obvious danger; reset the breaker once if the cause reasonably appears to have been an overload; reintroduce loads gradually; and note whether one particular device or combination of loads causes another trip.

If the breaker trips again without a clearly identifiable overload, stop resetting it.

Why Does a Breaker Trip Immediately After Resetting?

A breaker that trips immediately is more concerning than one that opens only after multiple loads operate for some time.

An immediate trip may indicate a low-impedance fault, damaged wiring, a failed load, a ground-fault condition, or another circuit problem that causes the protective device to operate as soon as power is restored.

Disconnecting accessible plug-in equipment can help distinguish a connected-load problem from a fixed-wiring problem. If the breaker stays on with everything unplugged and trips when one device is reconnected, that device or its connection becomes a strong suspect. If it trips with the loads removed, the fault is more likely to require electrical testing of the branch circuit or protective device.

The breaker should not be repeatedly cycled in an attempt to make it stay on.

Why a Breaker That Won't Reset Is Not Automatically Bad

Many people assume that a breaker that will not stay in the ON position has failed. That is possible, but an active fault can produce exactly the same symptom.

Before condemning the breaker, a qualified electrician may need to determine whether the protected circuit still has a short or ground fault, a connected load is defective, a conductor or termination is damaged, the breaker is correctly seated and connected, or the breaker mechanism itself is defective.

Replacing the breaker before those possibilities are separated can result in a new breaker behaving exactly like the old one.

How to Tell Whether the Circuit Breaker Itself May Be Bad

A breaker becomes more suspect when the circuit and connected equipment have been tested and no external fault explains the symptom.

Potential warning signs include physical damage, abnormal discoloration, a damaged operating handle, evidence of overheating around the breaker or its connection, failure to operate correctly during appropriate testing, or inconsistent operation that cannot be traced to the circuit.

Physical overheating should be treated carefully. The source may be the breaker, but it can also be a poor termination, damaged bus connection, improper equipment, or excessive load. Heat damage at a breaker is a reason to investigate the connection and panel, not simply a reason to install another breaker.

AFCI and GFCI Breakers Need Different Troubleshooting

AFCI and GFCI breakers can trip even when the circuit is not overloaded because they monitor additional electrical conditions.

A GFCI breaker responds to current imbalance associated with leakage from the intended circuit path. An AFCI breaker is designed to respond to characteristics associated with potentially dangerous arcing.

That means replacing an AFCI or GFCI breaker simply because it trips repeatedly can hide the real diagnostic question: what condition is the breaker detecting?

Lumera Electric's guide to installing AFCI breakers identifies shared neutrals, loose connections, damaged insulation, and faulty appliances among conditions that can cause a newly installed AFCI breaker to trip.

When Should a Circuit Breaker Be Replaced?

A breaker should be replaced when testing or physical inspection establishes that the device itself is defective, damaged, or otherwise unsuitable for continued service.

Replacement may be appropriate when a qualified evaluation finds mechanical failure inside the breaker, physical or thermal damage, failure to open or reset correctly despite a verified healthy circuit, damaged terminals or connections affecting the breaker, an incorrect breaker type installed for the panel or application, or a required change in protection type as part of an approved electrical modification.

Replacement should not be used as a shortcut for diagnosing unexplained tripping. A correctly operating breaker installed on a faulty circuit will continue to trip after the replacement.

Circuit Breaker Replacement Is More Than Matching the Amp Number

Choosing a replacement breaker involves more than finding another unit with the same amperage printed on the handle.

The replacement must be suitable for the electrical panel and application. Panel labeling, breaker type, poles, voltage, interrupting rating, conductor requirements, and any required AFCI or GFCI functionality can all affect selection.

Never increase breaker amperage merely to stop nuisance tripping. The breaker protects the circuit conductors and connected equipment. Increasing the rating without confirming that the entire circuit is designed for the higher overcurrent protection can remove an essential layer of protection instead of fixing the actual overload.

A Safe Replacement Decision Workflow

First, identify why the breaker operated. Determine whether the event was caused by a load condition, equipment fault, wiring fault, or protective function.

Second, isolate the circuit from connected loads where appropriate. A fault that disappears when one appliance is removed points in a different direction from a breaker that trips on an unloaded branch circuit.

Third, inspect for warning signs. Burning odor, melted insulation, discoloration, arcing evidence, or visible panel damage changes the problem from routine troubleshooting to a condition requiring qualified service.

Fourth, test the circuit and breaker where professional testing is required. Electrical measurements should distinguish a device failure from a fault elsewhere in the system.

Fifth, confirm replacement specifications. A replacement should comply with the panel's labeling and equipment manufacturer's requirements rather than being chosen by appearance alone.

Finally, verify operation after the repair. If a replacement breaker also trips, the underlying circuit problem has not been solved and further investigation is required.

When Circuit Breaker Problems Point to a Larger Panel Issue

A single defective breaker does not necessarily mean an entire electrical panel needs replacement.

However, multiple heat-damaged connections, recurring problems affecting several circuits, damaged bus components, inadequate capacity, obsolete equipment, or other panel-wide conditions can justify a broader evaluation.

The distinction matters financially and technically. Replacing one confirmed defective breaker is a component repair. Replacing or upgrading a panel is a distribution-system project that can affect service capacity, grounding, bonding, permits, inspections, and coordination with other equipment.

Why Correct Troubleshooting Matters

NFPA analysis of U.S. home fires involving electrical distribution and lighting equipment estimated an average of 32,620 fires per year during 2015-2019, with wiring and related equipment accounting for 68% of those incidents. Panelboards, switchboards, and circuit breaker boards were involved in an estimated 1,360 fires annually within that dataset. The figures cover a broader category than breaker failures alone, but they illustrate why overheating, damaged wiring, and unexplained protective-device operation should be treated as diagnostic issues rather than inconveniences.

When to Stop Troubleshooting and Call an Electrician

Stop troubleshooting and leave the affected circuit deenergized if there is visible burning, melted insulation, smoke, a burning odor, repeated immediate tripping, evidence of arcing, damaged panel components, water exposure, or any situation in which the circuit cannot be positively identified and isolated.

Work inside an electrical panel can expose a person to hazardous energized parts even when a branch breaker is switched off. Service equipment can also contain energized conductors on the line side of the main disconnect.

Troubleshooting that requires removing panel covers, testing energized components, evaluating bus connections, or replacing a breaker should therefore be performed by a qualified person using appropriate electrical safety procedures.
