Cable Tray vs Wire Duct vs Conduit

Cable tray, wire duct, and conduit all route and protect wiring, and they get lumped together and compared as if you'd choose one instead of the others. In reality they solve different problems at different scales: conduit encloses building wiring, cable tray supports large volumes of cable, and wire duct organizes wiring inside a control panel. On a real project you often use all three. Understanding where each belongs saves a surprising amount of labor and cost, and it's the difference between a clean, code-compliant installation and an expensive rework. This guide draws the distinctions, covers the relevant code, and shows how they work together. Whichever you use, the conduit fittings and support hardware that tie the systems together matter as much as the raceway itself.

The Quick Distinction

• Conduit is an enclosed circular raceway (a pipe) that individual conductors are pulled through. Maximum protection, maximum concealment.
• Cable tray is an open framework that supports pre-assembled, tray-rated cables along a path. Maximum capacity and flexibility.
• Wire duct is a slotted channel with a snap-on cover used inside panels and enclosures to organize and route wiring neatly. A component, not a building raceway.

They aren't strictly interchangeable, because they operate at different scales. The useful question is rarely “which one,” but “which one for this part of the job.”

At a Glance

Conduit: Maximum Protection

Conduit is the traditional building raceway: a circular pipe, run through walls, ceilings, slabs, or exposed on structure, that conductors are pulled through after it's installed. It comes in several types, rigid metal (RMC), intermediate (IMC), electrical metallic tubing (EMT), rigid PVC, and flexible versions, each suited to different environments. Its strengths are protection and concealment: it fully shields conductors from impact, moisture, chemicals, and rodents, hides wiring for a clean appearance, and is often required by code in specific locations, including many outdoor, underground, and hazardous areas.

The trade-offs are labor and flexibility. Conduit is time-consuming to install (measuring, cutting, bending, and pulling), the National Electrical Code limits fill to 40 percent for three or more conductors so capacity is modest, and adding circuits later usually means pulling more wire or running new pipe. Metal conduit can serve as the equipment grounding path where permitted, and terminations rely on the correct conduit bodies, EMT fittings, and electrical fittings to stay compliant and protected.

Cable Tray: Capacity and Flexibility

A cable tray is an open support system, governed by NEC Article 392, that carries pre-assembled cables (such as type MC metal-clad or type TC tray cable) along a path rather than enclosing individual conductors. It's the workhorse of industrial plants, commercial basements, and data centers, anywhere a lot of cable follows a common route and changes over time. Instead of pulling every circuit through its own pipe, you lay cables into the tray, which makes installation faster and future additions or removals genuinely easy.

Trays come in several forms: ladder (side rails and rungs, best airflow, common for power), ventilated or perforated (a compromise with more support), solid-bottom (containment and protection, but reduced ventilation), wire mesh or basket (light, flexible, popular for data cable), and channel (small runs). The open design dissipates heat well, which is a real ampacity advantage, ladder tray with larger conductors is often treated as free air with no derating, while a solid-bottom tray derates like an enclosed raceway.

The catches: a tray offers less physical protection than conduit, it requires cable that's rated and listed for tray use, and it isn't for concealment. Fill and ampacity are separate calculations that must both pass, since stacking cables deep in a tray recreates the heat problem the open design was meant to avoid. Power and signal cables should be separated to control electromagnetic interference, and a metallic tray can serve as the equipment grounding conductor only where it's specifically listed and marked for it. Trays still need proper straps and supports and correct grounding and bonding.

Wire Duct: Panel Organization

Wire duct, also called wiring duct or panel duct, is the slotted plastic channel you see inside control panels and equipment enclosures, running along the backpanel with wires disappearing into it and popping out through the slots to reach devices. A snap-on cover hides the bundle. Its whole job is keeping panel wiring neat, routable, and easy to change: because conductors can exit anywhere along the slotted sides, rewiring or adding a device is quick. Typical fill runs around 50 to 60 percent, and it's available in standard PVC as well as halogen-free and flame-retardant grades. It lives inside enclosures alongside wire connectors and terminal blocks, not out in the building.

Don't confuse it with a wireway. A wireway (NEC Article 376 for metallic, 378 for nonmetallic) is an enclosed trough with a hinged or removable cover, used for exposed building wiring, for example feeding a row of machines along a wall. It looks a bit like an oversized wire duct but is a recognized building raceway with its own fill rules (about 20 percent, with derating past 30 current-carrying conductors). Slotted wire duct inside a panel is a wiring-management component; a wireway is a raceway. The terms get swapped constantly, so confirm which one a spec actually means.

How to Choose

• Use conduit when you need maximum physical or environmental protection, concealment for appearance, an outdoor, underground, wet, or hazardous location, or where code specifically requires an enclosed raceway.
• Use cable tray when you're routing many cables along a common industrial or commercial path, expect frequent additions or changes, want easier installation and maintenance, and benefit from open-air heat dissipation, as in a plant or data center.
• Use wire duct when you're organizing wiring inside a control panel or enclosure and want tidy, easily modified routing to devices.
• Reach for a wireway when you need an enclosed but easily opened trough for exposed building wiring with frequent tap-offs, a middle ground between conduit and tray.

They Work Together

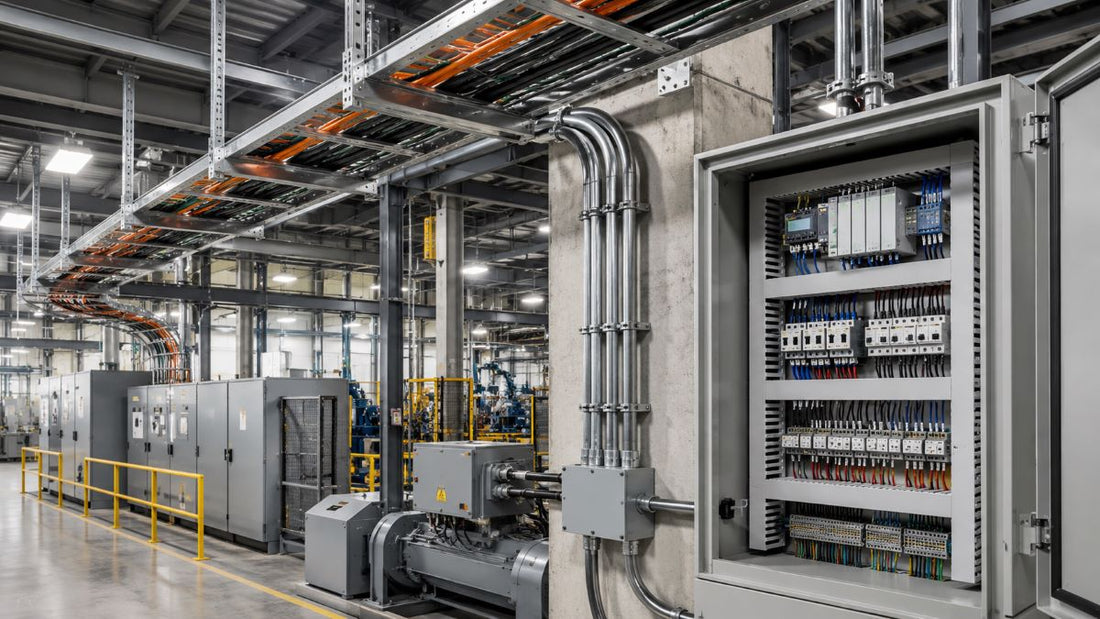

On most industrial projects this isn't an either/or decision, it's a layered one. The classic arrangement runs cable tray for the main horizontal backbone overhead, transitions to conduit for the vertical drops down to individual machines and equipment (where protection matters most), and uses wire duct inside the control panels at each end to organize the terminations. The transition from tray to conduit happens at a junction box or a listed tray-to-conduit fitting. This hybrid gives you the cost and flexibility of tray for the bulk of the run and the protection of conduit exactly where it's needed, which is why it's the default in plants that add circuits year after year.

The Details That Keep It Compliant

Whichever systems you combine, a few fundamentals decide whether the install passes. Support spacing matters: conduit, tray, and wireway each have their own securing and support intervals, and skimping on supports is a common violation. Fill limits differ by system (roughly 40 percent for conduit, per-type rules for tray, about 20 percent for wireway, 50 to 60 percent for panel wire duct), and ampacity derating for bundled conductors is a separate check that must also pass. Bonding and grounding of all metallic raceways and trays is essential, using the right bushings and ground clamps. And neat cable management, bundling with cable ties and transitioning through proper junction boxes, is what separates a professional installation from a troubleshooting nightmare later.

The Bottom Line

Conduit, cable tray, and wire duct aren't competitors so much as tools for different jobs. Conduit encloses and protects building wiring where you need durability, concealment, or code compliance in tough locations. Cable tray supports large volumes of cable where capacity, flexibility, and heat dissipation matter, the backbone of industrial and data center wiring.

Wire duct organizes conductors inside control panels. On a real installation you'll often run tray overhead, drop to conduit at the equipment, and land everything in wire duct inside the panels. Match each method to the scale and environment of the run, respect the fill, support, and bonding rules, and the whole system stays clean, compliant, and easy to maintain.
