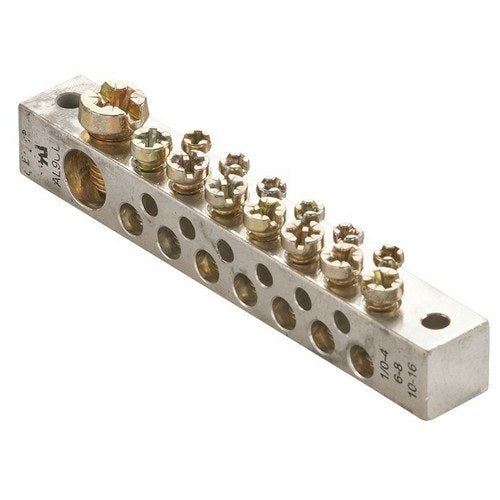

Morris 95209 Aluminum Multi-Combination Neutral/Ground Bar, 1/0-#12 AWG, 20 Holes
Morris 95209 Aluminum Multi-Combination Neutral/Ground Bar, 1/0-#12 AWG, 20 Holes
Regular price
$10.44
Regular price
Sale price
$10.44
SKU:95209
Quantity
Couldn't load pickup availability
Morris's 95209 is a multi-combination aluminum neutral/ground bar with mixed entry-hole sizes: 1 hole for 1/0, 1 hole for #2, 9 holes for #8, and 9 holes for #10 & #12 conductors. The 6060-T6 tin-plated aluminum body is dual rated for copper or aluminum and ul486b recognized, rated 600V at 90°C.
Key Features
- 6060-T6 Tin-Plated Aluminum
- Dual Rated for Copper or Aluminum Conductors
- Mixed Entry Holes: 1x1/0, 1x#2, 9x#8, 9x#10 & #12 (20 Total)
- Screw Material: SAE1008 Zinc-Plated Steel
- Rated 600V, 90°C
- UL486B Recognized
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 95209 |
| Type | Aluminum Multi-Combination Neutral / Ground Bar |
| Material | 6060-T6 Tin-Plated Aluminum |
| Entry Holes | 1x 1/0, 1x #2, 9x #8, 9x #10 & #12 |
| Total Holes | 20 |
| Length | 4.86" |
| Conductor Compatibility | Copper / Aluminum (Dual Rated) |
| Voltage | 600V |
| Temperature Rating | 90°C |
| Listing | UL486B |
Applications
Used to terminate mixed conductor sizes on a single grounded (neutral) or grounding bar in panelboards and enclosures, with dedicated holes for 1/0, #2, #8, and #10/#12 conductors.
Installation
Mount the bar to the enclosure, land each conductor in the correctly sized entry hole, and tighten each set screw to the conductor.
