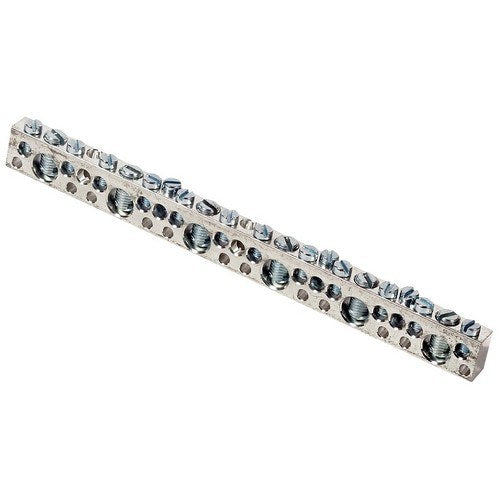

Morris 95197 Aluminum Multi-Combination Neutral/Ground Bar, 3 Feed + 8 Tap
Morris 95197 Aluminum Multi-Combination Neutral/Ground Bar, 3 Feed + 8 Tap
Regular price
$12.74
Regular price
Sale price
$12.74
SKU:95197
Quantity
Couldn't load pickup availability
Morris's 95197 is a multi-combination aluminum neutral/ground bar with 3 feed holes for 1/0-14 AWG conductors and 8 tap holes for 6-14 AWG conductors. The 6060-T6 tin-plated aluminum body is dual rated for copper or aluminum and ul486a listed, rated 600V at 90°C.
Key Features
- 6060-T6 Tin-Plated Aluminum
- Dual Rated for Copper or Aluminum Conductors
- 3 Feed Holes (1/0-14 AWG) and 8 Tap Holes (6-14 AWG)
- Range-Taking
- Rated 600V, 90°C
- UL486A Listed
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 95197 |
| Type | Aluminum Multi-Combination Neutral / Ground Bar |
| Material | 6060-T6 Tin-Plated Aluminum |
| Feed Holes | 3 (1/0-14 AWG) |
| Tap Holes | 8 (6-14 AWG) |
| Length | 3.44" |
| Conductor Compatibility | Copper / Aluminum (Dual Rated) |
| Voltage | 600V |
| Temperature Rating | 90°C |
| Listing | UL486A |
Applications
Used to feed and tap grounded (neutral) or grounding conductors in panelboards and enclosures, with 3 larger feed ports for 1/0-14 AWG mains and 8 smaller tap ports for 6-14 AWG branch conductors.
Installation
Mount the bar to the enclosure, land main conductors in the feed ports and branch conductors in the tap ports, then tighten each set screw to the conductor.
