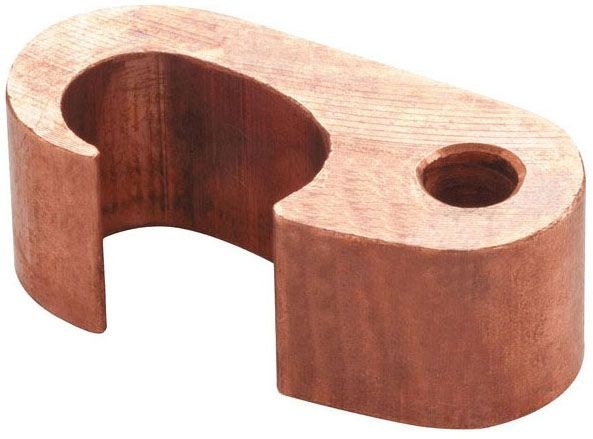

Morris 91542 Irreversible Grounding Connector, 250 MCM Run / 250 MCM Tap
Morris 91542 Irreversible Grounding Connector, 250 MCM Run / 250 MCM Tap
SKU:91542
Couldn't load pickup availability
Morris's 91542 is an irreversible grounding connector that bonds a 250 MCM - 1/0 run to a 250 MCM - 3/0 Str. tap, and also accepts a 1/2" - 5/8" ground rod or #3 (3/8") - #4 (1/2") rebar. It is made of pure electrolytic copper that matches or exceeds the conductor's current-carrying capacity and is acceptable for direct burial in earth and concrete.
Key Features
- Made of Pure Electrolytic Copper - Matches or Exceeds Conductor Current-Carrying Capacity
- Acceptable for Direct Burial in Earth and Concrete
- Permanent, Irreversible Connection
- Connects Conductor-to-Conductor, Conductor-to-Rod, or Rebar-to-Conductor
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91542 |
| Type | Irreversible Grounding Connector |
| Run (Main) Range | 250 MCM - 1/0 |
| Tap Range | 250 MCM - 3/0 Str. |
| Ground Rod Diameter | 1/2" - 5/8" |
| Rebar Size | #3 (3/8") - #4 (1/2") |
| Material | Pure Electrolytic Copper |
| Connection | Irreversible (Permanent) |
| Burial | Direct Burial in Earth or Concrete |
Applications
Used to bond a 250 MCM - 1/0 run conductor to a 250 MCM - 3/0 Str. tap, a 1/2" - 5/8" ground rod, or #3 (3/8") - #4 (1/2") rebar in grounding-electrode and bonding systems, including direct burial.
Installation
Insert the run and tap conductors (and rod or rebar where applicable) and make the permanent irreversible connection per Morris's installation instructions.
