Morris 91506 Irreversible Grounding Connector, 2/0 AWG - #2 AWG to 1" Rod
Morris 91506 Irreversible Grounding Connector, 2/0 AWG - #2 AWG to 1" Rod
Regular price
$21.62
Regular price
Sale price
$21.62
SKU:91506
Quantity
Couldn't load pickup availability

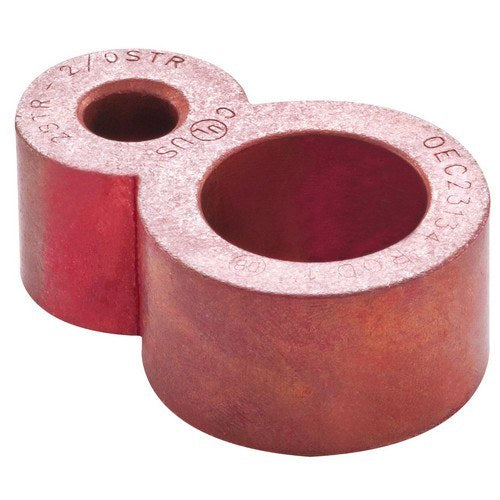

Morris's 91506 is an irreversible grounding connector that bonds a 2/0 AWG - #2 AWG conductor to a 1" ground rod or rebar. It is made of pure electrolytic copper that matches or exceeds the conductor's current-carrying capacity, is suitable for Copperweld or copper-clad cable, and is acceptable for direct burial in earth and concrete.
Key Features
- Made of Pure Electrolytic Copper - Matches or Exceeds Conductor Current-Carrying Capacity
- Acceptable for Direct Burial in Earth and Concrete
- Provides a Tap or Pigtail from Ground Rods to a Counterpoise or Grid
- Suitable for Copperweld or Copper-Clad Cable
- Permanent, Irreversible Connection
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91506 |
| Type | Irreversible Grounding Connector |
| Wire Range | 2/0 AWG - #2 AWG |
| Rod/Rebar Diameter | 1" |
| Material | Pure Electrolytic Copper |
| Connection | Irreversible (Permanent) |
| Burial | Direct Burial in Earth or Concrete |
Applications
Used to bond a 2/0 AWG - #2 AWG grounding electrode conductor to a 1" ground rod or rebar for counterpoise, grid, and grounding-electrode systems, including direct burial.
Installation
Position the connector over the 1" rod with the conductor seated, then make the permanent irreversible connection per Morris's installation instructions.
