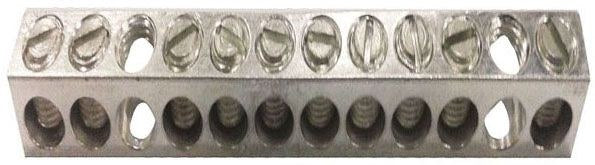

Morris 91143 Aluminum Neutral/Ground Bar, 20-Circuit, #14-#4 AWG
Morris 91143 Aluminum Neutral/Ground Bar, 20-Circuit, #14-#4 AWG
Regular price
$13.55
Regular price
Sale price
$13.55
SKU:91143
Quantity
Couldn't load pickup availability
Morris's 91143 is a aluminum neutral/ground bar with 20 circuits (22 total holes), each accepting a #14-#4 AWG conductor. The 6060-T6 tin-plated aluminum body is dual rated for copper or aluminum conductors and rated 600V.
Key Features
- Aluminum Construction
- 6060-T6 Tin-Plated Aluminum
- Dual Rated for Copper or Aluminum Conductors
- 20-Circuit Configuration (22 Total Holes)
- Range-Taking, #14-#4 AWG Wire Range
- Rated 600V
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91143 |
| Type | Aluminum Neutral / Ground Bar |
| Material | 6060-T6 Tin-Plated Aluminum |
| Wire Range | #14-#4 AWG |
| Circuits | 20 |
| Total Holes | 22 |
| Length | 6.93" |
| Conductor Compatibility | Copper / Aluminum (Dual Rated) |
| Voltage | 600V |
| Mounting Hole Positions | 1 & 22 |
Applications
Used to terminate and common multiple grounded (neutral) or grounding (equipment-ground) conductors in panelboards, load centers, meter sockets, and enclosures, with 20 circuits rated for #14-#4 AWG conductors.
Installation
Mount the bar to the enclosure at the provided mounting hole position(s), land one conductor per port, and tighten each set screw to the conductor.
