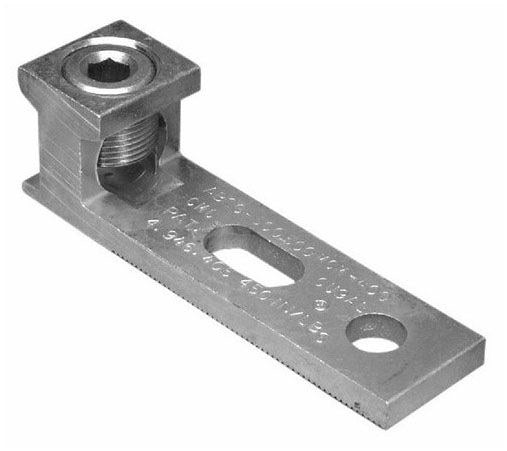

Morris 90742 Aluminum Mechanical Lug, One-Conductor 2-Hole, 350 MCM - #4 AWG
Morris 90742 Aluminum Mechanical Lug, One-Conductor 2-Hole, 350 MCM - #4 AWG
Regular price
$31.88
Regular price
Sale price
$31.88
SKU:90742
Quantity
Couldn't load pickup availability
Morris's 90742 is a dual-rated aluminum mechanical lug that terminates 1 conductor of 350 MCM - #4 AWG on a 2-hole (slotted) mount. It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C.
Key Features
- Manufactured from Aluminum, Electro-Tin Plated
- Dual Rated for Both Copper and Aluminum Conductors
- One Conductor, 2-Hole (Slotted) Mount
- Rated 600V; 194°F (90°C)
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90742 |
| Type | Aluminum Mechanical Lug |
| Conductors | 1 |
| Mounting Holes | 2-Hole (Slotted) |
| Wire Range (per Barrel) | 350 MCM - #4 AWG Sol. |
| Stud Hole Size | 0.50" |
| Material | Aluminum, Electro-Tin Plated |
| Conductor Compatibility | Copper / Aluminum (Dual Rated) |
| Voltage | 600V |
| Temperature Rating | 90°C |
Applications
Used to terminate 1 350 MCM - #4 AWG copper or aluminum conductor to a 2-hole (slotted) pad in panelboards, switchgear, transformers, and service equipment.
Installation
Insert each conductor into its barrel and tighten the set screw to the UL486B torque for the wire size; mount to the 2-hole (slotted) pad.
