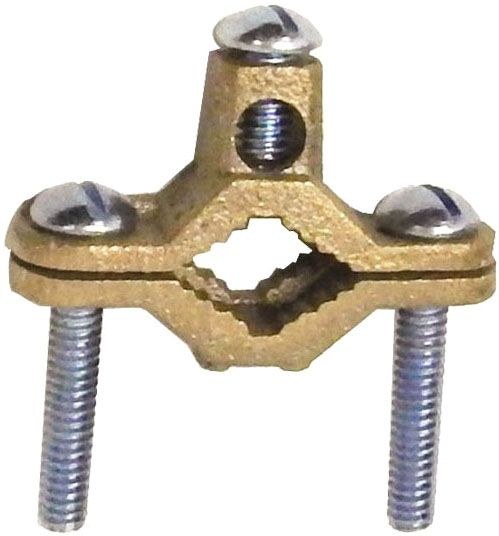

Morris 90598 Copper Ground Pipe Clamp, 2-1/2" - 4" Pipe
Morris 90598 Copper Ground Pipe Clamp, 2-1/2" - 4" Pipe
Regular price
$45.07
Regular price
Sale price
$45.07
SKU:90598
Quantity
Couldn't load pickup availability
Morris's 90598 is a copper ground pipe clamp for bonding a grounding conductor to 2-1/2" - 4" water pipe, copper tubing, or a ground rod. It is cast from high-strength, high-conductivity copper alloy with zinc-plated steel set screws and accepts #2 to #10 conductors.
Key Features
- For Connecting a Grounding Conductor to Water Pipe, Copper Tubing, or Ground Rod
- Cast of High-Strength, High-Conductivity Copper Alloy
- Zinc-Plated Steel Set Screws for Corrosion Resistance
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90598 |
| Type | Copper Ground Pipe Clamp |
| Water Pipe Range | 2-1/2" - 4" |
| Wire Range | #2 - #10 AWG |
| Screw Thread | 3/8"-16 |
| Material | Copper Alloy |
| Set Screw | Zinc-Plated Steel |
Applications
Used to bond grounding electrode conductors to 2-1/2" - 4" water pipe, copper tubing, or ground rods in service grounding.
Installation
Place the clamp around the pipe, insert the conductor, and tighten the set screws to secure the pipe and conductor.
