Morris 68302 Cold Shrink Tube, #2 AWG - 1/0 AWG, 8"
Morris 68302 Cold Shrink Tube, #2 AWG - 1/0 AWG, 8"
Regular price
$30.55
Regular price
Sale price
$30.55
SKU:68302
Quantity
Couldn't load pickup availability

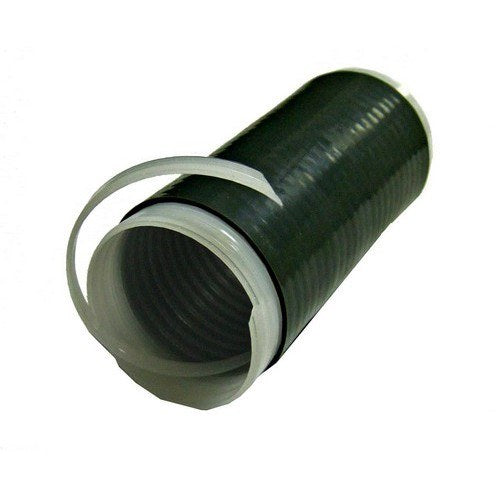

Morris's 68302 is a silicone-rubber cold shrink tube for #2 AWG - 1/0 AWG conductors (0.37" - 0.57" cable diameter), 8" long, that installs by removing the rip-cord core - no heat required. It is submersible-rated for cable-jacket repair and splicing, conforms to ANSI C119.1 1986, is rated 1000V for primary insulation, and is UV resistant.
Key Features
- Submersible Rated for Cable-Jacket Repair and Splicing
- Installs with No Heat - Removable Rip-Cord Core
- Conforms to ANSI C119.1 1986
- Silicone Rubber Jacketing Material
- 1000V Rated for Primary Insulation
- UV Resistant
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68302 |
| Type | Cold Shrink Tube |
| Conductor Range | #2 AWG - 1/0 AWG |
| Cable Diameter Range | 0.37" - 0.57" |
| Length | 8" |
| Material | Silicone Rubber |
| Voltage | 1000V |
| Rating | Submersible, ANSI C119.1 |
Applications
Used for cold-applied cable-jacket repair and splicing of #2 AWG - 1/0 AWG conductors in submersible and direct-buried locations without a heat source.
Installation
Position the tube over the cable, then unwind and pull the rip-cord core to collapse the silicone tightly onto the cable.
