Morris 68190 Heavy-Wall Heat Shrink Tubing, 1.50" → 0.47", 25 ft Roll
Morris 68190 Heavy-Wall Heat Shrink Tubing, 1.50" → 0.47", 25 ft Roll
Regular price
$402.62
Regular price
Sale price
$402.62
SKU:68190
Quantity
Couldn't load pickup availability

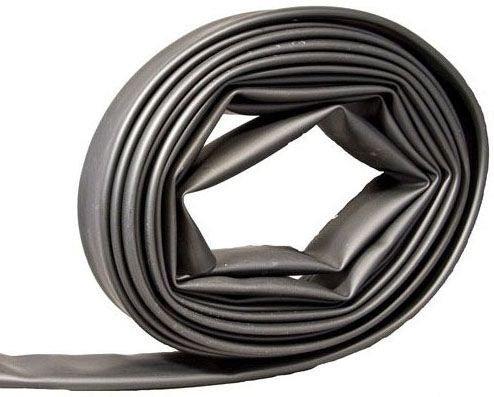

Morris's 68190 is black heavy-wall heat shrink tubing in a 25 ft roll length for 2/0 AWG - 350 MCM cable, supplied at 1.50" and recovering to 0.47" at a 3:1 shrink ratio. It is rated 600-1000V at 90°C continuous use, is corrosion and chemical resistant, and holds better mechanically with better underground protection than medium wall.
Key Features
- 3:1 Shrink Ratio
- Maximum Reliability for Insulating and Protecting Cable Joints and Terminations
- Corrosion and Chemical Resistance
- Rated for 600-1000V, 90°C Continuous Use
- Holds Better Mechanically and Underground than Medium Wall
- Continuous Operating Temperature -67°F to 230°F (-55°C to 110°C)
- Shrink Temperature 248°F (120°C)
- Black Color
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68190 |
| Type | Heavy Wall Heat Shrink Tubing |
| Cable Range | 2/0 AWG - 350 MCM |
| Expanded Diameter | 1.50" |
| Recovered Diameter | 0.47" |
| Wall Thickness | 0.16" |
| Shrink Ratio | 3:1 |
| Length | 25 ft |
| Adhesive Liner | No |
| Voltage | 600-1000V |
| Temperature | 90°C |
| Color | Black |
Applications
Used to insulate and protect 2/0 AWG - 350 MCM cable joints, splices, and terminations, including direct-buried and underground applications.
Installation
Slide the tubing over the joint and apply heat evenly from the center outward until fully recovered.
