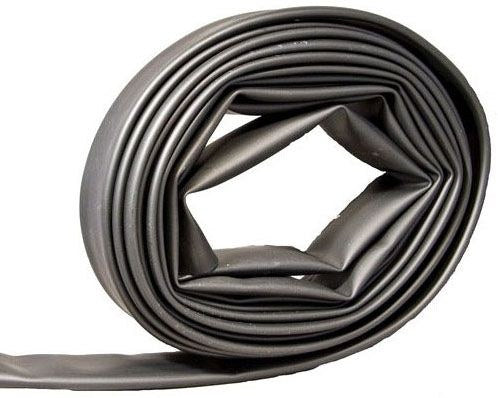

Morris 68148 Medium-Wall Heat Shrink Tubing, 1.50" → 0.50", 50 ft Roll
Morris 68148 Medium-Wall Heat Shrink Tubing, 1.50" → 0.50", 50 ft Roll
Regular price
$630.99
Regular price
Sale price
$630.99
SKU:68148
Quantity
Couldn't load pickup availability
Morris's 68148 is black medium-wall heat shrink tubing in a 50 ft roll length for 3/0 AWG - 400 MCM cable, supplied at 1.50" and recovering to 0.50" at a 3:1 shrink ratio. It is rated 600-1000V with continuous operation to 230°F (110°C) and seals and protects cable splices and terminations.
Key Features
- 3:1 Shrink Ratio
- Seals and Protects Cable Splices and Terminations
- High Resistance to Impact and Abrasion
- Lighter Weight and Flexibility than Heavy Wall
- Continuous Operating Temperature -67°F to 230°F (-55°C to 110°C)
- Shrink Temperature 248°F (120°C)
- Rated for 600-1000V
- Black Color
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68148 |
| Type | Medium Wall Heat Shrink Tubing |
| Cable Range | 3/0 AWG - 400 MCM |
| Expanded Diameter | 1.50" |
| Recovered Diameter | 0.50" |
| Wall Thickness | 0.080" |
| Shrink Ratio | 3:1 |
| Length | 50 ft |
| Adhesive Liner | No |
| Voltage | 600-1000V |
| Color | Black |
Applications
Used to seal and protect cable splices, joints, and terminations for 3/0 AWG - 400 MCM cable where flexibility and impact resistance matter.
Installation
Slide the tubing over the splice and apply heat evenly from the center outward until fully recovered.
