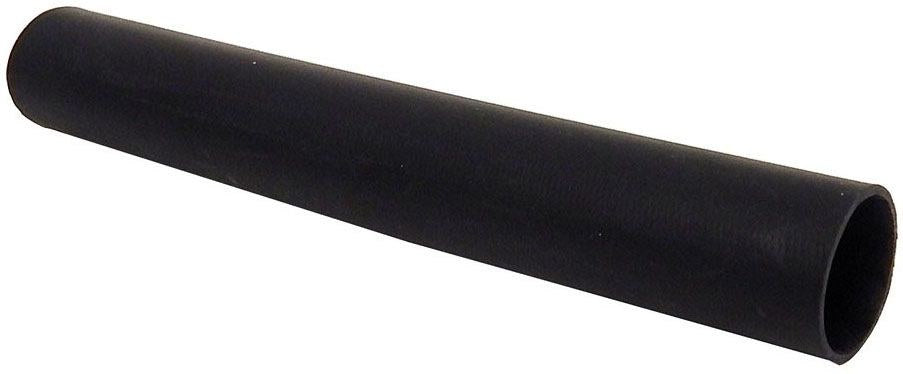

Morris 68124 Medium-Wall Heat Shrink Tubing, 2.05" → 0.75", 4 ft
Morris 68124 Medium-Wall Heat Shrink Tubing, 2.05" → 0.75", 4 ft
Regular price
$88.24
Regular price
Sale price
$88.24
SKU:68124
Quantity
Couldn't load pickup availability
Morris's 68124 is black medium-wall heat shrink tubing in a 4 ft length for 250 MCM - 750 MCM cable, supplied at 2.05" and recovering to 0.75" at a 3:1 shrink ratio. The 4-foot length has an adhesive liner for complete environmental protection and insulation. It is rated 600-1000V with continuous operation to 230°F (110°C) and seals and protects cable splices and terminations.
Key Features
- 3:1 Shrink Ratio
- Seals and Protects Cable Splices and Terminations
- High Resistance to Impact and Abrasion
- Lighter Weight and Flexibility than Heavy Wall
- Continuous Operating Temperature -67°F to 230°F (-55°C to 110°C)
- Shrink Temperature 248°F (120°C)
- Rated for 600-1000V
- Black Color
- 4-Foot Length has Adhesive Liner for Complete Environmental Protection
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68124 |
| Type | Medium Wall Heat Shrink Tubing |
| Cable Range | 250 MCM - 750 MCM |
| Expanded Diameter | 2.05" |
| Recovered Diameter | 0.75" |
| Wall Thickness | 0.080" |
| Shrink Ratio | 3:1 |
| Length | 4 ft |
| Adhesive Liner | Yes |
| Voltage | 600-1000V |
| Color | Black |
Applications
Used to seal and protect cable splices, joints, and terminations for 250 MCM - 750 MCM cable where flexibility and impact resistance matter.
Installation
Slide the tubing over the splice and apply heat evenly from the center outward until fully recovered and adhesive flows from the ends.
