Circuit Breaker Testing Guide: What Each Test Actually Tells You

A circuit breaker can look normal, switch normally, and still need more than a visual check to confirm that its protective functions operate as intended.

That is because “testing a circuit breaker” can mean several very different things.

Pressing the TEST button on a GFCI or AFCI breaker is one form of testing. Checking the mechanical condition of a larger breaker is another. Testing an electronic trip unit with a manufacturer test kit is different again. In commercial and industrial systems, primary-current injection may be used to evaluate the breaker through its current-sensing and tripping path.

These tests are not interchangeable.

A circuit breaker test should be selected according to the breaker type and the function being verified. A built-in test button checks a specific protective function. Secondary injection evaluates an electronic trip unit. Primary injection can evaluate more of the complete current path and trip chain. Simply switching a breaker on and off does not prove that it will trip correctly under an overcurrent condition.

This guide explains what the major testing methods do, what they do not prove, and when testing moves beyond a normal user check into professional electrical maintenance.

What Does Circuit Breaker Testing Mean?

Circuit breaker testing is the process of checking whether a breaker or one of its protective functions operates according to its design and manufacturer requirements.

The appropriate test depends heavily on the device.

For example:

• A standard thermal-magnetic residential breaker may not have a user-accessible test function.

• A GFCI breaker normally has a TEST button for checking its ground-fault protection.

• An AFCI breaker may have a TEST button and diagnostic features for its arc-fault circuitry.

• An electronic-trip molded-case breaker may support secondary-injection testing.

• A larger molded-case or power breaker may require specialized test equipment for primary-injection or other maintenance tests.

Schneider Electric notes that primary and secondary injection testing both have roles in the maintenance testing of molded-case circuit breakers, but they evaluate the system differently.

That distinction is the foundation of a useful breaker test: first identify what function you are trying to verify.

The Main Types of Circuit Breaker Tests

The most useful way to understand breaker testing is to classify the tests by what they evaluate.

Not every breaker needs every test.

A residential branch-circuit breaker and a large commercial molded-case breaker should not be approached as though they were the same piece of equipment.

Start by Identifying the Breaker Type

The breaker type determines which tests are meaningful.

Before interpreting any test result, identify the device from its label and manufacturer documentation.

Useful information may include:

• Manufacturer

• Series or family

• Model or catalog number

• Ampere rating

• Number of poles

• Voltage rating

• Interrupting rating

• Thermal-magnetic or electronic trip type

• AFCI or GFCI functionality

• Built-in TEST button

• Adjustable trip settings

• Manufacturer-supported test accessories

Lumera's circuit breaker selection guide emphasizes that breakers are not universal components; the correct device must match both the electrical application and the panel or equipment in which it is installed.

For testing, the same principle applies: follow the procedure for the specific breaker, not a generic procedure taken from a different product family.

Visual Inspection Is a Condition Check, Not a Trip Test

A visual inspection can identify obvious conditions that should stop further testing, but it does not prove that the breaker's protective mechanism operates correctly.

Conditions that warrant attention include:

• Cracked or damaged case

• Heat discoloration

• Melted material

• Corrosion

• Moisture or contamination

• Damaged terminals

• Loose or damaged operating handle

• Missing or unreadable labels

• Signs of overheating at connections

If damage is present, the correct next step is not to force the breaker through repeated tests.

Manufacturer documentation and qualified evaluation should determine whether the equipment can remain in service.

The key distinction is:

Visual inspection evaluates condition. It does not verify the breaker's trip curve or protective response.

Does Switching a Breaker On and Off Test It?

No. Operating the handle confirms only limited mechanical behavior; it does not prove that the breaker will trip correctly at its designed current and time characteristics.

A breaker that switches from ON to OFF and back again may still have protective characteristics that require separate testing.

This distinction matters because a circuit breaker performs two different roles:

1. It provides a switching and isolation mechanism.

2. It automatically opens the circuit when its protective element detects conditions it is designed to respond to.

Manually moving the handle checks only part of that system.

For a standard thermal-magnetic residential breaker, there is normally no simple homeowner-accessible procedure that reproduces a controlled overload or short-circuit condition to verify the actual trip curve.

Deliberately creating a fault is not an appropriate way to test a breaker.

How Do You Test a GFCI Circuit Breaker?

For a GFCI breaker equipped with a manufacturer-provided TEST button, the built-in test function is the normal user-accessible method for verifying the ground-fault protective function.

The exact sequence must follow the manufacturer's instructions.

For example, Schneider Electric's current instructions for certain QO and Homeline electronic breakers direct users to operate the TEST function and specify monthly testing.

Siemens likewise states that GFCI protection should be tested monthly for proper function.

The important point is what the result means.

If the Breaker Trips When the TEST Button Is Pressed

A successful built-in test indicates that the tested protective function responded to the internal test signal.

It does not prove every possible condition of the branch circuit is correct.

If the Breaker Does Not Trip

Do not treat repeated button pressing as a repair method.

Verify the manufacturer's required test conditions and instructions. If the device still fails its specified built-in test, it requires appropriate evaluation rather than being assumed to provide normal protection.

Schneider Electric provides product-specific guidance for GFCI breakers that do not trip when the TEST button is operated, which reinforces why the manufacturer procedure matters.

How Do You Test an AFCI Circuit Breaker?

AFCI breakers with a built-in TEST button should be tested according to the manufacturer's instructions for that model.

The internal test evaluates the arc-fault protection electronics rather than simply testing whether the handle can move.

Current Schneider instructions for combination AFCI breakers specify monthly operation of the TEST function.

Some modern breakers also store diagnostic information about the last trip condition. That information can help a qualified person distinguish a test result from a prior fault indication, but diagnostic features differ by manufacturer and product generation.

A third-party tester should not automatically be assumed equivalent to the breaker manufacturer's built-in function. Siemens specifically notes in its AFCI/GFCI documentation that the device's Push-to-Test button is the appropriate method for checking the functionality of its AFCI/GFCI protection.

What About Dual-Function AFCI/GFCI Breakers?

A dual-function breaker combines arc-fault and ground-fault protection in one device.

Testing should therefore follow the exact manufacturer procedure for the dual-function model rather than borrowing instructions from a standard breaker.

Some current dual-function breakers also perform continuous internal monitoring of their protection electronics. Siemens describes certain dual-function products as continuously checking for malfunction and tripping if protection is compromised.

Built-in self-monitoring, however, does not justify ignoring the manufacturer's manual test requirements.

What Is Secondary Injection Testing?

Secondary injection testing evaluates an electronic trip unit by applying simulated electrical signals directly to the protection electronics rather than sending full primary current through the breaker.

This method is used with compatible electronic-trip circuit breakers.

Depending on the breaker and test system, secondary injection can verify items such as:

• Trip-unit operation

• Pickup settings

• Time-delay behavior

• Ground-fault functions

• Long-time or short-time protective logic

• Communication between the trip unit and trip mechanism

Schneider Electric states that MicroLogic electronic trip units can be tested using secondary injection with appropriate manufacturer test equipment.

What Secondary Injection Does Not Necessarily Test

Secondary injection does not automatically reproduce the entire primary-current path through the breaker.

That means the result should not be interpreted as identical to a primary-injection test.

Schneider distinguishes the two methods precisely for this reason: primary and secondary injection evaluate different portions of the protection system.

Secondary injection is therefore valuable when the objective is to test trip-unit logic and settings efficiently.

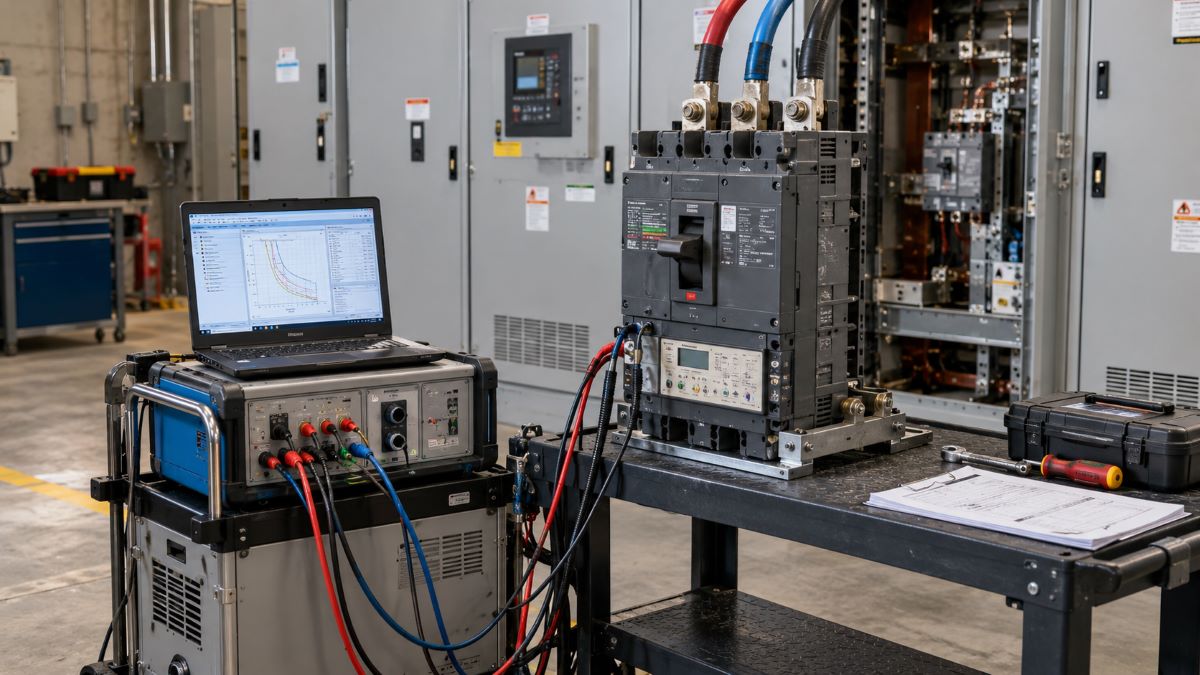

What Is Primary Injection Testing?

Primary injection testing sends controlled current through the breaker's primary current path to evaluate more of the complete sensing and tripping chain.

The test equipment supplies enough current to exercise the breaker protection under controlled conditions.

Depending on breaker design, the test can evaluate elements including:

• Current sensors or transformers

• Internal current path

• Trip-unit response

• Trip mechanism

• Operating time at defined current levels

Schneider describes primary injection as a method that can test the breaker from the current transformers and associated wiring through the trip unit.

Because primary injection can involve high test currents and specialized equipment, it is fundamentally different from pressing a residential TEST button.

It is maintenance and commissioning work for qualified personnel following manufacturer and applicable maintenance procedures.

Primary vs. Secondary Injection Testing

The two methods are complementary rather than competing.

Schneider explicitly states that both primary and secondary injection have a place in MCCB maintenance testing.

The correct choice depends on the breaker, maintenance objective, commissioning requirements, manufacturer instructions, and facility maintenance program.

Can You Test a Circuit Breaker With a Multimeter?

A multimeter can measure electrical quantities around a circuit, but a voltage measurement alone is not a complete circuit breaker performance test.

For example, checking for voltage at a breaker terminal may help establish whether voltage is present at a particular point in a circuit. It does not reproduce the breaker's overload or short-circuit response or verify its complete trip curve.

More importantly, taking measurements inside an energized panel can expose the person performing the test to shock and arc-flash hazards.

OSHA states that only qualified persons may perform testing work on electric circuits or equipment where exposed energized parts are involved.

OSHA also recognizes that some electrical testing can only be performed energized because of the nature of the test, but that does not turn energized testing into ordinary DIY work.

For that reason, this guide does not provide probe-by-probe instructions for measuring energized breaker terminals inside a panel.

A Non-Contact Voltage Tester Is Not a Breaker Performance Tester

A non-contact voltage tester, or NCVT, is useful for detecting the presence of an electric field around an energized conductor.

It can support electrical safety checks and circuit identification, but it cannot determine whether a breaker's internal trip mechanism meets its protective characteristics.

Lumera's Non-Contact Voltage Tester Guide explains both the proper use and limitations of these testers.

Keep the purposes separate:

• NCVT: detects possible voltage presence.

• Multimeter: measures electrical quantities when used correctly.

• Built-in TEST button: evaluates a specified electronic protection function.

• Injection test equipment: evaluates breaker protective performance under controlled test conditions.

No single tool performs all four jobs.

When Does Circuit Breaker Testing Require a Qualified Person?

Professional involvement is appropriate whenever testing requires:

• Removing panel covers

• Exposure to energized parts

• Direct measurements on energized breaker terminals

• Primary-current injection

• Secondary injection using specialized test equipment

• Adjustment of electronic trip-unit settings

• Testing commercial or industrial distribution equipment

• Interpreting protective-device coordination or trip curves

• Maintenance on large molded-case or power circuit breakers

OSHA requires qualified persons performing electrical testing to be familiar with the equipment, hazards, and appropriate safety practices.

OSHA also requires test instruments and equipment used for electrical work to be appropriate for the circuits and equipment on which they are used.

The term qualified therefore means more than owning a meter.

Testing a Standard Thermal-Magnetic Breaker

A standard thermal-magnetic breaker usually does not have the same built-in electronic TEST function found on AFCI or GFCI devices.

Its two basic protective elements respond to different conditions:

• The thermal element responds to sustained overcurrent.

• The magnetic element responds rapidly to high fault current.

Proper performance testing of those characteristics requires controlled test conditions.

For many residential applications, users should not try to create artificial overloads or faults to prove that a standard breaker trips.

When actual performance verification is required as part of maintenance, commissioning, or equipment evaluation, follow the breaker's manufacturer procedures and the facility's electrical maintenance program.

Testing Larger Molded-Case and Power Circuit Breakers

Commercial and industrial breaker maintenance can involve substantially more testing than a residential branch breaker.

Depending on the equipment and maintenance program, testing may include:

• Mechanical operation

• Trip-unit functional testing

• Primary injection

• Secondary injection

• Verification of trip settings

• Contact-related measurements

• Timing or operating-performance checks on applicable breaker types

• Inspection of accessories and control functions

Megger notes that power-system circuit breakers may remain inactive for months or years and still need to operate within required tolerances when a disturbance occurs, which is why reliable test methods are important to system reliability.

The exact procedure should come from the equipment manufacturer and the applicable maintenance standard, not a generic residential testing procedure.

Maintenance Context: NFPA 70B

Electrical maintenance requirements have become more formalized in recent code cycles. NFPA currently lists the 2026 edition of NFPA 70B as the Standard for Electrical Equipment Maintenance, covering preventive maintenance of electrical and electronic systems to reduce equipment failures and worker injuries. Earlier editions, including 2019, were published as a Recommended Practice, while the 2023 and 2026 editions are identified as a Standard.

NFPA 70B's framework also distinguishes between online and offline maintenance-testing categories and explicitly recognizes that energized testing introduces additional worker hazards.

For facility managers and electrical contractors, that reinforces an important point: breaker testing should be part of a documented maintenance strategy rather than an improvised response after equipment begins behaving unusually.

What Does a Failed Test Mean?

A failed test means the device did not produce the expected result under the specified test conditions. It does not, by itself, identify the root cause of every circuit problem.

For example:

• Failure of a manufacturer-required TEST-button check indicates that the protective function did not respond as expected.

• A failed secondary-injection test can point to a problem in the electronic trip-unit function or associated trip chain being tested.

• A failed primary-injection test can identify a performance problem in the broader current-sensing or trip path.

• An inconclusive result may indicate an incorrect test setup, unsuitable test method, or need for manufacturer-specific evaluation.

This distinction helps keep testing separate from troubleshooting.

If your primary question is why the breaker trips, will not reset, feels hot, or appears damaged, use Lumera's Circuit Breaker Troubleshooting & Replacement Guide instead.

What Does a Passed Test Mean?

A passed test means the breaker or protective function met the criteria of the specific test performed.

It should not automatically be interpreted as proof that:

• All branch-circuit wiring is correct

• No loose connection exists elsewhere

• The load is properly sized

• The breaker is correctly selected for the panel

• Every protective function has been tested

• The entire electrical system is fault-free

Test scope matters.

A TEST-button check and a primary-current injection test can both produce a "pass," but they do not evaluate the same things.

Always record what was tested, not merely that "the breaker passed."

Circuit Breaker Testing vs. Troubleshooting

The difference can be summarized simply:

This separation is important for both technical accuracy and maintenance records.

If a breaker repeatedly trips during normal service, the priority is not to prove the breaker can trip—it clearly can. The next question is why it is tripping, which belongs to troubleshooting rather than this testing guide.

Circuit Breaker Testing vs. Replacement

Testing also should not be treated as a replacement procedure.

A test result can provide information that contributes to a replacement decision, but the replacement itself introduces separate questions:

• Correct breaker family

• Panel listing and compatibility

• Ampere rating

• Number of poles

• Interrupting rating

• AFCI/GFCI requirements

• Conductor compatibility

• Installation and torque requirements

Lumera covers those decisions separately in the Circuit Breaker Sizing & Selection Guide and Circuit Breaker Wiring & Installation Guide.

Keeping those topics separate prevents a testing article from becoming an all-purpose breaker guide.

Circuit Breaker Testing Checklist

Before interpreting a breaker test, confirm:

1. The breaker has been positively identified.

2. The test method is appropriate for that breaker type.

3. Manufacturer instructions are available.

4. The test is checking the function you actually need to verify.

5. Required test equipment is correctly rated and appropriate.

6. Work involving exposed energized parts is performed by qualified personnel.

7. The expected pass/fail criteria are known before testing begins.

8. The result is documented with the test method used.

9. A failed result is not repeatedly forced or bypassed.

10. Troubleshooting, replacement, and sizing questions are handled separately.

Key Takeaway

There is no single universal circuit breaker test.

The correct test depends on the breaker and the function that needs verification:

• Use a manufacturer-specified TEST button for applicable GFCI, AFCI, and dual-function breakers.

• Use secondary injection when the goal is to evaluate compatible electronic trip-unit functions.

• Use primary injection when a maintenance program requires testing more of the complete current-sensing and tripping path.

• Treat visual and mechanical checks as condition checks, not proof of protective performance.

• Do not deliberately create faults to test a breaker.

• Leave energized-panel measurements and specialized injection testing to appropriately qualified personnel.

Most importantly, keep testing separate from troubleshooting.

Testing asks whether a defined protective function performs correctly. Troubleshooting asks why a breaker or circuit is behaving abnormally. Keeping those intents separate makes both the electrical guidance and the Lumera content architecture clearer.
