Single-Pole Switch Wiring Guide: Connections, Diagrams, and Safety

A single-pole wall switch is one of the simplest lighting controls in a building, yet the wiring inside its box is not always obvious. One installation may contain an incoming supply and a cable to the light, while another may have a switch loop, multiple splices, or conductors serving additional devices. The switch looks the same from the outside, but the wiring arrangement can be different.

This single-pole switch wiring guide explains the basic operating circuit, line and load terminals, neutral and equipment grounding conductors, common wiring layouts, and the checks electricians use before installation. It focuses on conventional mechanical switches controlling lights from one location, rather than a general switch replacement tutorial or a multi-location 3-way circuit.

Safety note: Fixed wiring can expose workers to hazardous voltage. The circuit examples below are conceptual, not complete job-specific installation diagrams. Qualified electrical personnel must identify conductors, establish an electrically safe condition, follow the exact device instructions, and apply the locally adopted electrical code.

What Is a Single-Pole Light Switch?

A single-pole switch is a single-pole, single-throw (SPST) control. It opens or closes one current path so a light or compatible load can be operated from one location. In a conventional North American lighting circuit, it interrupts the ungrounded (hot) conductor supplying the load, not the neutral.

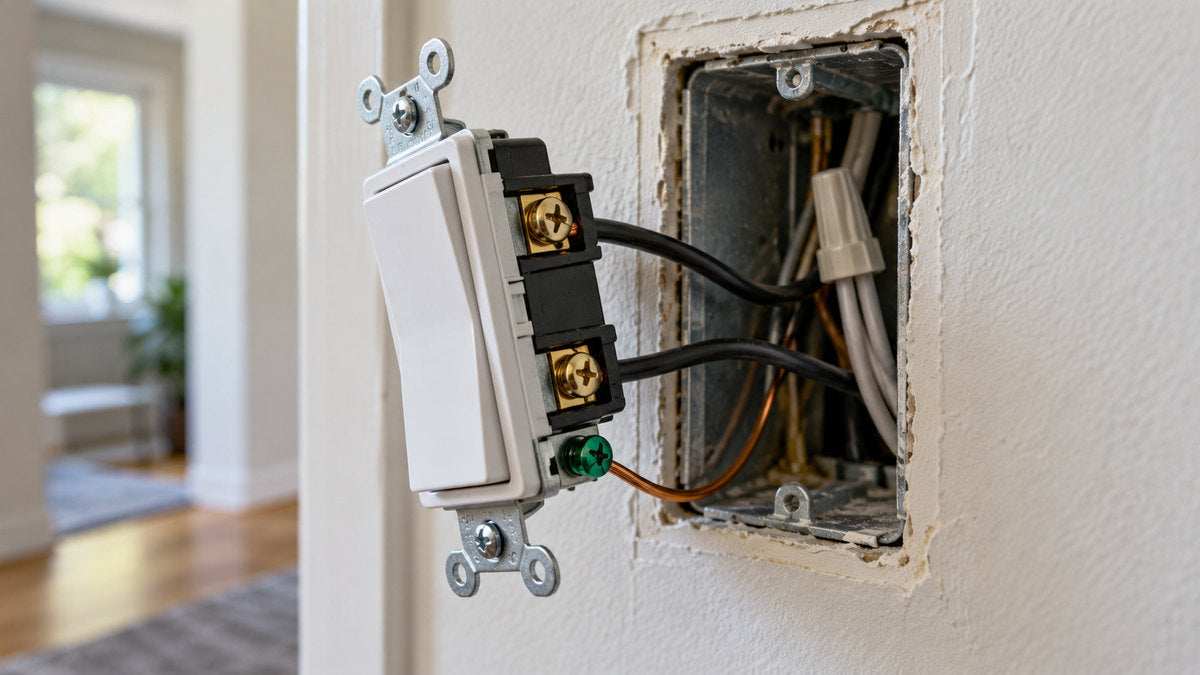

A basic mechanical single-pole switch usually has two circuit terminals and a grounding provision. Some models have two interchangeable brass-colored terminals; others identify line and load explicitly. The markings on the exact device, rather than a generic illustration, govern how it must be connected.

A standard single-pole device is not the same as a 3-way switch, which controls a lighting load from two locations using common and traveler connections. Lumera Electric's Types of Electrical Switches Guide compares those applications before product selection.

How Single-Pole Switch Wiring Works

In a simple 120V lighting circuit, the branch-circuit supply provides an ungrounded conductor and a grounded (neutral) conductor. The single-pole switch is placed in the hot path. With the switch closed, current can flow through the connected light and return along the intended neutral path; with the switch open, the switched hot is interrupted.

The equipment grounding conductor has a separate protective purpose. It is not the normal return path for the light and must never be substituted for a neutral. Proper grounding and bonding help provide a fault-current path for applicable protective devices.

Conceptual Circuit Diagram

The following simplified description explains circuit function, not cable routing or a complete approved wiring schematic.

This distinction explains why finding two insulated conductors on a mechanical switch does not automatically mean one of them is a neutral. In many traditional installations, both switch terminals are associated with the ungrounded conductor path.

Identifying Line, Load, Neutral, and Ground

Conductor function must be determined from the actual circuit and confirmed using approved inspection and testing practices. Wire insulation colors can provide clues, but they are not conclusive because older switch loops, reidentified conductors, and prior alterations can create exceptions.

Line: Incoming Supply

The line conductor brings the electrical supply to the switching arrangement. On a conventional mechanical switch with interchangeable terminals, the device may not distinguish between its two circuit terminals. By contrast, some electronic controls have dedicated LINE and LOAD markings that must be respected.

Load: Switched Conductor to the Light

The switched hot leaves the switch and supplies the fixture when the control is on. It is distinct from the neutral even though both are needed for the complete 120V load circuit. In installations with multiple luminaires, the switched hot can serve a properly designed lighting group without changing the switch into a multi-location device.

Neutral: Normal Return Path

A conventional mechanical single-pole switch generally does not need a neutral connected to its operating terminals. The lighting load still requires an appropriate return path, and the neutral may be spliced through the same wall box when the circuit layout provides it. Many smart and electronic switches have different neutral requirements.

Ground: Protective Connection

The grounding terminal is commonly green, and an equipment grounding conductor may be bare copper or green insulated, subject to the wiring method. Metal boxes and associated hardware may also require bonding. Missing or damaged grounding connections should be professionally evaluated rather than ignored or improvised.

Common Single-Pole Switch Wiring Layouts

The position of the power supply and the route of the cables affect the contents of the switch box. Qualified installers identify which arrangement is actually present before disconnecting conductors or following a product diagram.

Power Enters the Switch Box

In a common layout, the branch-circuit feed enters the switch box and another cable carries the switched supply to the fixture. The neutral may be present in the box and continue through an approved splice toward the light. The mechanical switch controls only the intended hot path, while grounding continuity is maintained throughout the installation.

This arrangement can be convenient when later evaluating an electronic controller, but the existence of a neutral splice does not automatically establish spare conductor capacity or compatibility with every smart switch. Box fill, circuit configuration, equipment ratings, and manufacturer instructions still apply.

Power Enters the Ceiling or Fixture Box

In another layout, supply power is first present at the luminaire box and a cable runs to the wall switch. Older arrangements sometimes used a reidentified white conductor as a hot conductor in a switch loop. Consequently, a white wire attached to an old switch cannot automatically be treated as a neutral.

Modern neutral-at-switch requirements and exceptions depend on the applicable NEC edition and local amendments. A contractor must evaluate the actual cable arrangement rather than extend an outdated two-wire switch-loop diagram to every new installation.

Multiple Lights Controlled From One Switch

A single-pole switch can operate more than one suitable light when the branch circuit and control are properly designed. In a conventional parallel lighting arrangement, each fixture receives the required operating voltage while a shared switched hot controls the group. Load ratings, inrush current, electrical boxes, and approved connections remain important.

For the larger circuit arrangement, read Lumera Electric's Multiple Lights on One Switch Wiring Guide.

Single-Pole vs. 3-Way Switch Wiring

A single-pole control and a 3-way control may use similar wall plates, but their internal switching functions and terminals are different. A 3-way device normally has a common terminal and two traveler terminals, allowing two switches to control one load from separate locations. Replacing a 3-way switch with a single-pole device without redesigning the circuit will not preserve the intended operation.

If two locations must control the same light, consult Lumera Electric's 3-Way Switch Wiring Guide rather than applying a single-pole diagram.

How Electricians Evaluate a Single-Pole Switch Installation

Working inside a switch box is not simply a matter of matching colors. A qualified electrician confirms the circuit architecture and device ratings before selecting a wiring method. The following sequence describes the professional evaluation process and is not a substitute for the manufacturer's instructions.

Step 1: Identify the Circuit and Device

The electrician determines the intended lighting function, which circuit supplies the device, the number of control locations, and whether other circuits share the box. The switch is checked for voltage, current, load-type, and wiring-method compatibility. A 15A rating printed on the device is not permission to ignore the load characteristics or branch-circuit rules.

Step 2: Establish an Electrically Safe Work Condition

The correct supply must be isolated and absence of voltage verified using appropriate test equipment and procedures. Switching the wall control off does not make exposed wiring safe. Workplace work practices, including lockout or tagging when applicable, are addressed by OSHA 29 CFR 1910.333.

Step 3: Document and Identify Conductors

Before disconnecting an existing device, the installer documents conductor locations and examines any splices in the box. A prior installation may include reidentified conductors, multiple cables, or supply from more than one circuit. Terminal position or conductor color alone should not be relied upon to identify line, switched hot, neutral, or ground.

Step 4: Inspect Box Capacity and Connections

The electrician verifies that the enclosure is suitable for the wiring method, contains enough usable volume, and can support the new device. Damaged insulation, overheated connections, and inadequate bonding must be addressed. Lumera Electric's Electrical Box Types and Installation Guide explains why box fill and correct fittings matter.

Step 5: Follow the Approved Device Instructions

The selected switch is installed with the termination method and grounding arrangement permitted by its manufacturer and applicable code. Wire connector and terminal ratings, conductor material, and any specified tightening torque must be respected. A smart switch, illuminated switch, or combination control may require connections that a basic mechanical switch does not.

Step 6: Verify Normal Operation

After completing the appropriate inspections, the installer restores power and verifies that the correct fixtures are controlled without abnormal operation. A breaker that trips, a switch that overheats, or lights that operate unexpectedly require fault investigation rather than repeated rewiring by trial and error.

Electrical Code and Safety Considerations

U.S. switch installations are subject to the NEC edition adopted locally and any applicable amendments. Requirements can involve switching the ungrounded conductor, equipment grounding, wiring methods, box fill, device ratings, accessibility, and the availability of a neutral at some lighting-switch locations. Code section numbering and exceptions may change between editions, so the project-specific adopted text controls.

Switching Hot Instead of Neutral

In an ordinary grounded lighting branch circuit, the basic wall switch is intended to interrupt the ungrounded conductor. Switching only the neutral can leave parts of a lighting circuit energized when the switch appears off. This is one reason why identifying actual conductor function is more important than copying colors from a photograph.

Neutral-at-Switch Rules

NEC requirements have evolved to accommodate electronic lighting controls. Depending on the edition, location, wiring method, and exceptions, a grounded circuit conductor may need to be provided at a switch location even when a traditional mechanical switch does not use it. A white conductor found in a box is not necessarily a usable neutral, and the grounding conductor is never an acceptable replacement.

LED and Electronic Load Compatibility

A mechanical switch generally does not require an LED-specific neutral connection, but a dimmer, occupancy sensor, or smart control can have minimum-load and driver-compatibility requirements. A device labeled for one type of load should not automatically be used for every lighting or fan application. For switch selection and replacement-specific questions, see Lumera Electric's Light Switch Replacement Guide.

Common Single-Pole Switch Wiring Problems

When a switch does not operate correctly, the cause may lie elsewhere in the circuit. Qualified personnel should identify the source of the fault and avoid energizing damaged equipment merely to see whether an improvised change works.

A switch that makes crackling noises, shows discoloration, or repeatedly trips protection should not remain in service pending ordinary cosmetic replacement. Identifying the underlying electrical problem takes priority over installing a new wall plate.

Common Installation Mistakes to Avoid

• Assuming wire colors prove conductor function: Existing switch loops and previous modifications can change what a wire is doing. Test and verify the actual circuit.
• Confusing single-pole and 3-way devices: Similar-looking switches can have different internal contacts. Count control locations and check terminal markings.
• Treating ground as neutral: The equipment grounding path has a protective function and must not carry normal return current.
• Ignoring box fill or damaged wiring: A new switch does not repair an undersized box, deteriorated insulation, or an unsafe splice.
• Using generic terminal diagrams: Follow the exact manufacturer's instructions, particularly for electronic and combination devices.
• Failing to verify de-energization: An off switch position does not establish an electrically safe condition.

Key Takeaways

• A single-pole switch controls one compatible circuit path from one location, typically interrupting the hot conductor supplying the light.

• Line and switched hot are different functions; neutral and equipment ground have separate roles and must not be interchanged.

• Power may enter at the wall box or the fixture box, so the same switch appearance does not prove the same wiring arrangement.

• A mechanical single-pole switch differs from 3-way, smart, and dimming controls in terminals and electrical requirements.

• Qualified installers should identify circuits, verify absence of voltage, inspect grounding and box conditions, and follow the exact device instructions.

• The locally adopted code and manufacturer documentation control the final installation method.
