An electrical box is part of the wiring system, not just a container that hides conductors. The box protects splices and terminations, supports devices or fixtures, provides space for conductor bending, and when metal can participate in the grounding and bonding path. The correct box depends on what it holds, where it is installed, how it mounts, and how much wiring must fit inside.
Lumera Electric separates common device and outlet boxes from larger junction boxes and enclosures because those categories solve different installation problems.
Electrical Box Types at a Glance
|
Box Type |
Primary Purpose |
Typical Location |
|---|---|---|
|
Device / outlet box |
Holds switches, receptacles, dimmers, controls |
Finished or unfinished walls |
|
4-inch square box |
Splices, devices with covers/rings, commercial work |
Walls, ceilings, exposed raceway systems |
|
Round / octagon box |
Lighting fixture connections |
Ceilings and walls |
|
Fan-rated box |
Supports a ceiling fan or fan/light assembly |
Ceiling framing or listed retrofit brace |
|
Junction box |
Encloses splices and taps |
Accessible wall, ceiling, attic, equipment area |
|
Pull box |
Provides access for conductor pulling and bending |
Long or complex raceway runs |
|
Weatherproof box |
Outdoor device or splice enclosure |
Exterior walls and exposed locations |
|
Floor box |
Brings power/data into an occupied floor area |
Offices, conference rooms, open spaces |
New-Work vs. Old-Work Boxes

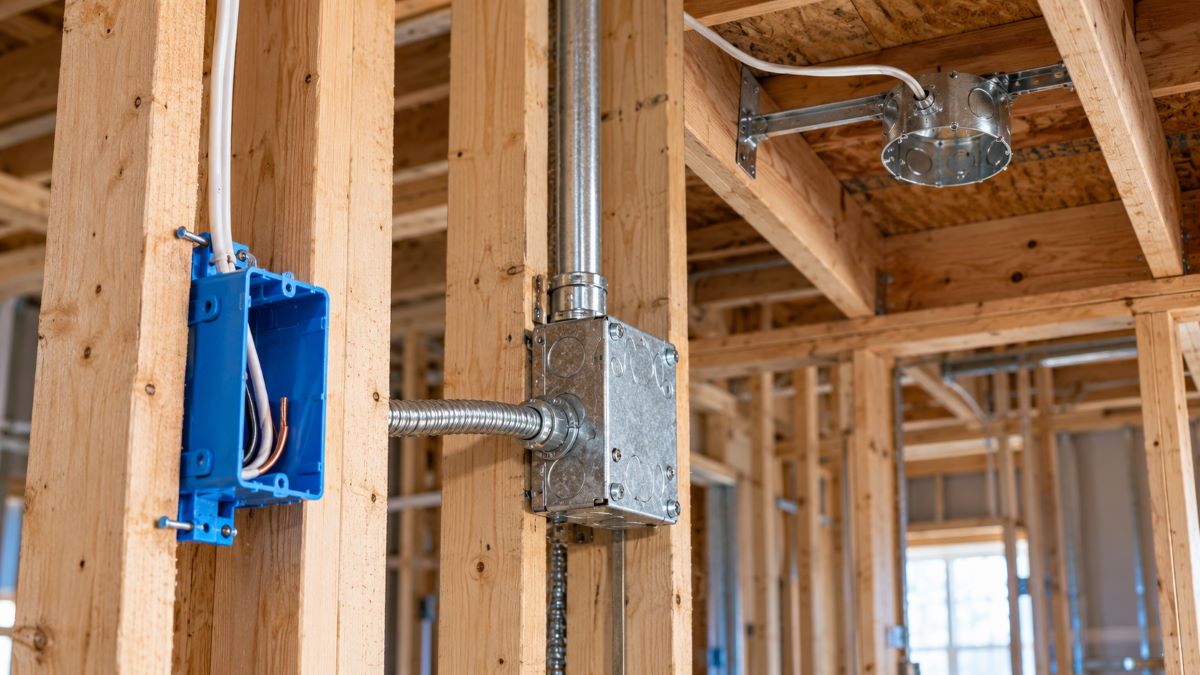

New-work boxes are installed while framing is exposed. They fasten directly to studs, joists, or brackets before the finished surface is installed, making them the preferred choice when the structure is open and a rigid attachment is available.
Old-work, remodel, or cut-in boxes are designed for finished walls. They pass through a carefully cut opening and clamp to the back of the wall surface. They are useful for adding switches and receptacles without opening an entire wall, but the support method makes them inappropriate for loads that require dedicated structural support unless the product is specifically listed for that load.
Metal vs. Plastic Electrical Boxes
Plastic boxes are lightweight, nonconductive, and commonly paired with nonmetallic cable in residential work. Metal boxes are durable, work naturally with metal raceways and armored cable systems, and must be included correctly in the equipment grounding and bonding path.
Material choice follows the wiring method and environment. A metal box is not automatically “better,” and a plastic box is not automatically acceptable everywhere. The connectors, cable clamps, grounding method, and product listing need to match the installation.
Device Boxes, Junction Boxes, and Pull Boxes Are Different
A device box is shaped and drilled to mount a switch, receptacle, dimmer, or similar wiring device. A junction box primarily encloses splices. A pull box provides access so conductors can be installed through a raceway system without exceeding permitted bending and pulling conditions.
The distinction affects sizing. Device and junction boxes are often limited by conductor and device volume, while larger pull boxes are sized around raceway entries, conductor size, and bending space.
Ceiling Fan Boxes Must Be Listed for Fan Support
A standard round or octagon fixture box should not be assumed to support a ceiling fan. Fan loads add weight, vibration, and dynamic forces. Use a box or brace assembly specifically listed for fan support and install it according to its weight and mounting limitations.
Weatherproof and Outdoor Electrical Boxes
Outdoor boxes need to match the environmental exposure, cover type, wiring method, and fittings. Cast weatherproof boxes are common for exterior receptacles, switches, and lighting connections. Lumera’s weatherproof electrical boxes include FS, FD, and Bell-style configurations for surface-mounted exterior work.
The finished enclosure is only as weather-resistant as its cover, gasket, hubs, fittings, and installation. A weatherproof box with an indoor-only cover or an improperly sealed cable entry does not create a weatherproof assembly.
Box Fill: The Box Must Be Large Enough for the Wiring
Electrical boxes have marked internal volume, and the adopted electrical code limits how much conductor and device volume can occupy that space. Insulated conductors, equipment grounding conductors, internal clamps, and device yokes can all contribute to the calculation. Larger conductors require more volume per conductor allowance than smaller ones.
A practical example is why deeper boxes are often chosen behind dimmers, GFCIs, smart controls, or multi-gang switch arrangements. The device body itself takes room, and the conductors still need enough space to fold into the enclosure without damaged insulation or excessive mechanical stress.
How to Choose an Electrical Box
- Define the job: device mounting, fixture connection, splice enclosure, pull point, fan support, or floor access.
- Choose new-work or old-work construction based on whether framing is exposed.
- Match the box material and entries to the wiring method: NM cable, MC cable, conduit, or another listed system.
- Confirm enough internal volume for conductors, clamps, grounding, and device yokes.
- Check the environment: dry indoor, damp, wet, outdoor, corrosive, or in-grade conditions require different products.
- Check the supported load. Ceiling fans and heavy fixtures need boxes or support systems specifically listed for them.
- Plan access. Splice and junction locations generally need to remain accessible after the building finish is complete.
Electrical Box Installation Basics
The details vary by box type, but a sound installation follows a consistent sequence: establish the box location, confirm the wiring path, mount the box securely at the correct finished-surface depth, bring in cables or raceways through listed connectors, maintain grounding and bonding, make the splices or device terminations, arrange conductors without damage, and close the box with the correct device, ring, cover, or plate.
- Mount the box rigidly enough for the intended device or supported load.
- Keep the front edge positioned correctly for the finished wall or ceiling surface.
- Use listed clamps, connectors, bushings, and fittings at cable or conduit entries.
- Bond metal boxes and fittings as required by the wiring method.
- Do not bury a junction box behind inaccessible drywall or a permanently sealed finish.
- Use a cover or device plate that is designed for the box and location.
Common Electrical Box Installation Mistakes
- Choosing a box by face size while ignoring cubic-inch volume.
- Using a standard fixture box for a ceiling fan.
- Failing to bond a metal box or metal raceway system.
- Installing an indoor box or cover in a wet location.
- Overfilling a shallow device box with large conductors and deep devices.
- Leaving unused openings unclosed.
- Setting the box too deep or too far proud of the finished surface.
- Concealing a box that contains splices where it cannot be accessed later.
A Practical Capacity Benchmark
Current device-box product lines span a wide range of volumes because gang count alone does not tell you how much wiring space is available. Lumera’s device-box assortment, for example, includes common single-gang boxes in roughly the mid-teens to low-20s cubic inches and progressively larger multi-gang boxes. The takeaway is not a universal size target; it is that the stamped volume and the actual fill calculation matter more than the visible face opening.
Frequently Asked Questions
New-work boxes fasten to exposed framing before the wall finish goes on. Old-work boxes are installed through a cut opening in an existing finished surface and clamp to the wall material.
Only if the box and support method are specifically listed for fan support. A standard light-fixture box should not be assumed to handle fan weight and vibration.
Metal boxes that are part of the wiring system generally need to be bonded into the equipment grounding path using an approved method for the wiring system.
A box containing splices generally must remain accessible. Plan a location where the cover can be reached without cutting into a finished surface.
Use the box’s marked volume and the applicable box-fill rules for the conductors, grounding conductors, internal clamps, and devices in the enclosure. When space is tight, moving to a deeper or larger box is often the cleanest solution.
