Multiple Lights on One Switch Wiring Guide: Circuits and Safety

Controlling several ceiling lights, recessed downlights, or LED fixtures from a single wall switch is common in residential and commercial buildings. The challenge is understanding how the fixtures share power, how the switch controls the group, and what limits the number of lights on the circuit.

In most conventional 120V lighting installations, multiple lights controlled by one switch are connected in parallel. Each fixture receives the intended supply voltage, and the switch controls the hot conductor supplying the group.

This multiple lights on one switch wiring guide explains the basic circuit arrangement, common wiring layouts, switch and circuit capacity, and essential installation considerations.

Can You Connect Multiple Lights to One Switch?

Yes. A single switch can control multiple light fixtures when the circuit, switch, conductors, and connections are properly rated and installed.

A conventional single-pole switch opens or closes the ungrounded conductor feeding the lighting group. When the switch closes, the connected fixtures receive power. When it opens, the switched supply is interrupted.

This arrangement is commonly used for:

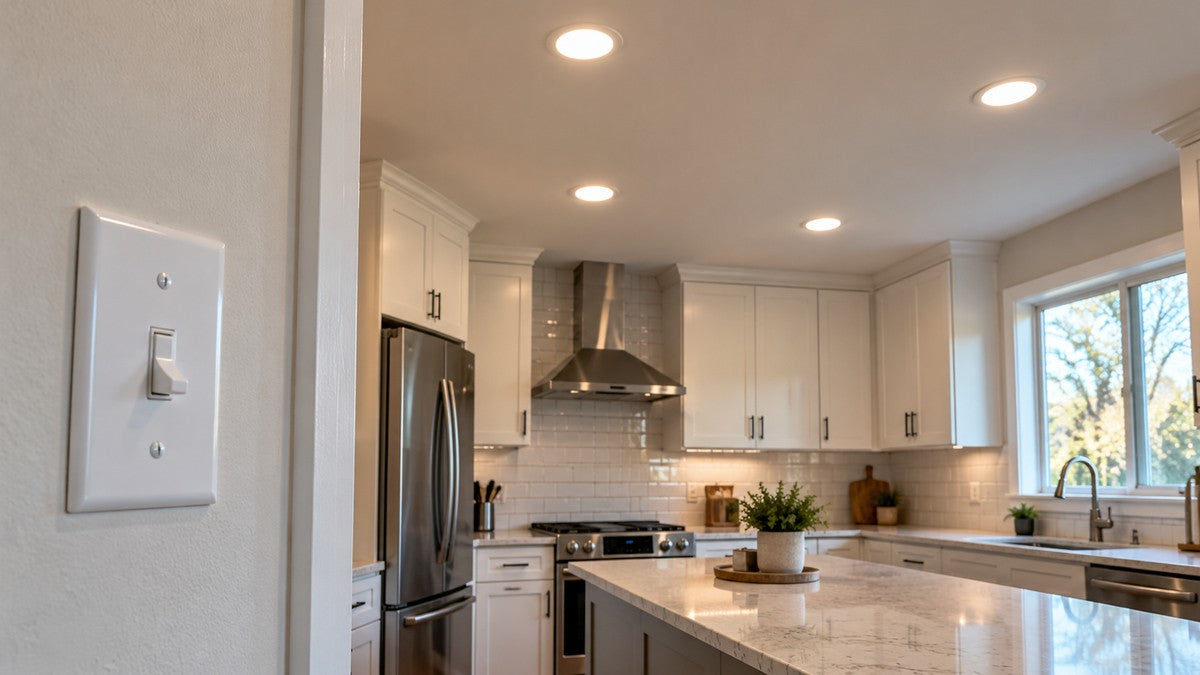

• Recessed ceiling lights in kitchens and living rooms

• Multiple fixtures in hallways

• Garage and workshop lighting

• Commercial ceiling lights

• Bathroom vanity fixtures

• Decorative pendant groups

The number of fixtures that can share a switch depends on their electrical characteristics, the switch rating, the branch circuit, and applicable code requirements.

How Does Multiple-Light Wiring Work?

Multiple lights on one switch normally use parallel connections so each fixture receives the specified operating voltage.

In a typical 120V lighting circuit, the system includes three conductor functions.

Hot and Switched Hot Conductors

The incoming hot conductor supplies power to the switching arrangement.

A switched hot conductor delivers power from the switch to the connected lighting fixtures when the switch is closed.

In a conventional single-pole arrangement, the switch interrupts the ungrounded conductor rather than the neutral.

Neutral Conductor

The neutral provides the normal return path for current in a typical 120V lighting circuit.

Each fixture requiring a neutral must have the appropriate connection to the circuit's neutral conductor.

The neutral must not be replaced with an equipment grounding conductor.

Equipment Grounding Conductor

Equipment grounding conductors provide a fault-current path to help protective devices operate during certain electrical faults.

They must remain continuous through the installation and be connected to equipment requiring grounding.

Grounding and bonding requirements depend on the wiring method and equipment involved.

Parallel vs. Series Wiring for Multiple Lights

Understanding the difference between parallel and series connections is essential when planning a lighting circuit.

Parallel Lighting Connections

In a parallel circuit, each fixture connects across the intended supply conductors.

This allows each fixture to receive the required voltage independently of the other fixtures.

If one lamp fails open, other fixtures can generally continue operating, provided the failure does not interrupt shared wiring or cause a protective device to trip.

Parallel connections are standard for most building branch-circuit lighting installations.

Series Lighting Connections

In a series circuit, current passes through one connected load before reaching the next.

The supply voltage is divided across the connected loads according to their electrical characteristics.

If one component creates an open circuit, the current path is interrupted.

Series arrangements are used in certain specialized lighting products and internal LED assemblies, but they are not the normal method for connecting separate line-voltage building fixtures.

Parallel vs. Series Lighting Comparison

For conventional room lighting, parallel wiring is the appropriate circuit arrangement.

Common Wiring Layouts for Multiple Lights on One Switch

Multiple fixtures can share a switch using different physical wiring layouts.

The actual arrangement depends on where power enters the circuit, the location of the electrical boxes, and the selected wiring method.

Power Enters the Switch Box First

In one common arrangement, the branch-circuit supply enters the switch box.

The switch controls the hot conductor supplying the lighting group, while the neutral is distributed to the fixtures.

Additional fixture locations receive the required conductors through approved wiring methods and electrical connections.

This arrangement can be convenient when the supply and control equipment are located together.

However, the exact configuration must comply with the applicable electrical code and the manufacturer's instructions.

Power Enters the First Light Fixture Box

In another arrangement, power enters a ceiling or fixture box before reaching the wall switch.

The control wiring returns switched power to the lighting group.

Older installations may use switch-loop configurations that differ from modern wiring practices.

The presence of a white insulated conductor does not automatically establish that it is a neutral.

An electrician must identify the conductors and determine whether the existing arrangement is suitable for the intended modification.

Fixtures Connected Along a Shared Lighting Run

Some installations distribute the switched supply through a series of fixture boxes, with each light connected in parallel.

This arrangement is sometimes informally called daisy-chain wiring.

The term refers to the physical routing of the wiring, not a series electrical circuit.

Each fixture must receive the correct supply connections, and every junction must use compatible, approved connectors and enclosures.

Basic Multiple-Light Wiring Diagram Explained

A simplified wiring diagram helps illustrate how several fixtures can operate from one switch.

For a conventional single-pole lighting group:

1. The circuit breaker supplies the protected branch circuit.

2. The single-pole switch controls the ungrounded conductor feeding the group.

3. The switched supply serves each connected fixture.

4. Each fixture has the required normal return connection.

5. The equipment grounding path is maintained throughout the installation.

All fixtures turn on or off together because they share the same switched supply.

This is a functional explanation, not a complete installation schematic.

Real installations may include multiple circuits, different wiring methods, electronic controls, emergency lighting components, or manufacturer-specific connections.

A qualified electrician should verify the actual circuit before making changes.

How Many Lights Can You Put on One Switch?

There is no universal number of lights that can be connected to every switch.

The allowable quantity depends on the electrical load, switch ratings, branch-circuit capacity, fixture specifications, and applicable installation requirements.

Calculate the Connected Lighting Load

For basic planning, the total connected wattage can be estimated by adding the input power of the fixtures.

Total connected watts = Number of fixtures × Watts per fixture

For example, consider eight LED fixtures rated at 12 watts each.

The total connected load is:

8 × 12W = 96W

At a nominal 120V supply, that represents approximately 0.8 amps using a simplified power calculation assuming an approximately unity power factor.

Actual AC current and switch suitability must be evaluated using the equipment's electrical specifications rather than wattage alone.

Check the Switch Rating

A switch must be rated for the supply voltage and the type of connected load.

A mechanical switch suitable for a particular conventional lighting load may not have the same rating for electronic LED drivers.

Electronic switches, smart switches, and dimmers can have different load limits.

Always use the manufacturer's specified ratings for the actual lighting equipment.

Check the Branch-Circuit Capacity

The branch circuit must be appropriately sized and protected for its connected loads.

For example, 15-amp and 20-amp residential branch circuits commonly use different minimum copper conductor sizes, subject to the applicable NEC requirements.

The number of fixtures is also affected by other connected loads, continuous-load provisions where applicable, conductor conditions, and specific equipment requirements.

For additional information about conductor selection, see Lumera Electric's Electrical Wire Types Guide.

Can One Switch Control Multiple LED Lights?

Yes. Multiple LED fixtures can share one compatible switch, but LED driver characteristics introduce additional considerations.

LED fixtures typically draw less power than comparable traditional incandescent lighting, allowing several fixtures to operate within a relatively modest total wattage.

However, low steady-state power does not guarantee switch compatibility.

LED Driver Inrush Current

Some LED drivers draw a brief surge of current when power is first applied.

When multiple LED drivers switch on simultaneously, the combined inrush current may place additional stress on switching contacts or electronic controls.

This is particularly important in commercial installations with many fixtures connected to one control.

Manufacturers may specify maximum fixture counts or particular switching requirements.

Smart Switch and Sensor Compatibility

Electronic lighting controls may require a neutral conductor, minimum load, or other specific electrical conditions.

A smart switch designed for certain LED lamps may not support a large group of commercial LED drivers.

Always confirm compatibility with the exact connected fixtures.

Dimming Multiple LED Fixtures

A conventional on/off switch and a dimmer do not operate identically.

When dimming several LED fixtures, the dimmer must be suitable for the total connected load and the lighting technology.

All fixtures must support the selected dimming method.

For installation and compatibility considerations, see Lumera Electric's Dimmer Switch Wiring and Installation Guide.

Electrical Code and Safety Considerations

Connecting multiple lights to one switch involves fixed electrical wiring and should be completed by qualified personnel.

The National Electrical Code establishes requirements affecting conductors, switches, enclosures, connections, grounding, and overcurrent protection.

The applicable edition depends on local adoption and amendments.

Proper Electrical Connections

Splices must be made with connectors suitable for the conductor materials, sizes, quantities, and installation conditions.

Electrical boxes must provide adequate space for the contained conductors and devices.

A connector designed for a particular number or type of conductors must not be used beyond its listing.

Switching the Correct Conductor

Conventional single-pole switching generally interrupts the ungrounded conductor supplying the lighting load.

The neutral conductor should not be used as an ordinary substitute for the switched hot.

Lighting switch locations may also require a neutral conductor under applicable NEC provisions, subject to specific exceptions.

De-Energizing and Testing

Before work begins, qualified personnel must identify the relevant power sources, de-energize the circuit, and verify the absence of voltage with suitable testing equipment.

A wall switch in the off position does not establish that all conductors inside a box are de-energized.

OSHA's electrical safety requirements address verification of de-energized equipment and protection against unexpected electrical energy.

These precautions are especially important when existing wiring is undocumented or more than one circuit enters an enclosure.

Common Problems With Multiple Lights on One Switch

Problems involving several fixtures can originate in the control device, shared connections, or individual lights.

If a lighting group shows signs of overheating, burning odors, repeated breaker trips, or damaged conductors, the circuit should be taken out of service until assessed by a qualified electrician.

One Switch vs. Multiple Switches for a Lighting Group

One switch is convenient when all fixtures need to operate together.

For larger rooms, however, separate switching zones may provide greater flexibility.

For example, a kitchen may benefit from independent controls for recessed ceiling lights, island pendants, and under-cabinet lighting.

Separate zones allow occupants to activate only the lighting needed for a particular activity.

If the same group of lights must be controlled from two locations, a 3-way switching arrangement may be appropriate.

Lumera Electric's 3-Way Switch Wiring Guide explains those multi-location configurations.

The correct control arrangement depends on the room's layout, usage patterns, lighting design, and applicable requirements.

Key Takeaways

• One switch can control multiple fixtures. The switch and circuit must be suitable for the combined electrical load.

• Parallel wiring is the standard arrangement. Each fixture receives its intended supply voltage.

• Fixture quantity has no universal limit. Switch ratings, circuit capacity, and equipment specifications determine the allowable configuration.

• LED compatibility requires more than wattage. Driver inrush current, electronic controls, and dimming requirements matter.

• Electrical connections must be appropriate. Approved connectors, adequate enclosure space, and grounding are essential.

• Professional verification protects safety. Existing conductors and circuit conditions must be identified before modifications.
