Junction Box Sizing and Installation Guide

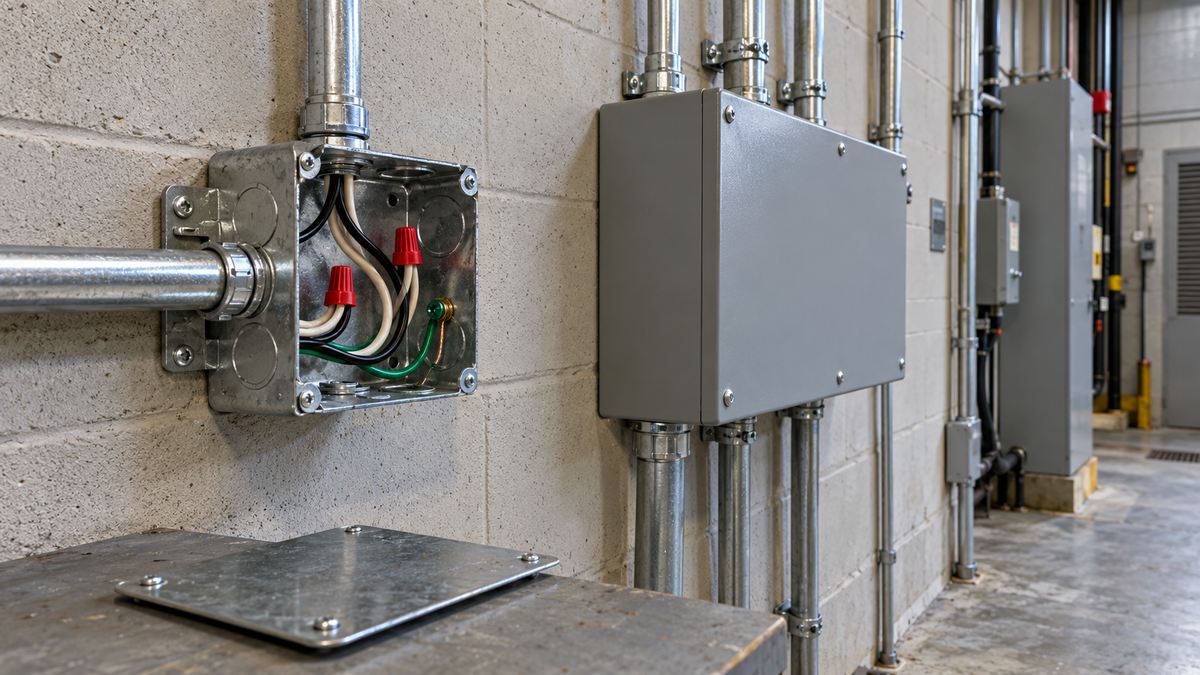

A junction box provides an enclosure for electrical splices, taps, and conductor transitions, but choosing one requires more than finding a box large enough to physically hold the wires. The enclosure must provide enough internal space for the conductors and hardware inside it, match the wiring method and environment, and remain accessible after the installation is complete.

For common branch-circuit wiring, junction-box sizing is primarily a volume calculation. Larger conductors installed in raceways introduce a different sizing method based on conductor size, raceway entries, and the direction of the pull. The correct approach therefore starts by identifying what conductors and connections will actually be inside the box.

For broader information about device boxes, fixture boxes, fan-rated boxes, pull boxes, and other enclosure types, see Lumera's Electrical Box Types & Installation Guide.

What Is a Junction Box?

A junction box is an electrical enclosure used to contain and protect splices, taps, and conductor connections. It helps protect the wiring from physical damage while keeping energized connections enclosed and serviceable.

A junction box differs from a typical device box because its primary purpose is not necessarily to hold a receptacle or switch. It also differs from a pull box used only to provide pulling and bending space for conductors in a raceway system. Some enclosures can serve more than one function, but sizing must match what is actually installed inside.

Lumera's Junction Boxes & NEMA Enclosures collection includes indoor, outdoor, metallic, nonmetallic, and environmentally rated enclosures for different wiring applications.

How Is Junction Box Size Determined?

There is no universal junction-box size that works for every circuit. The sizing method depends mainly on the conductor sizes and the contents of the enclosure.

For typical outlet, device, and junction boxes containing smaller branch-circuit conductors, NEC 314.16 uses box-volume and fill calculations. For pull and junction boxes involving larger conductors, NEC 314.28 introduces minimum dimensional requirements based on raceway size and pull geometry.

The box must meet every applicable requirement. Choosing a physically large-looking enclosure does not replace the calculation.

Junction Box Fill for 18–6 AWG Conductors

For common branch-circuit conductors, box fill is calculated by assigning a volume allowance to the items that occupy space inside the box. The required total volume must not exceed the usable volume of the selected enclosure.

The NEC conductor-volume allowances are:

These allowances come from the NEC box-fill rules and remain the basis for calculating required enclosure volume.

A junction box should normally have its usable volume marked by the manufacturer, or its volume must otherwise be established using the applicable code provisions. Do not estimate capacity by multiplying the box's outside dimensions because wall thickness, knockouts, internal construction, and listed dimensions affect usable space.

What Counts Toward Box Fill?

Box fill is not simply a count of the insulated wires. Conductors, grounding conductors, internal clamps, devices, and certain other components can all affect the required volume.

For a typical junction box, consider:

• Insulated conductors entering and terminating or splicing in the box

• Conductors passing through the box

• Equipment grounding conductors

• Internal cable clamps

• Devices or equipment mounted on a yoke, if present

• Other components addressed by the applicable NEC edition

A conductor that enters from outside and is spliced or terminated normally receives its applicable volume allowance. Conductors that remain entirely within the box, such as certain pigtails, are treated differently under the box-fill rules, which is why simply counting every visible piece of copper can produce the wrong answer.

Current NEC editions also include more detailed treatment of grounding conductors and other components. Always apply the edition adopted by the local authority having jurisdiction rather than relying on an older calculation worksheet.

Equipment Grounding Conductors and Box Fill

Equipment grounding conductors also occupy space. Under the NEC method introduced in the 2020 cycle, up to four equipment grounding conductors or equipment bonding jumpers entering a box share one conductor-volume allowance based on the largest grounding conductor present; additional grounding conductors require additional fractional allowances.

This rule matters in boxes where several cables enter the same enclosure. A box that appears adequate when only the hot and neutral conductors are counted can become too small once grounding conductors, clamps, and other applicable fill allowances are included.

For a broader explanation of the protective grounding path and metal enclosures, see Lumera's Grounding and Bonding Guide.

Worked Junction Box Sizing Example

Consider a simple junction box containing two 12/2 cables. Assume the four insulated 12 AWG conductors enter the box and are spliced, the two equipment grounding conductors are present, and the enclosure has internal cable clamps.

For 12 AWG conductors, each full allowance requires 2.25 cubic inches. Four insulated conductors require 9.00 in³, the grounding conductors require one 2.25 in³ allowance in this example, and the internal clamps add another 2.25 in³ allowance.

Required volume = 9.00 + 2.25 + 2.25 = 13.50 in³

The selected junction box must therefore provide at least the required usable volume after all applicable fill items have been considered. Choosing a somewhat larger enclosure can also make conductor arrangement and future service easier, but the calculation establishes the minimum rather than a target for how tightly the box should be packed.

Junction Boxes for 4 AWG and Larger Conductors

Larger conductors require a different approach. NEC 314.28 applies dimensional rules to pull and junction boxes involving 4 AWG and larger insulated conductors, because conductor bending and pulling space become major design considerations.

For these installations, the box cannot be selected only by cubic-inch capacity. Raceway trade size, conductor routing, and whether the pull is straight, angled, U-shaped, or includes splices affect the required box dimensions.

Straight Pulls

For a straight pull, the minimum box length in the direction of the pull is generally eight times the trade size of the largest raceway.

For example, if the largest raceway in a straight pull is 2 inches:

8 × 2 in. = 16 in. minimum dimension

The calculation uses raceway trade size as prescribed by the applicable rule, not a visual estimate of how much bending room looks sufficient.

Angle and U Pulls

Angle pulls and U pulls use a different calculation. The required distance is based on six times the trade size of the largest raceway in the applicable row, plus the trade sizes of other raceways entering that same wall or row as required by the rule.

These calculations become more important in commercial and industrial raceway work. If the box contains large feeder conductors, multiple raceways, or splices that change conductor direction, the enclosure should be laid out from the raceway geometry before ordering the box.

Choose the Junction Box for the Environment

Sizing is only one part of junction-box selection. The enclosure must also suit the physical environment and wiring method.

A dry indoor splice point may use a basic listed enclosure, while outdoor, wet, dusty, corrosive, or washdown locations require products specifically designed for those conditions. NEMA enclosure types address different combinations of rain, dust, water, corrosion, and other environmental exposure rather than forming a simple low-to-high ranking system.

For projects where environmental protection matters, use Lumera's NEMA Enclosure Ratings Guide to determine the appropriate enclosure type before selecting a product.

Junction Box Installation Basics

Installation should begin only after the circuit has been de-energized and absence of voltage has been verified using appropriate test procedures. Electrical work must follow the adopted electrical code, manufacturer instructions, and applicable safe-work requirements; unfamiliar or complex installations should be handled by a qualified electrical professional.

A typical junction-box installation follows this sequence:

1. Determine the splice or transition location and confirm that the box will remain accessible.

2. Complete the required box-fill or large-conductor sizing calculation.

3. Select a box and cover listed for the wiring method and environment.

4. Mount the box securely to the appropriate structure or support.

5. Bring cables or raceways through listed entries and fittings.

6. Maintain required grounding and bonding for metal enclosures and raceways.

7. Make the conductor connections with connectors listed for the conductor combination.

8. Arrange the conductors without excessive force or damaged insulation.

9. Close unused openings and install the correct cover.

10. Inspect the completed enclosure before the circuit is returned to service.

This sequence keeps sizing, mechanical support, wiring entries, connections, and future accessibility tied together rather than treating the box as an afterthought.

Cable and Conduit Entries

Conductors entering a box need protection from abrasion, and unused openings must be effectively closed. OSHA also requires junction and pull boxes to have covers identified for the purpose, with metal covers grounded as required.

Use fittings, clamps, bushings, and connectors that match the cable or raceway type. For conduit installations, Lumera's Conduit Fittings & Connectors collection covers the hardware used to terminate and transition raceways at electrical enclosures.

Do not confuse box fill with conduit fill. The first determines how much volume components need inside an electrical box, while conduit fill limits how much conductor area can occupy a raceway. Lumera's Conduit Fill Chart & Calculation Guide covers that separate calculation.

Splices and Wire Connectors

The junction box provides the enclosure, but the connector makes the actual electrical splice. A connector must be listed for the conductor material, gauge, conductor count, stranded or solid construction, and environmental condition involved.

Do not select a wire connector by color or physical size alone. Lumera's Wire Connectors & Splicing Guide covers connector selection and splice types in more detail, allowing this article to stay focused on junction-box sizing and installation.

Grounding and Bonding Metal Junction Boxes

Metal junction boxes must be integrated correctly into the equipment grounding and bonding path when required by the wiring method. If an energized conductor contacts an improperly bonded metal enclosure, the box itself can become a shock hazard.

OSHA requires applicable metal raceways, enclosures, and fittings to maintain effective electrical continuity and the capacity to conduct fault current safely. The exact bonding method depends on the wiring system, fittings, grounding conductors, and equipment involved.

Junction Boxes Must Remain Accessible

A junction box containing splices should not be buried behind finished drywall or another permanently closed building finish. Future inspection, troubleshooting, and repair depend on being able to reach the enclosure and remove its cover.

Plan accessibility before mounting the box. An attic location may be accessible when a technician can safely reach the enclosure and remove its cover, while a box sealed behind a finished wall is not made accessible simply because someone knows where it is located.

Lumera's broader electrical-box guide also emphasizes accessibility as a fundamental installation requirement.

2026 NEC Context

NFPA identifies the 2026 edition of NFPA 70, National Electrical Code, as the current edition as of October 2026. However, jurisdictions adopt NEC editions on different schedules, so the newest published edition is not automatically the edition governing every project.

For actual sizing or inspection work, verify the edition adopted by the authority having jurisdiction, any local amendments, the box manufacturer's markings, and the requirements of the wiring method being used.

Common Junction Box Sizing and Installation Mistakes

Counting Only the Insulated Conductors

Grounding conductors, internal clamps, devices, and other applicable items can also affect required box volume. Ignoring them can make an apparently adequate enclosure fail the box-fill calculation.

Choosing by Outside Dimensions

The usable box volume is what matters for standard box-fill calculations. Two boxes that appear similar externally can have different listed internal volumes.

Using Box-Fill Rules for Large Pull Boxes

Large-conductor pull and junction boxes may need dimensional calculations under NEC 314.28 rather than only a cubic-inch calculation.

Hiding the Junction Box

Placing a splice behind drywall creates a future access problem and can violate applicable accessibility requirements.

Leaving Knockouts or Openings Unclosed

Unused openings should be properly closed, while used entries need the appropriate fittings or clamps. OSHA specifically addresses the protection of entering conductors and closing unused openings.

Ignoring the Environment

An indoor box is not automatically suitable outdoors. The box, cover, fittings, entries, and modifications all have to preserve the environmental protection required by the location.

Junction Box Selection Checklist

Before installing a junction box, confirm:

• What conductor sizes will enter the enclosure

• Whether the installation uses box-fill or large-conductor sizing rules

• The box's marked usable volume

• The number of insulated conductors

• Equipment grounding conductor allowances

• Internal clamps or other applicable fill items

• Raceway sizes and pull geometry where applicable

• Box material and environmental rating

• Wiring-method-compatible fittings

• Grounding and bonding requirements

• Secure structural mounting

• A listed cover

• Permanent accessibility after finishing

This checklist helps separate three different questions that are often mixed together: Is the box large enough? Is it appropriate for the environment? Is it installed correctly?

Key Takeaway

Junction-box sizing follows two basic paths. For typical branch-circuit conductors, box fill determines the required internal volume. For larger conductors and raceway pulls, box dimensions and pull geometry become the controlling factors.

After sizing, verify the rest of the installation: select the correct enclosure for the environment, use listed cable or conduit fittings, maintain grounding and bonding, close unused openings, install the proper cover, and keep the junction box accessible.

A box is correctly selected only when it is large enough for its contents, appropriate for its location, compatible with the wiring method, and serviceable after construction is complete.
