Wire Connectors & Splicing Guide: Types, Selection, and Safe Connections

A splice can be electrically correct on a diagram and still fail in the field if the connector is wrong for the conductors. The connector has to match the wire material, gauge, conductor count, stranded or solid construction, voltage, temperature, and environment. A connection that is simply “tight” is not automatically a listed or reliable splice.

That is why wire connectors should be selected from their markings and manufacturer instructions, not by color, physical size, or habit. UL evaluates wire connectors under several standards, including UL 486A-486B for wire connectors, UL 486C for splicing wire connectors, and UL 486D for sealed wire-connector systems. The connector’s specific listing determines what conductors and conditions it can actually handle.

For product selection, Lumera’s wire connectors and compression splices collection includes connectors for branch-circuit, feeder, service, control, and equipment applications.

What Is an Electrical Wire Splice?

A wire splice is a connection between two or more conductors that allows current to continue through the circuit or branch to another conductor. Splices appear in junction boxes, device boxes, luminaires, equipment enclosures, control panels, feeders, service conductors, and many other wiring systems.

The splice itself is only one part of the installation. In normal building wiring, the connection also needs appropriate insulation, mechanical security, enclosure, box fill, conductor preparation, and accessibility as required by the wiring method. The listed connector provides the connection method; the surrounding box or equipment protects the completed splice.

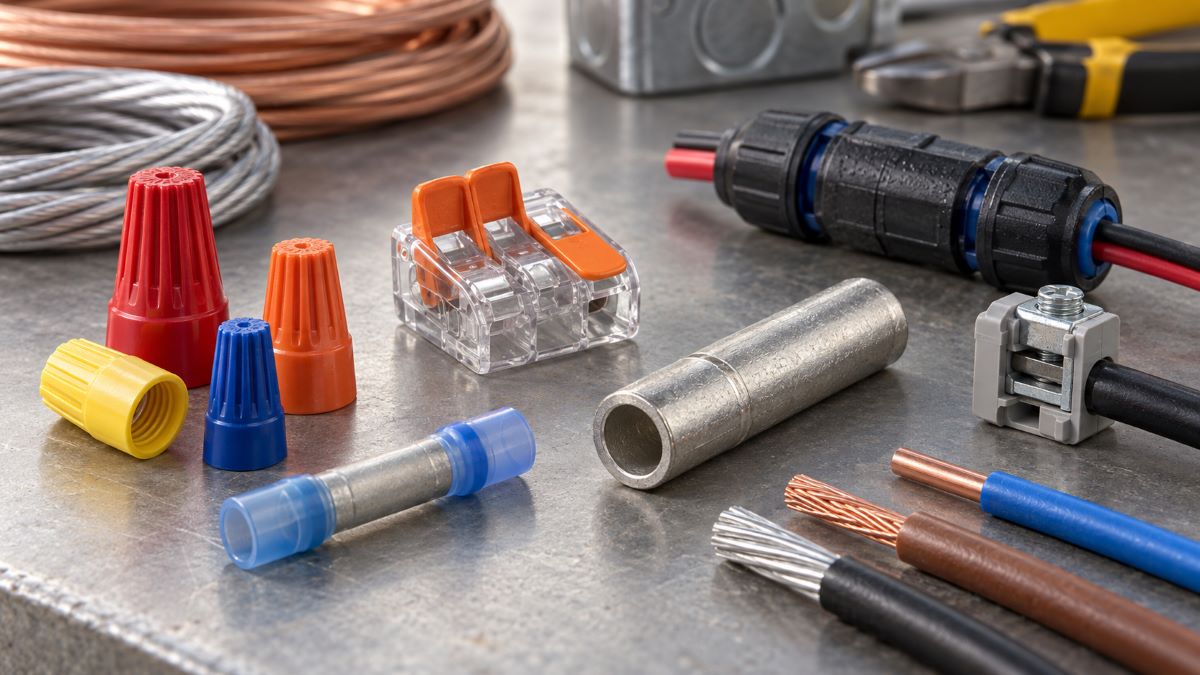

Common Types of Wire Connectors

Twist-On Wire Connectors

Twist-on connectors are widely used for branch-circuit splices because one listed connector can often accommodate several approved conductor combinations. Inside the insulating shell, a spring or threaded metal element grips the conductors as the connector is installed.

The important detail is that wire-nut color is not a universal size standard. Connector families differ by manufacturer and model. One red connector may accept a different range of conductors than another red connector, so the package chart or product markings control.

Pre-twisting is also manufacturer-specific rather than a universal rule. For example, IDEAL instructions for some twist-on connector families state that pre-twisting is acceptable but not required. Other products can have different preparation instructions. Follow the exact strip length, conductor arrangement, and tightening method provided for the connector being used.

Push-In Wire Connectors

Push-in connectors use spring pressure to grip a stripped conductor inserted into a port. They can reduce installation time and make it easy to inspect how many conductors are connected, especially when the body is transparent.

Do not assume every push-in connector accepts every stranded conductor. Some models are intended primarily for solid conductors or limited stranded constructions, while other designs accept a broader range. The conductor type and gauge range on the listing must match the wire in the box.

Lever Connectors

Lever-operated connectors use a spring-clamp mechanism opened by a small lever. The design can simplify connections between solid, stranded, and fine-stranded conductors when the particular model is listed for those conductor types.

WAGO’s 221 series is one well-known example: the manufacturer lists models for solid, stranded, and fine-stranded conductors. The same principle applies across brands—check the connector’s actual conductor range, not the general category name.

Crimp and Butt-Splice Connectors

Crimp connectors create a connection by permanently deforming a metal sleeve around the conductor with a matched tool. Insulated butt splices are commonly used for inline repairs and equipment wiring, while uninsulated sleeves and specialized crimp terminals appear in many control and industrial applications.

The crimp tool is part of the connection system. A sleeve that physically fits the wire can still produce a poor splice if the wrong die, crimp location, or number of crimps is used. Large compression connectors are particularly dependent on manufacturer-specified tooling and die combinations.

Compression Splices for Large Conductors

Compression splices are common on feeders, service conductors, and other larger conductors. The conductor is inserted into a barrel and compressed with a specified tool and die. Long-barrel and short-barrel designs differ in physical length and required crimp pattern.

For large aluminum or copper conductors, confirm the metal rating, conductor size, barrel markings, die index, and installation instructions before making the splice. A connector marked only for copper should not be used to join aluminum, and a dual-rated connector should be used only within the combinations for which it is listed.

Mechanical and Set-Screw Connectors

Mechanical connectors clamp the conductor with one or more screws rather than a compression die. Split-bolt connectors, mechanical splice blocks, and multi-tap connectors are examples. These devices are useful when conductor sizes are large, taps are required, or a reusable mechanical connection is preferable to a permanent crimp.

Torque matters. If the manufacturer specifies an installation torque, the connection should be tightened to that value with the appropriate tool. Under-torque can leave a high-resistance connection; over-torque can damage the conductor or connector.

Sealed and Weather-Resistant Wire Connectors

A standard dry-location splice should not be converted into a wet-location splice by wrapping it with extra tape. Wet, damp, underground, and corrosive environments require connectors or splice systems specifically listed for the conditions of use.

Sealed systems may use factory-applied gel, silicone, heat-shrink, resin, or another tested sealing method. Even within weather-resistant connector families, some products are intended for above-grade wet locations but not continuous submersion. The environmental marking must match the installation.

How to Choose the Correct Wire Connector

Before making a splice, verify each of these items from the connector instructions or markings:

• Conductor material: copper, aluminum, copper-clad aluminum, or a listed combination.
• Conductor size: the minimum and maximum AWG or kcmil range.
• Conductor count: how many wires and which size combinations the connector accepts.
• Conductor construction: solid, stranded, fine-stranded, or a limited combination.
• Voltage and temperature rating: appropriate for the circuit and equipment.
• Environment: dry, damp, wet, underground, corrosive, or sealed application.
• Installation method: strip length, pre-twist requirements, crimp die, number of crimps, insertion depth, or torque.
• Reuse: some connectors are reusable; many sealed, crimped, or specialized products are not.

Copper-to-Aluminum Splices Need the Right Listed Connector

Copper and aluminum should not be joined with a connector that is listed only for copper. Use a connector specifically marked and listed for the conductor metals and sizes involved. For example, some AL/CU connectors include antioxidant compound and approved conductor combinations as part of their listing and installation instructions.

This is a product-specific requirement, not a place for improvisation. If older aluminum branch-circuit wiring, damaged conductors, or an unfamiliar splice is found, a qualified electrician should evaluate the condition before a connector is selected.

A Safe Splicing Process

For de-energized branch-circuit work that is within the installer’s legal scope and experience, a good splice follows a repeatable process. The exact connector instructions always take precedence over a generic sequence.

1. De-energize the circuit and verify absence of voltage with an appropriate test method before touching conductors.
2. Inspect the conductors. Stop if insulation is burned, brittle, melted, or otherwise damaged beyond a clean re-strip.
3. Identify conductor material, gauge, count, and stranded or solid construction.
4. Select a listed connector whose approved range includes that exact combination.
5. Strip conductors to the manufacturer’s specified length without nicking or cutting strands.
6. Install the connector exactly as instructed—twist, insert, lever, crimp, or torque as required.
7. Inspect the finished connection for exposed conductor, incomplete insertion, loose strands, or a connector that is not fully seated.
8. Place the splice in an approved box or enclosure with adequate box-fill space and close the enclosure before re-energizing.

Why Connector Listings Matter

UL evaluates different connector families under different standards because the failure modes are not identical. Twist-on splices, sealed connectors, large mechanical terminals, and compression splices are tested around different constructions and uses. The meaningful specification is therefore not “this connector feels tight,” but “this exact connector is listed for this conductor combination and is installed according to its instructions.”

Common Wire-Splicing Mistakes

• Choosing a connector by color instead of the published conductor-combination chart.
• Using a copper-only connector on aluminum conductors.
• Stripping too much insulation and leaving bare copper or aluminum exposed outside the connector.
• Stripping too little and failing to insert the conductor to the required depth.
• Nicking strands while stripping flexible conductors.
• Using the wrong crimp die or a generic plier on a connector that requires a specified crimp tool.
• Taping a dry-location connector and assuming it is now waterproof.
• Overfilling the junction box after adding multiple pigtails or bulky connectors.
• Burying a splice where the wiring method requires the connection to remain accessible.
• Reusing a connector that the manufacturer identifies as single-use.

Pigtail, Inline Splice, or Tap: The Connection Style Matters

A pigtail joins multiple conductors of the same circuit with a short lead that connects to a device. An inline splice joins one conductor end-to-end with another. A tap connects a branch conductor to a main conductor without simply extending it in a straight line. Connector shape and listing often reflect these different jobs.

For example, a multi-port lever connector can be convenient for pigtails, while a butt splice creates a compact inline connection. Large feeder taps may require mechanical or compression connectors specifically listed for tapping conductors. Choosing the connection style first makes the connector selection much clearer.

The Bottom Line

The best wire connector is not the newest style or the connector already in the toolbox. It is the listed connector that matches the conductor material, gauge, quantity, construction, environment, and installation method. Twist-on, push-in, lever, crimp, compression, and mechanical connectors can all make reliable splices when they are used within their ratings.
