GFCI vs AFCI Circuit Breakers Guide: Which Breaker Do You Need?

Choosing between GFCI and AFCI circuit breakers is not simply a question of which safety device is better. Each breaker monitors a different electrical hazard, and the correct choice depends on the branch circuit, connected equipment, panelboard, and electrical code adopted where the work will be performed. Some circuits require both protection functions.

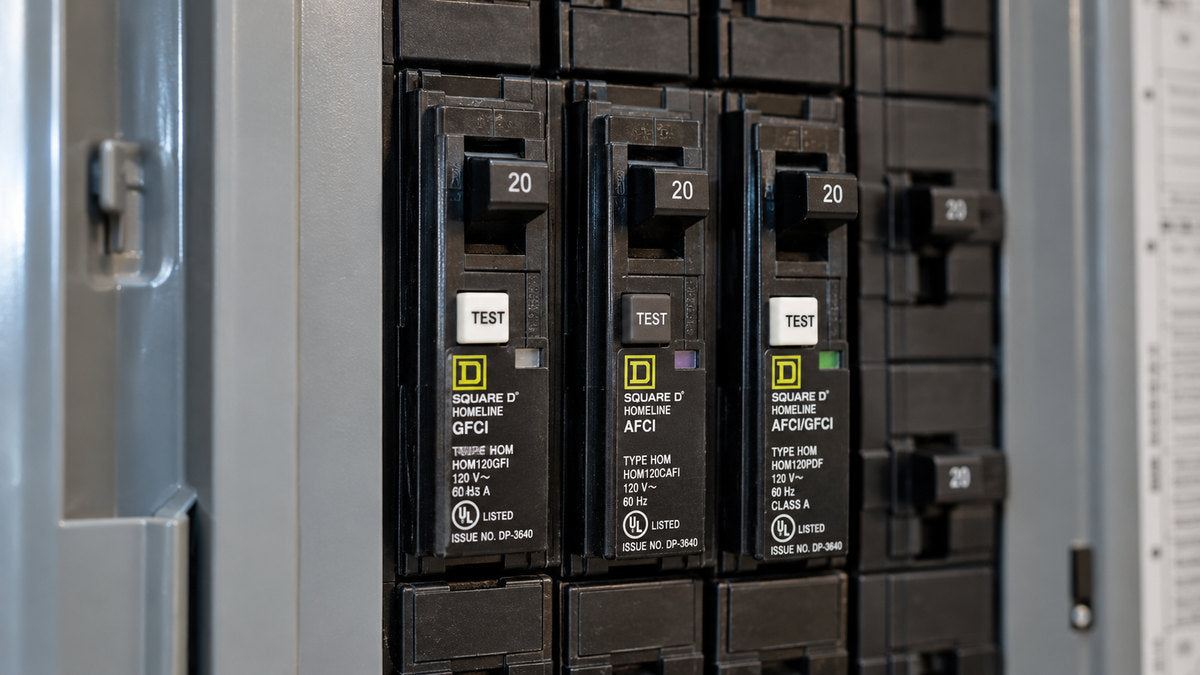

For contractors and facility managers, the practical challenge is selecting a listed breaker that supplies the required protection and fits the intended panel. This guide compares GFCI, AFCI, and dual-function breakers with particular attention to breaker selection, neutral connections, multiwire circuits, and troubleshooting—not just the basic differences between ground faults and arc faults.

GFCI vs AFCI Circuit Breakers: Quick Comparison

These descriptions summarize protective functions; they do not establish the requirements for a specific circuit. A breaker must also match its panelboard listing, electrical characteristics, and approved installation method.

What Does a GFCI Circuit Breaker Protect?

A ground-fault circuit interrupter (GFCI) breaker monitors the current flowing through the conductors it protects. When current leaves the intended path and produces a detectable imbalance, the breaker opens the circuit. Personnel-protection GFCIs are designed to reduce the risk of dangerous shock associated with such faults.

Unlike a GFCI receptacle located at an outlet box, a GFCI circuit breaker provides the relevant ground-fault protection at the panel for the branch circuit it serves. That arrangement can be useful when an entire circuit needs protection, multiple downstream outlets are involved, or the permitted equipment configuration calls for a breaker-based solution. For a dedicated procedure, see Lumera Electric's How to Install a GFCI Breaker.

Where GFCI Breakers Are Commonly Considered

GFCI protection may be required for circuits supplying certain bathrooms, kitchens, laundry areas, garages, outdoor locations, and other applications identified by the applicable NEC edition. Equipment-specific requirements can also matter, especially for appliances and circuits beyond ordinary 120-volt receptacles.

A room label alone is not enough to specify a breaker. Contractors must identify the protected outlets or equipment, circuit voltage and configuration, and the code actually enforced by the authority having jurisdiction (AHJ).

What Does an AFCI Circuit Breaker Protect?

An arc-fault circuit interrupter (AFCI) breaker monitors electrical signatures associated with hazardous arcing. Arcs can develop because of damaged wiring, deteriorated insulation, or faulty connections, and may generate enough localized heat to ignite nearby materials even without a sustained overload.

AFCI requirements are particularly important for many dwelling-unit 120-volt, 15- and 20-ampere branch circuits under NEC Section 210.12. The covered spaces and approved methods depend on the edition adopted locally. Lumera's How to Install an AFCI Breaker covers the separate installation topic.

An AFCI Is Not a Substitute for a GFCI

A standard AFCI breaker does not necessarily provide personnel-level ground-fault protection. Similarly, a GFCI breaker is not automatically rated to detect dangerous series and parallel arc faults. When both functions are required, the designer must specify a compliant arrangement that provides both.

Dual-Function Breakers vs Combination AFCI Breakers

The names sound similar but have different meanings. A dual-function AFCI/GFCI breaker combines arc-fault protection and Class A ground-fault protection in one listed device. It can be an efficient panel-level solution when a circuit requires both, assuming the exact model is suitable for the panel and circuit.

A combination-type AFCI is an AFCI classification concerned with detection of different arc-fault conditions. The word “combination” does not mean the device includes personnel GFCI protection. Schneider Electric explicitly distinguishes combination AFCI breakers from dual-function AFCI/GFCI products.

Before ordering, check the full product marking and datasheet rather than relying on marketing abbreviations or breaker handle color.

How to Choose the Correct Breaker for Your Panel

A breaker that fits into a panel slot is not necessarily approved for that panel. Breaker selection begins with the panelboard identification and the manufacturer's permitted breaker families, not simply matching the amperage printed on the handle. Lumera Electric's Circuit Breakers Collection provides a starting point for comparing products after the electrical specifications are known.

1. Verify Panel Manufacturer and Breaker Family

Record the panelboard manufacturer, catalog information, and permitted breaker types from its labeling. A physically similar breaker from another product family may have different bus connections, listing conditions, or mechanical characteristics. Only use a breaker identified for the installation.

2. Confirm Voltage, Amperage, and Pole Count

Determine circuit voltage, number of ungrounded conductors, connected equipment, conductor sizing, and overcurrent-protection requirements. Typical residential single-pole breakers do not automatically meet the needs of 240-volt or shared-neutral circuits. The protective function must be available in an approved model with the correct electrical ratings.

3. Choose GFCI, AFCI, or Both

Review the locally adopted NEC provisions and equipment instructions to identify which functions are required. NEC 210.8 addresses many GFCI applications, while 210.12 addresses AFCI protection. Where the requirements overlap, a properly listed dual-function breaker may be suitable, but other code-permitted configurations can exist.

4. Check Neutral Connection Requirements

Many electronic protective breakers need the monitored circuit neutral connected to a designated breaker terminal. Some models also use a factory neutral pigtail to connect to the panel neutral bar. Compatible plug-on-neutral models instead make that connection through a specially designed neutral rail in an approved panel.

These arrangements are product-specific. A plug-on-neutral breaker should not be assumed compatible with a conventional panel, and a circuit neutral should not be connected by analogy to a different manufacturer's diagram. Schneider Electric's product guidance confirms that its pigtail and plug-on-neutral AFCI/dual-function versions have distinct panel connection requirements.

5. Review Special Circuits and Load Compatibility

Multiwire branch circuits, shared neutrals, 240-volt loads, motor-driven equipment, and some electronic loads require additional evaluation. A single-pole protective device may not suit a shared-neutral configuration, and some loads may have specialized leakage-current behavior or manufacturer instructions.

For multiwire circuits, determine the correct listed protection arrangement rather than assuming the existing standard breaker can be replaced with any single-pole GFCI or AFCI model. A qualified electrician should verify these conditions before equipment is purchased.

GFCI vs AFCI Breaker Wiring: What Changes?

A standard thermal-magnetic breaker generally connects to the branch-circuit ungrounded conductor. GFCI, AFCI, and dual-function breakers can require additional sensing and supply connections, including a load neutral and either a neutral pigtail or a plug-on-neutral interface. The exact configuration depends on the model.

Important safety note: This comparison is not a wiring diagram. Panel work presents lethal shock and arc-flash hazards, and switching off the main disconnect does not necessarily de-energize service-side conductors. Qualified electrical personnel should follow approved isolation procedures, manufacturer instructions, and applicable regulations.

When Are Both GFCI and AFCI Breaker Functions Needed?

The same branch circuit can fall under both ground-fault and arc-fault provisions. Under modern NEC editions, some dwelling-unit kitchen and laundry circuits are examples where both requirements may apply. The exact result depends on the type of outlets and equipment, circuit characteristics, code exceptions, and local amendments.

Where both are required, there are generally two planning questions. First, will one listed dual-function breaker provide the complete required protection and fit the panel? Second, if an alternative combination of devices is proposed, does the adopted code permit that exact arrangement and provide the necessary protection along the required portion of the circuit?

For a broad explanation of the two hazards—not breaker selection—read Lumera Electric's GFCI vs AFCI: What Is the Difference?.

Breaker Trips: How Troubleshooting Differs

A tripped GFCI breaker can indicate leakage current or an unintended fault-current path. An AFCI trip may indicate hazardous arcing characteristics or a condition interpreted by the device's sensing electronics. A dual-function breaker may respond to either mechanism; some manufacturers provide diagnostic indicators to help distinguish them.

Repeated trips should never be solved by substituting a standard breaker or increasing the ampere rating. A qualified electrician should review the manufacturer's trip information, connected loads, neutral configuration, circuit wiring, and any moisture or insulation issues before restoring the circuit to regular service.

Common Causes Worth Investigating

1. GFCI trips: Damaged insulation, moisture, faulty connected equipment, or incorrect neutral routing.
2. AFCI trips: Damaged cords, loose connections, wiring defects, or incompatible installation conditions.
3. Immediate trip after replacement: Wrong breaker family, wiring error, shared neutral, or unsuitable load and circuit arrangement.
4. Test button fails: Incorrect installation, unsuitable supply conditions, or a defective device requiring professional assessment.

Some electronic equipment produces operating characteristics that make diagnosis more involved. The manufacturer's troubleshooting instructions and the actual circuit measurements should guide the assessment, rather than assuming every trip is a nuisance.

Common GFCI and AFCI Breaker Selection Mistakes

1. Confusing combination AFCI with dual-function protection. A CAFI label alone does not establish Class A GFCI protection.
2. Buying solely by amp rating. Pole count, interrupting rating, approved panel family, and voltage also matter.
3. Ignoring neutral arrangements. Pigtail and plug-on-neutral versions are not universally interchangeable.
4. Assuming every receptacle needs a breaker solution. Certain installations permit protection through other listed devices and approved layouts.
5. Using the wrong approach on shared-neutral circuits. Multiwire branches require equipment and wiring arrangements designed for their configuration.
6. Treating a tripped device as defective by default. A trip may indicate an actual wiring, appliance, or leakage-current problem.
7. Following another model's diagram. The exact manufacturer's instructions govern each approved connection.

GFCI vs AFCI Circuit Breakers: Buying Checklist

For major renovations or repeat purchases, documenting these details in a breaker schedule can help prevent ordering errors and installation delays.

Key Takeaways

• GFCI breakers address ground-fault shock hazards; AFCI breakers address hazardous arcing. Their protective functions are not interchangeable.
• Dual-function breakers combine both. A combination-type AFCI is not the same thing as a dual-function AFCI/GFCI.
• Panel compatibility comes first. A matching shape or amp rating does not establish approval for the panelboard.
• Neutral connections are model-specific. Load-neutral, pigtail, and plug-on-neutral designs must follow the approved instructions.
• Shared-neutral and special circuits need additional analysis. Never assume a standard single-pole replacement is appropriate.
• Local code adoption controls compliance. Confirm applicable NEC provisions and manufacturer instructions before installation.
