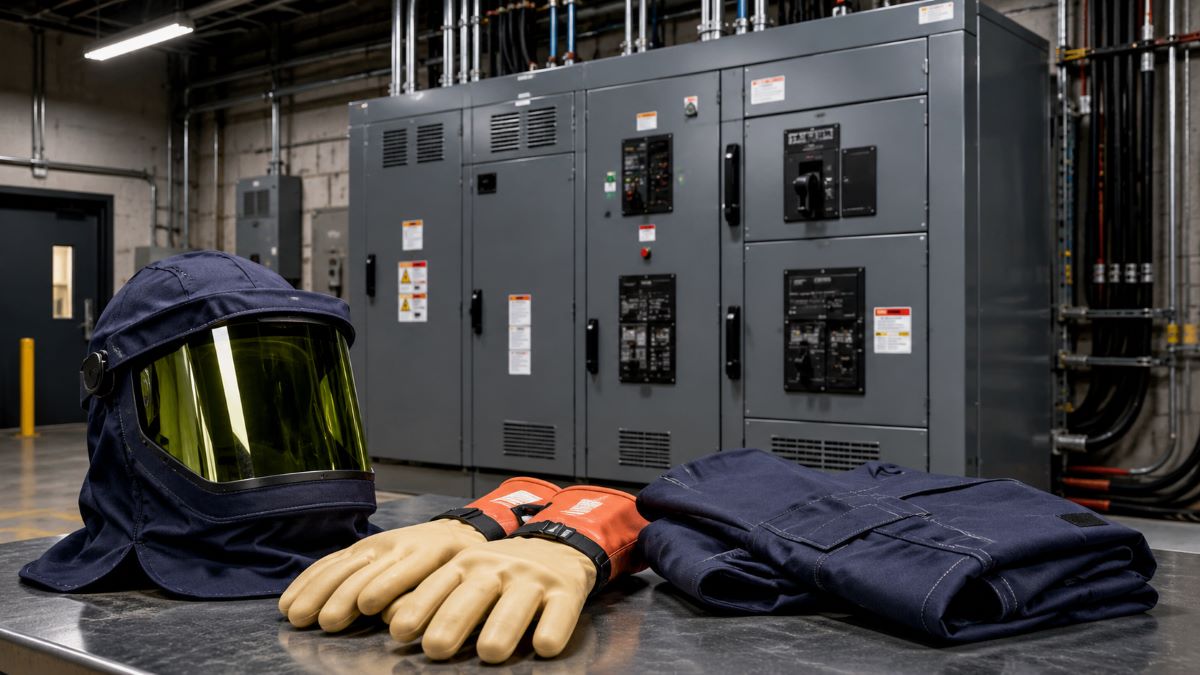

Arc Flash & PPE Basics for Electricians

An arc flash is a sudden release of thermal energy from an electrical fault, and it can produce temperatures hotter than the surface of the sun in a fraction of a second. It is one of the most serious hazards an electrician faces, more immediate than shock and, in many incidents, more injurious. NFPA 70E and its Canadian counterpart CSA Z462 exist specifically to control that risk, and personal protective equipment (PPE) is the layer workers rely on when a task must be performed on or near energized circuit breakers, panelboards, or other electrical equipment. This guide covers what causes an arc flash, how PPE categories and arc ratings work, the boundaries that define safe approach distances, and the practical mistakes that put crews at risk.

What Is an Arc Flash and Why It Happens

An arc flash occurs when electric current leaves its intended path and travels through the air between conductors, or between a conductor and ground. The fault ionizes the surrounding air into plasma, which conducts the fault current and releases an explosive amount of heat and light in milliseconds. Common causes include dropped tools that bridge live conductors, accumulated dust or corrosion that breaks down insulation, loose connections that arc under load, and workers who make contact with energized parts while a panel is open. The resulting incident energy, measured in calories per square centimeter (cal/cm²), can cause severe burns, ignite clothing, and throw molten metal and pressure waves capable of causing blunt-force injury even to bystanders several feet away.

Arc Flash PPE Categories at a Glance

NFPA 70E's PPE category method assigns clothing and equipment based on incident energy thresholds. This is the simplified table version; the full requirements are listed in Table 130.7(C)(15)(c) of the current edition, and a site-specific incident energy analysis always takes precedence over the table method.

NFPA 70E's Two PPE Selection Methods

NFPA 70E allows two approaches for determining the required PPE:

• Incident energy analysis method: an engineering study calculates the exact incident energy at a specific piece of equipment and working distance, based on available fault current, protective device clearing time, and equipment configuration. This is the more precise method and is required for larger or more complex facilities.
• PPE category (table) method: a simplified lookup table assigns a category based on equipment type, voltage class, and maximum fault current, without a full engineering study. It is faster to apply but more conservative, and it only applies to the specific tasks and equipment the tables cover.

Whichever method a facility uses, the arc flash label on a piece of equipment should state either the incident energy in cal/cm² or the PPE category, along with the arc flash boundary and the minimum approach distance for shock protection.

Arc Rating, ATPV, and EBT Explained

Arc-rated clothing carries a number that tells you how much thermal energy it can absorb before there's a 50 percent probability of a second-degree burn. Two test methods produce this rating:

• ATPV (Arc Thermal Performance Value): used for fabrics that char but stay intact; the number is the incident energy at which the fabric transmits enough heat to cause a burn.
• EBT (Energy Breakopen Threshold): used when a fabric opens up or breaks apart before it reaches the ATPV level, exposing skin directly; the EBT is the lower, and therefore the controlling, number in that case.

Manufacturers list the arc rating as whichever of the two values is lower, so the number on the garment tag is always the conservative one. Layering AR garments is permitted and the arc ratings are not simply additive, so multi-layer systems should be verified as tested combinations rather than assumed.

The Hierarchy of Controls Comes Before PPE

PPE is the last line of defense, not the first response to an arc flash hazard. NFPA 70E's hierarchy of risk controls, in order of preference, is elimination, substitution, engineering controls, awareness, administrative controls, and finally PPE. In practice that means:

• De-energize and establish an electrically safe work condition whenever the task allows it, rather than working the equipment hot.
• Use remote racking, remote switching, or infrared windows so a worker doesn't have to stand in front of energized gear.
• Reduce available fault current or protective device clearing time through maintenance switches or better coordination.
• Only after those options are exhausted does the correct PPE category become the controlling safeguard.

Arc Flash and Shock Boundaries Explained

NFPA 70E defines a set of approach boundaries around energized equipment. Understanding them matters as much as understanding the PPE tables:

• Limited approach boundary: the shock protection boundary that only qualified persons may cross, and only with appropriate PPE.
• Restricted approach boundary: closer to the energized parts; crossing it requires a documented shock risk assessment and insulating PPE for shock protection.
• Arc flash boundary: the distance at which incident energy drops to 1.2 cal/cm², the threshold for a curable second-degree burn. Anyone inside this boundary, qualified or not, needs arc-rated PPE matched to the incident energy at that distance.

These boundaries should appear on the equipment's arc flash label, along with the equipment's voltage class and the date of the last study, since incident energy calculations should be revisited whenever the electrical system's fault current or protective devices change.

Common PPE Mistakes That Get People Hurt

• Undersizing the category: wearing a Category 2 suit on a Category 4 task doesn't provide partial protection; the garment fails at its rated threshold before the wearer can react.
• Mixing melting synthetics with AR layers: a synthetic base layer under arc-rated outerwear can melt onto skin even when the outer garment survives the event.
• Skipping voltage-rated gloves: AR clothing addresses thermal energy, not shock hazard; insulating rubber gloves with leather protectors, tested to the system voltage, are a separate requirement.
• Wearing PPE past its service life: arc-rated fabric degrades with repeated washing, UV exposure, and wear; manufacturers specify inspection intervals and retirement criteria that should be followed, not guessed at.
• Treating the table method as a substitute for a real study: the simplified category tables only apply to the specific equipment and fault-current limits they list; equipment outside those limits needs an incident energy analysis.

Building a Practical Arc Flash Safety Program

A working arc flash program combines equipment labeling, a current one-line diagram, an incident energy study updated after major electrical changes, task-specific PPE assignments, and documented training refreshed on a regular cycle. Panels and disconnect switches should carry legible arc flash warning labels, and enclosures exposed to weather or contamination benefit from properly rated NEMA enclosures that reduce the risk of the dust and moisture ingress that often triggers a fault in the first place. Coordination studies that shorten protective device clearing times, along with maintenance settings on modern breakers, are among the most effective ways to lower incident energy without changing PPE at all.

The Bottom Line

Arc flash is a thermal hazard measured in calories per square centimeter, and NFPA 70E gives electricians two ways to size the right protection: a full incident energy analysis or the simplified PPE category tables. PPE Categories 1 through 4 correspond to arc ratings from 4 to 40 cal/cm², with the required garments, hoods, and gloves increasing at each level. But PPE is the last line of defense in the hierarchy of controls, not the first one, and understanding the limited approach, restricted approach, and arc flash boundaries matters just as much as picking the right suit. A functioning safety program pairs correct PPE with de-energization wherever practical, up-to-date labeling, and equipment maintained to reduce available fault current and clearing time in the first place.
