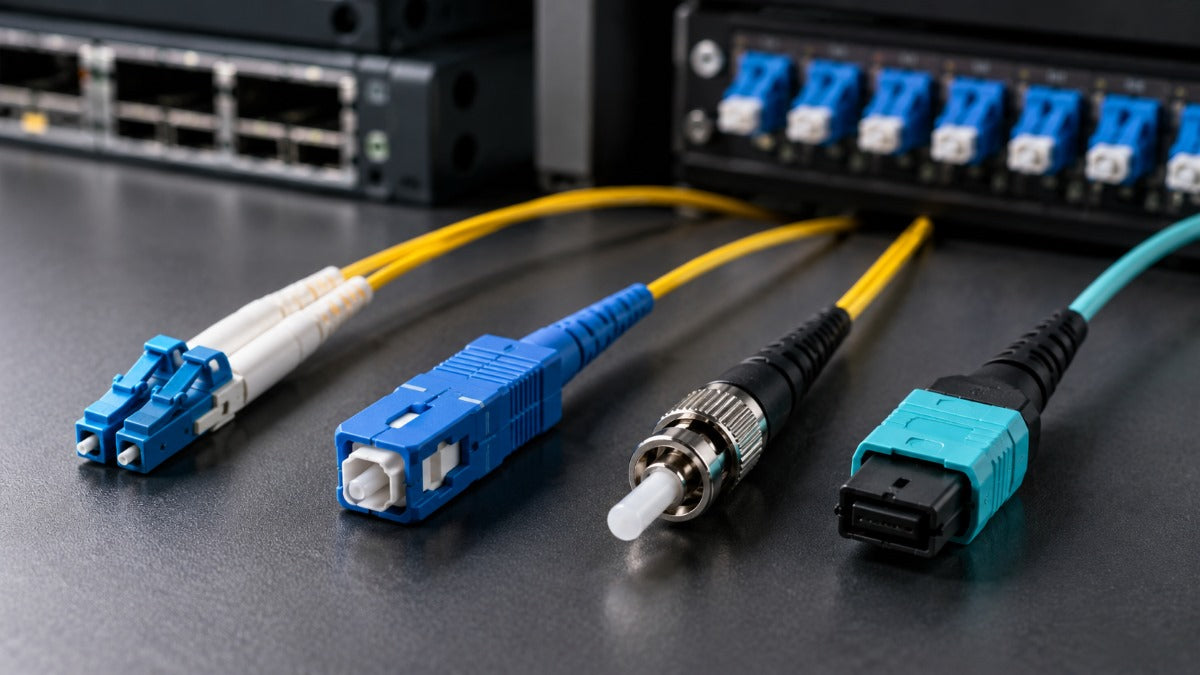

Fiber Connector Types (LC, SC, ST, MPO)

Fiber connector types are the standardized plug designs that terminate an optical fiber so it can click into a switch port, transceiver, patch panel, or wall outlet, and the four you will actually meet on jobs are LC, SC, ST, and MPO. Get the connector right and light crosses the junction with a tiny fraction of a decibel of loss. Get it wrong and the plug simply will not seat in the port, or worse, it seats badly and the link runs dirty. This guide shows you how to identify each connector on sight, where each one belongs in 2026, what the blue, green, and beige colors mean, and how to keep connections clean enough to stay reliable. Fiber shares pathways, ceilings, and racks with copper, so if you are still deciding which medium a run should use, our Cat5e vs Cat6 vs Cat6a guide covers the copper side of the same decision.

What a Fiber Connector Actually Does

Every fiber connector has the same job: hold a strand of glass thinner than a human hair in perfect alignment with the strand on the other side of the junction. The part that does the precision work is the ferrule, a hard ceramic or polymer cylinder with a hole drilled down its center that grips the bare fiber. The body around the ferrule handles the mechanical work, latching, snapping, or twisting the connector into its adapter and holding it there under spring pressure. When two ferrules meet inside an adapter, their polished end faces press together so light passes straight from core to core. A well made, clean connection loses only a small fraction of a decibel. A misaligned, scratched, or dirty one can drop enough signal to take a link down, which is why connector choice and connector hygiene matter more than almost anything else in a fiber install.

How to Tell the Four Connectors Apart at a Glance

You can identify all four common connectors without reading a label. LC is the small one, about half the width of the others, with a plastic latch on top like a miniature phone plug. SC is the square one, a chunky rectangular body you push straight in until it clicks and pull straight out. ST is the round metal one with a bayonet ring you push and twist, the same motion as a BNC video connector. MPO is the wide, flat rectangular one, noticeably broader than the rest because it carries an entire ribbon of fibers behind a single face. Once you have handled each once, you will never confuse them again.

LC: The Small Connector That Took Over

The LC connector uses a 1.25 mm ferrule, half the diameter of the older SC and ST designs, and that small footprint is exactly why it now dominates. Switch faceplates, SFP and SFP+ transceivers, and high density patch panels are all built around the LC interface, because you can fit twice as many LC ports in the same panel space. LC connectors usually arrive as duplex pairs, two connectors joined by a clip so the transmit and receive fibers stay together and cannot be swapped by accident. The latch on top gives a positive click when seated and releases with a press, like an RJ45. If you are terminating or patching fiber in a data room, an equipment rack, or almost any modern enterprise network, LC is the default answer, and every other connector needs a reason.

SC: The Push-Pull Workhorse of Telecom and FTTH

The SC connector carries a 2.5 mm ferrule inside a square plastic body that pushes straight into its adapter and clicks, no twisting and no latch to press. That simple push-pull action, the larger ferrule, and a low unit cost made SC the standard of the 1990s and 2000s, and it remains everywhere in carrier networks today. Fiber-to-the-home equipment leans on it heavily: the drop into an optical network terminal at a house or business is very often an SC, usually the green angled variety covered below. SC is also common on media converters, older LAN gear, and CATV equipment. It gives up density to LC, you simply cannot pack SC ports as tightly, so new enterprise builds rarely choose it, but you will keep meeting it at demarcation points for years.

ST: The Bayonet Twist That Lives On in Legacy Plants

The ST connector pairs a 2.5 mm ferrule with a spring loaded metal bayonet: push it into the adapter, twist a quarter turn, and it locks. It was the connector of choice for multimode campus and building backbones in the era before SC and LC, so schools, factories, hospitals, and older office buildings still have panels full of it, and some industrial and security equipment kept specifying it long after the LAN world moved on. Nobody designs a new network around ST in 2026, but if your work includes maintaining or extending an existing plant, you will be glad to recognize it, and hybrid patch cords with ST on one end let old panels talk to new gear without re-terminating anything.

MPO: One Push, a Whole Ribbon of Fibers

The MPO connector, short for multi-fiber push-on, terminates many fibers behind a single rectangular face, most commonly 8, 12, or 24. One click connects an entire trunk, which is why MPO is the backbone connector of modern data centers: 40G, 100G, and 400G links that run parallel lanes of light land on MPO interfaces, and factory terminated MPO trunk cassettes let installers deploy dozens of fibers in minutes. You will also see the name MTP, which is a specific manufacturer's enhanced, fully compatible version of the MPO design, the way a brand name attaches to a generic standard. MPO brings real complexity along with its density: connectors are male or female depending on whether guide pins are present, and trunks follow polarity schemes that decide which transmit fiber meets which receive fiber. Mismatch either one and the link stays dark, so MPO work rewards careful documentation in a way single fiber connectors never demanded.

UPC vs APC: What the Blue and Green Bodies Mean

Two connectors can share the same shape and still be incompatible, because the polish of the ferrule end face matters as much as the body. A UPC polish, ultra physical contact, is a dome that mates flat and sends very little light back toward the transmitter. An APC polish, angled physical contact, cuts the end face at an 8 degree angle so any reflected light bounces out of the core entirely, which is why carriers, FTTH networks, and RF over fiber systems specify it. The industry color code makes the difference visible from across the room: blue bodies are single-mode UPC, green bodies are single-mode APC, and beige or black bodies are multimode. The rule that protects your network is simple, never mate an APC connector to a UPC port. The angled and flat faces cannot make full contact, the air gap wrecks the connection, and forcing it can permanently damage both end faces.

Match the Fiber Before You Match the Connector

Connector type and fiber type are separate decisions, an LC can terminate single-mode or multimode glass equally well, so confirm the fiber first. Single-mode cable jackets are usually yellow and carry light for miles, multimode jackets run orange or aqua and serve shorter in-building links, and the two do not mix on the same link even when the connectors mate perfectly. When you order patch cords or pigtails, you are really ordering three things at once: the connector on each end, the polish, and the fiber inside. Reading all three off the existing plant before buying saves the classic wasted trip back to the supplier.

Can You Connect an LC Cable to an SC Port?

Yes, and you do not need to cut anything. Hybrid adapters accept a different connector on each side, and hybrid patch cords come from the factory with, for example, an LC on one end and an SC on the other, so a modern LC switch can reach an older SC panel in one jump. The same trick bridges ST legacy plants to LC equipment. Keep fiber type and polish consistent across the jump, single-mode to single-mode, UPC to UPC, and a hybrid link performs just like a matched one.

Keep the End Faces Clean or Nothing Else Matters

Contamination on connector end faces is the most common reason fiber links fail or underperform, ahead of bad splices and broken glass. A fingerprint or a speck of dust sitting on a core a few microns wide blocks a meaningful share of the light, and mating a dirty connector can grind the contamination into both faces. The professional habit is inspect and clean before every connection: keep dust caps on anything unmated, never touch a ferrule tip, and use one-click cleaning pens or lint free wipes made for fiber rather than clothing or canned air. The few seconds this takes is the cheapest reliability upgrade in networking.

Planning the Physical Run

Fiber is light and strong in tension but hates being crushed or bent tightly, so support it with wide, loosely applied cable ties or hook and loop wraps rather than cinching it the way you might a power cable, and respect the bend radius printed on the jacket. Where a cable enters an enclosure or equipment housing, a properly sized cable gland protects the jacket and keeps the seal. Building codes treat fiber jackets the same way they treat copper data cable, so runs through air handling spaces and vertical risers need the right flame rating, our plenum vs riser cable rating guide explains which letters to look for. And at the point where the fiber hands off to copper for the last stretch to a device, the copper budget takes over, which our guide on how far you can run Ethernet cable covers in detail.

The Bottom Line

Four connectors cover almost everything you will touch: LC is the small latched connector that owns modern equipment and high density panels, SC is the square push-pull veteran still guarding telecom and FTTH handoffs, ST is the twist lock survivor of older multimode plants, and MPO is the wide multi-fiber connector behind high speed data center trunks. Read the color before you plug, blue and beige mate with their own kind and green APC never touches a UPC port, match single-mode to single-mode and multimode to multimode, and clean every end face before it mates. Do those things and the connector becomes the most dependable part of the link instead of the weakest one.
