Cat5e vs Cat6 vs Cat6a Cable Explained

Cat5e, Cat6, and Cat6a are the three Ethernet cable categories you'll actually choose between for a home or building network. They all use the same RJ45 connector and are fully backward compatible, which makes it tempting to assume a higher number just means “faster.” The truth is more useful than that: the real differences are about speed versus distance and about future-proofing a cable that will outlive the equipment plugged into it. This guide compares the three head to head so you can pick the right one. It's a focused category comparison; for the broader buying decision, including shielding and solid versus stranded, see our guide to choosing Ethernet cable, and route and secure whatever you run with proper cable ties and supports.

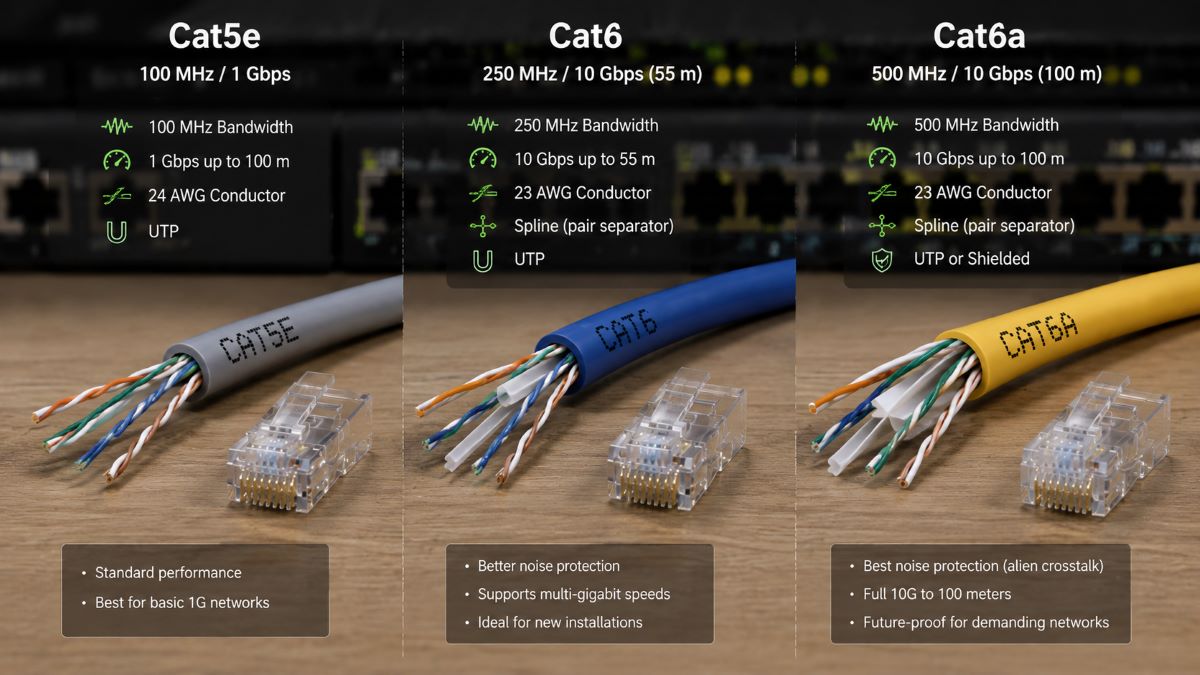

The Three Categories at a Glance

What Actually Differs: Bandwidth and Speed vs Distance

Under the jackets, the categories differ mainly in bandwidth, the range of frequencies the cable can carry cleanly, measured in megahertz. Cat5e handles 100 MHz, Cat6 doubles that to 250 MHz, and Cat6a doubles it again to 500 MHz. More bandwidth is what allows higher data rates, because faster signaling uses a wider frequency band and noise rises with frequency.

Here's the insight most comparisons bury: all three carry 1 Gigabit to the full 100-meter limit, so for a gigabit network they're equivalent on speed. The difference shows up at 10 Gigabit. Cat5e can't do 10G at all. Cat6 can do 10G, but only over a shortened run of roughly 37 to 55 meters, after which it falls back to 1G. Only Cat6a carries 10G across the full 100-meter channel. So the categories aren't simply “faster” as you go up, they're “faster over a greater distance.” That's the distinction that should drive your choice.

Cat5e: The Legacy Baseline

Cat5e (Category 5 enhanced) is the older standard that still wires a huge number of existing networks. Rated to 100 MHz and certified for 1 Gbps over 100 meters, it's built from unshielded twisted pairs, typically on 24 AWG conductors, which makes it the thinnest, most flexible, and cheapest of the three. For a basic gigabit home network, phones, and light use, it works fine. Its limitations are headroom and noise control: it offers only modest protection against interference from neighboring cables and little room for the multigigabit standards (2.5G and 5G) that newer Wi-Fi and devices increasingly use. It's a reasonable choice for budget or existing installations, but not one to build a new home around.

Cat6: The Current Default

Cat6 is the modern sweet spot for new installations. Rated to 250 MHz, it does everything Cat5e does and adds real headroom: 2.5G and 5G comfortably to 100 meters, and 10G on shorter runs. It achieves this three ways, each visible in the cable itself, tighter and more precise pair twists that cancel more crosstalk, a plastic spline (a central separator) that holds the four pairs apart, and a heavier 23 AWG conductor with lower resistance. Those same thicker conductors dissipate heat better, which matters for Power over Ethernet. The one ceiling is that 10G reach of about 55 meters, limited by alien crosstalk. For most new residential and light commercial wiring, short 10G links, and PoE devices, Cat6 is the right default.

Cat6a: Full 10G and Future-Proof

Cat6a (Category 6 augmented) exists specifically to solve Cat6's distance problem. Rated to 500 MHz, it's the first category certified to carry 10G across the entire 100-meter channel, and the only twisted-pair category TIA certifies for guaranteed 10GBASE-T at full length. It gets there by controlling alien crosstalk (more on that next), using either a larger unshielded geometry or, in high-interference environments, foil shielding around the pairs. The costs are physical and financial: Cat6a is noticeably thicker and stiffer, needs a larger bend radius, is harder to terminate, and costs the most. It's the correct specification for commercial structured cabling, data centers, high-power PoE deployments, and any permanent run you want to carry 10G for years to come.

Alien Crosstalk: Why Cat6a Is Bulkier

The term that explains the whole Cat6-versus-Cat6a story is alien crosstalk (AXT): interference bleeding between adjacent cables bundled together in a tray or conduit. At 10G speeds it becomes the dominant source of noise, and it's why Cat6's 10G reach collapses to around 55 meters in real, densely bundled installations. Cat6a is the first category to set formal limits on alien crosstalk and engineer against it, through its larger cable geometry (which physically separates adjacent conductors) and, in shielded versions, foil that blocks the interference. That engineering is exactly why Cat6a is thicker, stiffer, and more expensive. The bulk isn't waste; it's the feature that guarantees 10G to 100 meters.

The “Pull Once” Principle

Here's the reasoning that should guide any permanent install: the cable outlives the gear plugged into it. A switch or router gets replaced every three to five years, but cable pulled inside a wall stays for fifteen or more. The few cents per foot difference between categories is trivial next to the labor of tearing open a wall to re-pull cable later. So the smart move is to install the best cable you can reasonably justify now, at minimum Cat6 for any new in-wall run, and Cat6a where you expect 10G or want maximum longevity, even if today's equipment only needs 1G. Plan the run lengths against the 100-meter channel limit, which our guide to how far you can run Ethernet cable covers in detail.

PoE and Heat

Power over Ethernet adds a consideration that favors the higher categories. When PoE cables are bundled together, the current running through them generates heat, and heat raises resistance and degrades performance. The thicker 23 AWG conductors in Cat6 and Cat6a dissipate that heat better than Cat5e's 24 AWG, which makes them the better choice for high-power PoE++ devices such as pan-tilt-zoom cameras, Wi-Fi 6 and Wi-Fi 7 access points, and powered displays. If your run will carry meaningful PoE, lean toward Cat6 at least.

A Note on Cat6e, Cat7, and Cat8

A few other labels cause confusion. “Cat6e” is not a real TIA-recognized category at all; it's a marketing term with no standardized performance behind it, so if you need guaranteed 10G to 100 meters, specify Cat6a, not “Cat6e.” Cat7 is not a TIA-recognized standard in North America, often uses non-standard connectors, and cable sold with RJ45 ends effectively performs at Cat6a levels, so Cat6a is the better specification. Cat8 is a genuine standard but aimed at very short (roughly 30-meter) data-center links at 25 and 40 Gigabit, not building wiring. For homes and the vast majority of commercial work, the real decision remains Cat6 versus Cat6a.

Which Should You Choose?

• Choose Cat5e if you're on a tight budget, extending an existing Cat5e network, or wiring basic gigabit connections with no 10G ambitions.
• Choose Cat6 if you're doing any new residential or light commercial in-wall run, want solid multigigabit and short-distance 10G headroom, and are running PoE devices. It's the current default.
• Choose Cat6a if you need guaranteed 10G to the full 100 meters, you're wiring commercial structured cabling or a data center, you have dense bundles or heavy PoE++, or you simply want to future-proof a permanent installation.

One more rule regardless of category: a cable is only as good as its terminations. To get a true Cat6 or Cat6a channel, use jacks, keystones, and patch panels rated for that category, since mixing in lower-rated hardware downgrades the whole link. The full set of buying factors, shielding, solid versus stranded, and connectors, is covered in our Ethernet cable buying guide.

The Bottom Line

Cat5e, Cat6, and Cat6a all run gigabit to 100 meters and share the RJ45 connector, so the meaningful differences are about 10G and distance. Cat5e tops out at 1 Gigabit; Cat6 adds 10G but only to about 55 meters and is the smart default for new residential and light commercial work; Cat6a carries 10G across the full 100 meters and is the future-proof choice for commercial, data-center, heavy-PoE, and permanent runs. Because in-wall cable long outlives the equipment on it, pull at least Cat6 in any new wall and step up to Cat6a wherever 10G or longevity matters. Match your terminations to the category, plan runs within the 100-meter limit, and the network will serve you for years.
