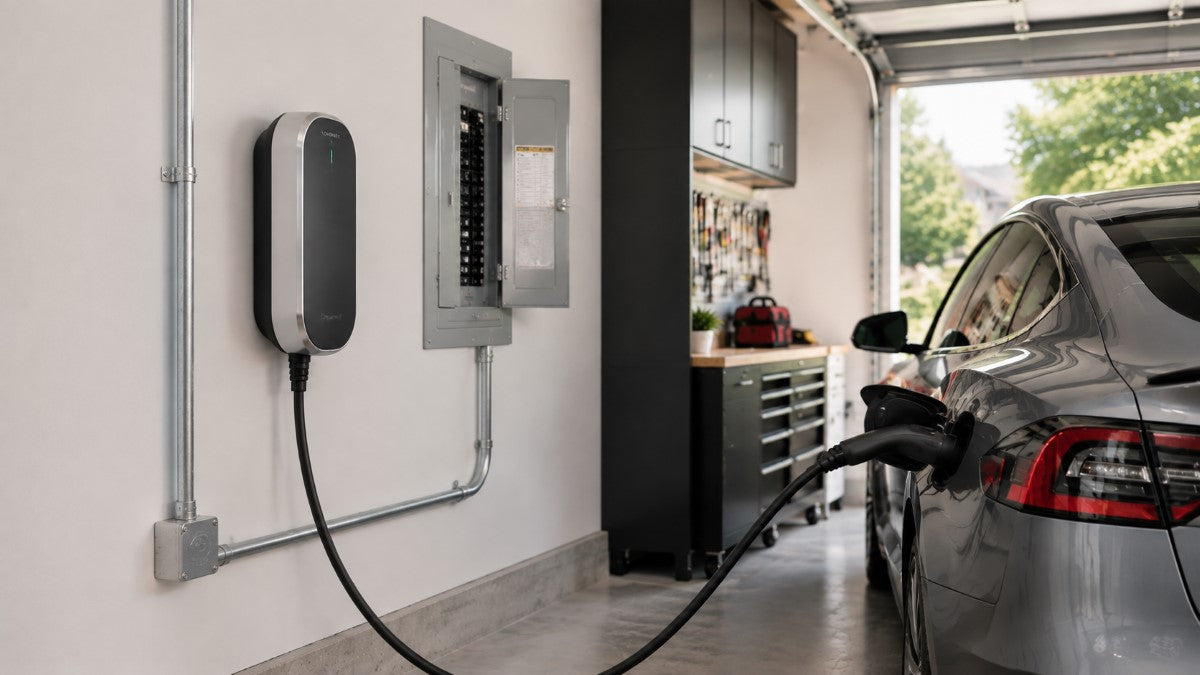

How to Install a Level 2 EV Charger Circuit

A Level 2 EV charger circuit runs on 240V and needs a dedicated branch circuit sized specifically for the charger's continuous current draw, which is different from how most 240V appliance circuits get sized. NEC Article 625 treats EV charging equipment as a continuous load, meaning it can run at full output for three hours or more, and that classification changes the math behind breaker and wire selection. Getting the circuit right means correctly sizing the circuit breaker, choosing wire that matches both the breaker and the charger's continuous draw, and confirming panel capacity before any wire gets pulled. This guide covers the NEC 625 sizing rules, the equipment involved, and the full installation process for a typical residential or light commercial Level 2 circuit.

Why EV Charger Circuits Are Sized Differently

NEC 625.42 classifies EV charging equipment as a continuous load, since a vehicle often charges for several hours at a stretch. NEC 210.20(A) requires a continuous load to draw no more than 80% of a circuit's rating, which is the same as saying the circuit and its overcurrent protection must be sized at 125% of the charger's rated continuous current. A 40-amp charger, for example, needs a 50-amp circuit (40 x 1.25 = 50), not a 40-amp one; sizing the circuit to exactly match the charger's nameplate rating is undersized and won't meet code.

Common EVSE Ratings and Their Circuit Requirements

Always confirm wire ampacity against the actual conductor type being used and NEC Table 310.16 at the correct temperature rating; NM-B (Romex) cable is rated lower at a given gauge than THHN/THWN-2 run in conduit, which is why a 48-amp charger commonly requires conduit-run conductors rather than standard NM-B cable.

Hardwired vs. Plug-In (NEMA 14-50) Installation

• Plug-in (NEMA 14-50 receptacle): simpler to install and lets the charger be unplugged or swapped, but NEC 625.41 limits a cord-and-plug EVSE to 80% of the receptacle's rating, capping a standard 50A receptacle at a 40A charger output. A hospital-grade or industrial-rated receptacle is worth the extra cost over an inexpensive home-center version, since a cheap 14-50 receptacle is a known failure point under sustained high current.
• Hardwired: required for chargers above 40A output, such as a 48A charger needing a 60A circuit, and generally gives a more reliable long-term connection since there's no plug-and-receptacle interface to loosen or overheat over years of use.

GFCI Protection Requirements

NEC 625.54 requires ground-fault protection for EV charging equipment, and recent NEC cycles extended GFCI requirements to 250V circuits generally, which brings most 240V EV charger circuits into scope depending on the locally adopted code edition. Many EVSE units include GFCI protection built into the equipment itself; where that's not the case, a two-pole GFCI breaker sized to the circuit provides that protection at the panel. Checking whether the specific charger has integrated GFCI protection, rather than assuming, determines whether a GFCI breaker is also needed at the panel.

The Disconnect Requirement

NEC 625.43 requires a disconnecting means within sight of the charging equipment. If the electrical panel itself is visible from the EVSE's mounting location, the branch circuit breaker can serve as that disconnect. If the charger is installed somewhere the panel isn't visible from, such as a detached garage or a charger mounted around a corner from the panel, a separate disconnect switch needs to be installed at the charger location.

Checking Panel Capacity Before Starting

Adding a 50 or 60-amp continuous-load circuit to an existing panel is a meaningful new load, and NEC 220 load calculations determine whether the panel and service have room for it without exceeding their rating. If the calculation shows the panel is already near capacity, the options are: install a load-management EVSE that automatically reduces charging current when other household loads are active, choose a lower-amperage charger that needs a smaller circuit, or upgrade the service size. Skipping this check and simply adding the breaker risks an overloaded panel that trips main protection or, worse, runs chronically overloaded without tripping anything at all.

Step-by-Step Installation

• Confirm charger specifications. Get the EVSE's rated continuous current from its nameplate or documentation before sizing anything.
• Run the panel load calculation. Confirm the panel and service have capacity for the new continuous load per NEC 220.
• Pull the permit. EVSE installation on a dedicated circuit requires a permit in virtually every jurisdiction, and the inspection confirms the sizing and protection requirements below were met.
• Size the breaker and wire at 125% of the charger's rated current. Use the table above as a starting point, but verify against the specific charger's actual nameplate rating.
• Run the circuit. Install the conductors from the panel to the charger location, in conduit where required by wire type or local code.
• Install the disconnect, if needed. Add a disconnect switch at the charger location if the panel isn't visible from there.
• Terminate at the charger. Hardwire directly or install the rated receptacle, following the EVSE manufacturer's specific terminal instructions.
• Confirm GFCI protection. Verify whether the EVSE has integrated protection or whether a GFCI breaker is needed at the panel.
• Schedule the inspection. Have the completed circuit inspected before relying on it for regular vehicle charging.

The Bottom Line

A Level 2 EV charger circuit comes down to one governing rule: size the breaker and wire at 125% of the charger's continuous current rating, not to match its nameplate output directly. From there, whether to hardwire or use a NEMA 14-50 receptacle depends on the charger's amperage, GFCI protection needs to be confirmed either at the equipment or the panel, and a disconnect needs to be within sight of the charger unless the panel itself is visible from that location. Checking panel capacity with a proper load calculation before starting avoids the more expensive problem of discovering mid-installation that the service can't support the new circuit without an upgrade.
