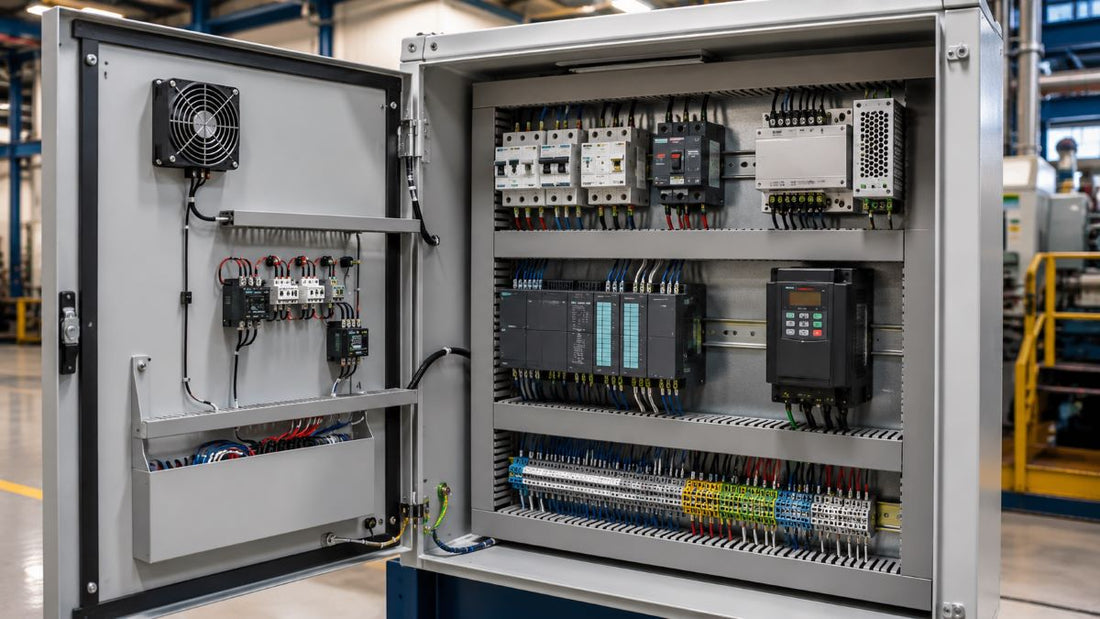

Industrial Control Panel Wiring Basics

An industrial control panel houses the PLCs, motor starters, VFDs, and terminal blocks that run a piece of machinery or a process line, and how it is wired determines whether it passes inspection, survives daily use, and can actually be serviced years later without guesswork. In the United States, panel construction is governed by UL 508A, which sets rules for component selection, conductor sizing, color coding, and labeling, layered on top of the circuit breakers and wire connectors that protect and terminate the circuits inside. This guide covers the wiring color codes, layout principles, wire numbering, and documentation that make a panel both compliant and maintainable.

UL 508A vs. the NEC: Two Different Jobs

UL 508A and the National Electrical Code cover different parts of the same installation. UL 508A governs how a factory-built industrial control panel is constructed internally, meaning component selection, wire sizing, spacing between live parts, and short-circuit current rating (SCCR), and it is the standard a panel is evaluated against for a UL Listing mark. The NEC governs how that finished panel is installed and protected within a facility, including feeder sizing, disconnect requirements, and working clearances around the enclosure. A panel can be built correctly to UL 508A and still fail an inspection if the field installation around it does not meet the NEC, so both standards matter.

UL 508A Wire Color Codes

UL 508A Section 66.9 specifies wire colors for control circuits in panels built for industrial machinery, which improves safety and troubleshooting speed by letting a technician identify a conductor's function at a glance.

These color requirements have exceptions: factory leads on assembled components, multiconductor cable, leads for electronic devices, and conductors sized 20-30 AWG are exempt. Where a non-standard color conductor is used at 4 AWG or larger, UL 508A allows marking it at each connection point with a wrap of white tape or a similar marker instead of using a differently colored wire outright.

Panel Layout: Where Components Go

A well laid-out panel follows thermal and accessibility logic rather than just filling available space:

• Heat-generating components such as VFDs, power supplies, and contactors go toward the top of the enclosure, where rising heat has room to dissipate without affecting components mounted above them.
• PLCs and sensitive electronics sit in the middle, away from both heat sources above and any vibration-prone equipment below.
• Terminal blocks go near the bottom, where field wiring can reach them without a technician working over live components mounted higher in the enclosure.
• DIN rail spacing should leave enough clearance that any single component can be removed or replaced without disturbing its neighbors.

Wire Duct Fill and Conductor Sizing

Wire duct inside the panel should be sized for roughly 40 to 50 percent fill, leaving room for future circuit additions rather than packing it tight. Conductor sizing has to account for more than the load current alone: UL 508A requires derating for ambient temperature inside the enclosure, which can exceed 40 degrees C near heat-generating components, for the effect of bundling multiple conductors together, and for harmonic heating on any circuit feeding a VFD or switching power supply. Properly rated NEMA enclosures sized with enough internal volume make it easier to hit these fill and clearance targets without cramming the panel.

Wire Numbering and Labeling

Every wire in a compliant panel should carry the same identifying number at both ends, matching the number shown on the panel's schematic, so a technician can trace any circuit without guessing. Ferrules or heat-shrink wire markers are the standard way to apply this numbering durably. Beyond wire numbers, UL 508A Section 7.1 specifies information that must appear on the panel's nameplate, including its short-circuit current rating, voltage, phase, and enclosure type, along with the UL Listing mark itself where applicable.

Arc Flash and Shock Hazard Labeling

Any panel operating above 50 volts that a technician may need to work on while energized should carry appropriate shock hazard labeling. Whether an arc flash label is required, and at what incident energy level, depends on the panel's SCCR and the clearing time of its upstream overcurrent protection; higher fault current and slower-clearing devices generally push the incident energy, and the labeling requirement, higher.

Documentation That Passes Inspection

• A schematic organized by function rather than physical layout, so a technician can follow the control logic without needing to know exactly where each component sits in the box.
• Wire numbers on the schematic that match the physical labels on every conductor.
• Installation instructions covering conductor sizing, termination methods, and testing procedures for the specific panel.
• Records of insulation resistance and ground fault testing performed during commissioning, not just a continuity check.

The Bottom Line

Industrial control panel wiring is governed by UL 508A for construction and the NEC for installation, and the two work together rather than one substituting for the other. Following the standard's color codes, keeping heat-generating components clear of sensitive electronics, sizing wire duct with room to grow, numbering every conductor at both ends, and documenting the panel thoroughly are what separate a panel that passes inspection and stays serviceable for years from one that becomes a troubleshooting headache the first time something needs to be traced or replaced.
