EV Charging Guide: Charging Levels, Connectors, Costs, and Home Setup

Electric vehicle charging becomes much easier to plan once you understand the difference between charging power, battery capacity, and the equipment supplying electricity. A charging station that works well for a commuter may be too slow for a shared fleet, while a high-power public charger may offer little advantage for a vehicle that cannot accept its maximum output.

This EV charging guide explains the main charging levels, connector types, charging times, costs, and practical equipment choices for U.S. homes, workplaces, and commercial properties. It also outlines the questions to discuss with a qualified electrician before adding a home charging circuit.

What Is EV Charging and How Does It Work?

Electric vehicle charging transfers electrical energy into the vehicle's rechargeable battery. The charging equipment, commonly called electric vehicle supply equipment (EVSE), provides a controlled connection between the electrical supply and the vehicle. It communicates the available charging current and incorporates protections required by its design and applicable standards.

With Level 1 and Level 2 alternating-current (AC) charging, the vehicle's onboard charger converts incoming AC power into the direct current (DC) stored in the battery. At a DC fast-charging station, much of that conversion happens in the station instead. The vehicle's battery-management system still determines how much power it can safely accept as conditions change.

Charging Power vs. Battery Capacity

Charging power is measured in kilowatts (kW), while energy delivered or stored is measured in kilowatt-hours (kWh). A 7.2 kW charging session theoretically supplies 7.2 kWh in one hour before accounting for losses and changing charging rates. Battery capacity describes how much energy the vehicle can store, not how quickly it charges.

This distinction is important when comparing equipment. A larger battery generally takes more energy to recharge, but the time required also depends on the vehicle's charging limit, starting state of charge, temperature, and the available station power.

EV Charging Levels Compared

U.S. drivers generally encounter three practical charging categories: AC Level 1, AC Level 2, and DC fast charging. The U.S. Department of Energy's Alternative Fuels Data Center explains that charging speed depends on the vehicle, its battery and onboard equipment, and the station—not the station rating alone.

Level 1: Charging From a Household Outlet

Level 1 charging uses compatible portable equipment connected to an appropriate 120V receptacle. It can be a practical choice for plug-in hybrids, shorter commutes, or vehicles parked for long periods each day. As an approximate reference, the Alternative Fuels Data Center describes Level 1 charging as adding around five miles of range per hour under its stated assumptions; actual results vary.

Before relying on an existing outlet, have its condition and circuit suitability evaluated. Follow the vehicle and charging-equipment instructions, and do not treat ordinary extension cords or improvised adapters as substitutes for approved charging equipment.

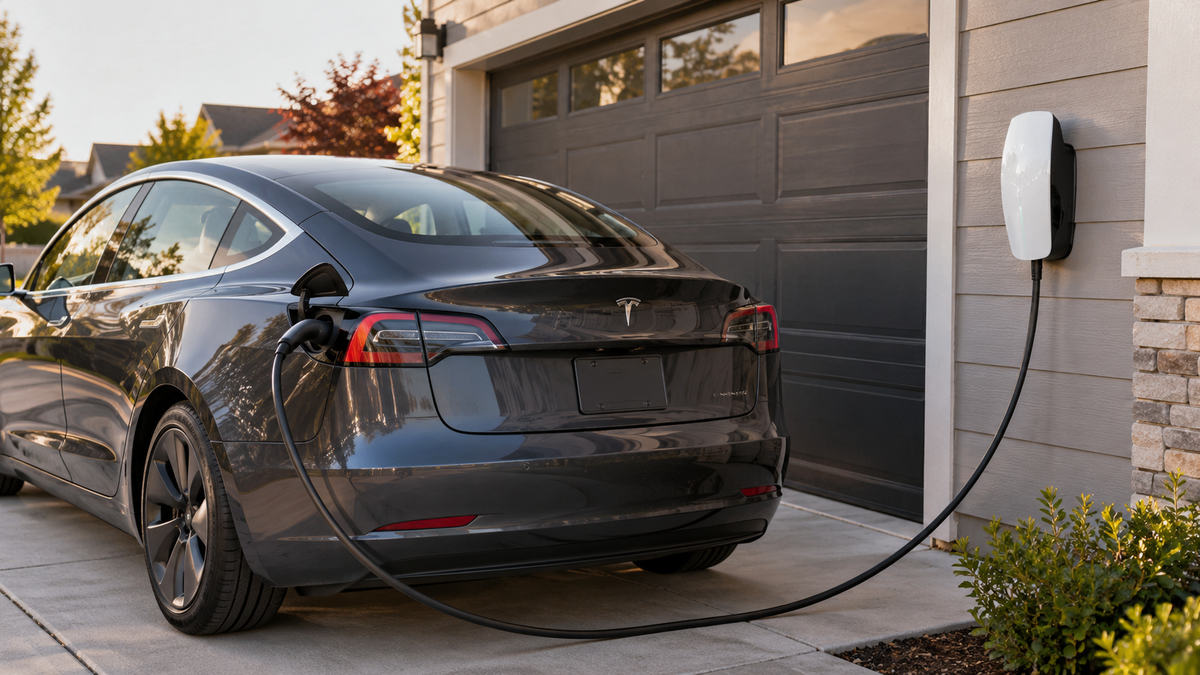

Level 2: Everyday Home and Workplace Charging

Level 2 charging operates on a suitable 208V or 240V electrical supply and commonly supports overnight charging for battery-electric vehicles. It may be installed as a wall-mounted home charger, a workplace unit, or a public destination charger. The actual power available depends on the equipment rating, configured current, circuit design, and vehicle onboard charger.

A Level 2 installation requires more planning than simply purchasing a wall unit. Electrical capacity, the distance from the panel, mounting conditions, protection requirements, and the charger's connection method must be assessed. For the electrical installation details, see Lumera Electric's How to Install a Level 2 EV Charger Circuit.

DC Fast Charging: Rapid Charging Away From Home

DC fast charging is designed for situations where drivers need substantial energy during a shorter stop. Stations vary widely in output, and charging speed often falls as the battery approaches a higher state of charge. Weather conditions, battery temperature, station sharing, and vehicle limits can also affect the session.

A station advertising very high power does not guarantee that every vehicle will charge at that rate. Confirm your vehicle's DC charging compatibility and consult its charging recommendations before planning long trips around specific stations.

EV Charging Connectors: J1772, J3400, CCS, and CHAdeMO

Connector compatibility matters because charging power is useful only when the station can connect to and communicate with the vehicle. In the North American market, the important names include J1772 for many AC charging applications, J3400 (often called NACS), CCS1 for many DC fast-charging vehicles, and CHAdeMO on some older models.

Adapters are not universally interchangeable. A vehicle manufacturer may permit an adapter for particular charging modes or networks while excluding others. Verify hardware, software, and network access requirements for the specific vehicle rather than relying on connector appearance alone.

How Long Does It Take to Charge an Electric Vehicle?

Charging time is influenced by the energy needed, available charging power, and the vehicle's charging behavior. For AC charging, a basic planning estimate divides energy to be added by the approximate usable charging power. The result is a starting point, not an exact completion time, because charging losses and power limitations apply.

An Example Charging-Time Calculation

Suppose an EV needs approximately 36 kWh added to its battery. At an effective average delivery rate of 6 kW, that energy would take roughly six hours. At an effective 1.2 kW, it would take about 30 hours. These are illustrative averages and do not represent guaranteed performance for a particular vehicle or outlet.

For DC fast charging, the calculation is less straightforward because the delivered power can change substantially during a session. Trip planning should therefore use the vehicle manufacturer's charging curve or realistic trip-planning estimates rather than assuming the station's peak kW rating will remain constant.

How Much Does EV Charging Cost?

The cost of charging depends on how many kilowatt-hours are purchased and the applicable electricity rate. Home charging often uses the household utility tariff, while public networks may charge by energy, time, session, or a combination, depending on local rules and the provider.

Example Home Charging Cost

If 30 kWh is billed at $0.18 per kWh, the electricity portion costs $5.40. The real amount may differ because the energy drawn from the wall can exceed the energy stored in the battery, and some utility plans include different rates at different times of day.

A practical comparison should include charging efficiency, local time-of-use pricing, public-network fees, and any additional installation costs. The Alternative Fuels Data Center also advises comparing electricity prices and vehicle energy use when estimating charging cost per mile.

Charging at Off-Peak Hours

Some utilities offer lower electricity prices outside periods of peak demand. If a compatible EV or charger supports scheduling, delayed charging may reduce costs without changing the daily driving routine. Confirm your own utility's rate schedule; overnight electricity is not automatically cheaper everywhere.

Choosing an EV Charger for Home

The best home EV charging setup is not always the unit with the highest advertised output. Start with the distance you drive, how long the vehicle normally stays parked, the connector your vehicle uses, and the electrical capacity already available at the property.

Match the Charger to Your Daily Mileage

Drivers with short commutes and long overnight parking windows may find Level 1 adequate. Drivers with longer commutes, larger battery packs, or multiple household vehicles often benefit from Level 2 charging. Consider the energy you must replace on a normal day rather than sizing equipment solely for the fastest possible full charge.

Compare Hardwired and Plug-In Level 2 Equipment

A plug-in Level 2 charger uses a compatible receptacle and is often convenient when equipment may be relocated or replaced. A hardwired unit makes a permanent electrical connection and may be preferable for certain higher-current or outdoor installations. Each approach has different installation, maintenance, and code considerations.

Lumera Electric's Hardwired vs. Plug-In EV Chargers compares the practical trade-offs in greater detail. For compatible charging hardware and accessories, browse the EV Charging Collection.

Evaluate Smart Features and Load Management

Smart chargers may support schedules, energy reporting, access control, and charging-current adjustments. Some systems can coordinate multiple vehicles or adjust charging demand based on other electrical loads. These features can be valuable at homes with limited spare electrical capacity and at workplaces managing multiple charging stations.

Network features should not replace basic equipment compatibility. Confirm that the charger's core operation, connectivity requirements, and any subscription terms match the intended use.

Planning a Safe Home EV Charging Installation

EV charging can represent a substantial electrical load over several hours. Qualified electrical professionals should evaluate the building supply, service capacity, branch circuit, grounding, protection, cable routing, and the equipment's installation instructions before a new charging circuit is installed.

For U.S. projects, the adopted edition of the National Electrical Code, including applicable Article 625 provisions, and local amendments govern the installation. Requirements for continuous loading, receptacles, ground-fault protection, disconnecting means, permits, and inspections depend on the actual configuration. Do not assume that a particular breaker size, outlet, or wiring method fits every EV charger.

Garage and Outdoor Placement

Choose a charger and any associated enclosure that are specifically rated for their installation environment. Cable reach, parking position, physical protection, access for maintenance, and exposure to water all affect placement. The charging cable should not routinely cross walking routes or be placed where it can be crushed by vehicles.

Receptacles and Connection Hardware

Where the chosen charger is approved for cord-and-plug connection, the receptacle must match the equipment plug, circuit, and installation conditions. Heavy-duty contact quality and correct termination are especially important for sustained electrical loads. Lumera's EV Charging Collection includes receptacle and weatherproof connection accessories, but every component must be checked against the specific installation design.

When the Electrical Panel Has Limited Capacity

A home with a smaller service or numerous existing electric appliances may require a load calculation before an additional charging circuit is permitted. Possible solutions include a lower-current charger, approved energy-management equipment, or a service upgrade where necessary. For context on electrical capacity planning, read100 vs. 200 Amp Service: Which Do You Need?.

Public, Workplace, and Multifamily EV Charging

Public charging makes longer trips possible and provides an option for drivers without dedicated home parking. Level 2 charging is well suited to places where vehicles stay parked for longer periods, such as offices, hotels, and apartment facilities. DC fast charging is more appropriate for travel corridors, high-turnover sites, and situations requiring shorter stops.

Commercial charging planning also involves factors beyond charger output: user access, payment options, parking layout, accessibility, network connectivity, utility demand, maintenance response, and the number of vehicles expected to charge simultaneously. Property managers should evaluate these operational requirements before selecting equipment or reserving electrical capacity.

Common EV Charging Mistakes to Avoid

1. Buying based only on peak kW: A higher-rated station may not make a vehicle charge faster if its onboard charger or battery imposes a lower limit. Ignoring connector access: An adapter or network membership may be needed even when a station appears physically compatible. Assuming an existing outlet is suitable: A worn receptacle or overloaded circuit can be unsafe for sustained charging.
2. Overlooking charging losses and tariffs: The charging cost depends on metered energy and the actual electricity plan, not battery size alone. Choosing a poor mounting location: Short cables, obstructed walkways, and weather exposure can make everyday charging inconvenient. Skipping a professional electrical assessment: The available panel space does not, by itself, prove the service can support the added electrical load.

Key Takeaways

Choosing the right EV charging setup starts with matching the charging level to the vehicle, daily driving needs, and available parking time. Level 1 may be sufficient for shorter daily trips, while Level 2 is often a more practical choice for regular home or workplace charging. Connector compatibility, realistic charging speeds, electricity costs, and the vehicle's own charging limits should all be considered before selecting equipment.

For home installations, electrical capacity is just as important as charger output. A qualified electrician should verify the panel, circuit, protection requirements, and installation conditions so the charging system is compatible, reliable, and appropriate for long-term use.
