Electrical Timer Switch Guide: Types, Uses, and Compatibility

An electrical timer switch turns a load on or off according to time rather than relying entirely on someone to remember the switch. The simplest version is a spring-wound countdown timer for a bathroom fan. More advanced wall timers can follow daily or weekly schedules, track sunrise and sunset, retain programs through outages, or work with multi-location controls.

The important part is not choosing the timer with the most features. It is choosing a timer whose voltage, load type, current or wattage rating, neutral requirement, and switching configuration match the circuit it will control.

Lumera Electric's timer collection includes countdown, programmable, astronomic, and other time-control devices for lighting, ventilation, and equipment applications.

What Is an Electrical Timer Switch?

A timer switch is a switching device that changes the state of a connected load after a selected interval or according to a programmed schedule. In a wall box, it often replaces a standard switch. In commercial or equipment applications, a time switch may be mounted in an enclosure and control a larger circuit directly or operate a contactor that carries the load.

Timer switches are commonly used for bathroom exhaust fans, heat lamps, closet and storage lighting, exterior lighting, signs, pumps, landscape lighting, and other loads that should not run indefinitely.

Main Types of Timer Switches

Countdown Timer vs. Programmable Timer

Use a countdown timer when the question is, "How long should this stay on after I press the button?" Use a programmable timer when the question is, "What time should this turn on and off every day or every week?"

A bathroom fan is a classic countdown application because the user starts the fan and the control shuts it off after a chosen interval. Exterior sign lighting is a better fit for a schedule or astronomic timer because the load needs to operate automatically at predictable times.

Does a Timer Switch Need a Neutral Wire?

Some electronic timers require a neutral conductor because the timer electronics need continuous power even when the controlled load is off. Other designs use a battery or a circuit that does not require a neutral. There is no universal answer: the exact model determines the wiring requirement.

Do not assume a white conductor in an older switch box is a neutral. In older switch-loop wiring, a white conductor may have been repurposed as an ungrounded conductor. The existing circuit has to be identified correctly before choosing a timer.

For example, Lutron's current MA-T51MN countdown timer requires a neutral, while Intermatic's ST01/EI600 family uses an internal battery and does not require a neutral. That difference is why the wall-box wiring should be checked before the timer is ordered, not after the old switch has been removed.

Load Type Matters More Than Total Watts

Timer ratings are load-specific. A device may have separate limits for LED lighting, incandescent lighting, fluorescent loads, fan motors, resistive heaters, or other equipment. Motor starting current and LED-driver inrush can stress switching contacts differently from a steady resistive load, so a generic amp rating is not enough by itself.

Never use a timer to control a receptacle, motor, heater, or other load unless that use is specifically allowed by the timer listing and instructions. A timer designed for permanently installed lighting may not be rated for a general-purpose receptacle.

Single-Pole, 3-Way, and Multi-Location Timer Switches

A single-pole timer controls a load from one location. A 3-way or multi-location application allows the same load to be controlled from more than one location, but electronic timers often require a specific companion or remote switch rather than an ordinary 3-way switch.

Manufacturer rules can also specify which box receives the timer. Lutron's Maestro countdown timer, for example, uses a designated companion control for multi-location operation, while some Intermatic programmable timers have their own line-side requirements in 3-way circuits. Do not transfer a generic 3-way wiring diagram from one timer brand to another.

For the fundamentals of ordinary 3-way switching, see Lumera Electric's 3-way switch wiring guide. Timer-specific wiring still has to follow the timer manufacturer's diagram.

Where Timer Switches Make the Most Sense

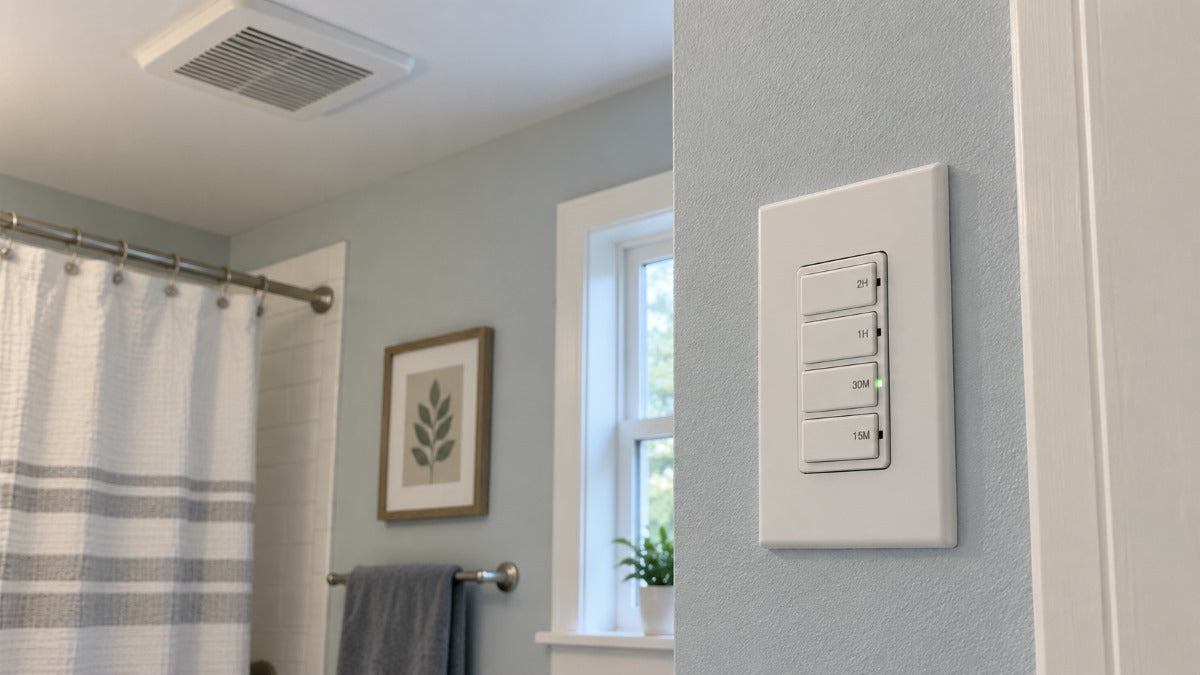

Bathroom Exhaust Fans

A countdown timer is one of the most practical fan controls because it lets the fan continue running after the user leaves. Match the timer's motor rating to the fan and confirm whether the timer supports the fan's motor technology. Some DC-motor fans have minimum-load or control compatibility considerations that are model-specific.

For fan selection, see Lumera Electric's bathroom exhaust fan collection.

Outdoor and Landscape Lighting

Programmable and astronomic timers work well where lights should operate at night without daily manual switching. An astronomic timer is especially useful because it shifts on/off times as sunrise and sunset change through the year instead of relying on a fixed clock setting.

Closets, Storage Rooms, and Utility Spaces

Countdown timers can limit how long a light stays on after someone leaves, but occupancy sensors may be more convenient where entry times are unpredictable. The right control depends on whether time, presence, or daylight is the real trigger.

Commercial Schedules and Larger Loads

For larger lighting zones, signs, pumps, or other equipment, an enclosure-mounted timer or lighting-control system may be more appropriate than a wall-box timer. If the controlled load exceeds the timer's switching rating, the timer can be used to control a properly selected contactor rather than carrying the full load through its own contacts.

Timer Switch vs. Occupancy Sensor vs. Photocell

U.S. Department of Energy lighting-controls guidance treats timer switches as a simple wall-box control that can shut lighting off after a set period when someone forgets. More advanced occupancy and networked controls can respond to actual use, but timers remain a low-complexity solution where a fixed duration or predictable schedule matches the application.

How to Choose an Electrical Timer Switch

1.  Identify the load first: LED lighting, fan motor, heater, pump, sign, or another device.

2.  Confirm supply voltage and the timer's rating for that exact load type, not just its faceplate amp number.

3.  Check whether the wall box has the neutral conductor the timer requires.

4.  Confirm whether the circuit is single-pole, 3-way, or multi-location and whether the timer needs a dedicated companion switch.

5.  Choose the control logic: countdown, daily/weekly schedule, astronomic schedule, or connected control.

6.  Check minimum-load requirements, especially with small LED loads and efficient DC-motor fans.

7.  Confirm the wall-box depth and available conductor space; electronic timers are often deeper than a basic toggle switch.

8.  Review power-loss behavior and battery requirements if maintaining the clock during an outage matters.

Installation and Wiring Considerations

Timer-switch wiring is manufacturer-specific. Turn off the breaker, verify the circuit is de-energized, identify the existing line, load, neutral, ground, and any traveler conductors, then follow the diagram supplied with the exact timer model. Never identify a conductor by insulation color alone when the existing wiring is uncertain.

A simple single-pole replacement may be straightforward for a qualified installer, but 3-way circuits, fan/light combinations, multi-gang boxes, missing neutrals, and mixed-voltage or motor loads can change the job quickly. If the circuit cannot be positively identified with power off and appropriate test equipment, use a licensed electrician.

Common Timer Switch Problems

Key Takeaway

Choose a timer switch by the load and wiring conditions first, then by features. The correct timer must match the circuit voltage, the actual load type, the available neutral, and the switching arrangement. Once those fundamentals are correct, countdown, weekly scheduling, astronomic timing, and smart functions become useful choices instead of compatibility risks.
