Electrical Outlet Height and Placement Guide: NEC and ADA Rules

An electrical outlet installed a few inches too high or too low can be inconvenient. An outlet placed too far from a countertop, hidden behind cabinetry, or positioned outside an accessible reach range can create more significant problems, including code compliance issues. For electrical contractors and building owners, outlet placement is about more than keeping devices aligned. It requires understanding where receptacles are needed, how far apart they must be, and which height requirements apply to specific locations.

There is no single standard outlet height required by the National Electrical Code (NEC) for every residential room. Typical mounting heights are largely based on construction practices, while specific placement requirements depend on room use, accessibility, and adopted electrical codes. This electrical outlet height and placement guide explains common mounting heights, NEC spacing rules, kitchen and bathroom requirements, and accessibility considerations for residential and commercial projects.

What Is the Standard Electrical Outlet Height?

A common residential practice is to install general-purpose wall receptacles approximately 12 to 18 inches above the finished floor, often measured to the center of the electrical box. However, this is a typical installation convention—not a universal NEC requirement. Some projects use a consistent 16-inch or 18-inch box centerline, while others follow different architectural or accessibility specifications. The appropriate height depends on several factors:

·        Intended use of the receptacle

·        Finished floor elevation

·        Furniture and equipment placement

·        Accessibility requirements

·        Countertop and cabinet dimensions

·        Local electrical and building codes

For new construction, the most important consideration is establishing a consistent outlet height that also satisfies the project's applicable requirements.

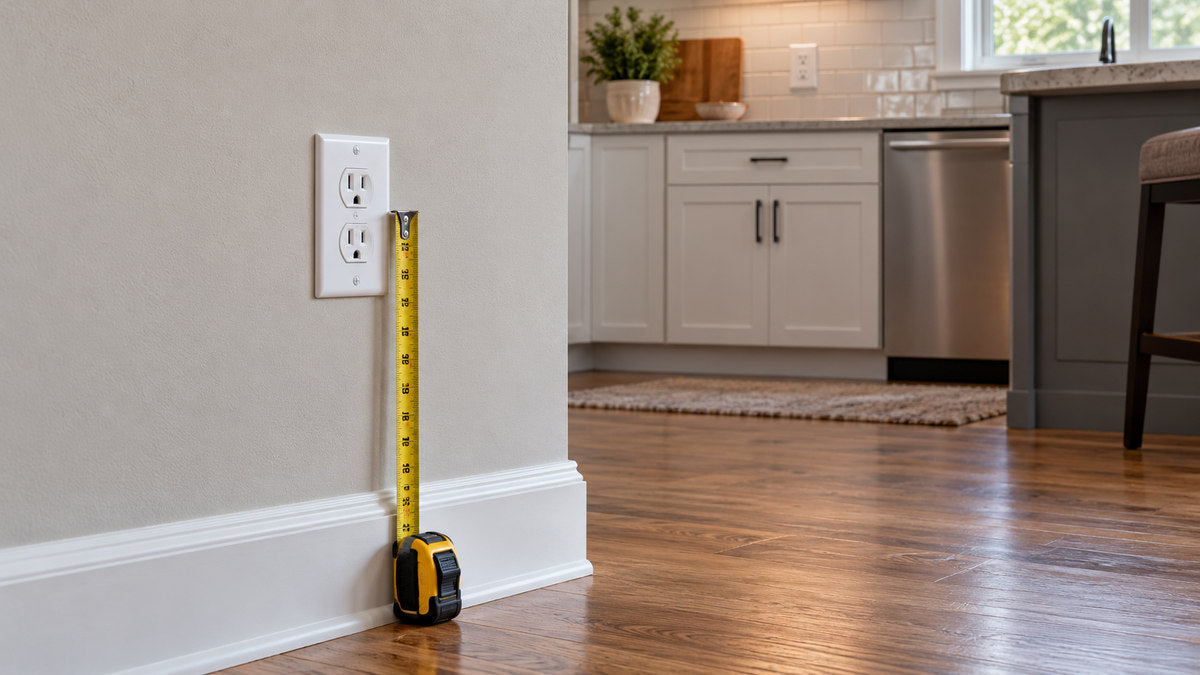

Measure Outlet Height From the Finished Floor

Outlet height should be planned relative to the finished floor, not necessarily the unfinished subfloor. Flooring materials such as tile, hardwood, and underlayment can change the final elevation. For example, a receptacle box installed 16 inches above an unfinished floor may end up closer to 15 inches above the completed floor if the flooring assembly adds one inch. Contractors should confirm whether project drawings refer to the top, bottom, or centerline of the box. Accessibility measurements may refer to the receptacle's operable parts rather than the box centerline.

NEC Electrical Outlet Height Requirements

The NEC establishes requirements for the placement and availability of receptacle outlets in different building areas. However, it generally does not prescribe one mounting height for every ordinary wall receptacle. One of the most important distinctions is between outlet height and outlet spacing. Outlet height describes the receptacle's vertical position. Outlet spacing describes how receptacles are distributed along walls, countertops, and other locations.

Both can affect compliance, but they are governed by different provisions.

NEC 210.52: Residential Receptacle Placement

NEC Section 210.52 addresses required 125-volt, 15- and 20-ampere receptacle outlets in dwelling units. Its provisions cover locations such as living rooms, bedrooms, kitchens, bathrooms, hallways, garages, and outdoor areas. Requirements vary by room and installation. A receptacle may be mounted at a convenient height yet still fail to satisfy the applicable spacing or location rules.

Adopted NEC Edition Matters

Electrical-code requirements change between editions. For example, the 2023 NEC revised provisions affecting kitchen island and peninsula receptacles. The 2026 NEC may apply in jurisdictions that have adopted it, while others continue using older editions with local amendments. Contractors should confirm the locally adopted code and any additional requirements before finalizing outlet layouts.

NEC Outlet Spacing: The 6-Foot and 12-Foot Rule

For many dwelling-unit living areas, NEC 210.52(A) uses a spacing rule based on the distance from points along the floor line of qualifying wall spaces. No point along the floor line of a qualifying wall space should be more than 6 feet from a receptacle outlet. In a simple uninterrupted wall arrangement, this often produces a maximum spacing of 12 feet between receptacles. However, the actual layout depends on wall-space definitions, openings, and other code provisions.

How the 6-Foot Rule Works

Imagine a bedroom with a long uninterrupted wall. The first receptacle must be positioned so no qualifying point near the end of the wall exceeds the permitted 6-foot distance. Subsequent receptacles must maintain the same coverage principle. The requirement is measured along the floor line, not as a straight diagonal distance across the room.

What Counts as Wall Space?

Under the NEC's general dwelling-unit provisions, qualifying wall spaces commonly include sections at least 2 feet wide, including certain spaces around corners. Doorways, fireplaces, and certain fixed cabinets can interrupt the relevant wall space. Floor-mounted receptacles generally must be located within the permitted distance from the wall to count toward the general wall-space requirement. The applicable edition must be checked for the exact criteria and exceptions.

Does Every Room Follow the Same Rule?

No. The general 6-foot spacing principle applies to specified dwelling-unit rooms and similar areas. Kitchens, bathrooms, hallways, garages, and other locations have additional or different provisions. Commercial receptacle layouts may also follow different requirements depending on occupancy and intended use.

Electrical Outlet Height and Placement by Location

Outlet placement requirements change significantly between rooms. The following table distinguishes common mounting practices from actual code-related placement considerations.

Common mounting heights in this table are design practices, not universal code mandates.

Kitchen Electrical Outlet Height and Placement

Kitchen receptacles require careful planning because countertops, sinks, appliances, cabinets, and work surfaces create specific electrical needs. The NEC establishes requirements for receptacles serving qualifying countertop and work-surface areas.

Kitchen Countertop Outlet Height

For applicable wall countertop receptacles, NEC 210.52(C) generally permits qualifying receptacles on or above the countertop, with a maximum of 20 inches above the work surface. This limit is measured from the countertop rather than the floor. The finished counter height, backsplash, and upper cabinet arrangement influence practical placement. Contractors should also coordinate receptacle boxes with tile layouts and appliance locations.

Kitchen Countertop Outlet Spacing

Under the familiar NEC wall-countertop rule, qualifying countertop spaces generally require receptacle placement so no point along the wall line is more than 24 inches from a receptacle. This commonly results in a maximum spacing of approximately 4 feet between receptacles along qualifying countertop runs. Wall countertop spaces at least 12 inches wide generally fall within these requirements. Interruptions such as sinks and cooking equipment affect how the relevant spaces are measured.

Kitchen Island and Peninsula Outlets

Kitchen island rules have changed across NEC editions. Under the 2023 NEC, receptacles serving island and peninsula countertops are not universally mandatory in the same manner as under some previous editions. Where no receptacle is provided, that edition requires provisions for future installation. If installed to serve the work surface, the receptacle must use a permitted location and appropriate listed equipment. The 2023 rules also restrict older arrangements involving receptacles mounted below countertop overhangs.

Because these requirements have changed between editions, verify the code adopted for the project rather than applying an older island-receptacle formula.

Bathroom Outlet Placement Requirements

Bathroom receptacles must be positioned for convenient use while satisfying electrical safety requirements. NEC 210.52(D) addresses receptacle placement near bathroom sinks.

How Close Must an Outlet Be to a Bathroom Sink?

Under the 2023 NEC, at least one qualifying bathroom receptacle must be installed within 3 feet of the outside edge of each sink. Permitted locations include specified adjacent wall, partition, countertop, and cabinet-face arrangements. Where below-counter placement is permitted, additional vertical distance limitations apply. A bathroom with multiple sinks may need more than one receptacle depending on their positions.

Is There a Standard Bathroom Outlet Height?

There is no single universal mounting height for every bathroom outlet. The appropriate height depends on countertop design, sink location, accessibility, and the adopted electrical code. A receptacle may be installed above a vanity backsplash when its placement satisfies the applicable requirements.

GFCI Protection in Bathrooms

Bathroom receptacles generally require ground-fault circuit-interrupter protection under applicable NEC provisions. GFCI protection helps reduce electrical shock hazards associated with ground faults. For more information about the protection itself, see Lumera Electric's GFCI Outlet Guide.

ADA Electrical Outlet Height Requirements

Where accessibility standards apply, electrical receptacles must be positioned so their operable parts are within the required reach ranges, subject to applicable scoping and exceptions. Under the 2010 ADA Standards, the general unobstructed adult forward and side reach range is:

15 inches minimum to 48 inches maximum above the finished floor. However, this range should not be applied to every receptacle in every building without considering the applicable accessibility provisions.

Accessible Outlet Height

Accessible outlets should be evaluated based on their operable parts and the available approach. A box centerline measurement alone may not establish compliance. The applicable standards also address clear floor space and obstructions.

Outlets Behind Counters and Obstructions

Countertops and other fixed elements can reduce the permitted maximum reach height. For example, an obstructed forward reach deeper than 20 inches may have a maximum high reach of 44 inches rather than 48 inches, subject to the full conditions of the standard. Certain receptacles, including some kitchen countertop outlets, may fall under specific accessibility exceptions.

Residential vs. Commercial Accessibility

ADA requirements do not automatically apply to every outlet in a private single-family residence. However, accessibility standards can apply to covered public accommodations, commercial facilities, and certain residential settings. Projects involving accessible dwelling units or federally regulated housing may also be subject to additional standards. For related placement considerations, Lumera Electric's Light Switch Height and Placement Guide explains how accessible reach requirements affect wall-mounted controls.

Outlet Placement in Garages, Laundry Rooms, and Outdoor Areas

Utility and exterior locations require additional planning because electrical equipment may be exposed to moisture, physical damage, or demanding loads.

Garage Outlet Placement

Garage receptacles should be positioned for the intended use of tools, equipment, and other connected devices. Consider vehicle parking, workbench locations, shelving, and door mechanisms. Applicable NEC provisions may require receptacles in specified garage locations and GFCI protection for covered installations. A practical outlet height should keep devices reasonably accessible without exposing them unnecessarily to physical damage.

Laundry Room Outlets

Laundry receptacles should be coordinated with the washing machine, dryer, and other equipment. The required branch circuits and receptacle configurations depend on the appliances and installation. A general-purpose convenience outlet should not be assumed suitable for every laundry appliance.

Outdoor Outlet Placement

Outdoor receptacles must be selected and installed for the environmental conditions. Depending on the location, requirements may include weather-resistant receptacles, appropriate protective covers, and GFCI protection. The placement should consider accessibility, exposure to weather, landscaping, and equipment use. Lumera Electric's Outlet Types Explained compares tamper-resistant, weather-resistant, and other common receptacle configurations.

Commercial Electrical Outlet Placement

Commercial projects often require more detailed coordination between electrical plans, furniture layouts, accessibility requirements, and equipment specifications. Unlike typical dwelling-unit living areas, general commercial spaces are not necessarily governed by the same NEC 6-foot wall-spacing rule. The required arrangement depends on the occupancy, intended equipment, accessibility provisions, and other applicable requirements.

Office and Workstation Areas

Office outlets should support the planned workstation locations without requiring unsafe or impractical cord arrangements. Coordinate receptacle placement with desks, partitions, floor systems, and equipment. Accessible workstation areas may require receptacles within applicable reach ranges.

Conference Rooms and Open Spaces

In some commercial areas, wall receptacles cannot conveniently serve equipment located in the center of the room. Listed floor-box assemblies may provide a suitable alternative when installed according to their ratings and applicable requirements. For more information, see Lumera Electric's Floor Box Installation Guide.

Specialized Equipment Locations

Mechanical rooms, workshops, healthcare facilities, and industrial areas may have equipment-specific receptacle requirements. Device locations should follow the equipment specifications, applicable electrical provisions, and approved project drawings.

How to Plan Electrical Outlet Placement

A good receptacle layout begins before the electrical rough-in stage. Rather than relying on a single mounting-height convention, consider how the space will be used.

Step 1: Review the Room Layout

Identify walls, doors, windows, cabinets, appliances, and fixed equipment. These features determine available mounting locations and may affect how receptacle spacing is calculated.

Step 2: Identify Required Receptacles

Review the locally adopted NEC requirements for the room or occupancy. Determine where receptacles are required and whether the space has additional rules for countertops, equipment, or accessibility.

Step 3: Establish Mounting Heights

Choose suitable heights based on room use, project specifications, and applicable accessibility standards. Use the planned finished-floor elevation as the reference point.

Step 4: Coordinate Electrical Boxes

Confirm that the selected electrical boxes are compatible with the wall assembly, devices, and wiring method. Box depth, mounting support, enclosure volume, and finished-wall alignment all matter. Lumera Electric's Electrical Box Types and Installation Guide explains how different box configurations serve common electrical applications.

Step 5: Verify the Final Layout

Before installation, confirm the outlet locations against the electrical drawings, cabinet plans, appliance requirements, and adopted codes. The electrician and authority having jurisdiction should resolve any uncertainties before the locations are finalized.

Common Electrical Outlet Placement Mistakes

Poor outlet placement can affect convenience, accessibility, and code compliance. Assuming 18 inches is always required: A common mounting height is not the same as a universal NEC mandate. Ignoring receptacle spacing: A convenient mounting height cannot compensate for insufficient required outlet coverage. Measuring from unfinished floors: Flooring changes can alter final mounting heights. Installing outlets behind inaccessible equipment: Receptacles should remain appropriately accessible for their intended use and applicable requirements.

Using outdated kitchen island rules: NEC requirements have changed, making edition-specific verification essential. Ignoring ADA reach conditions: Obstructed reaches may have stricter limits than unobstructed locations. Overlooking device and box suitability: Receptacles and enclosures must meet the electrical and environmental conditions. Failing to coordinate with cabinetry: An outlet that conflicts with a backsplash, drawer, or fixed cabinet may require expensive rework.

Key Takeaways

·        There is no universal residential outlet height. Approximately 12–18 inches above the finished floor is common practice, not a fixed NEC requirement.

·        Spacing rules are different from height rules. NEC 210.52 establishes receptacle coverage requirements for specified dwelling-unit spaces.

·        The 6-foot rule governs many living areas. No qualifying point along the floor line may be more than 6 feet from a receptacle.

·        Kitchen countertops have separate rules. Receptacle placement and spacing depend on countertop geometry and the adopted code edition.

·        Bathrooms require careful placement. Receptacles serving sinks must meet proximity and electrical protection requirements.

·        Accessibility can control outlet height. ADA reach ranges apply in covered locations, subject to obstructions and exceptions.

·        Local code adoption matters. Contractors must verify the applicable NEC edition, amendments, and project specifications.
