4-Way Switch Wiring Guide: How Multi-Location Switching Works

A 4-way switch lets the same light be controlled from three or more locations. The important point is that a 4-way switch never works by itself: the circuit uses a 3-way switch at each end and one or more 4-way switches between them. The 4-way device has no common terminal. Its job is to route two traveler pairs straight through or cross-connect them when the handle changes position.

If the circuit only needs control from two locations, start with Lumera’s 3-Way Switch Wiring Diagram Guide. A 4-way circuit is the extension of that same traveler system.

What a 4-Way Switch Does

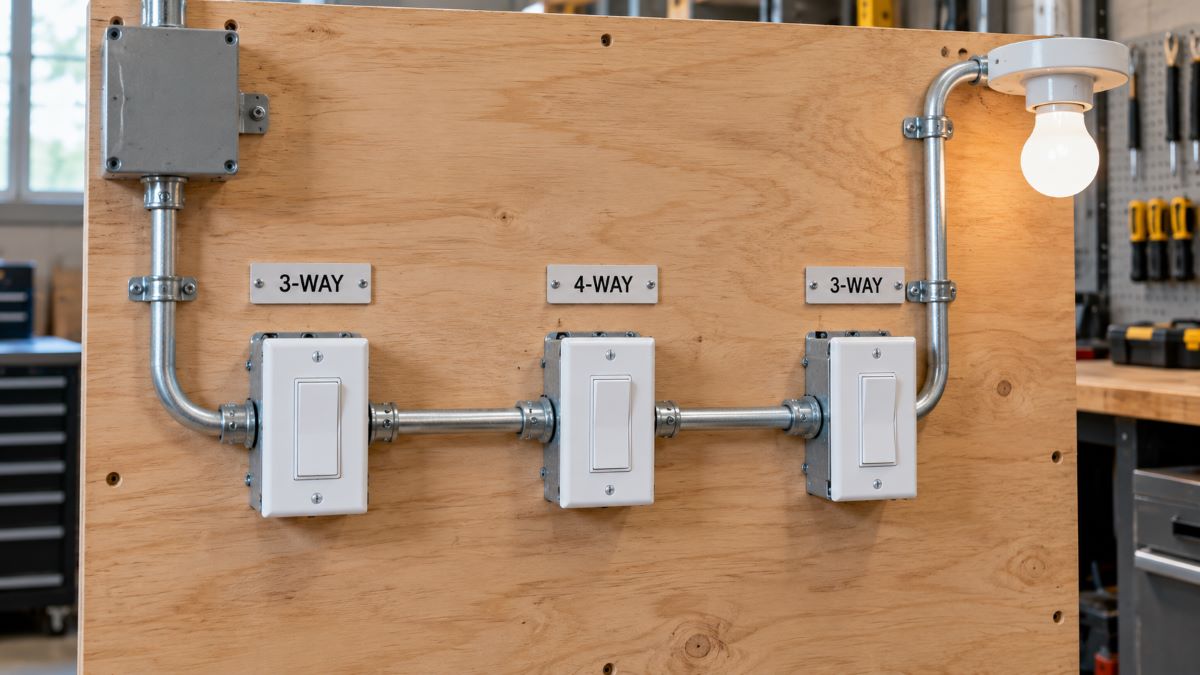

In a standard three-location lighting circuit, the first 3-way switch receives line power at its common terminal. Its two traveler terminals feed a pair of conductors to the 4-way switch. The 4-way switch passes those travelers to the second 3-way switch, whose common terminal feeds the light.

Flipping the middle switch changes which incoming traveler connects to which outgoing traveler. Because either end 3-way switch can also select a traveler, operating any one of the three switches can change the light from on to off or from off to on.

3-Way vs. 4-Way Switch Terminals

Leviton’s 4-way switch installation sheet shows the manufacturer’s traveler-pair arrangement for a typical 4-way device. Terminal positions can vary by model, so use the markings and diagram on the exact switch rather than copying screw positions from another brand.

Typical 4-Way Switch Circuit Layout

A typical three-location arrangement follows this sequence:

1. Line power enters the common terminal of the first 3-way switch.

2. Two traveler conductors run from the first 3-way switch to one traveler pair on the 4-way switch.

3. A second traveler pair runs from the other side of the 4-way switch to the traveler terminals of the final 3-way switch.

4. The common terminal of the final 3-way switch sends switched power to the light.

5. Neutral is carried through to the load as required by the circuit design; a standard mechanical 4-way switch does not use a neutral terminal.

6. Equipment grounding conductors are connected according to the wiring method, device instructions, and applicable code.

The physical location of the line and light can vary in existing homes, so the cable routing may look different from the simple sequence above. The electrical function remains the same: two 3-way switches form the ends, and every 4-way switch sits in the traveler path between them.

Before Wiring or Replacing a 4-Way Switch

Turn off the breaker and verify the box is de-energized before removing conductors. Multi-gang boxes can contain more than one circuit, so test all conductors you may contact. If you are replacing an existing 4-way switch, label the two traveler pairs before disconnecting anything.

That last step matters because a replacement 4-way switch may place its terminal pairs differently from the old one. Leviton specifically instructs installers to identify the IN and OUT conductors before removing an existing 4-way device. Treat the switch diagram as authoritative for that model.

How to Wire a 4-Way Switch

The following sequence describes the normal functional connections for a standard mechanical 4-way switch. It is not a substitute for the product instructions or locally adopted electrical code.

1. Shut off and verify power. Turn off the branch-circuit breaker and use an appropriate tester to confirm the box is de-energized before touching terminals or splices.

2. Identify the two traveler pairs. One pair comes from one end 3-way switch; the other pair continues toward the opposite end 3-way switch. Keep the conductors grouped by cable or verified circuit route.

3. Connect the first traveler pair to one marked pair of 4-way terminals. On many devices the pairs are identified by color, labels, or position, but the arrangement is manufacturer-specific. Follow the exact device diagram.

4. Connect the second traveler pair to the remaining marked pair. Do not mix one conductor from each cable onto the same terminal pair. That is one of the most common reasons a 4-way circuit behaves unpredictably.

5. Connect equipment grounding as required. Use the device grounding terminal and preserve continuity of the equipment grounding path through the box and wiring method.

6. Leave neutral splices intact unless the device instructions require otherwise. A standard mechanical 4-way switch switches travelers, not the neutral. Electronic or smart multi-location controls can use a different architecture.

7. Mount and test. After completing the connections, reinstall the device and wall plate, restore power, and operate every switch from multiple starting positions. Each location should be able to change the light state independently.

The Most Common 4-Way Wiring Mistake: Mixing Traveler Pairs

A 4-way switch does not have line and load terminals in the same sense as a single-pole device. It has two traveler pairs. If one traveler from the first 3-way and one traveler from the second 3-way are accidentally placed on the same pair of 4-way terminals, the switching logic breaks. The light may work only in certain switch combinations or appear to have a “dead” switch position.

When replacing an existing switch, do not use wire color alone to decide the pairs. Cable routing, previous alterations, conduit wiring, and reidentified conductors can make colors misleading. Label the original pairs or trace the circuit correctly.

Adding a Fourth or Fifth Control Location

To control the same light from more than three locations, keep a 3-way switch at each end and add more 4-way switches between them. Each added 4-way receives one traveler pair from the previous device and sends another traveler pair to the next device.

The end switches remain 3-way devices regardless of how many middle 4-way switches are added. This is why a 4-way switch should be thought of as an intermediate traveler-routing device, not as a replacement for a 3-way switch.

4-Way Switch Wiring and Dimmers

A conventional mechanical 4-way switch can be part of a multi-location circuit that includes a compatible 3-way dimmer, but dimming from several locations often uses a manufacturer-specific master/companion system rather than ordinary 3-way and 4-way switches. Follow the dimmer system’s instructions before mixing control types.

Lumera’s Single-Pole vs 3-Way vs 4-Way Dimmers guide explains those multi-location dimming arrangements separately.

The safety reason for careful identification and secure terminations is not theoretical. An NFPA report published in 2022 estimated that U.S. fire departments responded to an average of 32,620 home fires per year involving electrical distribution and lighting equipment during 2015-2019; wiring and related equipment accounted for 68% of those incidents. A 4-way switch is only a small part of that category, but the data reinforces why loose connections and trial-and-error rewiring should not be treated casually. NFPA source.

4-Way Switch Troubleshooting

When to Stop and Call an Electrician

Stop if the conductors cannot be confidently identified, the existing circuit does not match a recognizable 3-way/4-way arrangement, insulation is damaged, the box contains aluminum branch-circuit wiring, or troubleshooting would require live conductor identification. Also use a qualified electrician when adding a new control location requires new cable routing, box installation, or permit work.
