Electric Unit Heater Buying Guide

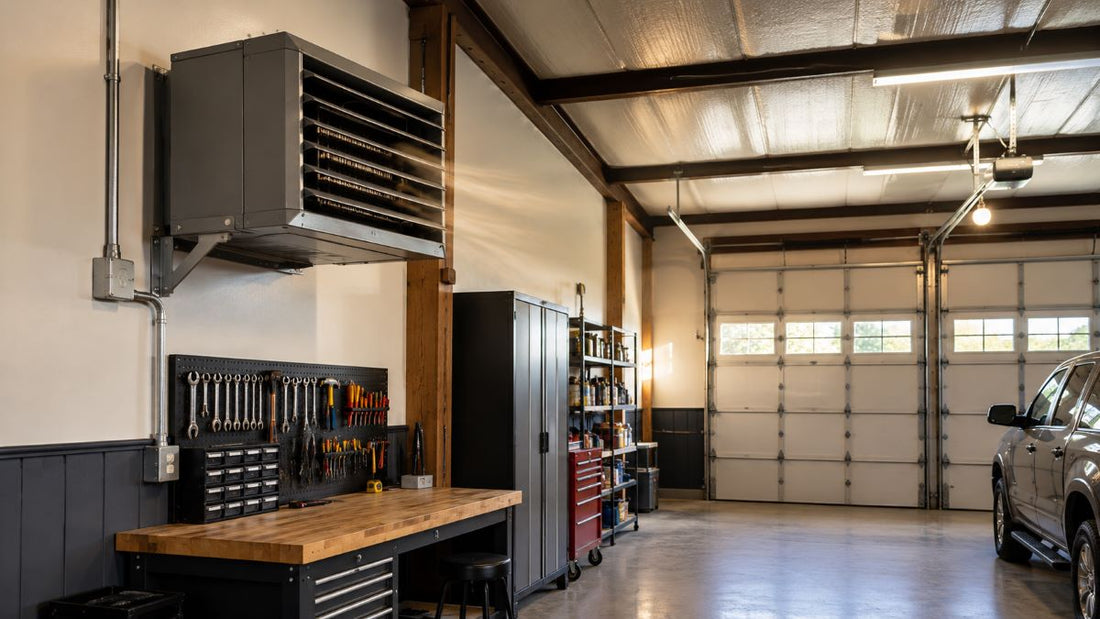

An electric unit heater is a self-contained, fan-forced heating unit mounted on a wall or ceiling to warm a garage, workshop, warehouse, or other space that doesn't already have ducted heating. Unlike a furnace, it needs no venting or gas line, just a dedicated electrical circuit, which makes it one of the simplest heating options to add to an existing building. Sizing and installing one correctly means matching wattage to the space, choosing the right mounting style for the ceiling height and layout, and protecting the circuit with a correctly rated circuit breaker and disconnect. This guide covers how to size a unit heater, the mounting and voltage options available, and what to check before buying.
How Electric Unit Heaters Work
An electric unit heater uses a resistance heating element combined with an internal fan that forces air across it and out into the room, which is why they're also called forced-air heaters. This differs from radiant heaters, which warm objects and people directly through infrared energy without heating the air itself, and from convection heaters, which rely on natural air movement rather than a fan. Forced-air electric units heat a space faster than radiant or convection designs of similar output, which is part of why they're the standard choice for garages and shops that only need heat intermittently rather than around the clock.
Sizing a Unit Heater by Square Footage
A widely used rule of thumb for standard 8 to 10 foot ceilings is one BTU per 20 square feet of floor area; for taller ceilings, that figure tightens to about one BTU per 17 square feet, since more air volume needs heating and warm air naturally rises out of reach faster in a tall space. Poor insulation, a northern climate, or a space with frequent door openings all push the required BTU output upward from that baseline. For anything beyond a small, simple space, a professional Manual J load calculation gives a far more accurate answer than a square-footage rule of thumb, since it accounts for insulation values, window area, and local climate data directly.
Unit Heater Sizing at a Glance
|
Space |
Ceiling Height |
Rough BTU Target |
|---|---|---|
|
1-car garage (~250 sq ft) |
Standard (8-10 ft) |
~12,500 BTU |
|
2-car garage (~450 sq ft) |
Standard (8-10 ft) |
~22,500 BTU |
|
Workshop (~600 sq ft) |
Tall (12+ ft) |
~35,000 BTU |
|
Small warehouse (~2,000 sq ft) |
Tall (16+ ft) |
~118,000 BTU (often multiple units) |
Figures are rough starting points assuming average insulation; poor insulation, high ceilings beyond the ranges shown, or a cold climate all call for sizing upward from these numbers.
Horizontal vs. Vertical Mounting
- Horizontal (suspended or wall-mounted) unit heaters work best in spaces with low ceilings and limited obstructions, and are often placed around a large building's perimeter to "wash" the walls with warm air, particularly near windows, overhead doors, and other points of heat loss.
- Vertical (ceiling-mounted, downward-discharge) unit heaters suit narrow buildings, high ceilings, or spaces where obstructions rule out horizontal mounting. They're typically positioned near the center of the space so the heat pattern from adjacent units overlaps for even coverage.
Larger or irregularly shaped spaces sometimes combine both mounting styles, or use different heating strategies in different zones of the same building, rather than relying on a single unit type throughout.
Voltage and Circuit Requirements
Most residential garage and shop unit heaters run on 240V, while commercial buildings may have access to less common options such as 208V or 480V depending on the building's electrical service. Every unit heater needs a dedicated circuit, meaning no other device shares that circuit, sized specifically to the heater's amperage draw, and a correctly rated circuit breaker protecting that circuit. A lockable disconnect switch mounted near the unit gives a clear, code-expected point to isolate the heater for maintenance or seasonal shutdown, and is standard practice on larger units regardless of voltage.
How Many Units Does a Space Need
A typical residential garage does fine with a single unit heater, but larger spaces, particularly warehouses, can need a dozen or more units depending on how far each individual unit can effectively "throw" warm air and the total BTU output required. Beyond a simple one- or two-car garage, a professional load calculation is worth the cost, since it determines both the total heating capacity needed and how that capacity should be distributed across multiple units for even coverage rather than hot and cold zones.
Installation Considerations
- Unit heaters should be installed by a qualified electrician, both for the dedicated circuit wiring and for correct mounting given the unit's weight and airflow requirements.
- Clearances from adjacent surfaces, walls, and the floor are specified by the manufacturer and matter for both safe operation and even heat distribution.
- Voltage must be matched between the circuit and the heater; a heater's actual wattage output drops sharply, sometimes by as much as 75 percent, when connected to a lower voltage than it's rated for.
- When replacing an existing unit heater, matching the new unit's voltage to the old one avoids overloading the existing circuit, since a mismatch can force a full rewiring project just to accommodate the new heater.
A Note on Product Fit
Electric unit heaters for garages and warehouses are typically fan-forced, 240V wall or ceiling units built for that specific job.
Lumera Electric's current heater offering centers on Infratech infrared comfort heaters, radiant units designed primarily for patios and outdoor comfort heating rather than fan-forced garage or warehouse unit heaters. The sizing, voltage, and mounting principles in this guide still apply to comparing heater types generally, but a shopper specifically after a fan-forced garage or shop unit heater should confirm the exact model's heating style against their application before buying.
The Bottom Line
An electric unit heater is a straightforward way to add heat to a garage, shop, or warehouse without gas venting, but getting it right means sizing by square footage and ceiling height rather than guessing, choosing horizontal or vertical mounting to match the space's layout, and confirming voltage and circuit requirements before installation. Larger spaces benefit from a proper load calculation rather than a rule-of-thumb estimate, and every installation needs a dedicated circuit with correctly sized overcurrent protection and a disconnect for safe servicing.
