A bathroom exhaust fan only works as well as the complete installation around it. The fan needs enough airflow for the room, a low-resistance duct path to the outdoors, a correctly supported housing, safe electrical connections, and air sealing around the ceiling penetration. A powerful fan connected to a crushed or undersized duct can perform worse than a smaller fan installed correctly.

If the fan has not been selected yet, start with the room and duct path rather than the ceiling opening. Lumera’s bathroom exhaust fan collection includes multiple airflow, sound, sensor, and lighting configurations.

Before You Install: Plan the Complete Air Path

Plan where the air enters the fan, where the duct will run, and where the air will leave the building before cutting the ceiling. The shortest practical route with the fewest elbows usually gives the best airflow. The exterior termination should use a proper wall or roof cap with a backdraft damper and should not discharge into an attic, crawl space, or wall cavity.

For the termination side of the project, Lumera’s Do Bathroom Fans Need to Vent Outside? explains why the duct must carry moisture fully outdoors.

Before You Install: Plan the Complete Air Path

Bathroom Fan Installation Components

Component

What It Does

Installation Priority

Fan housing

Supports the motor, blower, grille, and accessories

Secure to framing and keep the housing flush with the finished ceiling or wall as instructed

Duct connector

Transfers exhaust air from fan to duct

Match the manufacturer’s duct size; do not reduce the outlet just to fit an old duct

Exhaust duct

Carries humid air outdoors

Keep the run short, smooth, supported, and as straight as practical

Exterior cap

Discharges air outdoors and limits backdraft

Use a proper wall or roof termination with a working damper

Electrical supply/control

Powers the fan and any light, heater, or sensor

Follow the exact wiring diagram and circuit requirements

Air seal/insulation

Limits leakage and condensation around the installation

Seal ceiling gaps; insulate duct where required in unconditioned spaces


1. Size the Fan Before Cutting the Ceiling

For bathrooms up to 100 square feet, the Home Ventilating Institute recommends about 1 CFM per square foot, with a 50 CFM minimum for smaller bathrooms. For rooms over 100 square feet, HVI recommends sizing by fixtures: 50 CFM for a toilet, shower, or standard bathtub and 100 CFM for a jetted tub, then adding the required airflow.

Those airflow targets are a starting point. Long duct runs, multiple elbows, restrictive exterior caps, and small duct diameters increase static pressure and reduce delivered airflow. If the installation path is difficult, choose equipment whose published performance fits the expected duct resistance rather than sizing by free-air CFM alone.

For humidity-focused selection, Lumera’s Best Bathroom Fan for High Humidity covers airflow, humidity sensors, and sound in more detail.

2. Choose the Fan Location

Place the fan where it can capture moist air efficiently while allowing a practical duct route and secure attachment to framing. In a typical bathroom, that means near the shower or tub area rather than at the far end of the room, but the exact location must follow the fan’s listing and installation instructions.

If the fan will be installed over a tub or shower, verify that the exact model is listed for that location and follow any manufacturer requirements for circuit protection. Do not assume every ceiling fan is suitable for installation within the wet zone.

Choose the Fan Location

3. Shut Off Power and Confirm the Work Area

Turn off the correct breaker before opening wiring or removing an existing fixture, and verify that the conductors are de-energized with an appropriate tester. A bathroom ceiling box can contain more than one circuit, especially where the old unit combined a fan, light, heater, or night light.

Also inspect above the ceiling before cutting. Confirm joist direction, insulation, plumbing, existing wiring, fire blocking, and the planned duct route. A template only shows the opening size; it does not prove that the cavity above it is clear.

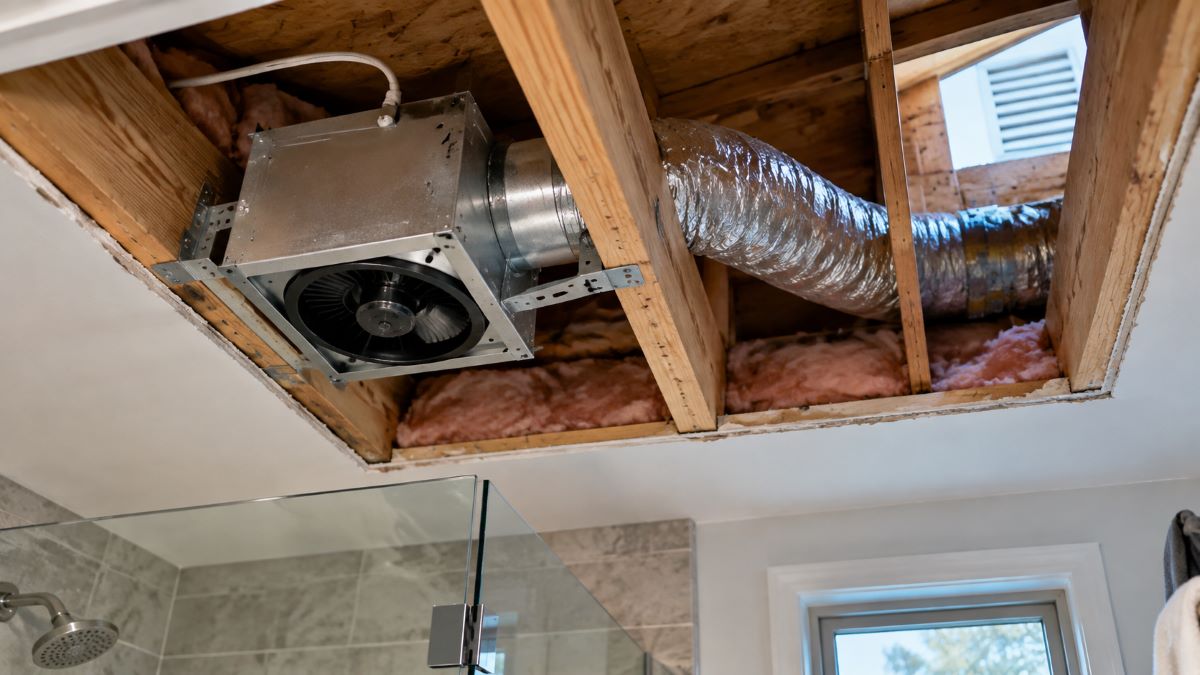

4. Cut the Opening and Mount the Housing

Use the manufacturer’s template or housing dimensions to mark the opening. Cut only after confirming the cavity is clear. New-construction housings often fasten directly to joists or adjustable brackets, while retrofit housings may be designed to install from below. Follow the mounting method for the exact model.

The housing should sit at the height specified for the finished ceiling so the grille fits correctly and does not leave a large air gap. Fasten the housing firmly; vibration from a loose housing can make an otherwise quiet fan sound much louder.

5. Install the Exhaust Duct

Connect the duct to the fan outlet without reducing the diameter below the manufacturer’s specified size. Smooth rigid duct generally offers lower resistance than long, sagging flexible duct. If flexible duct is permitted and used, keep it fully extended and supported rather than compressed or looped.

Use gradual routing, minimize elbows, support the duct along its run, and seal duct joints with materials appropriate for HVAC ductwork. Where the duct passes through an unconditioned attic or other cold space, insulation can help reduce condensation inside the duct. Follow local mechanical-code requirements and the fan manufacturer’s instructions.

Install the Exhaust Duct

6. Terminate the Duct Outdoors

The duct should end at a dedicated exterior termination rather than dumping moisture into the building envelope. Install the wall cap or roof cap so its damper can open freely and the exterior opening is protected from weather and pests without creating excessive restriction.

Avoid routing moist bathroom exhaust toward attic intake vents or placing the termination where discharged air can be drawn directly back into an outdoor-air intake. Local code and the termination manufacturer may specify separation distances and approved locations.

Terminate the Duct Outdoors

7. Make the Electrical Connections

Wire the fan only according to the product diagram. A basic fan may need only switched power, neutral, and equipment grounding. Combination fan/light, fan/heater, sensor, or multi-speed units can require additional switched conductors, constant power, a neutral, or a dedicated circuit.

Do not assume the old fan wiring is correct for the new unit. Match the branch circuit and control scheme to the new equipment’s listed requirements. If a new cable, new circuit, service-panel work, or unfamiliar bathroom wiring is required, use a qualified electrician and follow the electrical code adopted locally.

8. Seal the Ceiling Penetration

A fan housing is also a penetration through the ceiling air barrier. Seal the gap around the housing with a material compatible with the assembly and the manufacturer’s clearance requirements. Do not block required openings or place insulation against components unless the unit is specifically rated for that installation condition.

Air sealing matters because humid bathroom air that bypasses the duct can leak directly into an attic or ceiling cavity, undermining the purpose of the exhaust system.

9. Install the Grille and Test the System

After the duct, wiring, and housing are complete, install the blower assembly and grille as instructed, restore power, and test every control function. Confirm that the fan starts normally, the exterior damper opens, and airflow reaches the outside termination.

Listen for rattling or vibration and check that flexible duct has not collapsed during installation. If the fan sounds strong at the ceiling but little air exits outdoors, the problem is usually in the duct route, damper, or termination rather than the motor.

Install the Grille and Test the System

As of September 2026, current ENERGY STAR ventilating-fan criteria set a maximum sound level of 2.0 sones for certified bathroom and utility fans through 200 CFM and require certified models to retain at least 70% of their lower-pressure airflow when tested at the higher 0.25 in. w.g. static-pressure point. That installed-performance emphasis is a useful reminder that duct resistance can matter as much as the number printed on the fan box.

Installation Checks Before You Close the Ceiling

Check

Pass Condition

If It Fails

Housing

Rigid, level, and positioned correctly for finished ceiling

Refasten or adjust before grille installation

Duct size

Matches the fan outlet/instructions

Replace undersized transition or duct

Duct route

Supported, not crushed, few sharp turns

Straighten, support, or reroute

Exterior termination

Damper opens and exhaust reaches outdoors

Clear obstruction or correct termination

Electrical controls

Every fan/light/heater/sensor function operates as designed

Recheck wiring against manufacturer diagram with power off

Air sealing

No obvious ceiling gap around housing

Seal compatible gaps without blocking required clearances


Common Bathroom Fan Installation Mistakes

  • Venting into an attic or crawl space instead of outdoors.
  • Reducing the duct diameter to reuse an old opening.
  • Using a long, compressed flexible duct run with several sharp bends.
  • Mounting the housing loosely and then blaming the fan for vibration noise.
  • Ignoring the manufacturer’s wiring requirements for light, heater, sensor, or multi-speed functions.
  • Leaving an unsealed gap around the housing that leaks humid air into the ceiling cavity.
  • Choosing a high-CFM fan without confirming the duct system can actually move that airflow.

When to Bring in a Professional

Professional help is appropriate when the project requires a new circuit, panel work, a new roof penetration, difficult duct routing through finished construction, structural framing changes, or troubleshooting unknown wiring. It is also the right choice when the fan includes a high-wattage heater or when local permitting and inspection requirements apply.

A bathroom fan crosses electrical, ventilation, moisture-control, and building-envelope work. Getting each part right is more important than simply getting the fan into the ceiling.



Frequently Asked Questions

Yes, if the fan is designed for retrofit installation from below and there is a practical way to route and terminate the duct. The exact method depends on the housing and building layout.
Yes. The exhaust should discharge outdoors through a dedicated wall or roof termination. Venting into an attic, crawl space, or wall cavity moves moisture into the building instead of removing it.
For bathrooms up to 100 square feet, HVI recommends about 1 CFM per square foot with a 50 CFM minimum. Larger bathrooms are commonly sized by adding the recommended airflow for each plumbing fixture.
Smooth rigid duct usually creates less resistance and is easier to keep straight. Flexible duct can work where permitted, but it should be fully extended, supported, and not crushed or sagging.
Only if the exact fan is listed for that location and the installation follows the manufacturer’s electrical and location requirements. Check the product instructions and local code before placing a fan in the wet zone.
