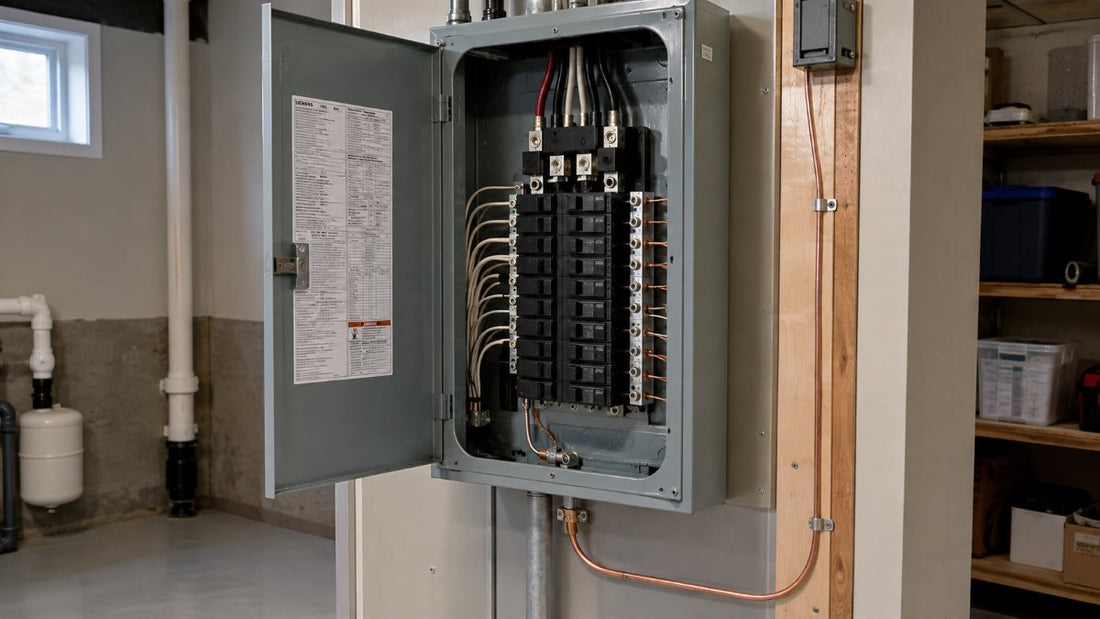

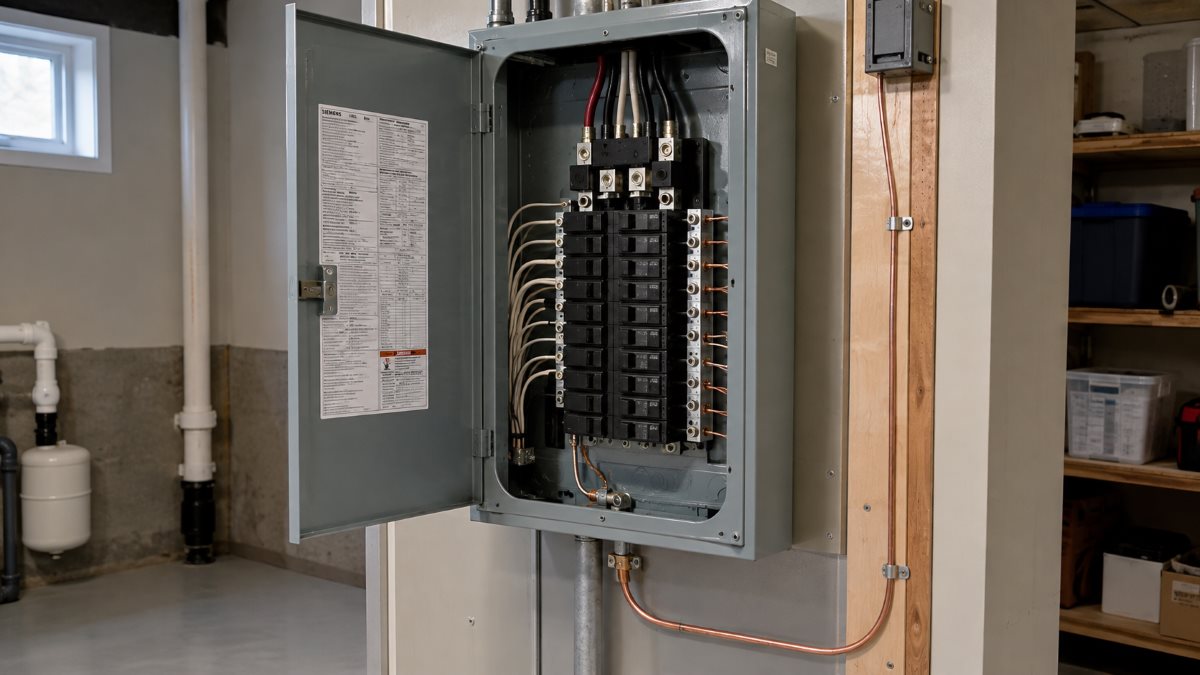

NEC Grounding & Bonding Requirements for Electrical Panels

Getting a panel's grounding and bonding right comes down to a handful of specific rules applied consistently: bond neutral and ground at exactly one point in the system, keep them separated everywhere else, size every conductor correctly, and label everything clearly enough that the next person working on the panel isn't guessing. This guide is a panel-focused checklist covering where these rules apply and why; for the deeper mechanics of how each type of bonding jumper works and how it's sized, see our full guide to bonding jumpers, and for grounding electrode installation specifics, see our ground rod requirements and installation guide. A correctly grounded panel depends on listed ground clamps, properly rated wire connectors, and circuit breakers sized to match the conductors they protect.

The One Rule Everything Else Depends On

The grounded (neutral) conductor and the equipment grounding conductor are only bonded together at one point in an electrical system: the main bonding jumper at the service disconnect, or the system bonding jumper for a separately derived system like a generator. Every other panel downstream of that point, every subpanel in a garage, a detached structure, or another part of the building, must keep neutral and ground strictly separated. This single rule drives most of what an inspector actually checks at a panel, and getting it backwards is consistently one of the most common and most serious violations found during panel inspections.

Main Panel vs. Subpanel: What's Different

Why the Separation Rule Exists

Bonding neutral and ground at a subpanel creates a second bonding point in the same system, which gives normal, everyday neutral return current an alternate path back to the source through the equipment grounding conductors, metal conduit, and any bonded enclosures along the way, rather than through the neutral conductor alone. That means grounded metal parts, panel enclosures, conduit, appliance frames, can carry current under completely normal operating conditions, not just during a fault. This is a genuine shock hazard, and it's why inspectors treat a bonded neutral-ground connection at a subpanel as a serious, not cosmetic, violation.

Grounding Electrode Conductor Requirements at the Panel

The grounding electrode conductor (GEC) connects the system to its grounding electrode, most commonly a driven ground rod, and is sized per NEC Table 250.66 based on the size of the service's largest ungrounded conductor. For a connection specifically to a rod, pipe, or plate electrode, NEC 250.66(A) caps the required GEC size at 6 AWG copper regardless of what the general table would otherwise call for. The connection to the electrode itself must use a listed clamp or connector rated for direct burial where applicable, and the termination point should remain accessible rather than permanently buried behind a wall or under a slab.

For the full installation process, rod specifications, and spacing requirements, see our dedicated ground rod requirements and installation guide.

Equipment Grounding Conductor Termination

• Every equipment grounding conductor terminates on the ground bus, never sharing a terminal with a neutral conductor and never landing on the neutral bus in a subpanel.
• Only one conductor per terminal unless the bus or terminal is specifically listed for multiple conductors; doubling up wires under a single lug not rated for it is a common and easily overlooked violation.
• Conductors must be sized per NEC Table 250.122, based on the rating of the overcurrent device protecting that specific circuit.

Working Space and Access Requirements

NEC 110.26 requires a minimum working clearance in front of a panel, and this requirement exists specifically so the panel, including its grounding and bonding connections, can be safely accessed and serviced. An inspector measures the actual width, depth, and height of clear space in front of the panel and checks that nothing, storage, shelving, appliances, is placed within that zone. A panel with technically correct grounding and bonding still fails inspection if the required working clearance has been compromised by what's stored around it.

Panel Labeling Requirements

NEC 408.4 requires every circuit to be legibly identified on a panel directory in enough detail to describe its specific purpose, and this applies to the panel as a whole, not just the branch circuits within it. A directory that says "outlets" or "misc" without further detail doesn't meet the standard; the label should specify what the circuit actually serves ("kitchen counter receptacles," "garage subpanel feeder") clearly enough that someone unfamiliar with the installation could safely identify and de-energize the right circuit.

A Panel Grounding and Bonding Checklist

• Neutral and ground are bonded at exactly one point: the main bonding jumper at the service disconnect (or system bonding jumper for a separately derived system).
• Every subpanel has neutral and ground on separate, isolated buses, with any factory bonding strap removed if the panel was originally built as a main panel.
• The grounding electrode conductor is sized per Table 250.66 and terminates with a listed clamp at an accessible connection point.
• Every equipment grounding conductor lands on the ground bus, sized per Table 250.122, with no more than one conductor per terminal unless the terminal is rated for it.
• Required working clearance in front of the panel is clear of stored items and obstructions per NEC 110.26.
• The panel directory clearly and specifically identifies every circuit per NEC 408.4.
• All connections are tight; a loose grounding or bonding connection undermines the entire fault-current path regardless of how correctly everything else was sized.

The Bottom Line

Panel grounding and bonding comes down to one governing rule applied without exception: bond neutral and ground at exactly one point in the system, and keep them strictly separated at every subpanel downstream. Around that core rule sit a set of specific, checkable requirements, correct grounding electrode conductor sizing, proper equipment grounding conductor termination, adequate working clearance, and clear panel labeling, all of which an inspector can verify quickly but which are just as quick to get wrong without a deliberate check. For the deeper details behind any one of these pieces, our bonding jumpers guide covers how each jumper type is sized, and our ground rod guide covers electrode installation specifics.
