Hazardous Location Lighting Requirements: NEC and OSHA Guide

A lighting fixture that performs well in a warehouse may be unsafe in a nearby paint-finishing area. The difference is not necessarily brightness, construction quality, or weather resistance. It is whether the fixture is suitable for an atmosphere where flammable gases, combustible dust, or ignitable fibers may be present.

Hazardous location lighting requirements establish which electrical lighting equipment can operate safely in classified environments. Compliance depends on the area classification, the properties of the hazardous substance, approved protection methods, equipment markings, and proper installation. For electrical contractors, facility managers, engineers, and commercial buyers, understanding these requirements is essential before specifying lighting for industrial facilities.

This guide explains the principal U.S. requirements under OSHA and the National Electrical Code (NEC), including how to evaluate fixture approvals, temperature ratings, and installation conditions.

What Is Hazardous Location Lighting?

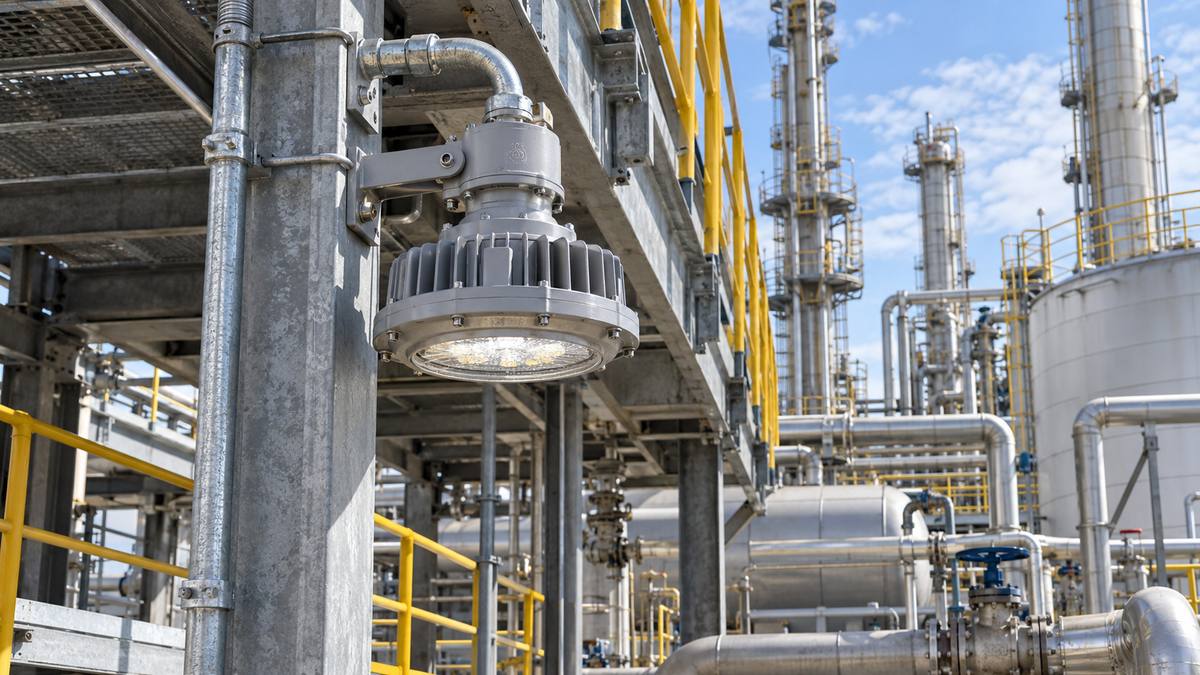

Hazardous location lighting refers to luminaires designed and approved for use in electrical areas classified because ignitable gases, vapors, dusts, or fibers may be present. These locations can occur in petroleum processing, chemical manufacturing, paint-finishing operations, grain handling, and other industrial processes.

The central safety concern is ignition. Electrical equipment may produce heat, sparks, or arcs under certain operating or fault conditions. In a hazardous atmosphere, an ignition source can create a fire or explosion risk.

Lighting equipment must therefore be suitable for the actual classified location. A fixture is not automatically acceptable simply because it is described as industrial, sealed, waterproof, or heavy-duty. The documented area classification and the equipment's approved protection method determine whether it is suitable.

Which Standards Govern Hazardous Location Lighting?

U.S. hazardous location lighting requirements generally involve OSHA regulations, the NEC, and applicable equipment approval standards. The specific requirements depend on the facility, installation date, jurisdiction, and adopted code edition.

OSHA 29 CFR 1910.307

OSHA's 29 CFR 1910.307 establishes electrical requirements for hazardous (classified) locations in covered workplaces.

The regulation addresses:

●       Identification of hazardous location classifications

●       Documentation of classified areas

●       Acceptable electrical equipment and wiring methods

●       Equipment approvals and markings

●       Temperature limitations

●       Protection techniques

●       Installation requirements

OSHA requires electrical equipment in hazardous locations to be intrinsically safe, approved for the hazardous location, or demonstrated to be safe for that location under the applicable regulatory provisions. The regulation does not establish a universal requirement that every hazardous-location luminaire use an explosionproof enclosure. Different approved protection techniques may be appropriate for different classifications.

National Electrical Code: Articles 500–506

NFPA 70, the National Electrical Code, provides detailed electrical installation requirements for hazardous locations.

Key articles include:

Other NEC articles may apply to particular occupancies or processes, including spray-finishing operations, fuel-dispensing facilities, and commercial garages. Always verify the locally adopted NEC edition and amendments before making a compliance decision.

Understanding Hazardous Location Classifications

Area classification is the starting point for selecting compliant lighting. Under the traditional North American Class and Division system, Class identifies the general type of hazardous material, while Division describes the likelihood of a hazardous atmosphere being present.

Class I: Flammable Gases and Vapors

Class I locations involve flammable gases or vapors that may create an ignitable atmosphere. Examples include certain petroleum processing areas, solvent-handling operations, and chemical manufacturing processes. The applicable classification depends on the process and documented conditions, not simply the type of building.

Class II: Combustible Dust

Class II locations involve combustible dust that may present ignition or explosion hazards. Potential examples include certain grain-processing, food-processing, and metalworking operations. The specific dust properties, accumulation conditions, and process design influence the area classification. An ordinary industrial light should not be assumed suitable merely because it has a dust-resistant housing.

Class III: Ignitable Fibers and Flyings

Class III locations involve easily ignitable fibers or flyings that may create fire hazards. Certain textile, woodworking, and fiber-handling operations can involve these materials. Applicable requirements depend on whether the classified conditions arise during normal processing or under other defined circumstances.

Division 1 vs. Division 2

Division designations describe the likelihood of hazardous conditions. Division 1 generally applies where an ignitable concentration or hazardous quantity may exist under normal operating conditions, or where other defined conditions justify the classification. Division 2 generally describes locations where hazardous substances are normally contained or controlled but may create hazardous conditions through equipment failure, abnormal operation, or other specified circumstances.

OSHA permits equipment approved for Division 1 to be installed in Division 2 of the same Class and Group. However, a Division 2 approval does not establish suitability for Division 1. Equipment suitability must still account for temperature limitations and all other applicable requirements.

What Are Hazardous Location Lighting Groups?

Hazardous-location Groups distinguish substances with different ignition and combustion characteristics.

Under the traditional classification system:

●       Class I Groups A–D apply to specified categories of flammable gases and vapors.

●       Class II Groups E–G apply to specified categories of combustible dusts.

The precise Group must be identified through the classification documentation. For example, approval for one gas Group does not automatically establish suitability for every other gas Group. A manufacturer's product listing may cover multiple Groups, but each permitted classification must be confirmed. The appropriate lighting equipment is selected from the documented hazardous atmosphere, not from a generic description such as chemical plant lighting.

What Are the Lighting Requirements for Class I and Class II Areas?

There is no single fixture construction that satisfies every Class I or Class II lighting installation. The permitted equipment depends on the classification and approved protection technique.

Class I Lighting Requirements

In Class I locations, equipment must be suitable for the identified gas or vapor hazard and classification. Depending on the circumstances, permitted techniques can include explosionproof construction and other approved approaches. OSHA identifies explosionproof apparatus as an acceptable protection technique for the Class I Division 1 or Division 2 locations for which the equipment is approved. The equipment must also meet applicable marking and temperature requirements.

Class II Lighting Requirements

Class II installations require equipment suitable for the identified combustible dust environment. OSHA recognizes dust-ignitionproof equipment for approved Class II Division 1 and Division 2 applications. Dust-tight protection is also recognized for specified Class II Division 2 and Class III applications when approved for those locations. The correct method must be determined from the classification and applicable installation rules.

Hazardous Location Lighting Comparison

This table is a general selection reference, not a substitute for the detailed provisions of the adopted NEC and equipment certification.

Division vs. Zone Hazardous Location Systems

The NEC also recognizes Zone classifications. For Class I gas and vapor environments, the Zone system uses Zone 0, Zone 1, and Zone 2 designations. The NEC also addresses combustible dust and ignitable fibers or flyings through Zones 20, 21, and 22.

The Zone and Division systems classify hazardous environments using different frameworks. They should not be treated as automatically interchangeable. A fixture marked for a particular Division is not necessarily approved for every apparently similar Zone classification. When specifying equipment, confirm that its certification explicitly supports the classification system used for the installation.

Hazardous Location Fixture Markings and Temperature Codes

Fixture markings provide essential information about the conditions for which equipment has been approved. Under OSHA 1910.307, applicable equipment markings identify the Class, Group, and operating temperature or temperature range, subject to specified exceptions. The approval documentation must also establish suitability for the required Division or Zone.

Understanding Temperature Codes

A temperature code, often called a T-code, identifies a maximum equipment surface-temperature category under specified conditions. The marking helps determine whether equipment temperatures are suitable for the ignitable substances present.

Common temperature-code categories include:

These values are code categories, not measured temperatures for every fixture carrying the corresponding marking. Intermediate designations, such as T3A or T4A, may also appear under applicable systems.

Why Surface Temperature Matters

A fixture may have the correct Class and Division approval but still be unsuitable for the actual material if its permitted surface temperature is too high. Equipment selection must account for the ignition characteristics of the hazardous substance and the conditions covered by the approval.

Temperature ratings also depend on operating conditions. OSHA includes special marking requirements for equipment suitable for ambient temperatures exceeding 40°C. For high-temperature industrial environments, confirm both the manufacturer's ambient operating limits and the hazardous-location temperature approval.

Do All Fixtures Need Identical Markings?

No.

OSHA provides specific exceptions and modifications to marking requirements. For example, fixed lighting fixtures marked for use only in Class I Division 2 or Class II Division 2 locations are subject to an exception concerning Group marking under 1910.307(c)(2)(ii). Therefore, missing a particular marking does not automatically establish a violation. The complete equipment approval and applicable regulatory exception must be evaluated.

Explosionproof vs. Vapor-Tight Lighting

Explosionproof and vapor-tight lighting address different hazards. An explosionproof enclosure uses a protection method intended to contain an internal explosion and prevent ignition of the surrounding hazardous atmosphere under its approved conditions.

Vapor-tight lighting is generally designed to resist specified environmental exposures such as moisture and dust. A vapor-tight fixture can be appropriate for a washdown area without being approved for an explosive atmosphere. Water and dust ingress ratings alone do not demonstrate hazardous-location approval.

For installations outside classified boundaries that need environmental protection, Lumera Electric's Vapor-Tight Lighting range provides a different category of industrial lighting. For classified areas, review the documented approvals of the products in Lumera Electric's Hazardous Location Lighting collection. Every proposed model must be checked against the project's actual classification.

Hazardous Location Lighting Installation Requirements

Selecting an approved luminaire is necessary, but it does not establish compliance for the complete electrical installation. Associated electrical components and wiring methods must also meet the applicable requirements.

Wiring Methods and Conduit

The NEC establishes specific wiring methods for hazardous locations. Requirements vary by classification and protection technique. Contractors must verify approved raceways, cables, fittings, conductor connections, and equipment entries.

OSHA also contains requirements for conduit connections in covered hazardous-location installations. An otherwise approved luminaire can be part of a noncompliant installation if the surrounding electrical system is unsuitable.

Sealing and Enclosures

Certain hazardous-location installations require sealing fittings or other measures to control the movement of gases, vapors, or dust through wiring systems. Requirements depend on the installation method and classification. Do not assume every conduit connection requires the same seal design or placement.

Where seals are required, the fittings and sealing process must comply with applicable requirements and manufacturer instructions. Electrical enclosures must also be appropriate for the environment and classification.

Lumera Electric's NEMA Enclosure Ratings Guide explains environmental enclosure ratings and why a standard NEMA 4 or 4X rating alone does not establish hazardous-location suitability.

Grounding and Bonding

Grounding and bonding are essential parts of industrial electrical safety. Hazardous-location installations may require particular bonding methods to maintain effective electrical continuity across raceways and equipment connections. The appropriate arrangement depends on the wiring method and adopted electrical code. Qualified electricians should verify that all required connections remain effective.

Mounting and Environmental Conditions

A hazardous-location luminaire must be mounted according to its listing and manufacturer's instructions.

Confirm:

●       Approved mounting orientation and hardware

●       Supply-voltage compatibility

●       Ambient operating temperature

●       Vibration and mechanical exposure

●       Corrosion resistance where needed

●       Required installation clearances

●       Suitable wiring entries and accessories

A fixture that meets the hazardous classification may still be unsuitable for a corrosive, high-vibration, or high-temperature installation.

Hazardous Location Lighting Inspection and Documentation

Documentation is essential because classified-area compliance cannot be established from a fixture's appearance. OSHA 1910.307(b) requires proper documentation of specified hazardous classifications, including Class and Zone areas and Class and Division areas established after August 13, 2007. Required classification documentation must be available to authorized personnel involved in electrical design, installation, inspection, maintenance, or operation.

Review the Area Classification

The facility's classification drawings or equivalent documentation should identify the relevant hazardous areas. These documents establish the basis for selecting electrical equipment. The classification should be determined through the appropriate engineering and regulatory process, not independently guessed by a product purchaser.

Verify Equipment Approval

Before approval or installation, confirm that the selected product's certification matches the documented classification. Review the manufacturer's specifications, markings, installation instructions, and relevant approval documentation. Do not rely only on a product title containing the words hazardous location or explosionproof.

Maintain Inspection Records

Facilities should retain suitable records of equipment selection, installation, and maintenance. Inspection procedures should address damaged enclosures, loose components, compromised seals, corrosion, and unauthorized modifications. The required frequency and method depend on applicable regulations, facility procedures, and equipment requirements.

Common Hazardous Location Lighting Compliance Mistakes

Several errors can create serious safety and compliance problems.

1. Using ordinary industrial fixtures: Heavy-duty construction does not establish suitability for a classified area.
2. Assuming all hazardous areas are identical: Different gases, dusts, fibers, and operating conditions require different evaluations.
3. Ignoring Group designations: Equipment approved for one material category may not be suitable for another.
4. Overlooking temperature limits: The applicable temperature rating must be suitable for the hazardous substance and operating environment.
5. Confusing ingress protection with ignition protection: IP and general weather-resistance ratings do not replace classified-location approvals.
6. Using unsuitable fittings: The entire wiring installation must satisfy applicable requirements.
7. Modifying approved equipment improperly: Unauthorized changes to enclosures, cable entries, or internal components can affect the equipment's approval and safe operation.
8. Failing to document classifications: Contractors and inspectors need reliable information about the hazardous area.

The safest approach is to verify the classification first, confirm equipment suitability second, and then evaluate the complete installation.

Hazardous Location Lighting Compliance Checklist

Before ordering or installing luminaires, project teams should verify the following:

For broader facility lighting decisions outside classified areas, Lumera Electric's Lighting for Manufacturing Facilities explains how industrial lighting requirements vary between work zones.

Key Takeaways

• Area classification controls fixture selection. Hazardous-location lighting must match the documented electrical classification.

• OSHA and the NEC establish key requirements. OSHA 1910.307 and applicable NEC hazardous-location articles address equipment suitability and installation conditions.

• Class, Division, Group, and temperature all matter. A general hazardous-location product description is not enough.

• Explosionproof is not the only protection method. The permitted approach depends on the classified environment and equipment approval.

• Vapor-tight does not mean explosionproof. Environmental sealing and ignition protection serve different purposes.

• The complete installation must comply. Wiring methods, fittings, enclosures, grounding, and mounting are all relevant.

• Documentation supports compliance. Classification drawings and equipment approval records are essential for project review and maintenance.
