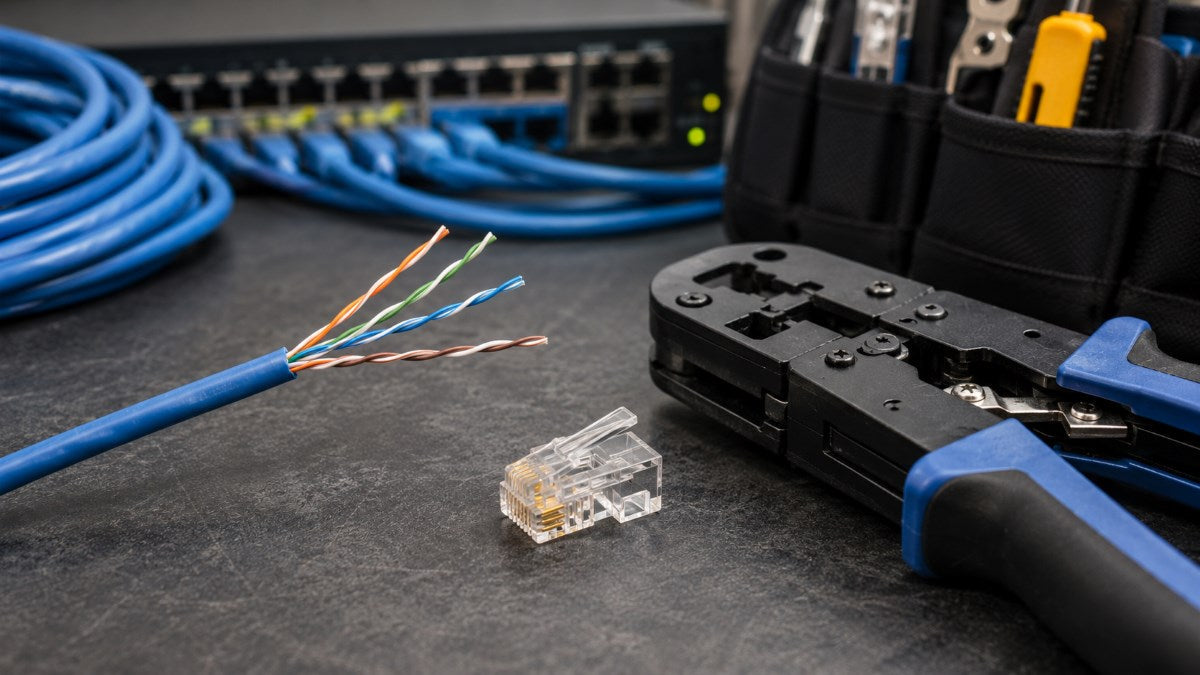

How to Terminate an RJ45 Connector

An RJ45 connector, technically an 8P8C modular plug, is the eight-pin connector used to terminate Cat5e, Cat6, and Cat6a Ethernet cable. Terminating one correctly, meaning stripping the cable, arranging the eight internal wires in the right order, and crimping them into the plug, is the difference between a stable connection and a network drop that's maddening to diagnose later. A clean, properly labeled run also depends on landing the cable in the right junction box or enclosure and keeping it separated from power conductors and wire connectors carrying line voltage. This guide walks through the tools needed, the T568A and T568B wiring standards, a step-by-step termination process, and the mistakes that cause most field failures.

Tools You'll Need

• Cable stripper: removes the outer jacket without nicking the inner conductors.
• Flush cutters or scissors: for a clean, square trim across all eight wires.
• Modular crimping tool: a ratcheting crimper gives consistent, even pressure; non-ratcheting tools are more prone to a weak crimp.
• RJ45 connectors: matched to the cable category (use Cat6-rated plugs on Cat6 cable) and to solid or stranded conductor type, since the contact style differs between the two.
• Cable tester: verifies pinout and continuity before the cable goes into service.

T568A vs. T568B Wiring Standards

RJ45 termination uses one of two standardized wire-color orders. Both use the same eight conductors in four twisted pairs; only the position of the orange and green pairs differs between the two standards.

T568B is the more common standard in U.S. commercial and residential networks; T568A is often specified in government installations and is required under some newer building codes. Neither standard performs better electrically, since the pairing is preserved either way. What matters is consistency: use the same standard on both ends of a straight-through patch cable. A crossover cable, wired T568A on one end and T568B on the other, is rarely needed anymore because modern network equipment auto-detects and adjusts (Auto-MDI/MDI-X), but it's still occasionally required for older hardware.

Step-by-Step: Terminating an RJ45 Plug

• Strip the jacket. Remove about 1 to 1.5 inches of the outer cable jacket without cutting into the insulation on the individual wires.
• Untwist and arrange the pairs. Separate the four twisted pairs and straighten the eight wires into the T568A or T568B order, keeping the twist intact as close to the jacket as possible to preserve signal performance.
• Trim to length. Cut the wires in a straight, even line, leaving roughly half an inch exposed beyond the jacket so all eight conductors reach the front of the plug at the same time.
• Insert into the plug. Hold the RJ45 plug with the locking tab facing down and slide the wires in, keeping their order, until each conductor reaches the very front and the jacket extends slightly into the plug body for strain relief.
• Crimp. Seat the plug fully in the crimping tool and squeeze until the tool completes its full ratchet cycle; the pins pierce each conductor and a locking tab grips the jacket for strain relief.
• Test. Plug both ends into a cable tester to confirm all eight pins show continuity in the correct order before the cable goes into a wall, ceiling, or patch panel run.

Terminating a Jack or Patch Panel Instead of a Plug

Wall jacks and patch panels use insulation displacement connection (IDC) terminals rather than a crimped plug. After stripping the jacket, each wire is pressed into its color-coded slot with a punch-down tool rather than inserted into a plug body, following the same T568A or T568B color order printed on the jack housing. Because a punch-down connection makes a gas-tight seal on solid-core conductors, keystone jacks and patch panels are the correct termination method for permanent, in-wall cable runs, while crimped RJ45 plugs are typically reserved for patch cables and stranded-core cords.

Common Termination Mistakes

• Stripping too much jacket: leaves the pairs untwisted for too long, which increases crosstalk and can drop a Gigabit link to 100 Mbps or lower.
• Uneven wire length: if the wires aren't trimmed flush, some conductors won't make contact with the plug's pins, causing an intermittent or dead pair.
• Mixing standards on one cable: using T568A on one end and T568B on the other by accident turns a patch cable into an unintended crossover, which fails on equipment without auto-sensing ports.
• Using the wrong plug for the conductor type: solid-core cable needs plugs with pins designed to pierce solid wire; stranded patch cord needs plugs designed for stranded wire, and using the wrong type produces an unreliable connection even after a clean crimp.
• Skipping the test step: a cable that looks correctly wired can still have a short or an open pin; a basic continuity tester catches this before the cable is buried in a wall or ceiling.

The Bottom Line

Terminating an RJ45 connector reliably comes down to following one wiring standard consistently, keeping the twisted pairs intact as close to the connector as possible, trimming the wires evenly, and crimping with a properly rated tool. T568A and T568B are electrically equivalent as long as both ends of a straight-through cable match, and a quick continuity test after crimping catches the miswiring and weak-contact issues that are otherwise painful to trace once a cable is installed.
