LED Tape Light Guide: Types, Brightness, Drivers, and Buying Tips

LED tape lights can transform a kitchen counter, display shelf, ceiling cove, or architectural detail without the bulk of a conventional fixture. Their narrow, flexible format makes them useful wherever a continuous line of light is difficult to achieve with rigid luminaires. Yet a successful installation depends on more than choosing a roll with the right color.

Voltage, light output, driver capacity, run length, heat management, and control compatibility must work together. A tape that looks excellent in a short demonstration can become uneven, too dim, or difficult to service when used across a long commercial installation.

This LED tape light guide explains the main types, specifications, applications, and selection decisions for residential and commercial projects. It focuses on selecting a complete lighting system; cutting and joining procedures are covered separately in Lumera Electric’s How to Cut and Connect LED Strip Lights.

What Is LED Tape Light?

LED tape light is a flexible strip containing multiple light-emitting diodes mounted on a narrow circuit board. Most general-purpose architectural tape operates from a matched low-voltage, constant-voltage power supply. The strip may be installed inside aluminum channel, behind an architectural lip, or on a suitable concealed surface.

The terms LED tape, LED strip, and LED ribbon are frequently used for overlapping product categories. The more useful distinctions are the strip’s voltage, LED construction, brightness per foot, color options, width, and environmental rating. Lumera Electric’s LED Tape Light Collection includes examples with different output levels, colors, and power requirements.

Where Is LED Tape Lighting Used?

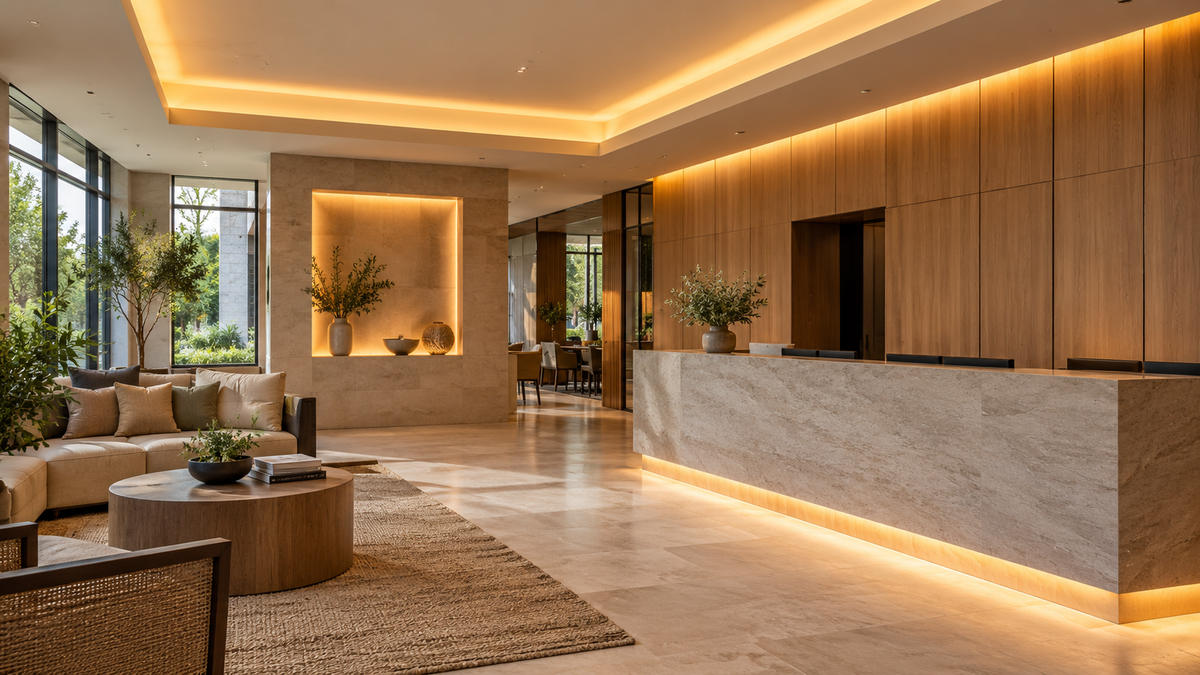

Tape lighting works best where its continuous, low-profile form provides a clear design advantage. A concealed kitchen run can illuminate a countertop; a shelf installation can highlight merchandise; and a ceiling cove can brighten surrounding surfaces without a visible fixture housing.

• Under-cabinet task lighting and kitchen toe kicks

• Shelves, display cases, and retail millwork

• Cove lighting and ceiling details

• Stair accents and selected wayfinding details

• Reception desks, niches, and architectural features

• Outdoor or damp-area accents when the entire system is rated for the location

Applications do not all require the same output. A toe-kick accent generally needs less light than a kitchen work surface, while a deep ceiling cove may need substantial output to produce the desired reflected illumination.

Types of LED Tape Light

SMD LED Tape

Surface-mounted device (SMD) tape uses discrete LED packages arranged along the strip. Depending on LED spacing and the diffuser, individual points of light may be visible when the strip is viewed directly. Higher-density tape and suitable channel diffusion can reduce this dotted appearance.

COB LED Tape

Chip-on-board (COB) tape places many closely spaced emitting elements under a continuous phosphor or encapsulation layer. It often creates a more uniform luminous line at close viewing distances, making it attractive for shallow channels and visible architectural details. Its actual brightness, electrical load, and thermal requirements still depend on the specific model.

Single-Color, Tunable White, and Color-Changing Tape

Single-color white tape produces a fixed correlated color temperature, such as 2700K, 3000K, or 4000K. Tunable-white products allow compatible controls to adjust the white appearance across a stated range. RGB and RGBW products introduce color channels and require matching controllers, wiring arrangements, and power supplies.

Do not assume that one dimmer works with every tape type. The number of electrical channels, compatible driver, and control method must be considered as a system.

LED Tape Light Types Compared

12V vs. 24V LED Tape Light

Many constant-voltage tape systems operate at either 12V or 24V DC. Neither voltage is universally better. The correct choice depends on the tape design, driver availability, cut interval, wiring distance, and manufacturer-specified maximum run length.

For the same power, a 24V system typically draws less current than a 12V system, which can help reduce voltage drop in an otherwise comparable circuit. However, conductor size, strip resistance, topology, and the product’s published limits still control the real installation. A 24V label alone does not authorize an unlimited run.

How Bright Should LED Tape Light Be?

Compare delivered lumens per foot, not just watts per foot. Wattage describes electrical demand, while lumens describe the amount of visible light produced. Two tape products with the same wattage may have different brightness because their LEDs, optics, color temperature, and thermal performance differ.

For accent work, prioritize a smooth appearance and restrained brightness. Under cabinets, the target is useful illumination on the countertop without reflected glare. In coves, output and placement must account for how much light is absorbed by the ceiling and surrounding finishes. Manufacturer photometric data and a sample installation are more reliable than a generic brightness rule.

LED Density, Diffusers, and Aluminum Channels

LED density affects how smooth a tape run appears, particularly when installed close to a diffuser. A tightly spaced strip or COB construction may reduce visible points, but the channel depth, lens transmission, and viewing angle remain important. The same tape can look seamless in a deep channel and visibly dotted behind a thin, shallow lens.

An aluminum extrusion can provide mechanical protection, a mounting surface, and thermal assistance when used as specified by the tape manufacturer. However, it should not be assumed that every aluminum channel provides sufficient cooling for every high-output product. Select the full assembly based on the manufacturer’s permitted installation conditions and service access.

Choosing an LED Tape Driver and Power Supply

A constant-voltage LED tape must be connected to a compatible driver with the correct DC output voltage, suitable power capacity, and required location and electrical ratings. A constant-current driver is not interchangeable with a constant-voltage supply unless the product explicitly calls for that arrangement.

Driver selection begins with the total connected tape wattage, which is calculated from the rated watts per foot and the installed length. Allow additional capacity as directed by the power-supply manufacturer, while staying within the driver’s approved operating range. Review Lumera Electric’s LED Drivers and Power Supplies when specifying the system components.

Example: Estimate the Required Driver Capacity

Suppose a 12-foot run uses tape rated at 4.4 watts per foot. Its nominal connected load is 12 × 4.4 = 52.8 watts. With a planning allowance of approximately 20%, the resulting figure is about 63.4 watts, so a compatible rated supply above that level may be considered. The final choice must follow the driver’s actual instructions, ambient-temperature derating, and permissible loading rather than treating 20% as a universal code rule.

Also check the strip’s maximum run length. A driver with sufficient total wattage does not eliminate voltage drop along the tape. Longer projects may need multiple feed points or separate branches designed around the manufacturer’s connection limits.

Dimming and Control Compatibility

Dimming behavior depends on the entire driver-and-control system. Some compatible drivers support phase-control wall dimmers, while other installations use 0–10V, PWM, digital, or proprietary controls. Tunable-white and color-changing strips may require dedicated multi-channel controllers rather than ordinary single-channel dimming.

A mismatch can cause flicker, an unstable minimum light level, incomplete shutoff, or failure to respond. Confirm the driver’s input method, the controller’s output, the tape type, and any low-voltage control wiring before purchasing or rough-in work.

How to Plan an LED Tape Light Installation

1. Measure the Lit Surfaces and Run Lengths

Map every continuous run, corner, transition, and location that needs a feed. Account for the manufacturer’s cut intervals and any channel end caps or mounting space. If a project contains several separate runs, schedule each one rather than assuming a single long roll will power the whole installation.

2. Choose the Light Quality and Output

Select white color temperature or an adjustable system based on finishes and intended use. Compare lumens per foot, color-rendering information, diffusion, and direct-view comfort. For a high-visibility installation, request a sample before finalizing the complete project.

3. Match the Tape, Driver, and Controller

Verify identical nominal voltages between tape and constant-voltage driver, correct driver loading, appropriate channel count, and control compatibility. Evaluate conductor size and feed-point arrangement in relation to the actual cable lengths and manufacturer specifications.

4. Confirm the Mounting Environment

Indoor dry-location tape should not be assumed acceptable in showers, exterior details, or areas exposed to irrigation. The strip, splices, connectors, enclosure, driver, and installation method must all suit their exposure. Building and electrical-code rules may also restrict equipment locations or require additional protection.

5. Arrange Safe Installation and Commissioning

Qualified electrical personnel should handle the building-wiring side of hardwired drivers and any work subject to electrical permits. Before the assembly is concealed, inspect connections, verify output voltage and polarity where applicable, and test the full run for uniformity and control operation. Retain access to serviceable drivers and connectors.

Common LED Tape Light Mistakes

• Selecting by watts per foot without checking lumens per foot or the desired visual effect

• Pairing 12V tape with a 24V driver, or confusing constant-current and constant-voltage equipment

• Exceeding the tape manufacturer’s maximum recommended single-feed length

• Using a dimmer or controller incompatible with the driver or multi-channel tape

• Installing visible tape without testing the channel and diffuser for LED spotting

• Leaving connectors or drivers exposed to moisture beyond their ratings

• Hiding components that must remain accessible for inspection or replacement

Good project documentation should identify the exact strip model, voltage, output, run length, driver, control method, channel, and feed points. Where a flexible run is unsuitable, a complete rigid system from the LED Linear Lighting and Tape Light range may offer simpler mounting and serviceability.

LED Tape Light Buying Checklist

Key Takeaways

• LED tape light is a low-profile flexible lighting system, not simply a roll of LEDs.

• Select brightness by lumens per foot and visual requirements, not wattage alone.

• SMD, COB, tunable-white, and RGB tape offer different visual and control characteristics.

• Match the strip, driver, controls, and voltage before specifying the installation.

• Respect maximum run lengths and voltage-drop limitations even when driver capacity is sufficient.

• Use appropriate channels, connections, location ratings, and service access for durable results.
