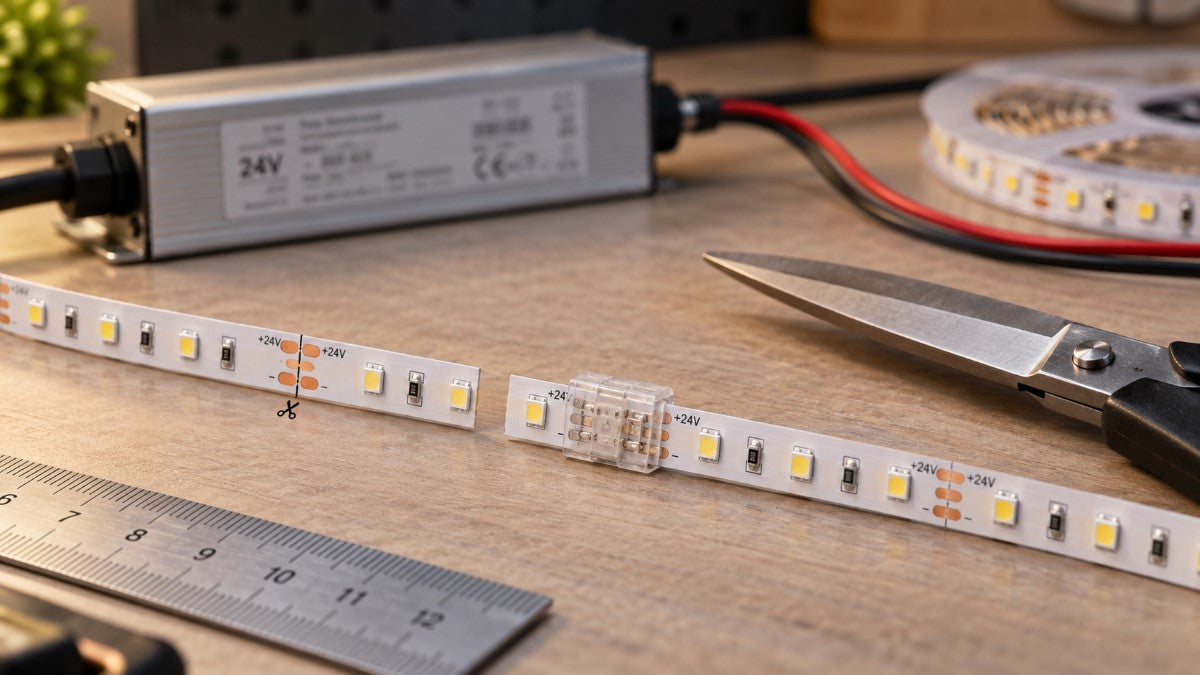

How to Cut and Connect LED Strip Lights

Flexible LED tape is designed to be shortened and joined, but only at the points built into its circuit. The basic rule is simple: disconnect power, cut only on the manufacturer's marked cut line, then reconnect the exposed copper pads with a compatible solderless connector or a soldered lead. The details that cause most failures are connector width, channel count, polarity, strip voltage, and whether a sealed strip must be re-waterproofed after cutting.

This guide is about flexible low-voltage LED tape, not rigid commercial strip fixtures. If you are choosing the tape, driver, and channel as a system, start with Lumera Electric's LED tape light collection.

Can You Cut LED Strip Lights?

Yes, most cuttable LED strip lights can be shortened, but only at their designated cut points. Those points are usually printed with a scissors icon, a line through the copper pads, or both. The spacing between cut marks depends on the strip design, so one product may cut every inch while another requires a longer interval. Always use the cut marks printed on the specific strip rather than assuming a standard distance.

Cutting between marked points interrupts the repeating circuit section and can leave part of the strip dead. On addressable, specialty, COB, tunable-white, or sealed tape, the cut rules can differ further, so the product instructions take priority over a generic LED-strip diagram.

Check These Four Things Before You Cut

Also note the polarity or channel labels printed beside the pads before cutting. A quick phone photo can prevent confusion once two loose sections look identical on the workbench.

How to Cut LED Strip Lights

The safest cutting process is short because most of the work happens before the scissors touch the tape.

1.  Disconnect the LED driver or power supply. Never cut or connect an energized strip.

2.  Measure the finished run and locate the nearest permitted cut mark. Plan around the strip's cut interval rather than forcing an exact dimension between cut points.

3.  Use sharp scissors to cut straight through the center of the marked line and copper-pad area. A crooked cut can leave too little copper for a connector to grip.

4.  Inspect both cut ends. The copper pads should be intact and the printed polarity or channel labels should remain readable.

5.  If the strip has a silicone or other protective coating, follow the manufacturer's instructions for exposing the contact pads. Do not remove more coating than the connector requires.

LEDVANCE and other strip manufacturers use the same basic sequence: power off, find the designated cut mark, make a clean cut, and align the pads with the correct connector. The specific connector and sealing method still depend on the strip family.

How to Reconnect Cut LED Strip Lights

A cut strip can usually be reconnected in one of two ways: with a solderless connector or by soldering wires directly to the copper pads. Both methods can work well when the strip, connector, wire, and driver are compatible.

Method 1: Use a Solderless LED Strip Connector

Solderless connectors are the fastest option for cabinets, shelves, short extensions, and corners. They are especially useful when the installation may need to be reconfigured later.

1.  Choose a connector that matches the strip width and contact layout. Match the exact tape specification rather than buying by appearance alone.

2.  Open the connector and slide the cut strip in until the copper pads sit directly under the metal contacts.

3.  Align polarity and channel markings on both sides. On a single-color strip, positive must meet positive and negative must meet negative; multi-channel strips must keep every labeled channel aligned.

4.  Close or lock the connector firmly so the contacts bite evenly into the pads.

5.  Reconnect power and test the joint before permanently mounting the tape or closing an aluminum channel.

If the connected section does not light, disconnect power again and check pad alignment first. Most solderless-connector problems are mechanical contact or polarity errors, not failed LEDs.

Method 2: Solder the Connection

Soldering creates a compact, permanent joint and is often the better choice when the connection will be hidden behind trim or exposed to repeated thermal cycling. Use conductor size and soldering technique appropriate for the strip manufacturer, keep heat on the copper pad only as long as needed, and support the finished wire so movement does not pull on the pad.

Soldering is not automatically better for every installation. If the tape manufacturer provides a listed or purpose-built connector system, using those matched components can be faster and easier to service. The decision should be based on the product instructions and the environment, not on a blanket rule that every strip must be soldered.

Connecting Around Corners and Gaps

Do not force flexible tape into a bend tighter than the manufacturer allows. For a sharp 90-degree cabinet corner, it is usually cleaner to cut at an approved point and bridge the corner with a short strip-to-wire connector or soldered jumper. This keeps the LEDs flat, prevents the copper traces from creasing, and lets the light line continue without twisting the tape.

For longer gaps, use compatible low-voltage wire between the two tape sections. Keep conductor polarity and channel order consistent from one side of the gap to the other.

Do the Driver and Strip Still Have to Match After Cutting?

Yes. Cutting changes the connected length and therefore the total wattage, but it does not change the strip voltage. A 24 V strip still requires a 24 V constant-voltage driver after it is shortened, and a 12 V strip still requires a 12 V driver.

To size a system, add the wattage per foot for the connected length and follow the strip and driver manufacturers' sizing guidance. Lumera Electric's LED drivers and power supplies cover common 12 V and 24 V constant-voltage applications. The line-voltage side of a hardwired driver should be connected by a qualified electrician.

Watch for Voltage Drop on Long Runs

A connection can be electrically correct and still produce a visibly dim far end if the run is too long. Voltage drop increases with run length and load, so every strip family has a published maximum run or feeding recommendation. Long installations may need a center feed, parallel feeds, or multiple driver outputs rather than one very long daisy chain.

Do not treat a higher-output power supply as a cure for voltage drop along the strip. The driver must be large enough for the load, but voltage drop is managed by run length, feed location, conductor sizing, and the tape design itself.

Cutting Waterproof or Coated LED Strip

Cutting a sealed strip can compromise its original environmental protection at the new end. If the product is intended for a damp or wet location, use the manufacturer-approved end cap, connector, sealant, or heat-shrink method required to restore the rating. A bare copper cut edge should never be assumed to remain suitable outdoors just because the uncut strip carried an IP or wet-location claim.

Common Problems After Cutting and Connecting LED Strips

Why Good Connections Matter

LEDs are efficient light sources: U.S. Department of Energy guidance has long noted that LED lighting can use at least 75% less energy and last far longer than incandescent lighting. Flexible tape only delivers those advantages when the whole system - tape, driver, connectors, wiring, and thermal management - operates within its ratings. A poor connector or undersized feed can turn a good LED product into a flickering, dim, or short-lived installation.

A Practical Cut-and-Connect Checklist

• Power is disconnected before cutting or opening a connector.
• The cut lands exactly on the marked cut point.
• Connector width and contact layout match the strip.
• Polarity and channel labels align at every joint.
• Strip voltage matches the driver output voltage.
• Total load and maximum run length stay within manufacturer limits.
• Coated or wet-location strip is resealed with an approved method.
• Every connection is tested before adhesive, channel, or trim makes it hard to reach.
