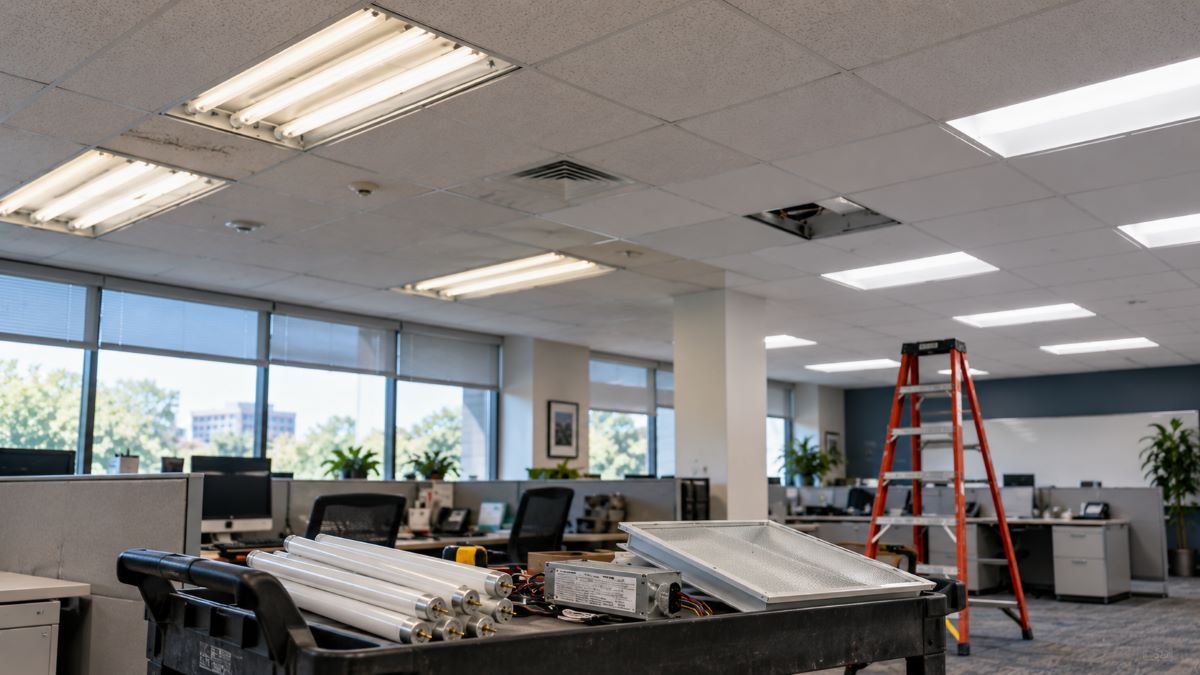

Fluorescent Lighting Retrofit Guide

Aging fluorescent fixtures often create the same maintenance problem: lamps fail, ballasts become harder to source, controls are limited, and energy use is higher than it needs to be. Converting the fixture to LED can solve those issues, but only if the retrofit method matches the existing ballast, lampholders, wiring, controls, and fixture condition.

A fluorescent lighting retrofit can take several forms: a ballast-compatible Type A LED tube, a ballast-bypass Type B tube, a Type A/B hybrid lamp, a Type C external-driver system, a certified LED retrofit kit, or complete fixture replacement. The best choice depends on installation labor, long-term maintenance, compatibility, and the performance the space needs.

If you are comparing replacement lamps first, Lumera’s LED tube lamps collection provides a practical starting point for T5 and T8 retrofit options.

Start by Identifying the Existing Fluorescent Fixture

Before choosing an LED retrofit method, document the existing fluorescent system. The lamp and ballast are only part of the compatibility picture; the fixture housing, sockets, controls, emergency equipment, and input voltage can all change which retrofit is appropriate.

·        Lamp type, length, base, and quantity

·        Ballast manufacturer and exact model number

·        Fixture input voltage

·        Fixture type, such as troffer, strip, wraparound, recessed, surface-mounted, or vapor-tight

·        Lampholder type and condition

·        Existing controls, including dimming, occupancy sensors, or daylight controls

·        Emergency ballast or battery-backup equipment

·        Condition of the housing, lens, reflector, wiring, and grounding

A damaged, heavily discolored, or obsolete fixture may not be a good retrofit candidate. In that case, complete fixture replacement can be more practical than investing labor in an aging housing.

Fluorescent-to-LED Retrofit Options

The core decision is how the new LED source will receive power. Type A keeps the fluorescent ballast, Type B removes it from the circuit, Type C replaces it with an external LED driver, and retrofit kits replace a larger portion of the fixture internals.

Type A LED Tubes: Ballast-Compatible

Type A LED tubes operate from a compatible fluorescent ballast, so installation can be relatively fast when the existing ballast is approved for the lamp. The fixture wiring usually remains unchanged, which can reduce labor across a large relamping project.

The trade-off is that the ballast remains a system component. Ballast losses remain, compatibility must be verified by exact model, and a later ballast failure can still take the fixture out of service.

Type B LED Tubes: Ballast Bypass

Type B LED tubes operate from line voltage after the fluorescent ballast is removed or disconnected. This eliminates ballast losses and future ballast maintenance, but the retrofit changes the fixture wiring and must follow the lamp manufacturer’s certified installation method.

Single-ended and double-ended Type B lamps use different power arrangements, so the lamp, lampholder configuration, wiring method, and field-applied labels must all match the product instructions.

Type A/B Hybrid Tubes

Type A/B hybrid lamps are designed to operate either on a compatible ballast or in an approved ballast-bypass configuration. They can support a phased conversion strategy: a facility may use ballast-compatible operation first and remove ballasts later as maintenance occurs.

Hybrid capability does not make the two installation modes interchangeable. Each operating mode still has its own wiring and compatibility requirements.

Type C and External-Driver Systems

Type C systems remove the fluorescent ballast and power the LED tubes or modules from a separate LED driver installed in the luminaire. These systems can provide strong electrical performance and may offer better options for dimming, controls, or emergency integration, but the driver and lamp system must be designed to work together.

Certified LED Retrofit Kits

An LED retrofit kit replaces more of the fluorescent system than a tube alone. Depending on the kit, it may include LED modules, a driver, mounting hardware, wiring, reflectors, labels, or other components while retaining the existing luminaire housing.

UL explains that certified LED retrofit luminaire conversion kits are evaluated for identified host luminaires and include installation instructions and field-applied markings as part of the conversion. That distinction matters because a retrofit modifies an already-listed luminaire.

Complete LED Fixture Replacement

Complete fixture replacement is often the better long-term choice when the existing luminaire is damaged, hard to service, poorly spaced, incompatible with desired controls, or unable to deliver the light distribution the project needs. A new fixture can also simplify warranty coverage and provide integrated controls, emergency options, or improved optics.

For grid-ceiling applications, compare retrofit options with Lumera’s LED troffers when the existing fluorescent housing may be better replaced than converted.

Quick Comparison of Fluorescent Retrofit Methods

Use the table as a screening tool, then verify the exact lamp, ballast, fixture, and control requirements before purchasing or rewiring.

Compatibility Checks That Can Change the Retrofit Plan

A retrofit method that looks simple on paper can fail in the field if one compatibility detail is overlooked. The following checks should be resolved before a large order is placed.

Ballast Compatibility

A Type A LED tube does not work with every fluorescent ballast. Manufacturers publish compatibility lists because ballast electrical characteristics vary by model and lamp combination. Before ordering a large quantity, verify the exact installed ballast models and test representative fixtures where appropriate.

Shunted vs. Non-Shunted Lampholders

Lampholder configuration matters, especially in Type B conversions. Some fluorescent instant-start systems use shunted lampholders, while certain direct-wire products require a different socket arrangement. Follow the specific retrofit instructions rather than assuming the existing lampholders can remain unchanged.

Single-Ended vs. Double-Ended Type B Wiring

Single-ended Type B lamps receive line and neutral at the same end of the lamp. Double-ended lamps receive line at one end and neutral at the other. Mixing the wrong lamp with the wrong wiring arrangement can create a hazardous condition, so the converted fixture should also be labeled for future maintenance personnel.

Emergency Ballasts and Battery Systems

Fluorescent fixtures with emergency ballasts require separate planning. The emergency function may need a compatible LED emergency driver, battery system, certified retrofit kit, or complete luminaire replacement. Any approved conversion should be tested for emergency operation after installation.

Dimming and Lighting Controls

Existing fluorescent dimming systems are not automatically compatible with LED lamps or drivers. If the space uses 0-10V dimming, occupancy sensors, daylight controls, line-voltage dimming, or a building-control system, include the controls in the retrofit design from the beginning. Ignoring control compatibility can lead to flicker, limited dimming range, shutdown, or lost functionality.

For projects that retain or upgrade dimming, Lumera’s dimmer switch guide explains common control types and compatibility considerations.

Evaluate Lighting Performance, Not Just Lamp Wattage

A successful fluorescent lighting retrofit should preserve or improve the way the space is lit. Lower input wattage is useful only if the converted fixture still delivers appropriate light levels, distribution, visual comfort, and color quality.

Light Output and Distribution

Do not compare retrofit choices only by lamp lumens. Fluorescent fixtures use reflectors, lenses, louvers, and fixture geometry to distribute light, and an LED tube or module can change that pattern. For troffers, strips, high bays, and industrial fixtures, evaluate delivered light at the work plane as well as glare, uniformity, and vertical illumination.

Color Temperature and CRI

Choose a correlated color temperature that fits the space and keep it consistent across the area. Evaluate color rendering where color discrimination matters, including retail, healthcare, printing, inspection, food preparation, and color-sensitive manufacturing. Mixing old fluorescent and new LED sources with visibly different color appearance can make a partial retrofit look inconsistent.

Energy and Maintenance

Compare total fixture input power, operating hours, ballast or driver losses, maintenance labor, replacement frequency, control opportunities, utility incentives, and expected equipment life. A ballast-bypass conversion may reduce electrical losses compared with a ballast-compatible lamp, but the additional installation labor and certification requirements also belong in the project calculation.

For a broader planning framework, see Lumera’s energy-efficient lighting guide, which covers fixture efficiency, controls, operating hours, and upgrade prioritization.

What Energy Savings Can a Fluorescent-to-LED Retrofit Deliver?

The U.S. Department of Energy’s Better Buildings application guidance for fluorescent troffer retrofits reports project-level energy savings in the range of about 20% to 60% for LED retrofit kits, tubular LED lamps, and related lighting-control strategies. Actual savings vary with the existing lamp-ballast system, replacement technology, light levels, and controls, so the project should be calculated from measured or documented fixture input power rather than a generic percentage.

Safety, Listing, and Installation Requirements

A fluorescent-to-LED retrofit modifies electrical equipment and should be treated as electrical work. Use products certified for the intended application, follow the manufacturer’s installation instructions, preserve required field-applied markings, and meet applicable local permitting and inspection requirements.

UL’s guidance for LED retrofit luminaire conversion kits emphasizes that the kit instructions identify suitable host luminaires, major conversion components, installation steps, and required labels. Direct-wire tube retrofits also require careful attention to line-voltage exposure, socket configuration, and future relamping.

This guide is intended for product-selection and project-planning purposes. It does not replace the instructions supplied with the retrofit product, applicable electrical codes, inspection requirements, or work by a qualified professional where required.

How to Choose the Right Fluorescent Retrofit Method

For most projects, the best retrofit method is the one that balances installation effort with long-term maintenance and performance. A practical decision sequence is:

1.        Confirm the existing lamp, ballast, voltage, lampholder, controls, emergency equipment, and fixture condition.

2.        Decide whether retaining the existing ballast is acceptable or whether eliminating it is a project goal.

3.        Compare Type A, Type B, Type A/B, Type C, retrofit-kit, and full-fixture options that are certified for the application.

4.        Check light distribution, color quality, dimming, and control requirements instead of matching only nominal lumens.

5.        Estimate total installed cost, energy use, maintenance exposure, and future serviceability.

6.        Pilot representative fixtures before a large rollout when compatibility or visual performance is uncertain.

Key Takeaways

·        Type A LED tubes offer a fast lamp swap when the existing ballast is compatible and worth keeping.

·        Type B LED tubes remove the ballast from the system but require the correct direct-wire configuration and labeling.

·        Type A/B hybrid lamps support phased retrofit strategies, while Type C systems use a dedicated external LED driver.

·        Certified retrofit kits can preserve the housing while replacing more of the fluorescent system and improving optics or controls.

·        Fixture condition, controls, emergency equipment, lampholders, light distribution, and long-term maintenance should all influence the decision.

·        When the existing fixture is damaged or functionally outdated, full LED fixture replacement can be the cleaner long-term solution.

Choosing a Retrofit That Works Beyond Installation Day

A fluorescent lighting retrofit is not just a lamp-replacement decision. The strongest projects account for how the fixture is powered today, how it will be maintained later, and whether the converted system still meets the space’s lighting and control requirements. Type A, Type B, Type A/B, Type C, retrofit kits, and complete fixture replacement can all be valid solutions when they are matched to the existing equipment and the project goal.

For contractors and facility teams, the most reliable approach is to inventory representative fixtures first, verify compatibility from product documentation, test the proposed solution where practical, and then standardize the retrofit method across similar fixture groups. That process reduces field surprises and makes future maintenance easier to manage.
