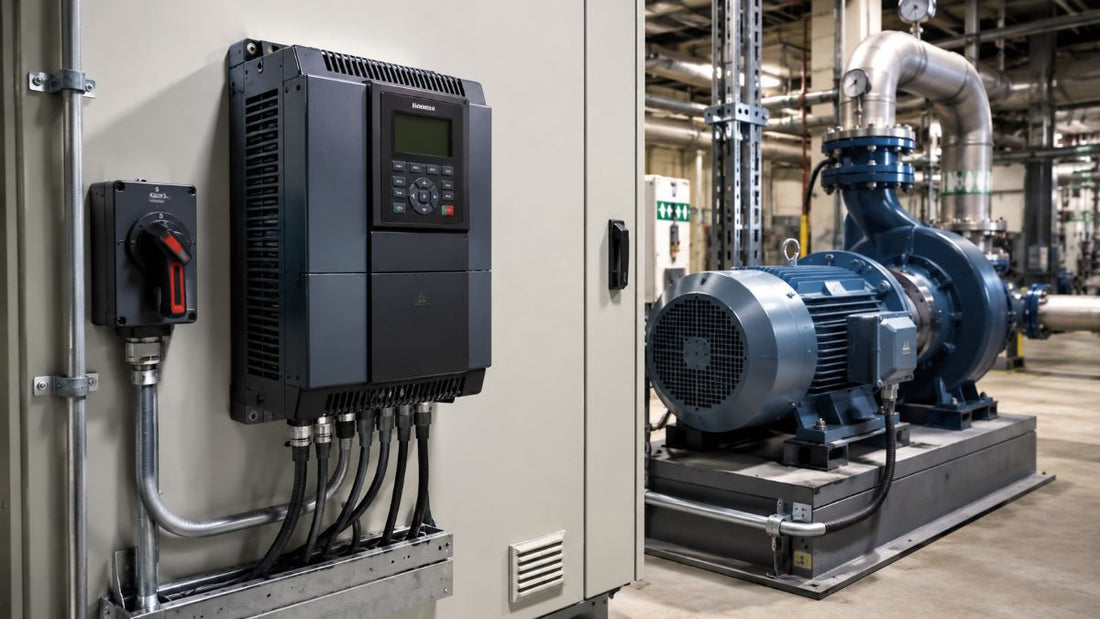

What Is a VFD (Variable Frequency Drive)?

A variable frequency drive (VFD) is an electronic controller that adjusts the speed and torque of an AC motor by varying the frequency and voltage of the power delivered to it. Instead of running a motor at full speed and throttling the output mechanically, a VFD lets the motor itself run only as fast as the load requires, which is why VFDs have become standard equipment on pumps, fans, conveyors, and compressors. Getting the installation right also means protecting the drive with correctly sized circuit breakers and a lockable disconnect switch ahead of it. This guide covers how a VFD works, how it compares to a soft starter, the types of control available, sizing considerations, and the mistakes that shorten a drive's life.

Other Names for the Same Device

A VFD goes by several names depending on the industry and the manufacturer, and all of them refer to the same basic function: adjustable speed drive (ASD), variable speed drive (VSD), adjustable frequency drive (AFD), AC drive, frequency converter, or simply "inverter." In technical documentation, VFD and ASD are the two terms used most consistently.

How a VFD Works: Rectifier, DC Bus, Inverter

A VFD converts fixed-frequency incoming AC power into variable-frequency AC output through three internal stages:

• Rectifier: converts incoming AC power into DC power using a diode or transistor bridge.
• DC bus: capacitors (and often inductors) filter and smooth the DC power, storing energy and reducing ripple.
• Inverter: power transistors switch the DC power back into AC at whatever frequency and voltage the application calls for, using pulse-width modulation (PWM) to approximate a sine wave.

Because motor speed is directly proportional to the frequency of the AC supply, controlling that output frequency is what lets the VFD control motor speed precisely, while adjusting output voltage alongside it keeps the motor's torque characteristics correct across the speed range.

VFD vs. Soft Starter vs. Across-the-Line Starting

Motors can be started and controlled several different ways, and the right choice depends on whether the application only needs a smooth start or needs continuous speed control throughout operation.

Types of VFD Control

• V/Hz (volts-per-hertz) control: the simplest and least expensive method, holding a fixed ratio between voltage and frequency; well suited to general-purpose fans and pumps that don't need precise torque control.
• Vector control (field-oriented control): models the motor's magnetic flux and current separately to deliver more precise speed and torque control, including good performance at low speeds.
• Closed-loop control: adds feedback from an encoder or sensor on the motor shaft for the highest accuracy, typically reserved for positioning, cranes, or process applications where precision matters most.

Benefits of Installing a VFD

• Energy efficiency: for variable-torque loads like centrifugal fans and pumps, power consumption falls roughly with the cube of speed, so even a modest speed reduction produces a large drop in energy use; fan and pump applications commonly see energy savings up to 40 percent.
• Reduced mechanical stress: ramped starts and stops eliminate the abrupt torque spike of across-the-line starting, which extends belt, coupling, and bearing life.
• Precise process control: matching motor speed to real-time demand improves control loops in HVAC, water treatment, and manufacturing processes.
• Lower inrush current: a controlled ramp avoids the high starting current draw that stresses electrical distribution equipment and can trip protective devices.
• Quieter operation: running a motor below full speed when full output isn't needed reduces noise, which matters in occupied buildings.

Common VFD Applications

VFDs are used wherever a motor's ideal speed changes with demand rather than staying constant:

• HVAC fans and pumps, where airflow or water flow needs to track building load.
• Conveyors and material handling, where line speed changes with product or throughput demand.
• Compressors, where matching output to demand avoids wasteful unloaded running.
• Cranes and hoists, which benefit from precise, controlled acceleration and positioning.
• Marine propulsion and industrial process equipment, where electric drives are increasingly replacing mechanical speed-reduction systems.

Sizing and Selecting a VFD

Choosing the right drive is about more than matching horsepower to the motor nameplate:

• Match voltage, current, and horsepower to the specific motor, not just its power rating; oversizing wastes money, undersizing trips faults.
• Identify the load type: constant-torque loads like conveyors and crushers need drives with high starting and overload torque capacity, while variable-torque loads like fans and pumps can use standard energy-optimized drives.
• Plan for the environment: dusty, humid, or washdown environments call for a higher IP or NEMA enclosure rating and adequate ventilation or cooling to prevent overheating.
• Account for harmonics: VFDs generate harmonic distortion on the incoming power; larger installations often need line reactors, harmonic filters, or surge protection ahead of the drive to protect nearby equipment.
• Confirm communication needs: many facilities now standardize on Ethernet-based protocols like Modbus TCP or EtherNet/IP so the VFD can report status to a building management or SCADA system.

Common VFD Problems and How to Avoid Them

• Incorrect sizing: verify the drive's rated current, voltage, and duty cycle actually match the motor and the load, not just the nameplate horsepower.
• Poor cooling or ventilation: VFDs generate heat internally; cramped enclosures or blocked airflow shorten drive life significantly.
• Unmanaged harmonic distortion: left unaddressed, harmonics can overheat transformers and disrupt sensitive nearby equipment; filters or active front-end drives resolve this.
• Improper wiring and grounding: incorrect grounding is a leading cause of nuisance faults and can damage the motor bearings through induced shaft voltage.

The Bottom Line

A VFD controls an AC motor's speed and torque by rectifying incoming power to DC and inverting it back to AC at whatever frequency the application needs, and that control unlocks energy savings, gentler starts, and precise process control that fixed-speed starting can't match. It costs more than a soft starter or across-the-line starter, but for variable-torque loads like fans and pumps the payback often comes from energy savings alone. Getting the benefits reliably means sizing the drive to the actual load, choosing the right control method, planning for the installation environment, and managing the harmonics a VFD inevitably introduces onto the electrical system.
