What Is a Lighting Ballast?

A fluorescent fixture can have a perfectly good lamp and still flicker, buzz, start slowly, or refuse to turn on. In many older lighting systems, the component controlling what happens between the electrical supply and the lamp is the lighting ballast.

A lighting ballast is an electrical device that helps start certain types of lamps and then regulates the current flowing through them. The U.S. Department of Energy defines a fluorescent lamp ballast as a device that starts and operates fluorescent lamps by supplying the required starting voltage and current while limiting current during normal operation.

Ballasts are most closely associated with fluorescent lighting, although ballast technology is also used with some high-intensity discharge (HID) lighting systems. Modern LED fixtures usually use an LED driver instead, although some LED retrofit tubes are designed to operate with an existing compatible fluorescent ballast.

Understanding that distinction becomes especially important when maintaining older commercial fixtures or planning a fluorescent-to-LED retrofit.

What Does a Lighting Ballast Do?

A lighting ballast performs two fundamental jobs: helping the lamp start and controlling current once the lamp is operating.

Fluorescent lamps are gas-discharge lamps. They do not behave electrically like a conventional incandescent bulb. Once an electrical arc forms inside the lamp, current must be controlled. Without proper current regulation, the lamp cannot operate as intended.

A fluorescent ballast therefore provides the electrical conditions needed to establish the arc and then regulates current to stabilize lamp operation and light output. Signify's technical documentation identifies these as the two basic functions of a fluorescent ballast: providing the voltage needed to establish the arc and regulating current through the lamp.

In some fluorescent systems, the ballast also manages energy supplied to the lamp electrodes during startup. The exact process depends on the ballast and starting method.

The Basic Operating Sequence

At a simplified level, a fluorescent ballast works in three stages:

1. Power reaches the ballast.

2. The ballast creates the electrical conditions needed to start the lamp.

3. After the lamp starts, the ballast controls the current flowing through the lamp.

The exact starting sequence can differ substantially between older magnetic systems and modern electronic ballasts.

Why Do Fluorescent Lights Need a Ballast?

Fluorescent lamps need a ballast because the lamp itself cannot safely regulate the electrical current flowing through the discharge arc.

Once the gas inside a fluorescent lamp becomes conductive, the electrical characteristics of the lamp change. A current-limiting device is therefore required to keep the operating current within the intended range.

That is why simply connecting a conventional fluorescent tube directly to line voltage is not the normal operating arrangement. The lamp and ballast are designed to function as a system.

The same general principle applies to certain HID technologies. DOE documentation, for example, defines metal-halide fixtures as fixtures designed to operate a metal-halide lamp together with a ballast.

Where Is the Ballast Located?

In most fluorescent fixtures, the ballast is installed inside the fixture housing, between the branch-circuit power connection and the lamp sockets.

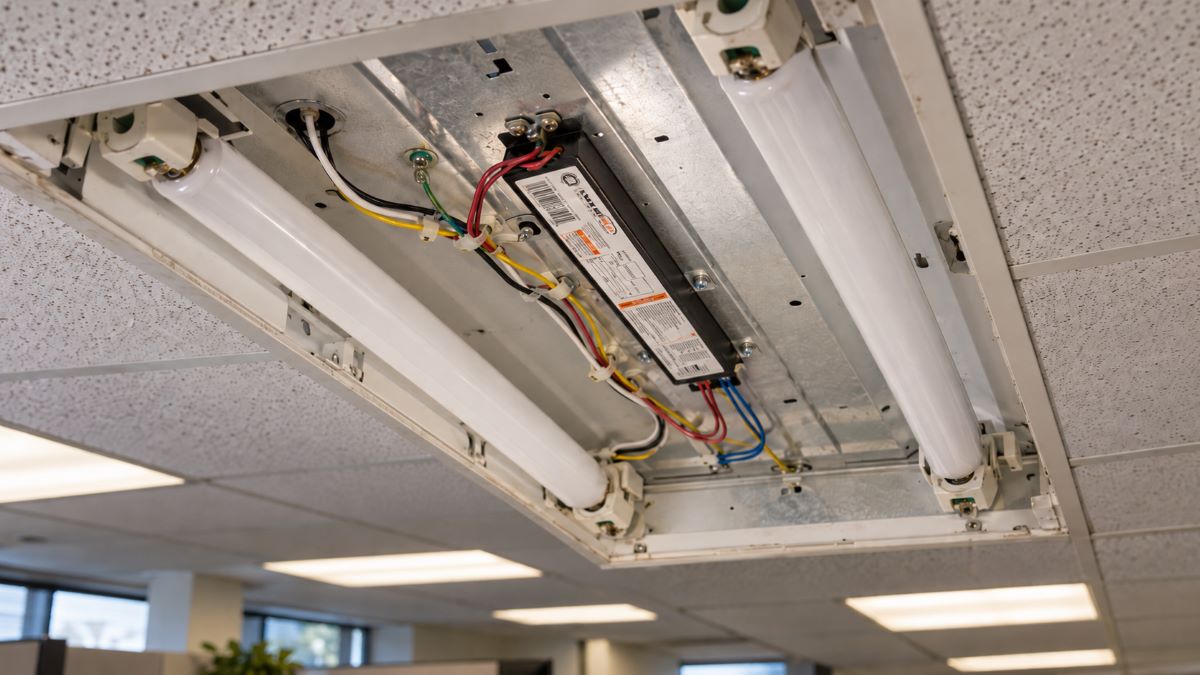

In a typical commercial fluorescent troffer or strip fixture, removing the fixture's center wiring cover exposes the ballast and associated conductors. Ballast size and appearance vary, but traditional units are often rectangular metal or plastic enclosures with identifying labels and wires extending from the housing.

Compact fluorescent lamps can be different. DOE distinguishes between integrated CFLs, where the ballast is built into the lamp, and non-integrated CFLs, where the ballast is a separate component that can be replaced independently.

For older linear fluorescent systems being converted to LED, ballast location and compatibility matter because the retrofit approach determines whether the existing ballast remains in the circuit.

Lumera's Tube Lamps selection includes LED retrofit tubes designed for different installation configurations, including products that can operate with a compatible existing fluorescent ballast.

Magnetic vs. Electronic Ballasts

The two major ballast technologies found in fluorescent lighting are magnetic ballasts and electronic ballasts.

Magnetic ballasts use electromagnetic components to control lamp current and are common in older fluorescent installations. Electronic ballasts perform the same essential function using electronic circuitry and typically operate the lamps at much higher frequencies.

ANSI/NEMA maintains separate standards covering line-frequency and high-frequency fluorescent lamp ballasts, reflecting the technical differences between these ballast categories.

Electronic ballast technology also enabled starting methods such as electronic instant start and programmed start for T8 systems.

A full comparison of magnetic and electronic ballasts involves efficiency, starting method, lamp life, switching frequency, ballast factor and application requirements, so those differences are best evaluated separately when selecting or replacing a ballast.

What Are the Different Fluorescent Ballast Starting Methods?

The starting method describes how the ballast establishes the electrical discharge inside the fluorescent lamp.

Common methods include:

Instant Start

An instant-start ballast applies sufficient starting voltage to establish the lamp discharge without first heating the electrodes.

The main practical advantage is fast lamp starting. Because electrode heating is not part of the startup sequence, lamp and ballast compatibility remains important.

Rapid Start

Rapid-start systems heat the lamp electrodes while applying the voltage necessary for starting.

These systems have historically been common in fluorescent installations and operate differently from instant-start systems.

Programmed Start

A programmed-start ballast controls the electrode preheating process before starting the lamp.

Programmed-start operation can be particularly useful in applications where lamps are switched frequently. Manufacturer documentation should always be checked because the required starting method depends on the specific lamp and ballast combination. Signify, for example, specifies certain T5 fluorescent lamps for operation on programmed-start electronic ballasts only.

Starting method is therefore not simply a preference. It is part of the electrical compatibility between the lamp and ballast.

What Is Ballast Factor?

Ballast factor describes how much light a lamp-ballast combination produces compared with the same lamp operated on a specified reference ballast.

A ballast factor of 1.0 represents the reference level. A ballast with a lower ballast factor generally produces less lamp output, while some ballasts are designed for higher output.

Signify defines ballast factor as the ratio between lamp light output on a commercial ballast and the output of that same lamp operating on a reference ballast specified under ANSI procedures.

Ballast factor should not be confused with ballast efficiency. A ballast specification can affect both the amount of light produced and the electrical input required by the overall lamp-ballast system.

For contractors and facility managers replacing an existing ballast, matching only the lamp wattage is therefore not enough. Lamp type, number of lamps, starting method, input voltage and ballast specifications all need to be compatible with the intended system.

Which Types of Lights Use Ballasts?

Ballasts are primarily associated with gas-discharge lighting technologies.

Common applications include:

• Linear fluorescent lamps

• Some compact fluorescent lamps

• Metal-halide lamps

• Certain other HID lamps

• Some specialty discharge-lighting systems

Not every lamp that looks similar electrically operates the same way, which is why the fixture label, lamp specification and ballast documentation are important when identifying replacement components.

Do LED Lights Use Ballasts?

Most LED lighting systems do not require a conventional fluorescent ballast. LEDs normally use electronic circuitry known as an LED driver to provide the electrical conditions required by the LED light source.

However, LED retrofit tubes create an important exception.

Some LED tubes are designed as ballast-compatible or plug-and-play lamps. These products can operate through a compatible existing fluorescent ballast. Other LED tubes are designed for direct line-voltage operation after the ballast has been removed or bypassed. Some products support both configurations.

Lumera's LED Bulbs, Tubes & Lamps section notes the same distinction: some retrofit tubes operate through the existing ballast, while others require the ballast to be removed from the circuit.

That makes the phrase "LEDs don't use ballasts" too broad. Most purpose-built LED fixtures use drivers rather than fluorescent ballasts, but certain retrofit LED lamps are intentionally designed to work with existing ballast systems.

Lighting Ballast vs. LED Driver

A ballast and an LED driver are both forms of lighting control gear, but they are designed for different light-source technologies.

A fluorescent ballast starts a fluorescent discharge lamp and regulates its operating current. An LED driver supplies and regulates electrical power for LEDs.

The distinction matters during retrofit work. Replacing a fluorescent tube with an LED tube does not automatically mean every component in the original fixture can remain unchanged.

For example:

• A ballast-compatible LED tube depends on an approved ballast.

• A ballast-bypass LED tube operates without the fluorescent ballast.

• An integrated LED fixture generally uses an LED driver rather than a replaceable fluorescent ballast.

Always follow the specific lamp or fixture manufacturer's compatibility and wiring requirements rather than assuming products are interchangeable.

How Can You Tell If a Ballast May Be Failing?

A failing ballast can produce several symptoms, although these symptoms do not automatically prove that the ballast is the problem.

Possible signs include:

• Lamps that fail to start

• Intermittent operation

• Persistent flickering

• Slow or inconsistent starting

• Audible humming or buzzing

• Unexpectedly dim operation

• Lamps repeatedly shutting off

The lamp itself, lampholders, supply voltage, wiring or another fixture component can produce similar symptoms.

That is why ballast failure should be diagnosed rather than assumed from one symptom alone. Detailed testing procedures also depend on ballast type and fixture configuration and should follow appropriate electrical safety practices and manufacturer instructions.

How Do You Identify the Correct Replacement Ballast?

A replacement ballast must be matched to the lighting system rather than selected by physical size alone.

The ballast label typically provides the key information required for identification. Depending on the product, that can include:

• Supported lamp type

• Lamp wattage

• Number of lamps

• Input voltage

• Starting method

• Wiring diagram

• Ballast factor

• Frequency

• Dimming capability

• Manufacturer model number

Lamp compatibility is particularly important. A ballast that physically fits inside the fixture is not necessarily electrically compatible with the lamps installed.

For dimming fluorescent systems, the ballast must also support the intended control method. Lumera's Dimmer Switch Guide explains that 0–10V control systems can communicate with compatible ballasts or LED drivers through a separate low-voltage control pair.

Are Lighting Ballasts Still Used?

Yes. Ballasts remain relevant wherever compatible fluorescent and HID lighting systems are still operating, particularly in existing commercial buildings, institutional facilities and older installations.

At the same time, many retrofit projects are transitioning from fluorescent lighting to LED technology. That shift has made ballast compatibility a major consideration during relamping: some projects retain the existing ballast with compatible LED tubes, while others remove the ballast and convert the fixture to a different electrical configuration.

Industry context: Fluorescent ballast efficiency has been subject to U.S. Department of Energy conservation standards since 1990, and DOE continues to maintain regulatory requirements and test procedures for fluorescent lamp ballasts.

For building owners and contractors, the practical decision is therefore no longer simply "Which ballast do I need?" It may also be "Should this fixture continue using a ballast, or is this the right point to convert the lighting system to LED?"

Lumera's guide to energy-efficient lighting provides additional context for comparing fluorescent and LED lighting when evaluating broader upgrades.

Key Takeaway

A lighting ballast starts and regulates fluorescent and certain other discharge lamps. It supplies the electrical conditions needed to start the lamp and then limits current during normal operation.

Magnetic and electronic ballasts accomplish that job differently, and individual lamps may require a particular ballast type, starting method or electrical specification.

LED lighting has changed the role of the ballast but has not made ballast knowledge obsolete. Existing fluorescent installations remain widespread, and many LED retrofit tubes must still be selected according to whether the ballast stays in the fixture or is removed.

For maintenance, replacement or retrofit work, always identify the existing lamp and ballast specifications before selecting new components.
