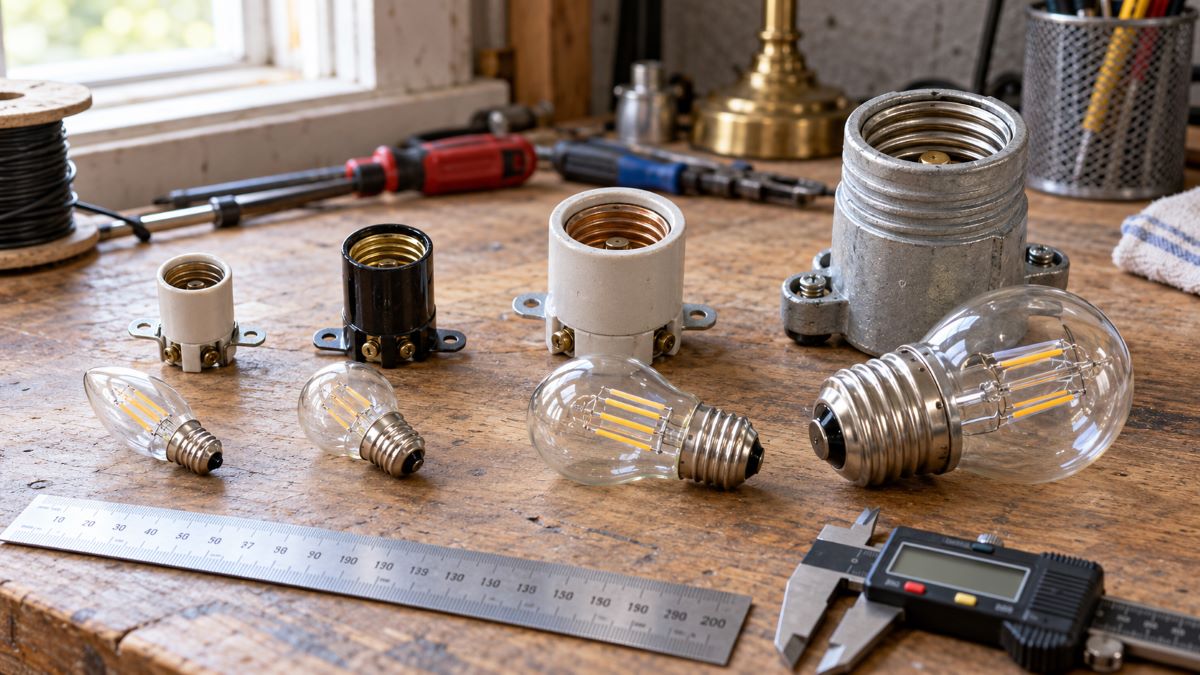

Light Bulb Socket Sizes and Dimensions: A Practical Guide

A replacement bulb can have the right wattage and shape and still be useless if the base does not fit the socket. The safest way to match a lamp is to identify both the base family and its size before buying the replacement.

For common Edison screw bases, the letter E identifies the Edison screw format and the number is tied to the nominal thread diameter in millimeters. That naming system makes E12, E17, E26, and E39 easier to distinguish, but the number is not a complete mechanical drawing of the socket. Contact depth, thread profile, shell construction, voltage rating, temperature rating, and fixture design still matter.

What Does a Light Bulb Socket Size Mean?

A light bulb socket size describes the mechanical interface that accepts the lamp base. With Edison screw bases, E26 means a medium screw base with a nominal diameter of about 26 mm; E12 is about 12 mm, E17 about 17 mm, and E39 about 39 mm.

Those nominal dimensions are useful for identification, but exact fit depends on the standardized base-and-lampholder geometry. Do not choose a replacement socket only because a ruler measurement looks close.

The Common Edison Screw Sizes

North American fixtures commonly use a handful of Edison screw sizes. E12 appears in chandeliers and decorative fixtures, E17 in appliances and specialty fixtures, E26 in general-purpose residential and commercial lamps, and E39 in larger HID and high-output applications. E11 is a smaller mini-candelabra format used in some specialty lamps.

If you are replacing the lamp rather than the socket, Lumera's LED Bulbs, Tubes & Lamps collection is a practical place to compare lamp options after the base type has been identified.

E26 vs. E27: Close in Size, Not a Universal Substitution

E26 and E27 bases are physically close, which is why they are often discussed together. The one-millimeter naming difference does not mean every E26 lamp and E27 lampholder combination should automatically be treated as interchangeable.

Voltage system, listing, contact geometry, fixture instructions, and regional product standards still matter. When replacing a lamp or lampholder, use the size and electrical ratings specified by the fixture or lamp manufacturer rather than relying on appearance alone.

How to Measure a Light Bulb Socket

First de-energize the fixture and verify that it is safe to inspect. If a known lamp was installed, read the base marking or product number before measuring anything. For an Edison socket, measure the approximate inside diameter across the threaded shell, not the outside diameter of the fixture body.

A measurement near 12 mm suggests E12, near 17 mm suggests E17, near 26 mm suggests E26, and near 39 mm suggests E39. Treat that measurement as an identification aid, then confirm the socket or fixture specification before ordering.

Dimensions That Matter Beyond Thread Diameter

Thread diameter is only the first compatibility check. A replacement socket also has to match the fixture mechanically and electrically.

Socket depth affects whether the lamp's center contact reaches correctly. The mounting method determines whether the socket threads, clips, brackets, or screws into the fixture. Voltage and wattage ratings must suit the circuit and lamp. Temperature rating matters in enclosed fixtures, ovens, range hoods, and other high-heat locations. Keyless, pull-chain, switched, and specialty lampholders may share a base size but are not functionally identical.

For that reason, replacing a lampholder is a component-selection task, not simply a diameter match.

Screw Bases vs. Pin and Twist-Lock Bases

Not every light bulb socket uses an Edison thread. GU10 lamps use a two-pin twist-lock connection, many fluorescent and LED tubes use bi-pin bases, MR16 lamps may use GU5.3 pins, and several commercial lamp families use dedicated pin or plug-in bases.

A designation beginning with G or GU describes a different base family from an E-series screw socket. Do not try to translate a pin-base number directly into an Edison diameter.

How to Choose a Replacement Socket

Start with the fixture label, old socket markings, or the lamp that was originally specified. Match the base family and size first, then verify voltage, wattage, temperature rating, mounting style, switch function, and any listing or location requirements.

When the fixture is metal, enclosed, damp-location rated, or used in a high-temperature application, use a replacement lampholder specifically intended for that environment. A general-purpose household socket should not be assumed to be suitable simply because the bulb screws into it.

A Useful Size Benchmark

The Edison naming system gives a fast dimensional reference: E12 is roughly 12 mm, E17 roughly 17 mm, E26 roughly 26 mm, and E39 roughly 39 mm in nominal screw diameter. That relationship is useful for field identification, but the standardized base geometry and the manufacturer's fixture specifications remain the final compatibility check.

Key Takeawa

Matching the socket or lampholder starts with the base family and nominal size, but a safe replacement also has to match the fixture's electrical rating, temperature rating, mounting method, and manufacturer requirements.
