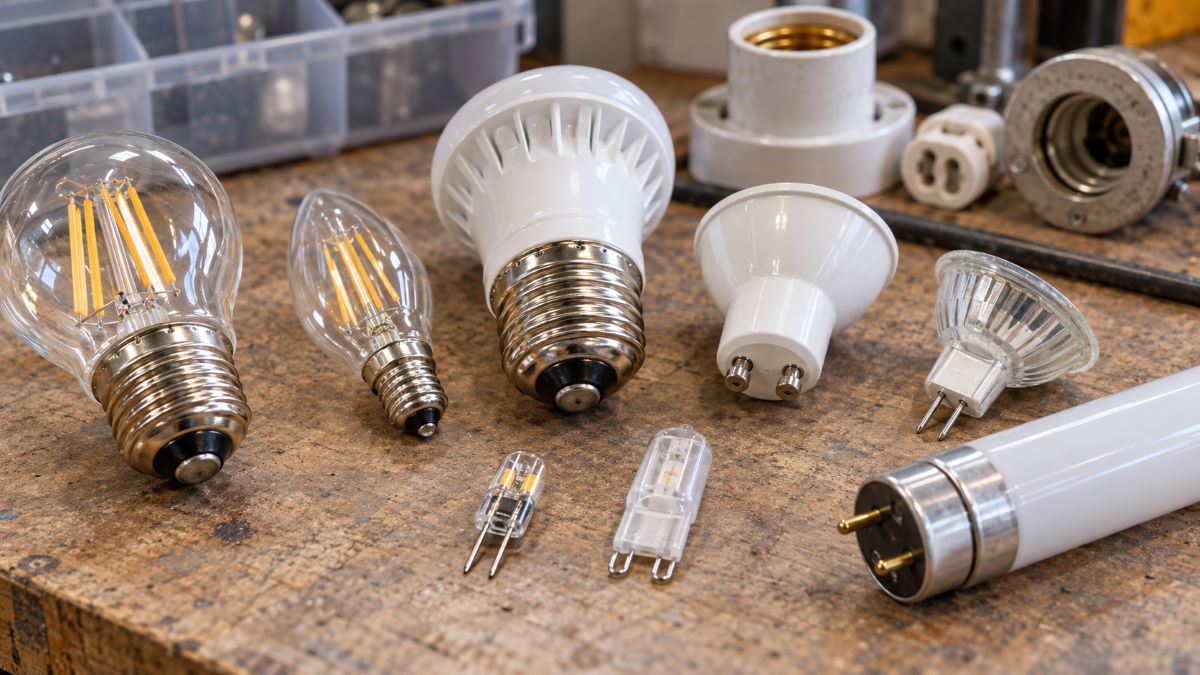

Light Bulb Base Types: A Practical Guide to Bulb Bases and Sockets

A replacement bulb can match the brightness, color temperature, and shape you want and still be unusable if the base is wrong. The base is the electrical and mechanical connection between the lamp and the socket, and it has to match the fixture exactly enough to seat, lock, and make the intended electrical contacts.

Base codes such as E26, E12, GU10, G4, and G13 look technical, but most are easier to decode once you separate the base family from the size or pin spacing. This guide covers the common families without turning one specific base, such as E26, into the whole subject.

Light Bulb Base vs. Bulb Shape: Do Not Mix Them Up

The bulb shape and the bulb base describe different parts of the lamp. A19, BR30, PAR38, T8, and G25 describe lamp shapes or form factors. E26, E12, GU10, and G13 describe the connection at the bottom or ends. One shape can sometimes be sold with more than one base, so both codes matter.

A common example is A19 vs. E26: A19 is a familiar household bulb shape, while E26 is the medium Edison screw base often attached to it. “A19” and “E26” are not competing names for the same thing.

Common Light Bulb Base Types at a Glance

A useful market context: IKEA’s U.S. bulb guidance estimates that roughly 90% of light bulbs sold in the United States use the medium E26 base. That explains why E26 dominates general-purpose replacement shopping, but it does not make E26 a safe assumption for chandeliers, track lights, appliance lamps, low-voltage fixtures, or linear lamps.

How Edison Screw Bases Are Named

For common Edison screw bases, the letter “E” identifies the Edison screw family and the number corresponds approximately to the base diameter in millimeters. That is why E12 is much smaller than E26, while E39 is the larger mogul size used on higher-output lamps.

The most common screw-base ladder in U.S. lighting is E12 candelabra, E17 intermediate, E26 medium, and E39 mogul. LEDVANCE’s light bulb shape and base guide lists these alongside the broader screw, twist-lock, bi-pin, fluorescent, and specialty families.

E26 vs. E27: Similar Size Does Not Mean “Always Interchangeable”

E26 and E27 are both medium Edison screw bases with very similar dimensions. In practice, compatibility also depends on the fixture’s voltage, lamp voltage, local electrical system, listing, and manufacturer instructions. Do not select a lamp only because the threads appear to fit.

For North American replacement work, match the code printed on the existing lamp or fixture whenever possible. That keeps the base, voltage, and intended system aligned instead of treating socket fit as the only requirement.

GU10 vs. GU5.3: Twist-Lock and Straight-Pin Bases

GU10 and GU5.3 are often seen on compact spot lamps, but they connect differently and commonly belong to different electrical systems. GU10 uses two short pins with enlarged ends that insert and twist into a locking socket. GU5.3 uses two straight pins spaced about 5.3 mm apart and is commonly associated with MR16 low-voltage lamps.

Do not force a pin-base lamp into a similar-looking socket. The base family, pin spacing, and fixture voltage should all match.

G4, G9, and Other Compact Pin Bases

Small decorative fixtures often use compact pin or loop bases because a full Edison screw would take too much space. G4 uses two closely spaced pins and is common in compact low-voltage applications. G9 uses loop-style contacts on many small line-voltage decorative lamps.

The naming pattern helps, but it does not replace the label. Closely related G, GU, GX, and GY codes can differ in pin diameter, keying, spacing, or mechanical fit. Match the full printed code rather than only the first letter and number.

Fluorescent and Linear Lamp Bases

Linear lamps use end bases instead of a screw base. G13 medium bi-pin bases are common on T8 and T12 tubes, while T5 lamps commonly use smaller G5 bi-pin bases. Plug-in compact fluorescent and HID lamps add many more keyed pin configurations.

When replacing a fluorescent lamp with LED, base fit is only one part of compatibility. The ballast or driver arrangement matters too, and some LED tubes require different wiring. Any ballast-bypass rewiring is electrical work and should be handled according to the product instructions and applicable code.

How to Identify the Base You Already Have

1.  Turn the light off and allow the lamp to cool before removing it.

2.  Look for the complete lamp code printed on the glass, plastic body, or metal base.

3.  Identify the connection family: screw, twist-lock, straight pin, loop pin, bayonet, or linear end cap.

4.  Measure only when the code is unreadable; for screw bases, diameter can help distinguish E12, E17, E26, and E39.

5.  Check fixture voltage, maximum lamp wattage, enclosed-fixture restrictions, and any dimming requirements before ordering the replacement.

Lumera’s LED Bulbs, Tubes & Lamps collection can be filtered by product family after the socket has been identified. Base fit should be confirmed before comparing lumens, color temperature, beam angle, or dimming.

Base Type Is Only One Compatibility Check

For technology selection after the base is settled, Lumera’s LED vs. Incandescent vs. Halogen vs. CFL comparison explains how the light-source technologies differ without mixing that decision with socket fit.

The Bottom Line

Choose a replacement lamp by matching the full base code first, then confirm voltage, shape, dimensions, light output, location rating, and dimming. E26 is the dominant general-purpose U.S. base, but decorative, recessed, low-voltage, linear, and commercial fixtures use many other families. The code on the old lamp or socket is more reliable than guessing from appearance.
