Ballast Bypass for LED Tubes: How It Works and What to Know

Replacing fluorescent tubes with LEDs seems straightforward until an existing ballast complicates the upgrade. Some LED tubes work with compatible fluorescent ballasts, while others require the ballast to be disconnected and the fixture converted for direct electrical power.

This conversion is called ballast bypass for LED tubes, and it is commonly considered when upgrading fluorescent troffers, strip fixtures, and other linear lighting systems.

Ballast bypass can eliminate an aging component, reduce maintenance requirements, and support efficient LED operation. However, it also changes the electrical configuration of the fixture and requires careful attention to lamp compatibility, socket design, and safety.

This guide explains how ballast bypass works, the differences between LED tube types, and what contractors and facility managers should consider before planning a retrofit.

What Is Ballast Bypass for LED Tubes?

Ballast bypass is the process of modifying a fluorescent light fixture so compatible LED tubes receive electrical power without using the original fluorescent ballast.

Traditional fluorescent lamps require a ballast to regulate electrical current. Most Type B LED tubes, also called direct-wire LED tubes, contain internal driver electronics that allow them to operate from their specified AC input.

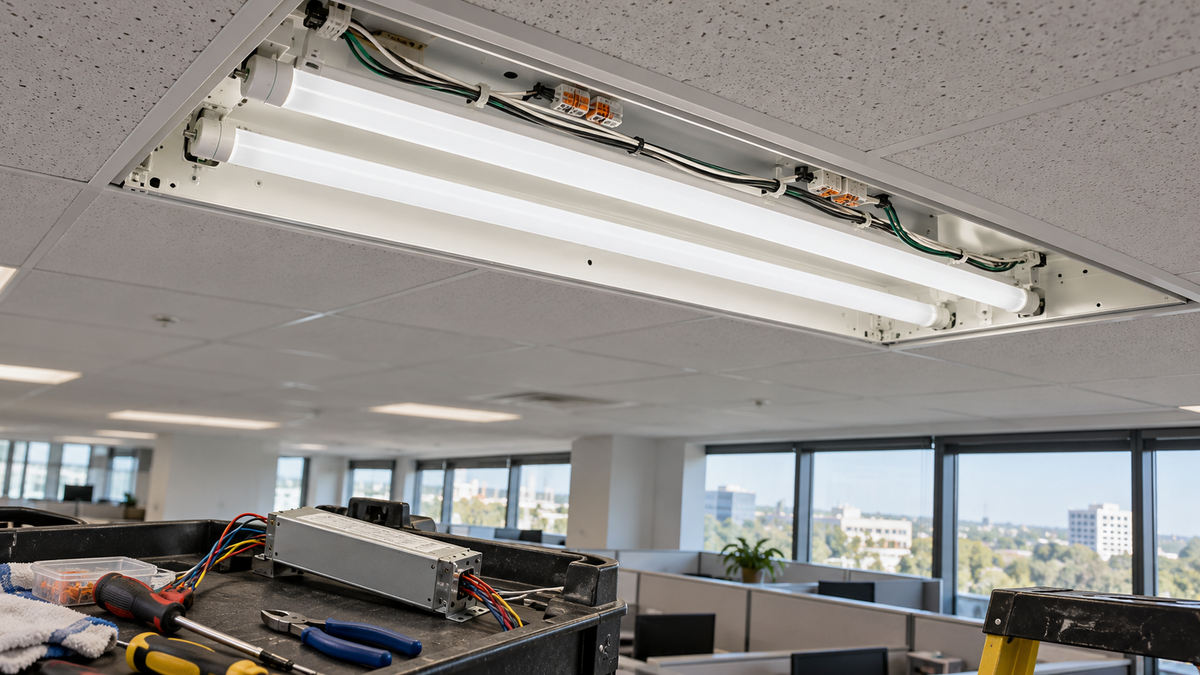

During a ballast-bypass conversion, a qualified electrician removes or electrically disconnects the ballast and modifies the fixture according to the approved LED retrofit instructions.

The converted fixture then supplies power to compatible LED tubes through the required lamp holders.

Ballast bypass is not simply replacing a fluorescent tube with an LED tube. It changes how the fixture delivers power and requires components specifically designed for that configuration.

Why Bypass a Ballast When Converting to LED?

A fluorescent ballast can remain an unnecessary component after an LED upgrade if the selected lamp is designed to operate without it.

Removing the ballast from the operating circuit offers several potential advantages.

Eliminate Ballast Maintenance

Fluorescent ballasts can fail as they age, causing lamps to flicker, stop operating, or behave inconsistently.

A properly converted Type B fixture no longer depends on the original fluorescent ballast.

This can reduce one source of future maintenance, particularly in commercial buildings with large numbers of linear fixtures.

Reduce Unnecessary Power Consumption

Fluorescent ballasts consume electrical power during operation.

A ballast-bypass LED system eliminates the original ballast's operating losses. However, actual energy savings depend on the existing ballast, the replacement LED tube, and operating conditions.

The LED tube still uses internal electronics, so ballast bypass does not eliminate all power-conversion losses.

Support Long-Term Retrofit Planning

For facilities with aging fluorescent equipment, direct-wire LED tubes may provide a practical way to retain suitable existing fixture housings.

This can be useful in offices, warehouses, schools, and commercial properties where replacing every complete luminaire may not be necessary.

The decision should account for installation labor, component compatibility, maintenance access, and the expected remaining service life of the fixture.

Type A vs. Type B vs. Type C LED Tubes

Not every LED tube operates the same way. Understanding LED retrofit classifications is essential before deciding whether ballast bypass is appropriate.

Type A: Plug-and-Play LED Tubes

Type A LED tubes operate using a compatible fluorescent ballast.

They generally allow a qualified user to replace fluorescent lamps without changing the fixture wiring, provided the manufacturer confirms ballast compatibility.

However, the ballast remains part of the electrical system and can still require maintenance or replacement.

Type B: Direct-Wire LED Tubes

Type B LED tubes operate without a fluorescent ballast.

Instead, the fixture is modified so the lamp receives its specified electrical input through the appropriate lamp holders.

This approach is commonly selected when existing ballasts are aging, incompatible, or unnecessary for the desired LED upgrade.

Type B conversions require suitable retrofit equipment and professional electrical work.

Type A/B: Hybrid LED Tubes

Hybrid LED tubes support both ballast-compatible and direct-wire operating modes when specifically certified for those applications.

They can offer flexibility for facilities planning lighting upgrades in stages.

However, a product's Type A/B designation does not remove the need to follow its exact installation and certification requirements.

Type C: External-Driver LED Tubes

Type C systems use a dedicated external LED driver rather than the original fluorescent ballast.

These systems can support specialized performance and lighting controls, depending on the manufacturer.

They require compatible lamps and drivers and should not be confused with Type B direct-wire systems.

For different LED tube options, explore Lumera Electric's Tube Lamps Collection.

Single-Ended vs. Double-Ended Ballast Bypass

One of the most important considerations in a Type B conversion is how the LED tube receives electrical power.

Some products use single-ended power connections, while others use double-ended connections.

These arrangements are not automatically interchangeable.

Single-Ended LED Tube Wiring

Single-ended LED tubes receive their specified electrical supply through connections at one end of the lamp.

For conventional line-and-neutral single-ended designs, the powered end uses separate electrical contacts.

This generally requires non-shunted lamp holders, which keep the two socket contacts electrically isolated.

Using an incompatible shunted socket can create a short circuit or other electrical hazard.

The opposite end typically provides mechanical support, subject to the specific product design.

Double-Ended LED Tube Wiring

Double-ended LED tubes receive electrical power through opposite ends of the lamp.

For common line-and-neutral designs, one end receives line power while the other receives neutral.

Some double-ended products permit existing shunted or non-shunted lamp holders, but compatibility must be confirmed through the manufacturer's installation instructions.

A double-ended LED tube should never be assumed compatible with a single-ended fixture configuration.

Why Lamp Holder Compatibility Matters

Lamp holders, often called tombstones, are available in different electrical configurations.

• Shunted lamp holders: Their two internal contacts are electrically connected.

• Non-shunted lamp holders: Their contacts remain electrically separate.

The correct type depends on the LED tube and its specified wiring arrangement.

Even when a lamp physically fits an existing socket, that does not guarantee electrical compatibility.

How Does the Ballast Bypass Process Work?

A ballast-bypass retrofit involves modifying the original electrical connections inside a fluorescent fixture.

Because the work can expose installers to line voltage and changes the fixture's electrical configuration, it should be completed by a qualified electrician using a suitable certified retrofit product.

The following overview describes the professional workflow rather than providing a universal wiring diagram.

Step 1: Identify the Existing Fixture

The electrician first assesses the fixture's construction, ballast, lamp holders, and electrical supply.

Important information includes the original lamp type, fixture condition, operating voltage, and any special controls or emergency lighting components.

The selected retrofit product must be suitable for the existing luminaire.

Step 2: Select a Compatible LED Retrofit

The replacement tube must match the intended operating method.

A Type B lamp designed for single-ended power cannot automatically replace a double-ended product.

The electrician also checks the applicable retrofit certification, lamp-holder compatibility, electrical ratings, and manufacturer instructions.

Step 3: De-Energize and Verify the Circuit

Before accessing electrical connections, qualified personnel must isolate the relevant electrical supply and verify the absence of voltage using appropriate test equipment.

A wall switch in the off position is not sufficient proof that the fixture is safe to work on.

Applicable workplace lockout/tagout procedures must also be followed.

Step 4: Modify the Fixture According to the Retrofit Instructions

The electrician disconnects or removes the fluorescent ballast and establishes the connections required by the certified retrofit system.

Lamp holders may need replacement if their design is incompatible with the selected LED tube.

The exact connections depend on the product's specified electrical configuration.

Generic wiring diagrams should never replace the manufacturer's approved instructions.

Step 5: Label and Inspect the Converted Fixture

Proper retrofit identification helps future maintenance personnel recognize that the fixture no longer operates as originally manufactured.

Certified conversion products provide required labeling and installation information.

Before the fixture returns to service, the installer must check the completed work according to the product instructions and applicable electrical requirements.

Step 6: Complete Functional Verification

After the appropriate inspections and safety checks, qualified personnel can restore power and verify operation.

Any unexpected behavior should be investigated before the fixture is placed into regular service.

Important Safety Considerations for Ballast Bypass

Ballast bypass introduces electrical risks that should not be underestimated.

Unlike a conventional fluorescent fixture, a direct-wire LED configuration can supply line voltage directly to lamp-holder contacts.

Depending on the design, hazardous voltage may be accessible at the pins of an incompletely inserted lamp.

Important precautions include:

• Use LED tubes and retrofit kits certified for the intended application.

• Follow the exact manufacturer-provided wiring configuration.

• Confirm the required supply voltage and frequency.

• Verify whether the product uses single-ended or double-ended power.

• Use compatible shunted or non-shunted lamp holders.

• Maintain required grounding and enclosure protections.

• Apply all required retrofit identification labels.

• Follow applicable electrical codes and workplace safety procedures.

• Have the conversion performed by qualified electrical personnel.

The Occupational Safety and Health Administration's electrical safety requirements address de-energizing equipment and verifying that exposed electrical components are safe before work begins.

UL Solutions also emphasizes that certified LED conversion kits must be installed according to their approved instructions to maintain the converted fixture's compliance with applicable requirements.

When Is Ballast Bypass the Right Choice?

Ballast bypass can be practical when an existing fixture is structurally suitable for continued use but its fluorescent ballast is approaching the end of its useful service life.

It may also make sense when a facility wants to standardize direct-wire LED maintenance across multiple fixtures.

However, bypass is not automatically the best approach for every retrofit.

Consider Ballast Bypass When:

• Existing fluorescent ballasts are aging or unreliable.

• Compatible Type B LED tubes are available.

• Fixture housings and lamp holders can support an approved conversion.

• Reducing future ballast maintenance is a priority.

• Professional retrofit labor is available.

Consider Other Retrofit Options When:

• Existing compatible ballasts remain in good condition and a Type A upgrade meets project needs.

• The fixture is damaged, outdated, or poorly suited to the intended lighting distribution.

• Advanced dimming or controls require a different driver arrangement.

• Emergency lighting functions complicate the conversion.

• Complete LED fixture replacement provides better overall value.

Facility managers should compare total project costs rather than relying only on the purchase price of replacement tubes.

Ballast Bypass vs. Replacing the Entire Fixture

When upgrading fluorescent lighting, one alternative is to replace the complete luminaire with a purpose-built LED fixture.

Both approaches have advantages.

A complete LED fixture may offer better optical control or integrated features, while a retrofit can preserve serviceable existing equipment.

The preferred solution depends on the condition of the installation, desired performance, and long-term maintenance requirements.

Common Ballast Bypass Mistakes

Several problems can occur when contractors or facility teams select incompatible equipment or overlook retrofit requirements.

Choosing the Wrong LED Tube Type

A Type A lamp requires a compatible ballast, while a Type B lamp is designed for direct-wire operation.

Installing either product in an unsuitable configuration can damage equipment or create electrical hazards.

Ignoring Single-Ended and Double-Ended Differences

Two LED tubes may have identical dimensions but require entirely different electrical connections.

Always check the specific manufacturer's instructions.

Using Incompatible Lamp Holders

Physical lamp fit does not establish electrical compatibility.

Shunted and non-shunted sockets must be matched to the approved wiring configuration.

Failing to Label the Modified Fixture

A converted fixture should be appropriately labeled so future maintenance workers understand its electrical configuration.

This reduces the risk of installing an incompatible replacement lamp.

Overlooking Existing Fixture Condition

An LED retrofit does not repair damaged wiring, deteriorated lamp holders, or unsafe fixture construction.

Existing equipment should be assessed before deciding to retain it.

Environmental Considerations During LED Conversion

Converting fluorescent fixtures to LEDs also requires appropriate handling of removed equipment.

Fluorescent lamps commonly contain mercury and should be managed according to applicable recycling and waste requirements.

Some older fluorescent ballasts may contain polychlorinated biphenyls (PCBs).

According to the U.S. Environmental Protection Agency, fluorescent lighting ballasts manufactured through 1979 may contain PCBs. The EPA recommends appropriate management and disposal of affected equipment.

Removed lamps and ballasts should not automatically be placed in ordinary waste containers.

Contractors and facility managers should identify applicable local disposal requirements and use qualified recycling or waste-management services when necessary.

Key Takeaways

• Ballast bypass removes the fluorescent ballast from operation. Compatible Type B LED tubes receive power directly through the converted fixture.

• LED tube type determines the retrofit method. Type A uses a compatible ballast, Type B operates without one, and Type C uses a dedicated LED driver.

• Single-ended and double-ended wiring are different. The chosen LED tube determines the required power configuration.

• Lamp-holder compatibility is essential. Shunted and non-shunted sockets cannot be treated as interchangeable in every installation.

• Professional installation protects safety. Ballast bypass requires electrical modifications, appropriate certification, and compliance with manufacturer instructions.

• Evaluate the complete retrofit cost. Installation labor, maintenance, fixture condition, and long-term performance all influence the best upgrade strategy.
