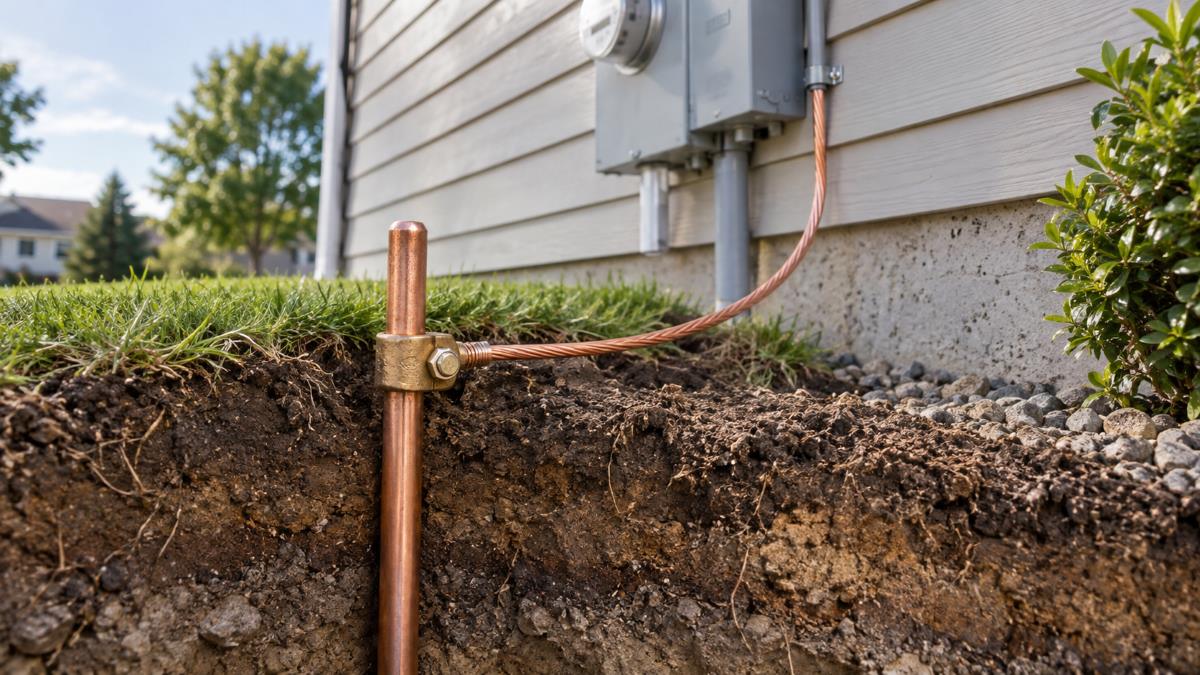

Ground Rod Requirements & Installation

A ground rod is one of the grounding electrodes the National Electrical Code recognizes for connecting a building's electrical system to the earth, and it's the electrode most jobs end up installing when no metal water pipe or concrete-encased electrode is available. NEC Article 250 sets specific rules for how long the rod has to be, how many are needed, and how they connect back to the system, and getting any of those details wrong is one of the more common reasons a rough-in fails inspection. A secure connection at the rod itself depends on a listed ground clamp rated for direct burial, matched to the conductor size specified in NEC Table 250.66. This guide covers rod specifications, spacing and the 25-ohm rule, and a step-by-step installation process.

What a Ground Rod Does

A ground rod, technically a rod or pipe electrode under NEC 250.52(A)(5), gives fault current and lightning-related surges a path into the earth, helping stabilize system voltage and reduce shock hazard. It works alongside, not instead of, the equipment grounding conductors that run through a building's wiring; the rod connects the service to the earth itself, while the equipment grounding system provides the low-impedance path back to the source that actually clears a fault quickly. A building is required to use every qualifying electrode present, such as a metal underground water pipe or a concrete-encased electrode, and rod electrodes are typically added as the supplemental or sole electrode when nothing else qualifies.

Ground Rod Specifications at a Glance

The 25-Ohm Rule and the "Two-Rod" Workaround

NEC 250.53(A)(2) requires a single rod, pipe, or plate electrode to be supplemented with an additional electrode unless it tests at 25 ohms or less to earth. Testing resistance requires a ground resistance tester and isn't always practical on a typical job, which is why most electricians simply install a second rod from the start rather than testing the first one. Installing two rods spaced correctly satisfies the code automatically, with no resistance test required, regardless of what the combined system would actually measure. This is the reason two ground rods are far more common in the field than a single tested rod, even though the code technically allows one if it passes the test.

Why Spacing and Depth Both Matter

Two rods driven too close together behave electrically like one larger rod instead of two independent ones, because their zones of influence in the soil overlap and reduce the combined benefit. The 6-foot minimum spacing keeps that overlap low enough that both rods contribute meaningfully to lowering total resistance; spacing them farther apart than the 6-foot minimum, where the layout allows it, improves performance further. Depth matters for a related but different reason: surface soil dries out, freezes, and shifts seasonally, while soil several feet down stays more consistently moist, which is what actually gives the rod a low-resistance path. A rod that's only partially driven, or cut short to avoid an obstruction without a code-recognized workaround, won't reliably deliver the resistance performance the 8-foot depth is meant to achieve.

When You Hit Rock: Code-Approved Alternatives

Not every site has 8 feet of clear soil, and NEC 250.53(G) provides specific alternatives rather than allowing an installer to simply cut the rod short:

• Angled installation: the rod can be driven at an angle up to 45 degrees from vertical if that allows it to reach full depth around an obstruction.
• Trenched installation: if even an angled rod can't reach full depth, it can be laid in a trench at least 30 inches deep instead.
• What's not allowed: cutting the rod shorter than 8 feet to make it fit is not a recognized option; doing so fails to meet the minimum electrode contact length the code requires.

Step-by-Step: Installing a Ground Rod

• Call 811 before digging. Confirm the location is clear of underground utilities before driving anything into the ground.
• Choose the location. Position the rod near the service equipment where the grounding electrode conductor can run to it by the shortest practical path.
• Drive the rod. Using a slide hammer, rotary hammer with a ground rod driving attachment, or a manual driving tool, drive the rod vertically until it's flush with or just below grade, keeping it as straight as possible to avoid bending.
• Handle obstructions correctly. If rock is hit before full depth, switch to the angled or trenched method rather than stopping short.
• Connect the grounding electrode conductor.
• Add a second rod if needed. Unless the first rod was tested at 25 ohms or less, install a second rod at least 6 feet away and bond it to the same grounding electrode conductor system.
• Protect and inspect. Confirm the connection is secure, verify conductor sizing against NEC Table 250.66, and leave the connection point accessible for the inspector.

Sizing the Grounding Electrode Conductor

The grounding electrode conductor connecting a rod electrode to the system doesn't need to be sized as large as it would for other electrode types; NEC 250.66(A) caps the required size for a connection to a rod, pipe, or plate electrode at 6 AWG copper, even on services where the general sizing table would otherwise call for something larger. Conductors smaller than 6 AWG that run exposed generally need physical protection, such as rigid conduit; connections between the wire connectors or lugs used at the panel end and the acorn clamp at the rod both need to be listed for their specific application and accessible for inspection.

Common Mistakes That Fail Inspection

• Rod not driven to full depth: a rod left a foot or two proud of full depth without a code-recognized reason is a straightforward fail.
• Cutting the rod to length: shortening a rod to make it fit is not an approved alternative to the angled or trenched method.
• Using a non-listed clamp: a hardware-store hose clamp or non-listed connector at the rod is not acceptable; the clamp must be listed for direct burial.
• Rods spaced too close together: less than 6 feet apart defeats much of the purpose of installing a second rod.
• Undersized or unprotected conductor: a conductor smaller than 6 AWG run without conduit where physical protection is required is a common rough-in citation.

The Bottom Line

A code-compliant ground rod installation comes down to a handful of specific numbers: 8 feet of length in full contact with the soil, 5/8-inch minimum diameter for standard rods, 6 feet of separation between multiple rods, and a 25-ohm resistance threshold that most electricians sidestep by simply installing two rods from the start. Handling rock correctly with an angled or trenched installation, rather than cutting the rod short, and using a listed direct-burial clamp for the connection are what separate an installation that passes inspection the first time from one that gets red-tagged for an easily avoidable detail.
