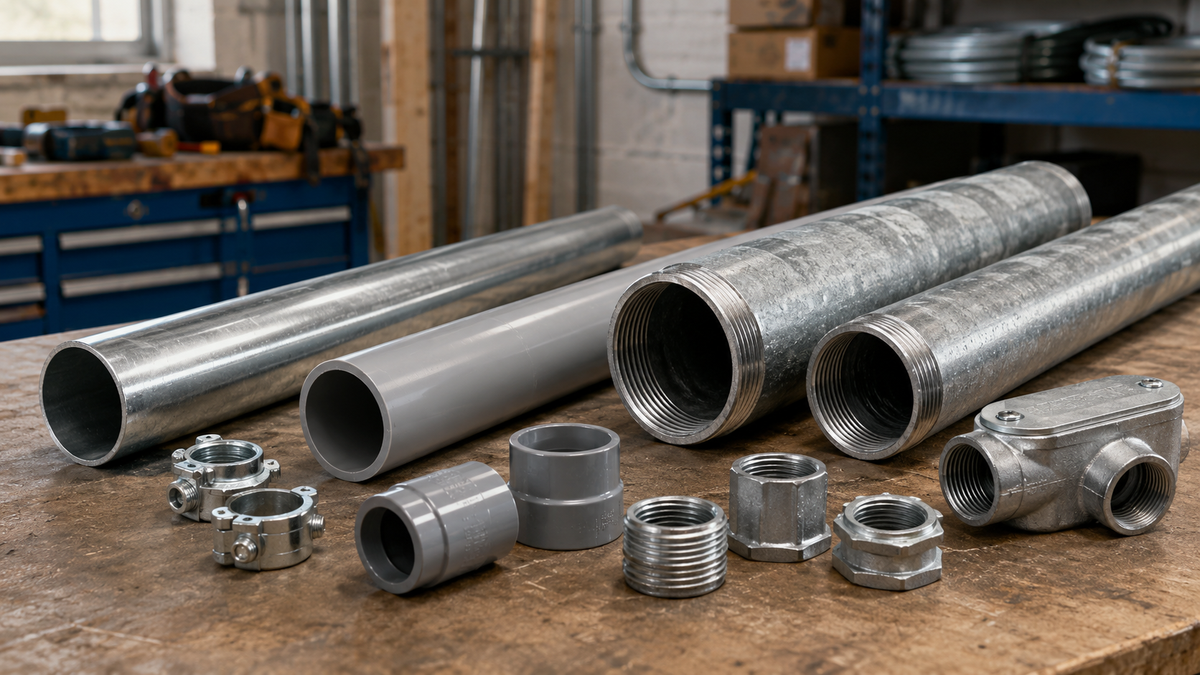

EMT vs PVC vs Rigid Conduit Explained

Conduit protects and routes electrical wiring, but the three main types, EMT, PVC, and rigid metal, are built for very different jobs, and choosing the wrong one means either overpaying for protection you don't need or installing something that won't survive its environment. The decision comes down to where the run goes and how much mechanical protection it needs, with one practical catch, grounding, that works completely differently between metal and plastic. This guide compares the three (plus IMC, the middle option), and the EMT and conduit fittings that make each system work. Sizing follows the same 40 percent fill rule for all of them.

The Three Types in Brief

• EMT (thin-wall) is lightweight steel tubing for indoor, protected runs. It isn't threaded, joins with setscrew or compression fittings, and is the cheapest and fastest metal option.
• PVC is rigid plastic conduit for underground, wet, and corrosive locations. It glues together, never rusts, but is nonconductive, so it needs a separate ground wire.
• Rigid metal (RMC) is thick, threaded steel for maximum protection in harsh and hazardous locations. IMC is its lighter, thinner-walled cousin approved for the same uses.

EMT vs PVC vs Rigid at a Glance

EMT (Electrical Metallic Tubing)

Often called thin-wall, EMT is a lightweight steel (or aluminum) raceway governed by NEC Article 358. It can't be threaded, so sections join with setscrew or compression fittings, and it bends easily with a standard hand bender, which makes it the cheapest metal option and the fastest to install, typically 20 to 30 percent quicker than rigid. Its home is indoor, dry, non-hazardous work: exposed or concealed runs in commercial walls, ceilings, basements, garages, and warehouses. It can be used outdoors, but only with rain-tight compression fittings rated for wet locations, standard setscrew fittings are not. What EMT is not for: areas subject to severe physical damage, hazardous locations, or direct burial, where its thin wall and corrosion exposure rule it out. Installed with proper fittings, an EMT run serves as the equipment grounding conductor.

PVC (Rigid Nonmetallic Conduit)

PVC conduit (NEC Article 352) is rigid plastic, and its advantages follow from being plastic: it never rusts, resists corrosive chemicals and salt air, doesn't conduct electricity, and costs less than any metal option. It joins with solvent-weld cement (which needs cure time) and bends with heat, and it comes in Schedule 40 for standard use and thicker-walled Schedule 80 for areas exposed to physical damage. It's the standard choice for underground direct burial, concrete-encased runs, and wet or corrosive environments, including coastal sites where metal corrodes fast.

PVC's defining catch is grounding. Because it's nonconductive, a PVC run cannot serve as the equipment ground the way metal conduit does, so you must pull a separate equipment grounding conductor (a green or bare wire) inside it. Forgetting this is a serious and surprisingly common mistake. Two more quirks: PVC expands and contracts significantly with temperature, so long exposed runs need expansion fittings, and it needs Schedule 80 (or another method) anywhere it's subject to physical damage. Proper grounding hardware and bonding are essential on any PVC system.

Rigid Metal Conduit (RMC) and IMC

Rigid Metal Conduit (NEC Article 344) is the heavyweight: thick-wall galvanized steel with threaded ends and threaded fittings, offering the highest mechanical protection of any conduit. It's the “go-anywhere” raceway, permitted in essentially all conditions, including areas subject to severe physical damage, hazardous (classified) locations, direct burial, concrete encasement, and service-entrance masts. It also serves as an equipment grounding conductor with no additional requirements. The trade-offs are weight and labor: RMC is roughly three times heavier than EMT and the most expensive to buy and install, with threading pushing labor to around 1.8 to 2.5 times that of EMT. Its threaded conduit bodies and fittings are heavier to match.

IMC (Intermediate Metal Conduit, NEC Article 342) is the middle ground worth knowing. It has thinner walls than RMC but uses a stronger steel, so it keeps comparable strength while weighing about a third less, and it uses the same threading. IMC is approved for all the same demanding applications as RMC, including severe physical damage and hazardous locations, and it also works as a ground path. When you need rigid-level protection but want to save weight and labor cost, IMC is often the smarter pick.

The Grounding Difference (Don't Miss This)

If you take one thing from this comparison, make it this. Metal conduit, EMT, IMC, and RMC alike, is recognized by the code as an equipment grounding conductor when properly installed, so the raceway itself carries the ground. PVC is plastic and nonconductive, so it carries no ground at all, which means every PVC run requires a separate green or bare equipment grounding conductor pulled inside it. Designing a PVC circuit as if the conduit would ground it, the way metal does, leaves equipment ungrounded and is a genuine safety hazard. Always account for the ground wire when you spec PVC.

Joining Methods

How each type connects shapes both labor and where it's allowed. EMT uses setscrew fittings indoors and compression (rain-tight) fittings where a watertight seal is needed. PVC uses solvent-weld cement that chemically fuses the joint, simple, but requiring correct technique and cure time. RMC and IMC use threaded connections, which give the strongest, most watertight joints but demand cutting and reaming clean threads (a rushed thread leaves sharp edges that damage conductors). Matching the right electrical fittings and bushings to the conduit type is part of a compliant, protected install.

Environment Decides

As with most raceway questions, the installation environment makes the call. Indoor, dry, exposed or concealed runs point to EMT for its low cost and fast installation. Underground, wet, corrosive, or coastal locations point to PVC, which shrugs off moisture and chemicals. Areas subject to severe physical damage, hazardous classified locations, and the harshest industrial conditions call for RMC or IMC. And many real projects combine them: the classic arrangement runs PVC underground and transitions to metal conduit above ground where it emerges, using approved fittings and maintaining grounding and bonding continuity across the transition, with joints sealed against moisture.

Cost and Labor

Budget tracks both material and, often more importantly, labor. EMT is the least expensive metal conduit and the fastest to install, so it keeps an indoor schedule moving. PVC has the lowest material cost of all and needs no threading or heavy lifting, though you plan around solvent cure time. RMC is the most expensive and heaviest, with threading driving labor well above the others, and IMC sits between, lighter and cheaper than RMC while offering the same protection. On large projects, the labor differences can outweigh the material savings, so installation speed is a real factor, not just an afterthought.

Which Should You Choose?

• Choose EMT for indoor, dry, protected commercial and industrial runs where cost and speed matter and there's no severe-damage or hazardous exposure. Use compression fittings if it's a damp or outdoor-protected location.
• Choose PVC for underground, direct-burial, concrete-encased, wet, and corrosive locations, remembering to pull a separate ground wire and to plan for expansion on long exposed runs.
• Choose RMC or IMC for severe physical damage, hazardous locations, service masts, and the harshest environments, reaching for IMC when you want that protection with less weight and labor.

The Bottom Line

EMT, PVC, and rigid conduit each own a niche. EMT is the cheap, fast, thin-wall metal choice for indoor protected runs, joined with setscrew or compression fittings. PVC is the corrosion-proof plastic choice for underground, wet, and corrosive locations, glued together and, crucially, requiring a separate ground wire because it can't ground the circuit itself. RMC, with IMC as its lighter equal, is the threaded, thick-wall metal choice for severe damage and hazardous areas, and it grounds through the conduit. Let the environment and required protection drive the selection, respect the grounding difference between metal and plastic, size every type to the 40 percent fill limit, and match the fittings to the system. Chosen well, the conduit protects the wiring for the life of the building.
